소개 및 안전 정보
This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your GREENCUT GS680X petrol chainsaw. Please read this manual thoroughly before operating the chainsaw to ensure your safety and prolong the life of the tool. Keep this manual in a safe place for future reference.
일반 안전 경고
- Always wear appropriate personal protective equipment (PPE) including a helmet, eye protection, hearing protection, gloves, and safety boots when operating the chainsaw.
- Ensure the work area is clear of bystanders, children, and pets. Maintain a safe distance of at least 10 meters (33 feet).
- Do not operate the chainsaw when you are tired, under the influence of drugs, alcohol, or medication.
- Inspect the chainsaw before each use for any damaged parts, loose fasteners, or fuel leaks. Do not operate a damaged chainsaw.
- Handle fuel with extreme care. Refuel in a well-ventilated area with the engine off and cool. Avoid smoking or open flames near fuel.
- Be aware of kickback. Kickback can occur when the moving chain at the nose of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.
- 항상 두 손으로 전기톱을 단단히 잡으십시오.
- The safety lock prevents accidental start-up, protecting the user from injury. This essential feature ensures total control over the tool at all times.
영상: Chainsaw with safety lock. The safety lock mechanism is crucial for preventing accidental starts and ensuring user safety during operation.
제품 끝view 및 기능
The GREENCUT GS680X is a powerful and efficient petrol chainsaw designed for demanding cutting tasks. Its robust construction and advanced features ensure reliable performance and user comfort.
영상: 위에view of the GREENCUT GS680X chainsaw, highlighting its dimensions (86cm length, 28cm height, 26cm width) and key specifications: 3.9 HP power, 11,000 RPM max rate, 68cc cylinder, and a 22-inch (558mm) cutting diameter. It also mentions TRU-SHARP technology for precision and blockage prevention.
주요 특징:
- 강력한 엔진: Equipped with a 68cc, 3.9hp 2-stroke petrol engine for demanding cutting tasks.
- 22-inch Blade with TRU-SHARP Technology: Ensures precise and efficient cuts, minimizing blockages and kickback.
- 진동 방지 시스템: Features silent blocks to significantly reduce fatigue during extended use, enhancing comfort and control.
- Easy-Start System: Facilitates quick and reliable starting, even with cold assistance.
- Automatic and Adjustable Oil Pump: Provides constant lubrication to the guide bar and chain.
- 연료 효율성: Designed for optimal performance with a petrol and 2-stroke oil mixture, allowing for prolonged operation.
영상: 상세한 views of the chainsaw's features. Top left shows the Silent Blocks System for vibration absorption. Top right illustrates the Easy-Start mechanism for easier ignition. Bottom left highlights TRU-SHARP Technology for efficient and safer working. Bottom right displays the Safety Ignition with a double safety button for secure grip.
설정 및 조립
Before operating your chainsaw, proper assembly and preparation are crucial for safety and performance.
1. 개봉 및 검사
- 포장에서 모든 구성 요소를 조심스럽게 제거합니다.
- Verify that all parts listed in the manual are present and undamaged.
- Familiarize yourself with the chainsaw's components: engine unit, guide bar, saw chain, chain cover, and tools.
2. 가이드 바 및 체인 설치
- 엔진이 꺼져 있고 점화 플러그 캡이 분리되어 있는지 확인하십시오.
- 너트 두 개를 풀어 체인 커버를 제거하십시오.
- Place the chain around the sprocket and guide bar, ensuring the cutting edges face forward in the direction of rotation.
- 가이드 바를 스터드에 장착하고 체인 장력 조절 핀을 가이드 바의 구멍에 맞춥니다.
- Replace the chain cover and hand-tighten the nuts. Do not fully tighten yet.
3. 체인 장력 조정
Proper chain tension is vital for safe and efficient operation. The chain should be snug against the guide bar but still able to be pulled around by hand.
- Using the side chain tensioner, adjust the chain tension. Turn the screw clockwise to tighten and counter-clockwise to loosen.
- Lift the tip of the guide bar slightly while tightening the nuts to ensure proper tension.
- Once tension is correct, fully tighten the two nuts on the chain cover.
- Check the tension again after tightening the nuts.
영상: A hand adjusting the side chain tensioner. This mechanism allows for easy and quick adjustment of the saw chain tension, which is critical for safe and effective cutting.
4. Fuel and Chain Oil Filling
- The GS680X uses a mixture of unleaded petrol and 2-stroke engine oil. Refer to the engine oil manufacturer's instructions for the correct mixing ratio (typically 25:1 or 40:1, depending on oil type).
- 준비된 연료 혼합물을 연료 탱크에 채우십시오.
- Fill the chain oil tank with high-quality chain lubricant. Do not use waste oil.
- Ensure both caps are securely tightened to prevent leaks.
작동 지침
Starting the Chainsaw (Easy-Start System)
- 전기톱을 단단하고 평평한 표면에 놓으세요.
- 앞쪽 핸드 가드를 앞으로 밀어 체인 브레이크를 작동시킵니다.
- 전원 스위치를 "켜짐" 위치로 설정하십시오.
- Pull out the choke knob (for cold start).
- 연료가 보일 때까지 프라이머 벌브를 여러 번 누릅니다.
- 엔진에 시동이 걸릴 때까지 시동줄을 단단하고 꾸준하게 당기십시오(보통 몇 번 당기면 됩니다).
- Once the engine fires, push the choke knob back in.
- 엔진이 시동이 걸리고 원활하게 작동할 때까지 시동줄을 다시 당기십시오.
- 체인 브레이크를 해제하고 작업을 시작하기 전에 엔진이 잠시 예열되도록 하십시오.
절단 기술
Always plan your cut before starting. Be aware of the direction the wood will fall and clear your escape path.
- 벌목: For felling trees, make a directional notch on the side the tree is intended to fall, then make the felling cut from the opposite side, slightly above the notch.
- 사지: Remove branches from a fallen tree. Work from the base of the tree towards the top, cutting smaller branches first. Be careful of branches under tension.
- 버킹: Cutting a fallen log into sections. Support the log to prevent pinching the chain. Cut from the top down if the log is supported at both ends, or from the bottom up (undercut) if supported at one end.
영상: A person operating the GREENCUT GS680X chainsaw to cut a large log. This chainsaw is ideal for cutting medium and large branches, as well as felling and pruning medium-sized trees, thanks to its 22-inch blade and powerful 68cc engine. The image also indicates 86 teeth on the chain and a maximum recommended diameter of 55-95cm for cutting.

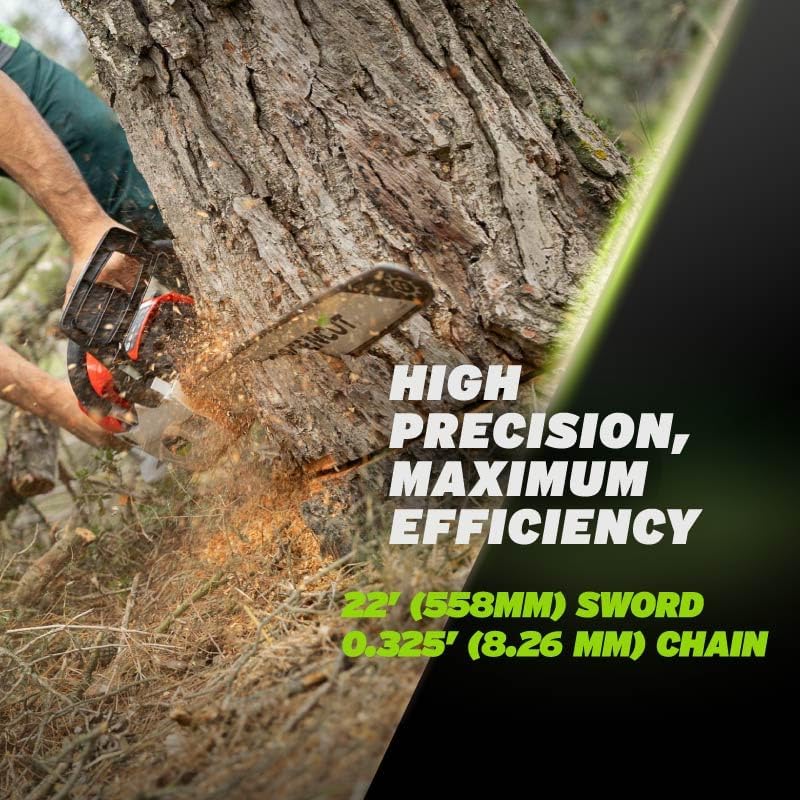

영상: The chainsaw in action, demonstrating high precision and maximum efficiency during cutting. The image specifies the 22-inch (558mm) sword and 0.325-inch (8.26mm) chain, which contribute to its cutting performance.
유지
Regular maintenance is essential for the longevity and safe operation of your GREENCUT GS680X chainsaw.
영상: The chainsaw designed for convenient maintenance, featuring easy access points for the air filter, spark plug, and carburetor. This design simplifies routine checks and cleaning.
Daily Maintenance (Before Each Use)
- 체인 장력을 확인하세요.
- 체인의 날카로움과 손상 여부를 점검하십시오. 필요에 따라 날카롭게 갈거나 교체하십시오.
- Check chain oil level and fuel level.
- 공기 필터를 청소하세요.
- Inspect the guide bar for wear and burrs.
- 모든 너트와 볼트가 단단히 조여져 있는지 확인하십시오.
주간 유지 관리
- Clean the spark plug and check the electrode gap. Replace if worn.
- 엔진의 냉각 핀을 청소하세요.
- Clean the chain brake mechanism.
- Rotate the guide bar to ensure even wear.
체인 샤프닝
A sharp chain is crucial for safe and efficient cutting. Sharpen the chain regularly using a round file of the correct diameter (refer to chain specifications) and a flat file for depth gauges. If unsure, have it professionally sharpened.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 엔진이 시동되지 않습니다 | 연료 부족, 초크 설정 오류, 점화 플러그 오염, 연료 필터 막힘. | 연료량과 혼합비를 확인하고, 초크를 조정하고, 점화 플러그를 청소/교체하고, 연료 필터를 청소/교체하십시오. |
| 엔진 시동은 걸리지만 꺼집니다. | Incorrect fuel mixture, dirty air filter, carburetor issues. | Verify fuel mixture, clean air filter, adjust carburetor (professional service recommended). |
| Chainsaw cuts poorly or slowly | 체인이 둔해졌거나, 체인 장력이 맞지 않거나, 가이드 바가 마모되었습니다. | Sharpen or replace chain, adjust chain tension, replace guide bar. |
| 과도한 진동 | Loose components, damaged anti-vibration mounts, bent guide bar. | Check and tighten all fasteners, inspect anti-vibration system, replace damaged parts. |
| Chain oil not flowing | 오일 탱크가 비어있거나, 오일 주입구가 막혔거나, 오일 펌프가 고장났을 수 있습니다. | Refill oil tank, clean oil port, inspect/replace oil pump (professional service recommended). |
기술 사양
| 모델 번호 | GS680X |
| 엔진 유형 | 2행정 가솔린 엔진 |
| 배수량 | 68cc |
| 전력 출력 | 3.9 hp (2868 Watts) |
| 가이드 바 길이 | 22인치(56cm) |
| 체인 유형 | 0.325" (8.26 mm) pitch, TRU-SHARP technology |
| 최대 엔진 속도 | 11,000 RPM |
| 연료 유형 | Unleaded petrol / 2-stroke engine oil mixture |
| 무게 | 7.5kg |
| 제품 크기(L x W x H) | 86 x 26 x 28cm |
| 포함된 구성 요소 | Chainsaw unit, tools, accessories, instruction manual |
보증 및 지원
보증 정보
The GREENCUT GS680X chainsaw comes with a 3년 보장 구매일로부터. 본 보증은 정상적인 사용 조건에서 발생한 제조상의 결함 및 재료상의 결함에 적용됩니다.
영상: A badge indicating "GREENCUT. 3 YEAR COVERAGE." This signifies the warranty period for the product.
보증 제외 사항: The warranty does not cover deficiencies caused by negligence, impacts, improper use or handling, non-compliant installation and/or use not performed by an authorized technical service where applicable, nor materials subject to normal wear and tear, such as: drill bits, heads, nylon spools, chainsaw chains, plow blades, interchangeable elements.
고객 지원
For technical assistance, spare parts, or warranty claims, please contact Greencut customer support. Refer to the contact information provided with your purchase or visit the official Greencut web대지.
It is recommended to have any repairs or complex maintenance performed by qualified personnel to ensure safety and proper functioning of the chainsaw.
