1. 서론
This manual provides essential information for the safe and effective operation, setup, maintenance, and troubleshooting of your Telwin Linear 340-819020 MMA DC Welding Machine. Please read this manual thoroughly before using the machine to ensure proper handling and to prevent injury or damage.

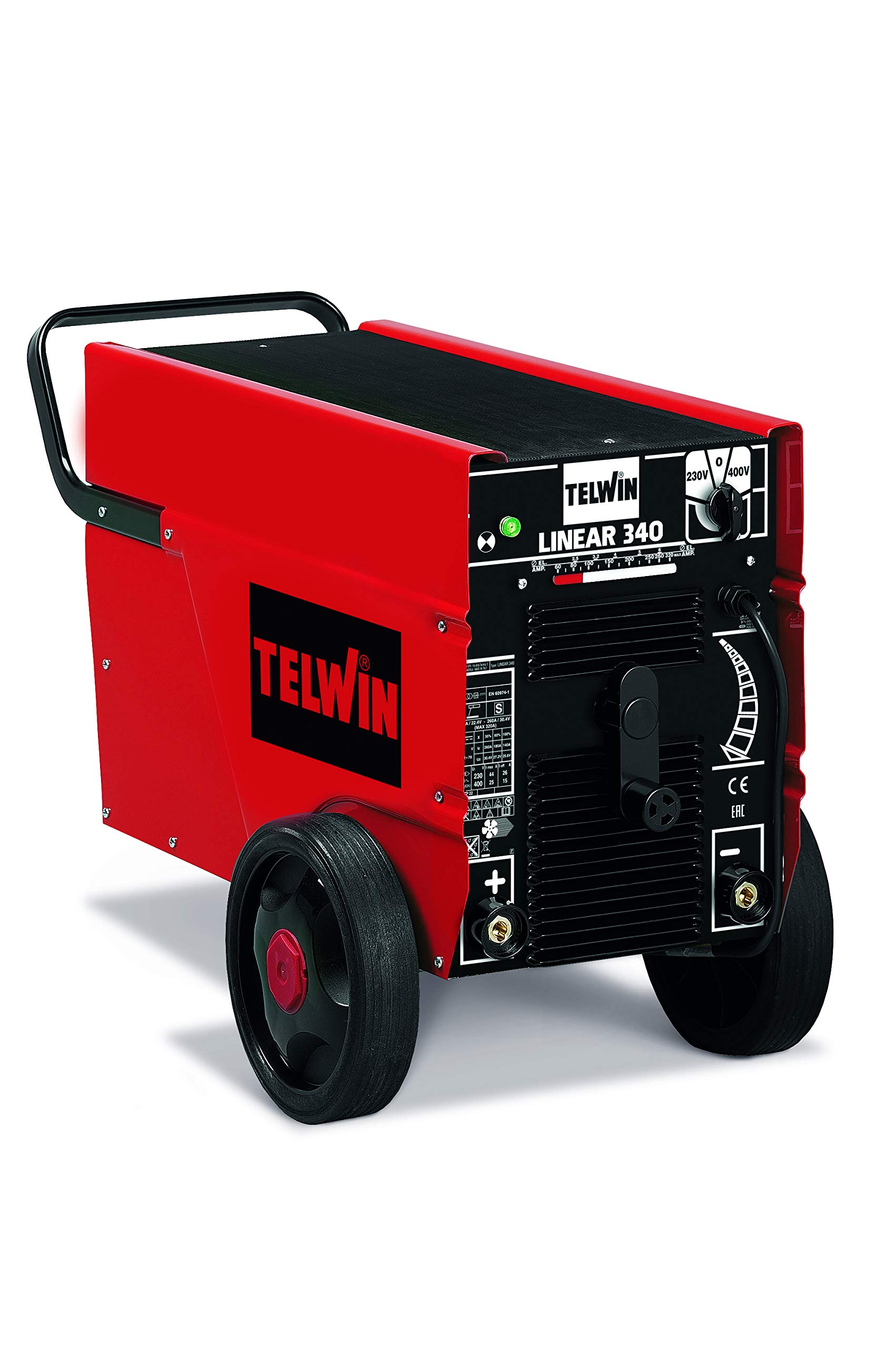

Figure 1: Telwin Linear 340-819020 Welding Machine. This image shows the overall view of the red and black welding machine with its control panel and wheels.
2. 안전 정보
Welding operations involve significant risks. Always adhere to safety precautions to prevent electric shock, burns, fire, and exposure to fumes. This machine is designed for Manual Metal Arc (MMA) welding.
- 전기 충격: Ensure the machine is properly grounded. Do not touch live electrical parts. Wear dry welding gloves.
- 연기 및 가스: Work in a well-ventilated area. Use fume extraction if necessary.
- 아크 광선: Protect your eyes and skin from arc rays. Use a welding helmet with appropriate shade and protective clothing.
- Fire and Explosions: 용접 작업장 근처에 가연성 물질을 두지 마십시오. 소화기를 항상 준비해 두십시오.
- 번스: Hot metal and equipment can cause severe burns. Wear protective clothing, gloves, and footwear.
3. 설정
3.1 풀기 및 검사
Carefully remove the welding machine from its packaging. Inspect the machine for any signs of damage that may have occurred during transit. Ensure all components listed in the packing list are present. If any damage or missing parts are found, contact your supplier immediately.
3.2 전원 연결
The Telwin Linear 340-819020 operates on a 230-400V power supply. Ensure your power source matches these requirements. Connect the machine to a suitable power outlet using the provided cord. Verify that the power circuit is adequately protected by a fuse or circuit breaker.
3.3 Electrode Holder Connection
Connect the electrode holder cable to the appropriate terminal on the welding machine. For DC welding, the polarity depends on the electrode type and welding application. Consult your electrode manufacturer's recommendations for correct polarity.
3.4 접지 Clamp 연결
접지 cl 부착amp cable to the workpiece. Ensure a clean, solid electrical connection to the base metal to facilitate a stable arc. A poor ground connection can lead to an unstable arc and poor weld quality.
Figure 2: Close-up of the Telwin Linear 340-819020 control panel. This image highlights the current adjustment knob and connection points.
4. 사용 설명서
4.1 전원 켜기/끄기
To power on the machine, switch the main power switch to the 'ON' position. The indicator light will illuminate. To power off, switch the main power switch to the 'OFF' position.
4.2 전류 조정
The Telwin Linear 340-819020 features stepless regulation of the welding current. Use the adjustment knob on the front panel to set the desired welding current. Refer to the electrode manufacturer's recommendations for appropriate current settings based on electrode diameter and material thickness.
4.3 전극 선택
This machine is compatible with a wide range of electrodes, including rutile, basic, stainless steel, cast iron, and aluminum electrodes. Select the appropriate electrode type and diameter for your specific welding application and material.
4.4 용접 공정
- 모든 안전 장비를 착용하세요.
- Insert the chosen electrode into the electrode holder.
- 전극을 공작물에 가볍게 접촉시킨 후 재빨리 살짝 들어 올려 아크를 발생시키십시오.
- 최적의 용접 품질을 위해 아크 길이와 용접 속도를 일정하게 유지하십시오.
- 용접 후에는 작업물을 만지기 전에 충분히 식히십시오.
5. 유지관리
정기적인 유지관리는 용접기의 수명과 안전한 작동을 보장합니다.
- 청소: Periodically clean the machine's exterior with a dry cloth. Ensure ventilation openings are free from dust and debris. Use compressed air to clean internal components if necessary, ensuring the machine is unplugged.
- 케이블 검사: 모든 용접 케이블, 전극 홀더 및 접지선을 정기적으로 점검하십시오.amp for damage, cuts, or loose connections. Replace damaged cables immediately.
- 저장: Store the welding machine in a dry, clean environment, away from direct sunlight and extreme temperatures.
6. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 아크가 없거나 매우 약합니다. 아크가 발생하지 않거나 매우 약합니다. | Poor ground connection, incorrect current setting, damp electrode, power supply issue. | 접지 CL 확인amp connection, adjust current, dry electrodes, verify power supply. |
| 기계 과열 | Exceeding duty cycle, blocked ventilation. | Allow machine to cool, clear ventilation openings, reduce welding time. |
| 용접 품질이 좋지 않음 | Incorrect current, wrong electrode, improper technique, dirty workpiece. | Adjust current, select correct electrode, refine welding technique, clean workpiece. |
7. 사양
| 특징 | 세부 사항 |
|---|---|
| 제조업체 | 텔윈 |
| 모델 번호 | 819020 |
| 품목 무게 | 80 킬로그램 |
| 제품 치수 | 46 x 89 x 59cm |
| 색상 | 빨간색/검은색 |
| 전원 유형 | 코드식 전기 |
| 권tage | 240 Volts (Input 230-400V) |
| 왓tage | 11.5 Kilowatts (Max Power 7 kW) |
| 포함된 구성 요소 | 장치만 |
| 배터리 포함 | 아니요 |
| 필요한 배터리 | 아니요 |
8. 보증 및 지원
For warranty information and technical support, please refer to the documentation provided with your purchase or contact Telwin customer service directly. Keep your proof of purchase for warranty claims.
Figure 3: Telwin brand logo. This image displays the official logo of the manufacturer, Telwin.
