Poulan Pro PR48BT 48cc 2-Cycle Gas Backpack Leaf Blower Instruction Manual

1. 안전 정보

Always read and understand the entire instruction manual before operating this equipment. Failure to follow instructions can result in serious injury or property damage.

• 눈 보호구, 귀 보호구, 튼튼한 신발 등 적절한 개인 보호 장비(PPE)를 착용하십시오.
• Do not operate the blower in wet conditions or near flammable liquids.
• Keep children, bystanders, and pets at a safe distance (at least 50 feet) from the operating area.
• 이 제품에는 캘리포니아 주에서 암, 선천적 기형 또는 기타 생식 장애를 유발하는 것으로 알려진 화학 물질이 포함되어 있습니다. 취급 후에는 손을 씻으십시오.

2. 제품 오버view

The Poulan Pro PR48BT is a powerful 48cc 2-cycle gas-powered backpack leaf blower designed for efficient outdoor cleanup. It delivers high-velocity airflow, making it suitable for clearing leaves, grass clippings, and other debris from various surfaces.

그림 1: 전면 view of the Poulan Pro PR48BT Backpack Leaf Blower.

주요 특징은 다음과 같습니다.

• 강력한 엔진: Equipped with a 48cc 2-cycle engine.
• 고성능: Capable of 475 CFM air flow and up to 200 MPH wind speeds.
• 인체공학적 디자인: Lightweight for superior comfort, weighing less than 20 lbs.
• 조절 가능한 스트랩: Padded, load-reducing harness and adjustable shoulder straps for optimal fit and reduced fatigue.
• 직관적인 컨트롤: Variable speed trigger with cruise control for precise air flow management.

3. 조립

The Poulan Pro PR48BT requires minimal assembly. Follow these steps to prepare your blower for use:

1. 블로워 튜브 부착: Securely connect the flexible blower tube to the main unit. Ensure all clamps가 조여집니다.
2. 핸들 어셈블리를 설치하십시오: Attach the handle with the trigger control to the blower tube. Adjust its position for comfortable operation.
3. 어깨 끈 조정: Put on the backpack blower and adjust the padded shoulder straps and harness for a snug and comfortable fit.
4. Optional Tube Extension: An additional tube is provided to constrict airflow for increased pressure, if desired. Attach it to the end of the main blower tube.

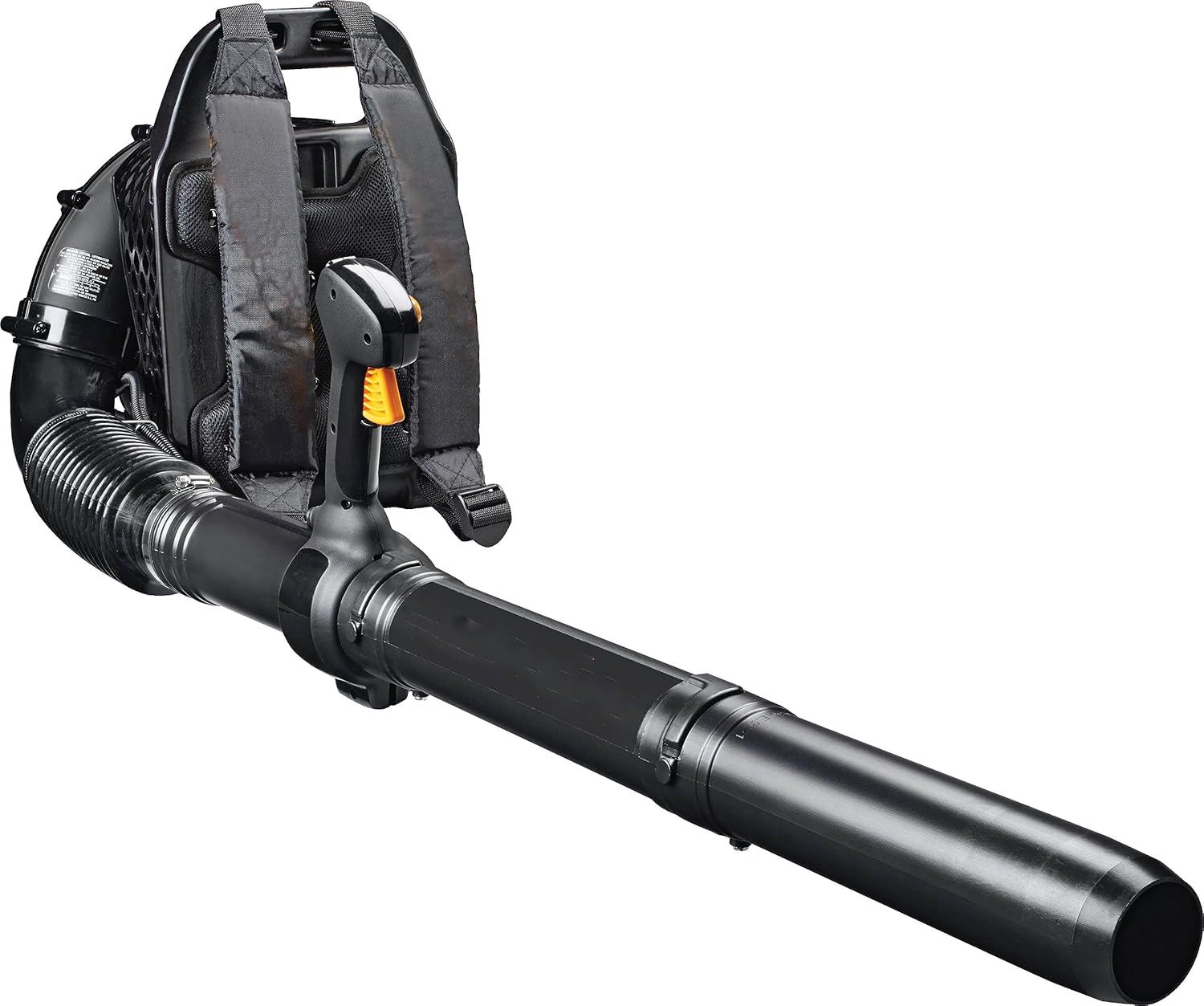

그림 2: 측면 view showing the blower tube assembly and flexible connection.

4. 운영

시작 절차

The PR48BT uses a 2-cycle engine, requiring a mixed gas fuel. Always use the correct fuel mixture as specified in the full manual.

1. 연료 탱크를 채우세요: Ensure the fuel tank is filled with the proper gas-oil mixture.
2. 엔진 예열: Locate the primer bulb (often positioned in a less accessible area) and press it several times until fuel is visible.
3. 초크 설정: Move the choke lever to the 'Full Choke' position.
4. 시동줄을 당기세요: 시동줄을 엔진이 시동될 때까지 단단하고 부드럽게 당기십시오(보통 1~3회 당김).
5. 초크 조정: Once the engine 'pops' or briefly starts, move the choke lever to the 'Half Choke' or 'Run' position.
6. Restart Engine: 엔진이 시동이 걸리고 원활하게 작동할 때까지 시동줄을 다시 당기십시오.
7. 워밍업: Allow the engine to warm up for 30 seconds to a minute before full operation.

통제 수단

The blower features a comfortable handle with integrated controls:

• 가변 속도 트리거: Allows you to control the air flow speed by varying pressure on the trigger.
• 크루즈 컨트롤: A slide mechanism allows you to lock the throttle at a desired speed, reducing hand fatigue during extended use.
• 켜기/끄기 스위치: A clearly marked switch to power the unit on or off.

그림 3: 클로즈업 view of the variable speed trigger and cruise control on the handle.

5. 유지관리

Regular maintenance ensures optimal performance and extends the life of your Poulan Pro PR48BT.

• 에어 필터: The air filter is easily accessible. Regularly check and clean it by vacuuming or blowing out debris. Due to the backpack design, the air filter tends to stay cleaner than on ground-level blowers.
• 연료 시스템: Use fresh, properly mixed 2-cycle fuel. For seasonal storage, drain the fuel system or use a fuel stabilizer.
• 점화 플러그: Inspect and clean or replace the spark plug as needed to ensure reliable starting and engine performance.
• 일반 청소: 송풍기 외부를 깨끗하게 유지하고 이물질이 없도록 하십시오.

6. 문제 해결

If you encounter issues with your Poulan Pro PR48BT, consider the following common troubleshooting steps:

• 엔진이 시동되지 않음:
  • Ensure the fuel tank has the correct gas-oil mixture.
  • Verify the primer bulb has been pressed sufficiently.
  • Check the choke setting.
  • 점화 플러그에 오염이나 손상이 있는지 검사하세요.
• 전력 손실:
  • 공기 필터를 청소하거나 교체하세요.
  • Ensure the fuel mixture is correct and fresh.
• 과도한 소음/진동:
  • Check for loose components or debris in the fan housing.
  • Always use hearing protection during operation.

For more detailed troubleshooting, refer to the complete user manual or contact Poulan Pro customer support.

7. 사양

8. 보증 및 지원

The Poulan Pro PR48BT Backpack Leaf Blower is backed by a 2년 한정 보증. For warranty claims, technical assistance, or to purchase replacement parts, please refer to the contact information provided in your complete user manual or visit the official Poulan Pro web대지.

Always use genuine Poulan Pro parts and accessories to maintain warranty validity and ensure optimal performance.
