소개
This manual provides essential instructions for the safe assembly, operation, and maintenance of your Baby Trend Expedition Jogger Travel System with EZ Flex-Loc Infant Car Seat. Please read all instructions carefully before use and keep this manual for future reference.
Figure 1: The Baby Trend Expedition Jogger Travel System, featuring the stroller and infant car seat in Millennium Blue.
안전 정보
Always prioritize safety when using the travel system. Failure to follow these warnings and instructions could result in serious injury or death.
- 유아용 카시트: Accommodates infants weighing 4-30 pounds and up to 30 inches tall. Always secure your child with the 5-point safety harness.
- 유모차: Maximum weight recommendation is 50 pounds. Always use the 5-point safety harness.
- 브레이크: Always engage the stroller brakes when parking or when the stroller is stationary.
- 천개: The adjustable canopy provides UPF 50+ sun protection. Ensure it is properly positioned to shield your child from direct sunlight.
- 집회: Ensure all components are securely locked in place before each use.
- 감독: 유모차나 카시트에 아이를 절대 혼자 두지 마세요.
- 유지: Regularly inspect the product for loose parts, damaged components, or worn fabric. Discontinue use if any damage is found.

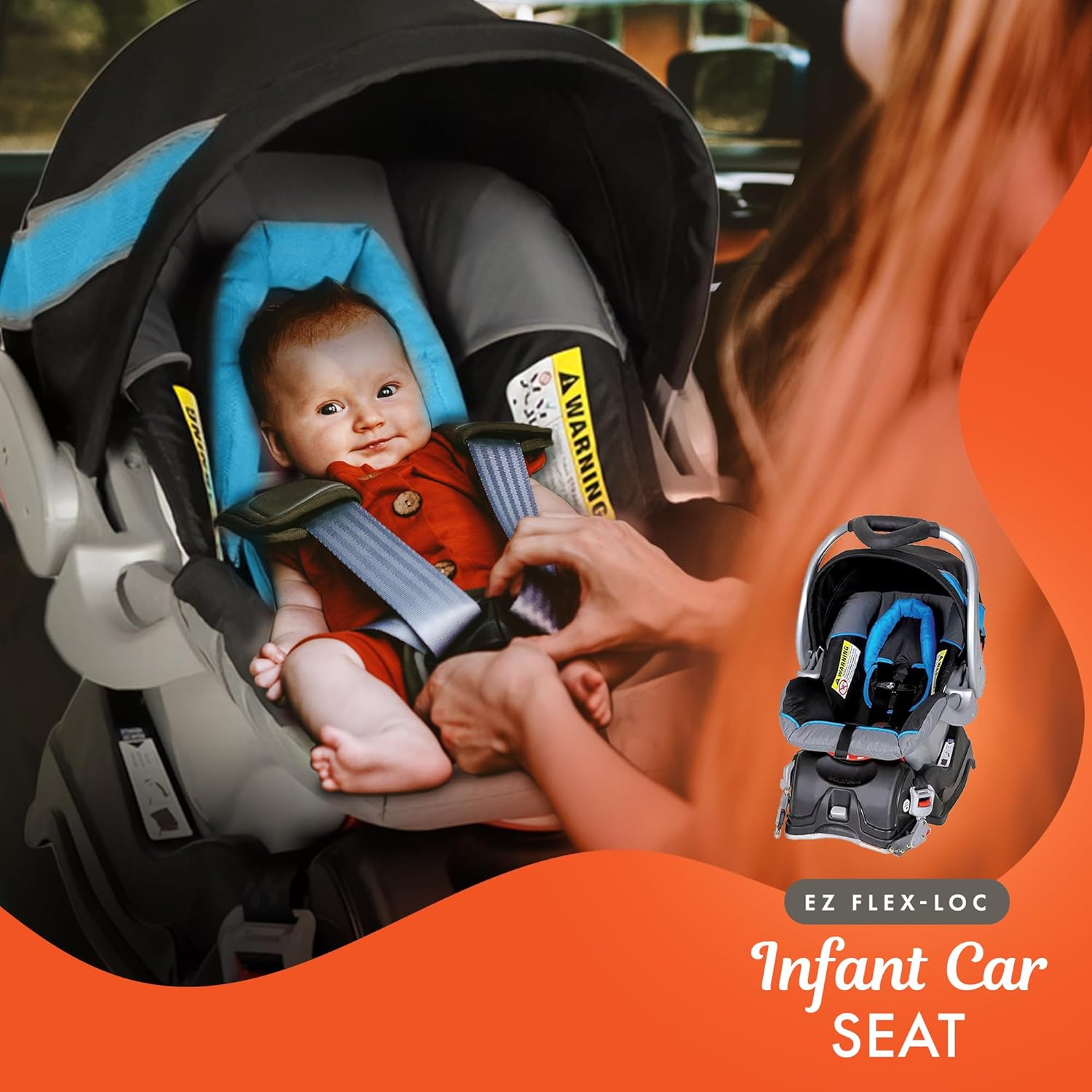

Figure 2: Ensure your baby is properly secured in the EZ Flex-Loc Infant Car Seat with the 5-point harness.
조립 설명서
Follow these steps to assemble your Baby Trend Expedition Jogger Travel System.
- 구성 요소 풀기: Remove all parts from the packaging. Verify all included components are present: Stroller, Car Seat, Car Seat Base.
- Stroller Frame Setup: 유모차 프레임을 펼쳐서 고정될 때까지 펼치세요.
- 휠 부착물: Attach the all-terrain bicycle tires. Ensure they are securely fastened. The front wheel can swivel or be locked for jogging.
- Parent Tray Installation: Secure the parent tray to the stroller handle.
- Child's Tray Installation: Attach the child's tray to the front of the stroller seat.
- Car Seat Base Installation: Refer to the separate EZ Flex-Loc Infant Car Seat manual for detailed car seat base installation instructions, including proper use of the LATCH system and level indicator.
- 차량용 시트 부착 장치: The EZ Flex-Loc Infant Car Seat can be securely attached to the stroller's child tray.
Figure 3: Visual guide to the main components and features of the travel system.
작동 지침
유모차 작동
- 접는: The stroller features an effortless trigger fold mechanism for compact storage.
- 캐노피 조정: The adjustable canopy with a peek-a-boo window can be ratcheted to block sun and wind.
- 좌석 리클라이닝: The multi-position padded seat can be reclined for your child's comfort.
- 앞바퀴 잠금 장치: Lock the front swivel wheel for jogging stability or unlock it for easy strolling maneuverability.
- 브레이크: Engage the rear wheel brakes by pressing down on the brake levers located near the wheels.

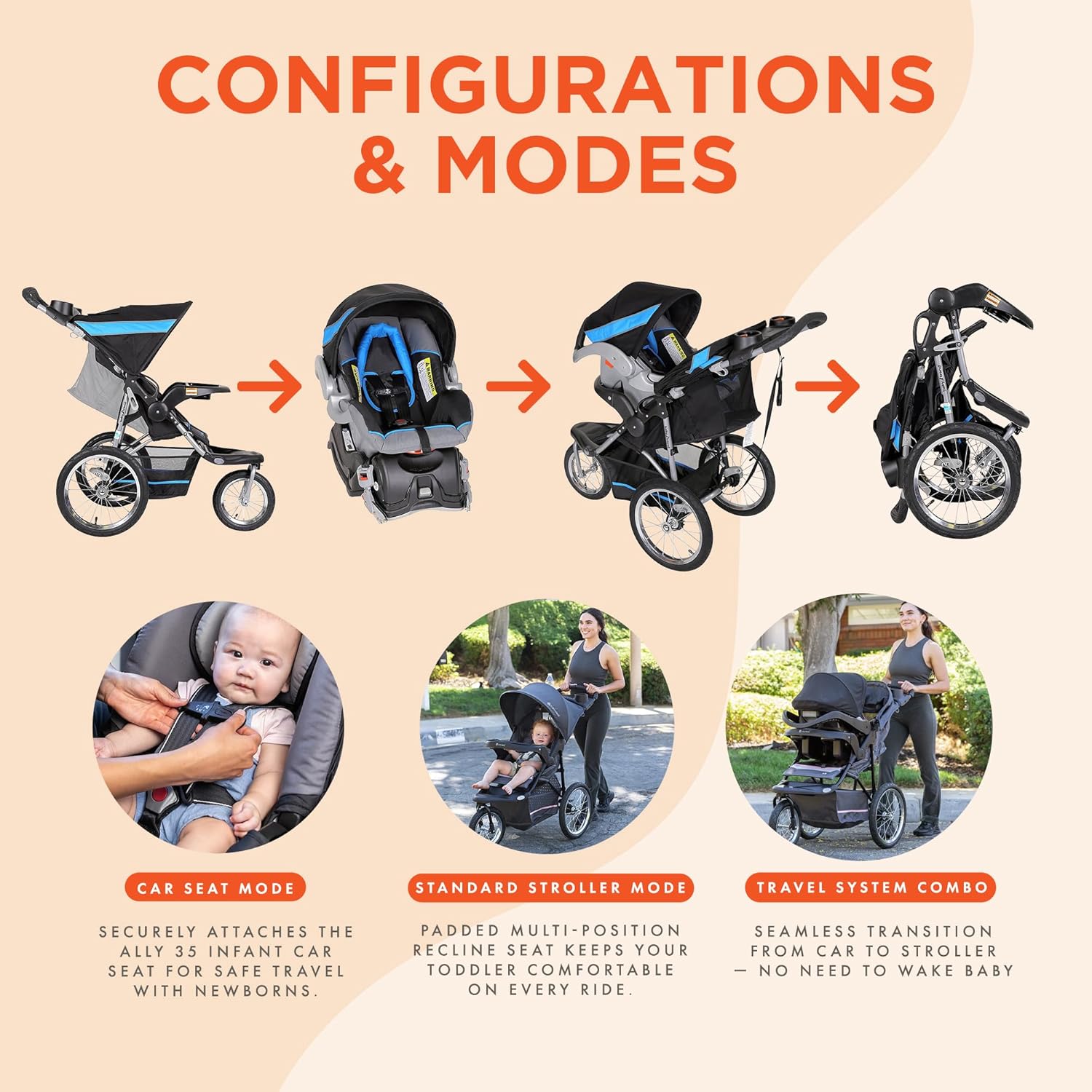

Figure 4: The travel system can be used in car seat mode, standard stroller mode, or as a travel system combo.
Infant Car Seat Operation
- 하네스 조정: The 5-point safety harness has an easy one-hand adjustment and push-button release.
- Car Seat Base: The 4-position push-button height-adjustable base includes a level indicator for proper installation in your vehicle.
- 측면 충격 보호: The EZ Flex-Loc Infant Car Seat features EPS energy-absorbing foam for superior side impact head protection.
Figure 5: Key features of the EZ Flex-Loc Infant Car Seat for safety and ease of use.
기능 이상view
- 유모차 종류: 조깅 유모차
- 바퀴: Quick-release 16" rear and 12" front all-terrain bicycle tires.
- 천개: Adjustable canopy with covered sunroof and UPF 50+ protection.
- Parent Console: Parent tray with two cup holders and covered storage.
- Child Tray: Child's tray with cup holders, also accepts the infant car seat.
- 저장: Large under-seat storage basket.
- 마구: 5-point safety harness for both stroller and car seat.
- 핸들: Extra wide, ergonomically shaped, foam-padded push handle.
- 카시트 호환성: Yes, with EZ Flex-Loc Infant Car Seat.
- LATCH Compatible: Yes, for car seat base installation.
Figure 6: The stroller's design includes convenient features for both parent and child.
유지 보수 및 관리
- 청소: Spot or wipe clean fabric components. Use mild soap and water for plastic and metal parts.
- 타이어: Regularly check tire pressure and inflate as needed. Ensure quick-release mechanisms are clean and functional.
- 저장: Fold the stroller for compact storage when not in use. Store in a dry place to prevent rust or mildew.
- 마구: Keep the 5-point harness clean and free of debris to ensure proper function.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 유모차 조종이 어려워요 | Front wheel locked; low tire pressure. | Unlock the front swivel wheel. Inflate tires to recommended pressure. |
| Car seat not securing properly | Incorrect base installation; harness not tightened. | Re-install car seat base using LATCH system and level indicator. Adjust and tighten 5-point harness. |
| Stroller not folding | Safety latches engaged; obstruction. | Ensure all safety latches are disengaged. Clear any obstructions from the folding mechanism. |
명세서
- 모델 번호: 티제이94522
- 한국어: 090014019280
- 색상: Millennium Blue
- 재료: Metal, Plastic, 100% Polyester Fabric
- 품목 무게: 41 파운드
- 항목 치수(L x W x H): 46인치 x 44인치 x 22인치
- 접힌 크기: 33.25인치 x 22.25인치 x 15.5인치
- Stroller Maximum Weight Recommendation: 50 파운드
- Car Seat Weight Capacity: 4-30파운드
- Car Seat Maximum Height: 30 인치
- 마구 유형: 5 Point (Stroller & Car Seat)
- 타이어 소재: 고무
- 안전 기준: JPMA 인증

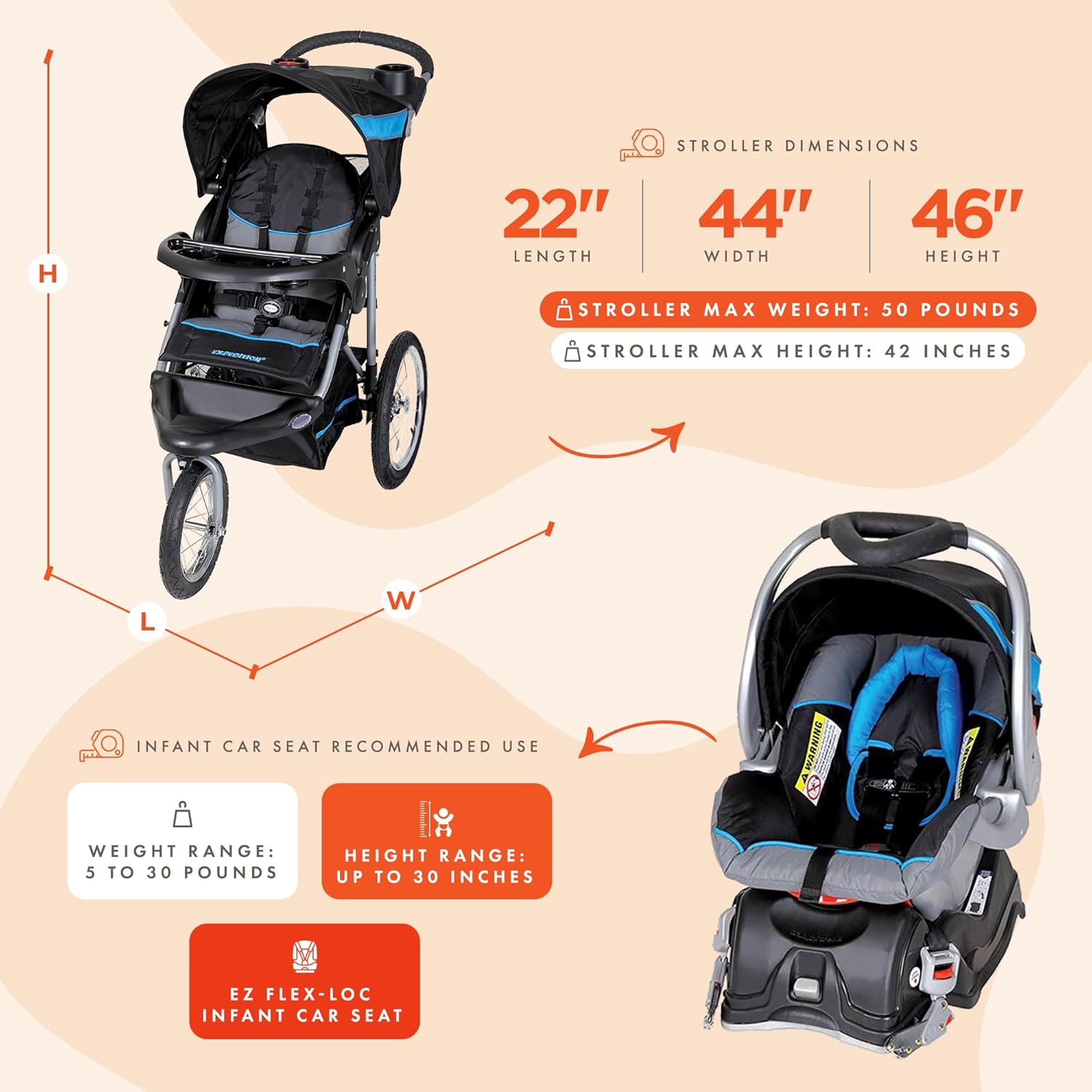

Figure 7: Stroller dimensions for reference.
Figure 8: Infant car seat recommended use guidelines.
공식 제품 영상
Baby Trend Jogger Stroller Review
비디오 1: 자세한 재view of the Baby Trend jogging stroller, highlighting its canopy, child tray, storage, and overall design. This video provides a comprehensive look at the stroller's features and benefits for parents.
Baby Trend Jogger Stroller Quick Overview
영상 2: 간단한 개요view of the Baby Trend jogging stroller, demonstrating its key features such as the canopy, storage, and ease of folding. This video is ideal for a concise summary of the product's main functionalities.
보증 및 지원
The Baby Trend Expedition Jogger Travel System comes with a 1년 제한 보증 from the manufacturer. For warranty claims, product support, or to purchase replacement parts, please contact Baby Trend customer service directly.
