1. 서론
This manual provides essential information for the proper use, installation, and maintenance of the CUB CADET 736-0362 Flat Washer. This component is an OEM replacement part designed for specific CUB CADET equipment models, ensuring compatibility and optimal performance. It functions as a critical spacing or load distribution element in various mechanical assemblies.

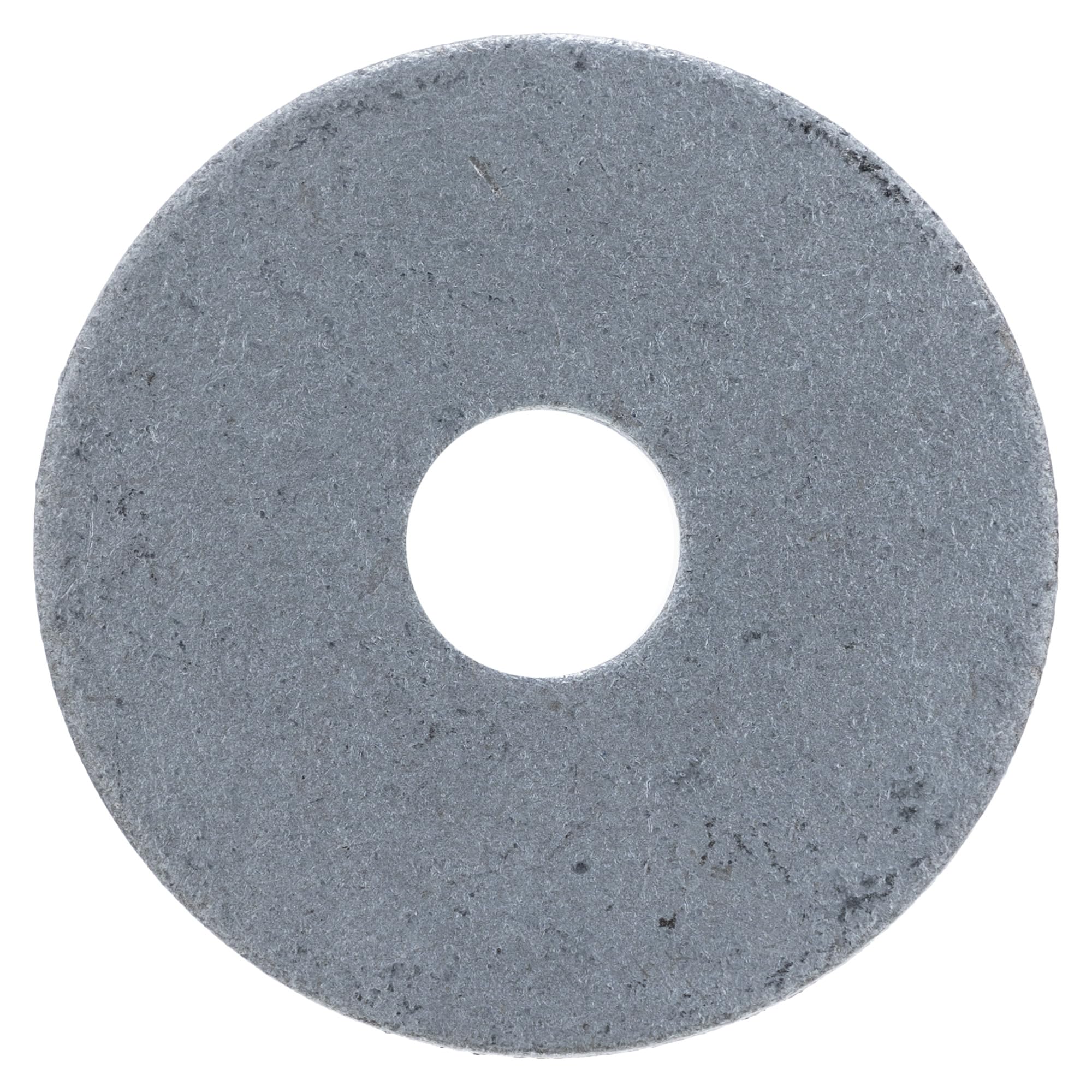

이미지 1.1: 위에서 아래로 view of the CUB CADET 736-0362 Flat Washer, showcasing its circular shape and central bore.
2. 안전 정보
Always wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, when handling or installing mechanical components. Ensure the equipment is turned off and secured before performing any installation or maintenance. Refer to the original equipment's owner's manual for specific safety procedures related to the machinery where this washer will be installed.
3. 설치 지침
The CUB CADET 736-0362 Flat Washer is designed for specific applications within CUB CADET equipment. Proper installation is crucial for the component's function and the overall integrity of the assembly.
3.1. 호환성 검증
Before installation, verify that this washer is the correct replacement part for your specific CUB CADET model. Refer to your equipment's original owner's manual or parts diagram. The part number 736-0362 replaces prior MPNs YS-736-0362, GW-B1713233, GW-1713233, and 1713233.
3.2. 설치 단계
- 지역 준비: Ensure the installation area is clean and free of debris, rust, or old gasket material.
- 위치: Place the flat washer in its designated position within the assembly. Flat washers are typically used under a nut or screw head to distribute the load over a wider area, prevent damage to the surface, or provide spacing.
- 보안 패스너: Install the corresponding bolt, screw, or nut. Tighten fasteners according to the torque specifications provided in your equipment's service manual. Overtightening or undertightening can lead to component failure.
- 최종 확인: After installation, visually inspect the assembly to ensure the washer is seated correctly and all components are secure.
이미지 3.1: 측면 view of the flat washer, illustrating its thickness and material finish.
4. 운영 고려 사항
Once installed, the flat washer operates passively as a structural component. Its primary function is to maintain proper spacing and load distribution within the mechanical joint. No active operation is required from the user for the washer itself.
- Ensure that the washer is not subjected to excessive lateral forces or bending moments that could deform it.
- Regularly check the tightness of fasteners where the washer is installed, especially after initial use, to prevent loosening due to vibration.
5. 유지관리
The CUB CADET 736-0362 Flat Washer requires minimal maintenance. However, periodic inspection is recommended to ensure its continued effectiveness.
- 시각적 검사: Periodically inspect the washer for signs of wear, corrosion, deformation, or cracking. If any damage is observed, replace the washer immediately.
- 청소: If the washer is exposed to dirt or corrosive substances, clean it with a suitable degreaser and dry thoroughly.
- 대사: Always replace damaged or worn washers with genuine CUB CADET OEM parts to ensure proper fit and material integrity.
이미지 5.1: 클로즈업 view of the washer's surface, showing its metallic texture.
6. 문제 해결
While a flat washer is a simple component, issues can arise from incorrect selection or installation.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Washer does not fit | Incorrect size or incompatible part. | Verify the part number against your equipment's manual. Ensure the inner diameter (.322") and outer diameter (1.25") match the requirement. |
| Assembly loosens over time | Improper torque, excessive vibration, or missing lock washer (if required). | Re-tighten fasteners to specified torque. Consider adding a lock washer if the application experiences high vibration and the design allows. |
| Washer deforms or cracks | Over-tightening, incorrect material for application, or excessive load. | Ensure correct torque is applied. Verify the washer's material (metal) is suitable for the load. Replace with a new, correct OEM part. |
이미지 6.1: 각도 view of the flat washer, highlighting its profile.
7. 사양
Key specifications for the CUB CADET 736-0362 Flat Washer are provided below:
| 기인하다 | 세부 사항 |
|---|---|
| 부품 번호 | 736-0362 |
| Replaces Prior MPNs | YS-736-0362, GW-B1713233, GW-1713233, 1713233 |
| 상표 | CUB 카데트 |
| 와셔 유형 | 평평한 |
| 재료 | 금속 |
| Fastener Size (Inner Diameter) | .322인치 |
| 항목 두께 | 0.06인치 |
| 제품 크기(L x W x H) | 1.2 x 1.2 x 0.1 인치 |
| 품목 무게 | 0.32온스(약 9.07g) |
| 조각 수 | 1 |
| UPC/GTIN | 195997011105 |
Image 7.1: Additional angled view of the flat washer, showing its precise manufacturing.
8. 보증 정보
CUB CADET OEM parts are typically covered by a limited warranty against defects in material and workmanship. Specific warranty terms and duration may vary. For detailed warranty information regarding the CUB CADET 736-0362 Flat Washer, please refer to the official CUB CADET web사이트에서 확인하거나 고객 서비스에 직접 문의하세요. 구매 증빙 자료로 구매 영수증을 보관하세요.
9. 고객 지원
For further assistance, technical support, or to locate authorized service centers, please visit the official CUB CADET website or contact their customer support department. When contacting support, please have your equipment model number and the part number (736-0362) readily available.
- 공식적인 Web대지: www.cubcadet.com
- 연락처 정보: 공식 사이트의 "문의하기" 섹션을 참조하세요. web전화번호 및 이메일 지원 정보를 제공하는 사이트입니다.
