소개
구매해주셔서 감사합니다asing the EMOS PT-506 Digital Hanging Scale. This compact and versatile scale is designed for accurate weighing of various items up to 50 kg, making it ideal for luggage, fishing, food, and travel. Please read this manual carefully before use to ensure proper operation and to maximize the lifespan of your device.
안전 정보
- Do not overload the scale beyond its maximum capacity of 50 kg. Overloading can damage the sensor and lead to inaccurate readings.
- Keep the scale away from water and extreme temperatures. This device is not waterproof.
- Avoid dropping the scale or subjecting it to strong impacts, as this may affect its precision.
- 사용하지 않을 때는 체중계를 건조하고 서늘한 곳에 보관하십시오.
- 배터리는 어린이의 손이 닿지 않는 곳에 보관하십시오. 삼켰을 경우 즉시 의사의 진료를 받으십시오.
- 사용한 배터리는 현지 규정에 따라 폐기하십시오.
패키지 내용
The EMOS PT-506 Digital Hanging Scale package includes:
- 1 x EMOS PT-506 Digital Hanging Scale
- 1 x Weighing Strap with Metal Connector
- 1 x CR2032 Button Cell Battery (pre-installed or included separately)
- 1 x 사용자 설명서
제품 끝view
Familiarize yourself with the components of your EMOS PT-506 Digital Hanging Scale.
영상: The EMOS PT-506 Digital Hanging Scale, showing its ergonomic handle and the attached weighing strap with a metal connector.
영상: Technical drawing illustrating the dimensions of the EMOS PT-506 Digital Hanging Scale, including length, width, and thickness.
주요 구성 요소:
- LCD 디스플레이: Shows weight readings, units, and battery status.
- Power/Unit Button: Used to turn the scale on/off and switch between measurement units (kg/lb).
- Tare Button: Used to reset the scale to zero or subtract the weight of a container.
- Weighing Hook/Strap: For attaching items to be weighed.
- 배터리 칸: 뒷면에는 CR2032 배터리가 들어 있습니다.
설정
1. 배터리 설치
- 체중계 뒷면에 있는 배터리 칸을 찾으세요.
- 배터리 덮개를 엽니다.
- Insert the CR2032 button cell battery with the positive (+) side facing up.
- 배터리 덮개를 단단히 닫으세요.
메모: A CR2032 battery is included. If the display shows "Lo" or does not turn on, replace the battery.
작동 지침
1. 전원 켜기/끄기
- 켜려면: 누르세요 Power/Unit button once. The display will show "8888" then "0.00 kg" or "0.0 lb".
- 끄려면: 길게 누르세요 Power/Unit button for 3 seconds. The scale will also automatically turn off after 1 minute of inactivity to conserve battery.
2. 측정 단위 변경
- 저울이 켜지고 "0.00"이 표시되면 버튼을 누르십시오. Power/Unit button repeatedly to cycle between kilograms (kg) and pounds (lb).
3. 물건의 무게 측정
- Turn on the scale and select your desired unit (kg or lb).
- Attach the item to be weighed to the weighing strap/hook. Ensure the item is securely fastened.
- Hold the scale firmly by the handle, lifting the item off the ground. Keep the scale steady.
- Wait for the reading on the LCD display to stabilize. The weight will be shown.
영상: The EMOS PT-506 Digital Hanging Scale in use, accurately weighing a blue suitcase, demonstrating its application as a luggage scale.
영상: The EMOS PT-506 Digital Hanging Scale weighing a basket filled with apples, showcasing its versatility for weighing various items.

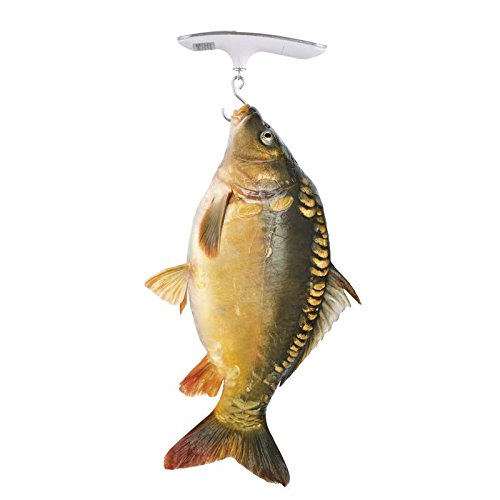

영상: The EMOS PT-506 Digital Hanging Scale weighing a fish, highlighting its utility for fishing and outdoor activities.
4. Tare 기능
The Tare function allows you to subtract the weight of a container or an initial item, so you can weigh additional contents accurately.
- 저울을 켜세요.
- Hang the empty container or initial item on the hook.
- 무게가 안정될 때까지 기다린 후 누르세요. 살갈퀴 버튼을 누르면 디스플레이가 "0.00"으로 재설정됩니다.
- Add the contents you wish to weigh into the container. The display will show only the net weight of the contents.

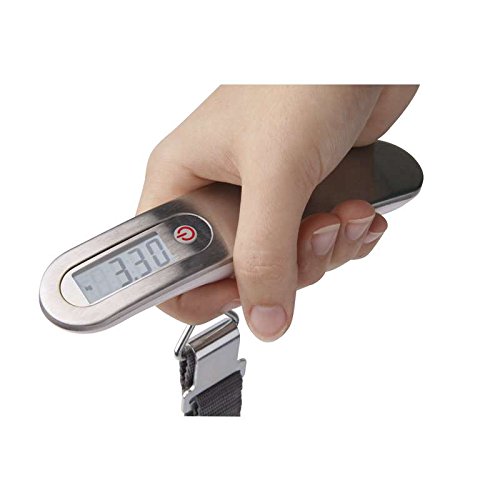

영상: 클로즈업 view of a hand holding the EMOS PT-506 Digital Hanging Scale, with the LCD display showing a weight reading, illustrating ease of use.
유지
- 청소: 부드러운 d로 스케일을 닦으십시오.amp 천으로 닦아주세요. 연마성 세제를 사용하거나 스케일을 물에 담그지 마세요.
- 저장: Store the scale in a dry, cool place. If not used for an extended period, it is recommended to remove the battery to prevent leakage.
- 배터리 교체: When the "Lo" indicator appears on the display, replace the CR2032 battery promptly.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 저울이 켜지지 않습니다. | 배터리가 소진되었거나 잘못 설치되었습니다. | 배터리 방향을 확인하십시오. 새 CR2032 배터리로 교체하십시오. |
| 디스플레이에 "Lo"가 표시됩니다. | 배터리 전원이 부족합니다. | CR2032 배터리를 교체합니다. |
| 디스플레이에 "O-Ld"가 표시됩니다. | 규모가 과부하되었습니다. | 해당 물품을 즉시 제거하십시오. 무게는 50kg을 초과하지 마십시오. |
| 부정확한 판독값. | Unstable surface, item not hanging freely, or scale not calibrated to zero. | Ensure the scale is held steady and the item hangs freely. Turn the scale off and on again to re-zero. Avoid strong air currents. |
명세서
| 특징 | 세부 사항 |
|---|---|
| 모델 | PT-506 |
| 상표 | 에모스 |
| 최대 계량 용량 | 50kg(110파운드) |
| 정확성 | 10g(0.02파운드) |
| 측정 단위 | kg / 파운드 |
| 디스플레이 유형 | 액정표시장치 |
| 전원 | 1 x CR2032 Button Cell Battery |
| 특별 기능 | Tare Function, Auto-Off, Overload Indicator, Low Battery Indicator |
| 재료 | 아크릴로니트릴 부타디엔 스티렌(ABS) |
| 색상 | 하얀색 |
| 폼 팩터 | 핸드헬드 |
보증 정보
This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. The warranty period and terms may vary by region. Please retain your proof of purchase for any warranty claims. For specific warranty details, refer to the documentation provided with your purchase or contact EMOS customer support.
지원하다
For technical assistance, troubleshooting, or general inquiries about your EMOS PT-506 Digital Hanging Scale, please visit the official EMOS website or contact their customer service department. Contact information can typically be found on the product packaging or the EMOS official web대지.
