1. 서론
This manual provides comprehensive instructions for the safe and efficient operation, setup, and maintenance of the RP-TOOLS RP-R-U120PN Fully Automatic Tire Balancing Machine. This professional wheel balancing machine utilizes advanced microprocessor technology for precise balancing of car, truck, and motorcycle wheels. The PN series features an improved design, offering enhanced effectiveness in various work steps. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent damage or injury.
Figure 1: RP-TOOLS RP-R-U120PN Fully Automatic Tire Balancing Machine with its protective cover open, ready for operation. The machine features a robust blue base and a black control panel with integrated storage trays.
2. 안전 지침
Always adhere to the following safety guidelines to ensure safe operation and prevent personal injury or damage to the equipment.
- 기기가 안정적이고 평평한 표면에 설치되었는지 확인하십시오.
- 기기를 올바른 전압의 접지형 전원 콘센트에만 연결하십시오.tag전자(230V).
- 작동 중에는 움직이는 부품에 손, 머리카락, 헐렁한 옷이 닿지 않도록 하세요.
- 안전 안경과 장갑 등 적절한 개인 보호 장비(PPE)를 항상 착용하세요.
- 부품이 손상되었거나 누락된 경우 기계를 작동하지 마십시오.
- 유지관리나 청소를 하기 전에 전원을 분리하세요.
- Only trained personnel should operate or service this equipment.
- 작업 공간을 깨끗하고 밝게 유지하세요.
3. 제품 오버view
The RP-R-U120PN is designed for high-precision wheel balancing. Key components include:
- 메인 유닛: Houses the motor, electronics, and measurement system.
- Wheel Shaft: For mounting the wheel assembly.
- 보호 후드: Covers the wheel during operation for safety.
- 제어판: Features an LED display and buttons for program selection and operation.
- 보관 트레이: Integrated into the control panel for weights and tools.
- Cones and Clamp시스템: For securing various wheel sizes.

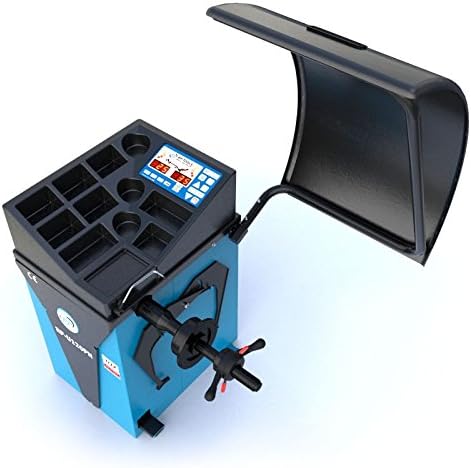

그림 2: 상향식 view of the RP-R-U120PN's control panel, showing the LED display, operational buttons, and convenient storage trays for balancing weights and tools.
4. 설정 및 설치
Follow these steps for initial setup of your balancing machine:
- 짐 풀기: 포장에서 기기를 조심스럽게 꺼내세요. 배송 중 손상된 부분이 있는지 확인하세요.
- 놓기: Position the machine on a firm, level concrete floor capable of supporting its weight (approx. 157 kg). Ensure adequate space around the machine for operation and maintenance.
- 수준 측량: Use the adjustable feet (if present) and a spirit level to ensure the machine is perfectly level.
- 전원 연결: Connect the power cable to a 230V, grounded electrical outlet. Ensure the power switch is in the OFF position before connecting.
- 액세서리 설치: Attach any accessories such as the protective hood arm or additional storage extensions as per the included assembly diagrams.

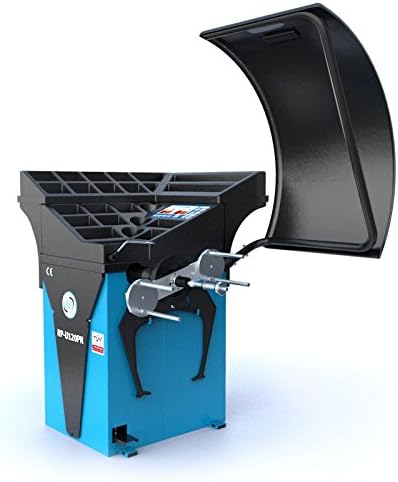

그림 3: 측면 view of the RP-R-U120PN, highlighting the robust wheel shaft and the various cones used for securely mounting different wheel sizes during the balancing process.
5. 사용 설명서
This section details the steps for balancing a wheel using the RP-R-U120PN.
- 전원 켜기: Turn on the main power switch. The LED display will illuminate.
- 바퀴를 장착하세요: Select the appropriate cone for the wheel's center bore. Mount the wheel securely onto the wheel shaft, ensuring it is centered and tightened with the quick-release nut.
- Input Wheel Data: Use the control panel to input the wheel's rim diameter (10-32 inches), rim width, and distance from the machine. The G2 measurement technology assists in precise data acquisition.
- Select Balancing Program: Choose the desired balancing program (e.g., static, dynamic, ALU programs) using the function buttons.
- 측정 시작: Lower the protective hood. The machine will automatically start the balancing cycle, spinning the wheel to measure imbalance.
- Apply Weights: The display will indicate the required weight amount and position. Apply the appropriate balancing weights to the inner and/or outer rim as instructed.
- Verify Balance: Close the hood again to re-spin the wheel and verify the balance. Repeat weight application if necessary until the display shows zero imbalance.
- 휠을 제거하세요: Once balanced, raise the protective hood and carefully remove the wheel.
Figure 4: The RP-R-U120PN with a car wheel securely mounted on the shaft, demonstrating the machine's readiness for a balancing cycle. The protective cover is shown in the open position.
6. 유지관리
Regular maintenance ensures the longevity and accuracy of your balancing machine.
- 매일 청소: Wipe down the machine, especially the wheel shaft and clamping area, to remove dust, dirt, and balancing weight residue.
- 주간 점검: Check all cables and connections for wear or damage. Ensure all bolts and fasteners are tight.
- 센서 교정: Periodically check and calibrate the machine's sensors as per the instructions in the advanced settings menu to maintain measurement accuracy.
- 매끄럽게 하기: Apply a light lubricant to moving parts, such as the protective hood hinges, as needed.
- 저장: When not in use for extended periods, disconnect power and cover the machine to protect it from dust and moisture.
7. 문제 해결
일반적인 문제와 해결 방법은 이 섹션을 참조하세요.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 기계의 전원이 켜지지 않습니다. | 전원 공급 없음; 차단기 작동; 전원 케이블 불량. | Check power connection and outlet; reset circuit breaker; inspect power cable for damage. |
| Inaccurate balancing results. | Improper wheel mounting; incorrect data input; machine not level; sensor calibration needed. | Re-mount wheel securely; verify data input; level the machine; perform sensor calibration. |
| Wheel does not spin. | Protective hood not closed; motor issue; emergency stop engaged. | Ensure hood is fully closed; check for obstructions; disengage emergency stop button. |
If the problem persists, contact RP-TOOLS customer support.
8. 기술 사양
| 매개변수 | 값 |
|---|---|
| 상표 | RP-도구 |
| 모델 | RP-R-U120PN |
| 권tage | 230볼트 |
| Clamping Range (Cone) | 44~132mm |
| 림 직경 | 10~32인치(255~810mm) |
| 속도 균형 | 150 RPM |
| 품목 무게 | 157 킬로그램 |
| 패키지 크기 | 11.51 x 10.01 x 7.49cm |
| 제조업체 참조 | RP-R-U120PN |
| 첫 번째 이용 가능 | 20년 2016월 XNUMX일 |
9. 보증 및 지원
For warranty information, technical support, or service inquiries, please contact RP-TOOLS directly. Refer to your purchase documentation for specific warranty terms and conditions. RP-TOOLS is committed to providing high-quality products and customer satisfaction.
For further assistance, visit the official RP-TOOLS website or contact their customer service department. Keep your model number (RP-R-U120PN) and purchase date ready when contacting support.
