LASCO 24V Heat Only Thermostat

화이트 로저스 24V 난방 전용 온도 조절기 사용 설명서

Model: 24V Heat Only Thermostat

1. 서론

This manual provides comprehensive instructions for the installation, operation, and maintenance of your White Rodgers 24V Heat Only Thermostat. This device is designed to control heating systems by maintaining a desired temperature within a range of 50 to 90 degrees Fahrenheit (10 to 32 degrees Celsius). Please read these instructions carefully before proceeding with installation or operation to ensure safe and efficient use.

2. 안전 정보

항상 다음 안전 예방 조치를 준수하십시오.

  • 전기적 위험: Disconnect power to the heating system at the main fuse or circuit breaker panel before installing or servicing the thermostat. Failure to do so may result in electrical shock or equipment damage.
  • 권tage 호환성: This thermostat is designed for 24V heating systems only. Do not use it with line voltage (120V or 240V) systems.
  • 전문적인 설치: If you are unfamiliar with electrical wiring, it is recommended to have a qualified electrician or HVAC technician install this thermostat.
  • 적절한 폐기: Dispose of old thermostats and packaging materials according to local regulations.

3. 설치 및 설정

올바른 설치를 위해 다음 단계를 따르세요.

3.1 설치 위치

Install the thermostat on an inside wall, approximately 5 feet (1.5 meters) above the floor. Avoid locations:

  • Near windows, outside doors, or vents.
  • Near heat-generating appliances (e.g., televisions, lamp(예: 냉장고).
  • In direct sunlight or areas with poor air circulation.

3.2 배선

Before wiring, ensure power to the heating system is OFF.

  1. Remove the cover of the old thermostat and note the wire connections. Typically, a heat-only system will have two wires: 'R' (power) and 'W' (heat call).
  2. Disconnect the wires from the old thermostat.
  3. Mount the new White Rodgers thermostat base to the wall using the provided screws.
  4. Connect the 'R' wire to the 'R' terminal and the 'W' wire to the 'W' terminal on the new thermostat. Ensure connections are secure.
  5. 온도 조절기 덮개를 교체하십시오.

3.3 초기 전원 켜기

Restore power to the heating system at the main fuse or circuit breaker panel. The thermostat is now ready for operation.

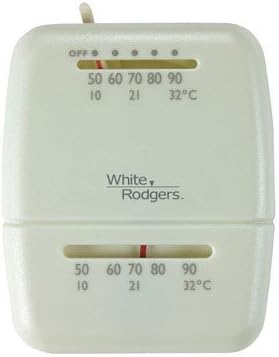

White Rodgers Heat Only Thermostat with temperature dial and OFF/ON switch

그림 1: 앞쪽 view of the White Rodgers Heat Only Thermostat. The upper slider controls the OFF/ON function, while the lower slider sets the desired temperature, indicated in both Fahrenheit (50-90) and Celsius (10-32).

4. 사용 설명서

The White Rodgers Heat Only Thermostat features simple manual controls.

4.1 전원 제어

The upper slider on the thermostat controls the power to the heating system:

  • 슬라이드로 이동 끄다: Disables the heating system.
  • 슬라이드로 이동 ON: Enables the heating system to operate based on the set temperature.

4.2 온도 설정

The lower slider on the thermostat is used to set your desired room temperature:

  1. Ensure the upper slider is set to ON.
  2. Move the lower slider to the desired temperature setting. The scale indicates temperatures in both Fahrenheit (50-90°F) and Celsius (10-32°C).
  3. The heating system will activate when the room temperature falls below your set point and will turn off when the room temperature reaches or exceeds your set point.

5. 유지관리

This thermostat requires minimal maintenance.

  • 청소: 온도 조절 장치 외부를 부드러운 천으로 주기적으로 닦아주세요.amp 천. 연마성 세척제나 용매를 사용하지 마십시오.
  • 먼지 제거: Gently remove any dust accumulation from the vents or internal components using a soft brush or compressed air. Ensure power is off before cleaning internal components.
  • This model does not require battery replacement as it is a mechanical, 24V wired thermostat.

6. 문제 해결

If you encounter issues with your thermostat, refer to the following table:

문제가능한 원인해결책
열이 없습니다
  • Thermostat set to OFF.
  • 온도가 너무 낮게 설정되었습니다.
  • 퓨즈가 끊어졌거나 회로 차단기가 작동했습니다.
  • 느슨한 배선.
  • 난방 시스템 고장.
  • Set thermostat to ON.
  • 설정 온도를 실내 온도보다 높이세요.
  • Check and replace fuse or reset breaker.
  • Check wiring connections (ensure power is OFF).
  • 냉난방 기술자에게 문의하세요.
부정확한 온도 측정
  • 온도 조절 장치의 위치가 통풍이나 열원의 영향을 받습니다.
  • 먼지가 쌓인다.
  • Relocate thermostat if possible, or shield from drafts/heat sources.
  • Clean thermostat (ensure power is OFF).
Heating system runs continuously
  • 온도 조절 장치가 너무 높게 설정되어 있습니다.
  • 온도 조절 장치 고장.
  • 설정 온도를 낮추세요.
  • If problem persists, contact an HVAC technician.

7. 사양

  • 상표: White Rodgers (Manufactured by LASCO)
  • 모델: 24V Heat Only Thermostat
  • 권tage: 24 볼트
  • 현재의: 1.2 Amps
  • 온도 범위: 50~90°F(10~32°C)
  • 디스플레이 유형: 수동 슬라이더
  • 제어 유형: Button Control (Slider)
  • 백라이트: 아니요
  • 치수: Approximately 20 x 7 x 8.8 inches (Product packaging dimensions, actual unit smaller)
  • 품목 무게: 6.4 온스
  • 한국어: 786710545658

8. 보증 및 지원

Specific warranty information for this White Rodgers thermostat is not provided in the product details. For warranty claims or technical support, please refer to the contact information provided with your purchase or visit the official White Rodgers web해당 사이트에서 구매하세요. 보증 관련 문의 사항이 있을 경우를 대비하여 구매 증빙 자료를 보관해 두세요.
