소개
This manual provides detailed instructions for the installation, operation, and maintenance of your KES Kitchen Sink Pull Down Faucet Head Replacement, Model PFS4-BN. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
Image: KES Kitchen Sink Pull Down Faucet Head Replacement, Brushed Nickel finish.
명세서
| 특징 | 세부 사항 |
|---|---|
| 상표 | 케스 |
| 모델 번호 | PFS4-BN |
| 재료 | 플라스틱 |
| 마무리 유형 | 브러시드 니켈 |
| 설치 유형 | 나사로 고정 |
| 설정 수 | 2 (Stream, Spray) |
| 유량 | 분당 1.8 갤런 |
| 특징 | Removable Flow Restrictor |
| 제품 치수 | 8.46 x 2.64 x 2.64 인치 |
| 품목 무게 | 4.6 온스 |
호환성
This replacement faucet head is designed to fit most standard G 1/2 connectors (20.5mm or 0.8 inches Outer Diameter). It is 호환되지 않음 with NPT or 1/2 inch NPT connectors. Please verify your existing hose connection size before installation.
Image: Diagram illustrating the compatible G 1/2 connector (20.5mm or 0.8" OD) and incompatible NPT (1/2 inch or 0.5 inch) connector types.
이미지: 클로즈업 view of the G 1/2 connector on the KES faucet head, showing the threaded connection and washer.
설정 및 설치
Follow these steps to install your new KES faucet head:
- 준비: 주방 싱크대의 물 공급을 차단하세요.
- Remove Old Faucet Head: Unscrew your existing pull-down faucet head from the hose. You may need a wrench if it's tightly secured.
- 호스 검사: Ensure the hose end is clean and free of debris. Check for any existing washers or O-rings that might need to be replaced.
- Install New Faucet Head:
- Ensure the rubber washer is properly seated inside the new faucet head's connector.
- Screw the new KES faucet head onto your existing pull-down hose. Hand-tighten first, then use a wrench for a final quarter-turn to ensure a secure, leak-free connection. Do not overtighten.
- 누출 테스트: Turn the water supply back on slowly. Check for any leaks around the connection point. If leaks occur, tighten slightly more or re-seat the washer.
Image: The KES faucet head disassembled, showing the main body, washer, and flow restrictor component, ready for installation.
작동 지침
Your KES Kitchen Sink Pull Down Faucet Head features two spray functions for versatile use:
- 통기 스트림: This mode provides a steady, aerated flow of water, ideal for filling pots and general washing.
- 강력한 스프레이: This mode delivers a strong, wide spray, effective for rinsing dishes and cleaning the sink.
To switch between the two modes, press the button located on the top of the faucet head. The button toggles between the aerated stream and the powerful spray.
Video: Demonstration of the KES Kitchen Pull Out Replacement Head, showing the two spray modes (stream and spray) and ease of switching.

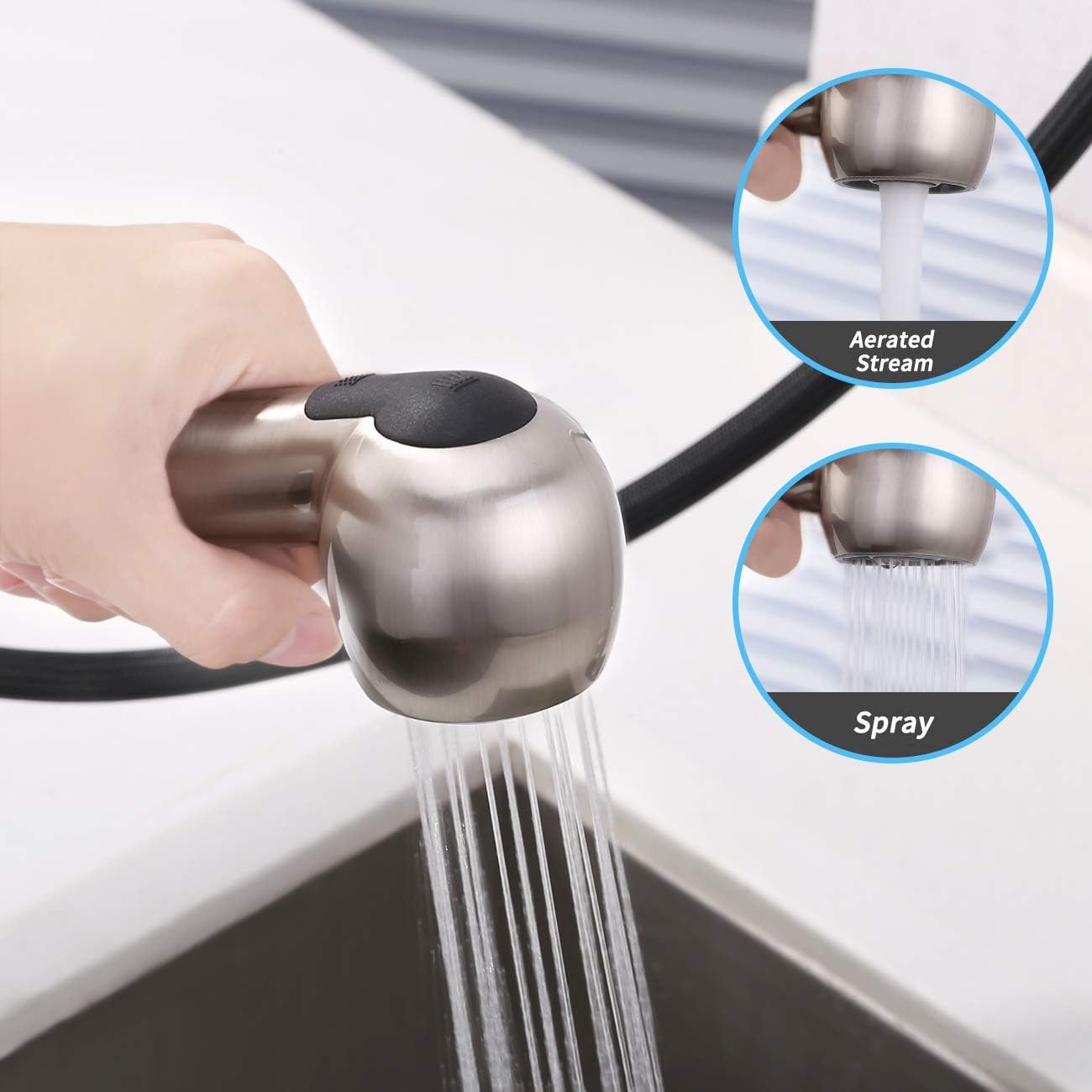

Image: Visual representation of the faucet head's two functions: aerated stream and spray mode, with the toggle button highlighted.
Image: The KES faucet head in spray mode, effectively rinsing a dirty plate.
유지
Regular maintenance ensures optimal performance and extends the life of your faucet head:
- 청소 노즐: The faucet head features self-cleaning medical TPE nozzles. To clean, gently rub the rubber nozzles with your finger or a soft brush to remove mineral buildup.
- 외부 청소: Clean the exterior of the faucet head with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed nickel finish.
- 유량 제한기: The faucet head includes a removable flow restrictor. If you experience reduced water flow, you may check and clean the flow restrictor for any debris. Refer to the diagram for its location.
Image: Close-up of the faucet head showing the self-cleaning medical TPE nozzles and multi-mesh aerator for an aerated, quiet, and no-splash stream.
이미지: 상세 view of the removable flow restrictor located within the faucet head's connection point.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 연결 부위에서 물이 샙니다. | Loose connection or improperly seated washer. | Ensure the faucet head is securely tightened. Check that the rubber washer is correctly positioned. |
| 물 흐름 감소. | Clogged nozzles or flow restrictor. | Clean the TPE nozzles by gently rubbing them. Inspect and clean the removable flow restrictor for debris. |
| Difficulty switching spray modes. | Mineral buildup in the toggle mechanism. | Clean the button area and surrounding mechanism. If persistent, soak the head in a vinegar solution to dissolve mineral deposits. |
보증 정보
KES products are backed by a Lifetime Limited Warranty. This warranty covers defects in material and manufacturing. For detailed information regarding warranty terms and conditions, please refer to the official KES web사이트를 방문하거나 고객 지원팀에 문의하세요.
Image: KES product features including Lifetime Limited Warranty and Free Replacement Parts.
고객 지원
For any questions, assistance, or replacement parts, please contact KES customer support. KES offers 24-hour customer support and 1-on-1 follow-up to ensure customer satisfaction.
You can find contact information on the official KES web대지: Visit the KES Store on Amazon
Image: KES customer-oriented services including 24-hour support, 1-on-1 follow-up, and free replacement parts.
