소개
The Antares GLX Galaxy LED Strip Fixture is a high-efficiency, ultra-slim, and dimmable lighting solution designed for various indoor applications. This 18-watt, 45-inch fixture operates on 120V AC and provides a bright 5000K (cool white) light output of 1815 lumens. Its linear design and aluminum construction ensure durability and a sleek aesthetic, making it suitable for under-cabinet lighting, display cases, workshops, and more.
Image: The Antares GLX Galaxy LED Strip Fixture, showcasing its slim, linear design and white finish.
중요한 안전 정보
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in electrical shock, fire, or other hazards.
- This fixture is a 휴대용 조명기구 그리고이다 UL US LISTED (E364489).
- 을 위한 실내에서만 사용 가능물이나 습기에 노출시키지 마십시오.
- To avoid risk of electrical shock or fire, do not connect more than 12 fixtures in a continuous run.
- Connect only to adjacent units. The total current draw for a continuous run of fixtures must not exceed 1.2 Amp에레스.
- Ensure the power source is disconnected before installation, maintenance, or troubleshooting.
- 제품을 개조하거나 분해하려고 시도하지 마십시오. 내부에는 사용자가 수리할 수 있는 부품이 없습니다.
이미지: 클로즈업 view of the fixture's side, showing the UL listing and safety warnings regarding indoor use and maximum number of connected fixtures.
패키지 내용
설치를 시작하기 전에 모든 구성 요소가 있는지 확인하세요.
- Antares GLX Galaxy LED Strip Fixture (1 unit)
- Mounting Clips (quantity may vary based on fixture length)
- Mounting Screws (quantity matching clips)
- Power Cord (US style, 3-prong plug)
- End-to-End Connector (for linking multiple fixtures)
Image: Mounting clip and screw.
Image: Power cord for the fixture.
Image: End-to-end connector.
설정 및 설치
- 도면 설치 위치: Choose a dry, indoor location for mounting. Ensure the surface is suitable for drilling and can support the weight of the fixture(s). Consider the proximity to a 120V AC power outlet.
- 고정물 장착:
- Mark the desired mounting points for the clips. For the 45-inch fixture, use at least two clips, spaced evenly.
- 표시된 위치에 예비 구멍을 뚫습니다.
- 제공된 나사를 사용하여 장착 클립을 표면에 고정하십시오.
- Snap the LED fixture into the mounted clips, ensuring it is securely held.
- 전원 연결:
- Insert the smaller end of the power cord into the input port on one end of the LED fixture.
- Plug the 3-prong end of the power cord into a standard 120V AC wall outlet.
이미지: 끝 view of the fixture, highlighting the connection port.
- Linking Multiple Fixtures (Optional):
- If connecting multiple fixtures, ensure the total current draw does not exceed 1.2 Amperes (maximum 12 fixtures).
- Use the provided end-to-end connector to link the output end of one fixture to the input end of the next.
- Alternatively, extension cords (sold separately) can be used for spaced installations.
작동 지침
The Antares GLX Galaxy LED Strip Fixture is designed for simple operation. Once properly installed and connected to power, it can be controlled via a compatible wall switch or a remote control (if included or purchased separately).
- 전원 켜기/끄기: Use the wall switch connected to the fixture's power outlet to turn the light on or off.
- 디밍 기능 : This fixture is dimmable. To utilize the dimming feature, connect it to a compatible 120V AC dimmer switch. Follow the dimmer switch manufacturer's instructions for operation. If a remote control is provided, refer to its specific instructions for dimming and other functions.

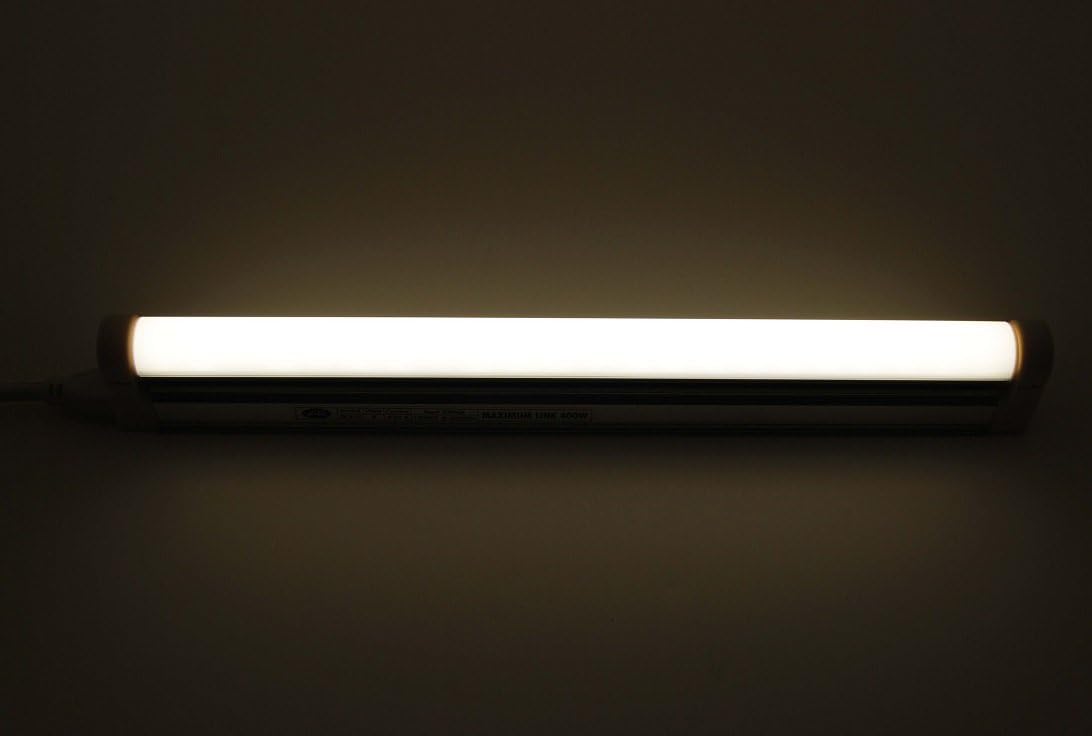

Image: The Antares GLX Galaxy LED Fixture in an illuminated state, demonstrating its light output.
유지
The Antares GLX Galaxy LED Strip Fixture requires minimal maintenance due to its durable LED technology.
- 청소: 청소하기 전에 전원을 분리하세요. 부드럽고 건조하거나 약간 습한 천을 사용하세요.amp cloth to wipe the surface of the fixture. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the finish or internal components.
- LED 수명 : The LEDs are designed for long-term use and do not require replacement. If the fixture stops functioning, refer to the Troubleshooting section.
문제 해결
If you encounter issues with your Antares GLX Galaxy LED Strip Fixture, please refer to the following common problems and solutions:
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 고정 장치가 켜지지 않습니다. | No power to the outlet; loose connection; faulty fixture. | Check if the outlet has power (test with another device). Ensure the power cord is securely plugged into both the fixture and the wall outlet. If linking multiple fixtures, check all connections. |
| 불빛이 깜빡이거나 어둡습니다. | Incompatible dimmer switch; loose connection; overloaded circuit. | Ensure you are using a compatible 120V AC dimmer switch. Check all power connections. Verify that you have not exceeded the maximum of 12 linked fixtures or 1.2 Amperes total current draw. |
| Only some linked fixtures are working. | Loose connection between fixtures; faulty connector. | Check the end-to-end connections between each fixture in the chain. Ensure connectors are fully inserted. |
명세서
| 모델 번호 | GLX145E850 |
| 상표 | 안타레스 |
| 전원 | 120V 교류 |
| 왓tage | 18 와트 |
| 명도 | 1815루멘 |
| 색온도 | 5000 켈빈(쿨화이트) |
| 특징 | 밝기 조절 가능 |
| 광원 유형 | 주도의 |
| 재료 | 알류미늄 |
| 모양 | 선의 |
| 길이 | 45인치 |
| 제어 방법 | Remote (via compatible remote control, sold separately or included with specific kits) / Wall Switch |
| 인증 | UL US Listed (E364489) |
보증 및 지원
Specific warranty information for the Antares GLX Galaxy LED Strip Fixture is not provided in this manual. For warranty details, technical support, or replacement parts, please contact Antares Enterprises directly.
Manufacturer: Antares Enterprises
Please visit the official Antares web웹사이트를 방문하시거나 구매 서류에서 연락처 정보를 확인하십시오.
