소개
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Azza XT1 Full Tower Gaming Case (Model: CSAZ-XT1 W). Please read this manual thoroughly before beginning installation to ensure proper setup and to maximize the performance and longevity of your product.
안전 정보
Observe the following safety precautions to prevent damage to the case or injury to yourself:
- 설치 또는 유지 보수 작업을 하기 전에 항상 벽면 콘센트에서 전원 공급 장치를 분리하십시오.
- Handle internal components with care to avoid electrostatic discharge (ESD) damage. Consider using an anti-static wrist strap.
- Ensure all cables are routed properly to prevent interference with fans or other moving parts.
- Do not block ventilation openings. Maintain adequate airflow around the case.
- Keep the case away from sources of heat, direct sunlight, and moisture.
제품 특징
The Azza XT1 Full Tower Gaming Case is designed with several features to enhance your computing experience:
- VGA Card Support: Accommodates VGA cards up to 340 mm in length.
- Easy Swap Slot: Features a bottom-mounted easy swap slot for tool-less hard drive installation.
- 냉각 성능: Equipped with four pre-installed fans for optimal airflow and supports up to two 120mm water cooling radiators.
- Customizable Grilles: Front and top decorative grilles are removable and exchangeable for aesthetic customization.
- Tool-less Installation: Designed for easy installation of 5.25" devices and HDDs with a tool-less mechanism and a 90-degree rotating HDD holder.
- 케이블 관리 : Includes a dedicated compartment for efficient cable routing, improving internal airflow and aesthetics.
설정 및 설치
Follow these steps to set up your Azza XT1 case and install components:
1. 사건 준비
Place the case on a stable, flat surface. Remove the side panels by unscrewing the thumb screws at the rear and sliding the panels backward.

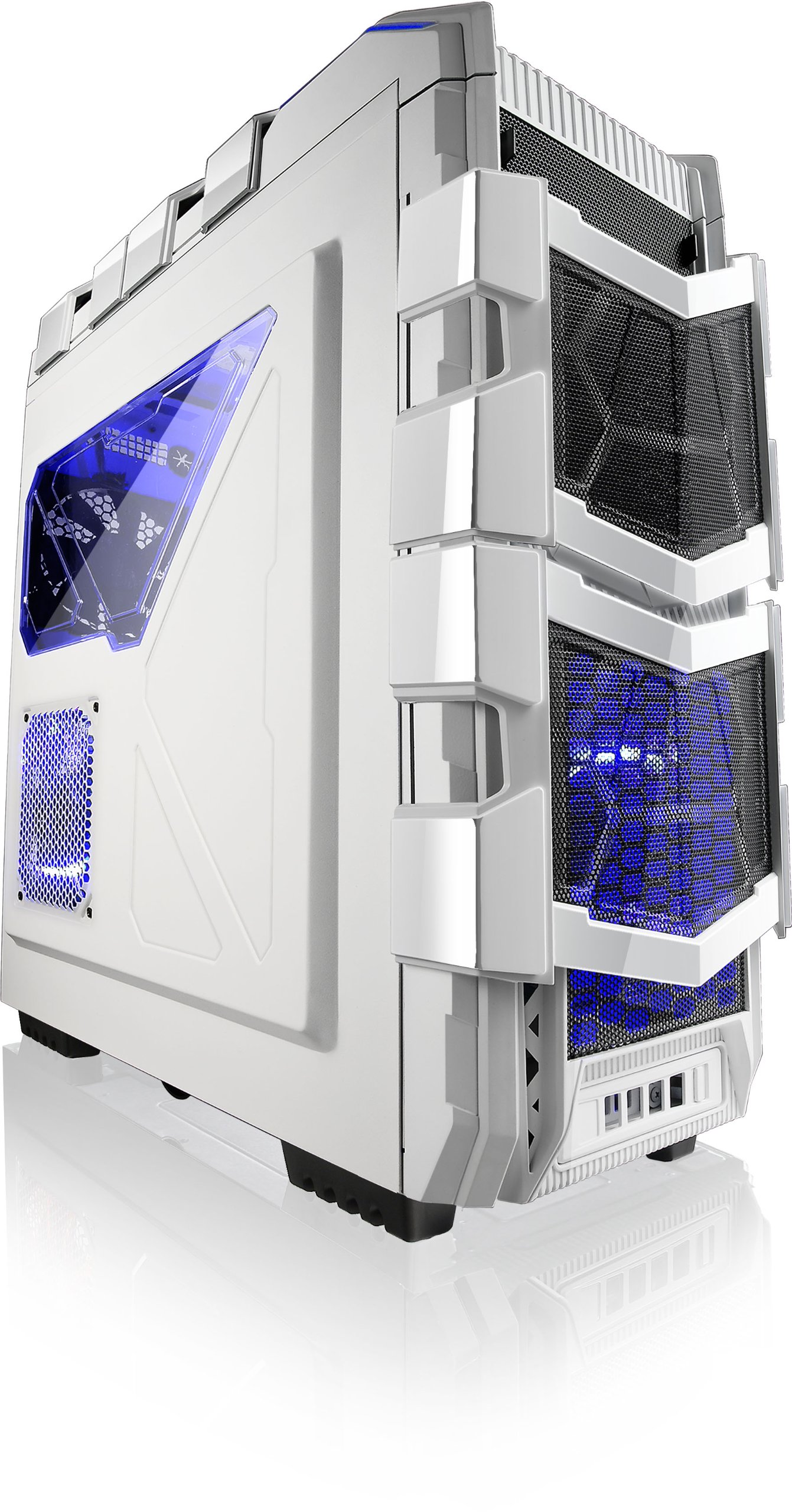

그림 1: 각도 view of the Azza XT1 case, showing its overall design and front mesh panels.
2. 마더보드 설치
Install the I/O shield into the rear opening of the case. Align your ATX motherboard with the standoffs inside the case. Secure the motherboard using the provided screws.
Figure 2: Internal layout of the Azza XT1 case, highlighting the motherboard tray and drive bay areas.
3. 전원 공급 장치 설치
Mount your power supply unit (PSU) into the designated area at the bottom rear of the case. Secure it with screws from the outside.
4. 드라이브 설치 (HDD/SSD)
Utilize the tool-less HDD holders. For the easy swap slot, simply slide the hard drive into the bottom slot until it clicks into place. For other bays, secure drives using the provided trays or mounting mechanisms. The HDD holder can rotate 90 degrees for easier access.
그림 3: 후면 내부 view of the Azza XT1 case, illustrating the drive bays and the space behind the motherboard for cable management.
5. Expansion Card Installation (VGA, etc.)
Remove the necessary expansion slot covers at the rear of the case. Insert your VGA card or other expansion cards into the motherboard's PCIe slots and secure them with screws or the tool-less retention clips.
6. 케이블 관리
Route all power and data cables through the designated cutouts and tie-down points behind the motherboard tray. This improves airflow and maintains a clean internal appearance.
7. 케이스 닫기
Once all components are installed and cables are managed, reattach the side panels and secure them with the thumb screws.
케이스 작동 방법
The Azza XT1 case provides the housing and cooling for your PC components. Operation primarily involves using the front panel controls:
- 전원 버튼: 상단 패널에 있는 버튼을 눌러 시스템의 전원을 켜거나 끌 수 있습니다.
- 재설정 버튼: Located on the top panel, press to restart your system.
- USB 포트: Connect USB devices to the front panel USB 2.0 and USB 3.0 ports.
- 오디오 잭: Connect headphones and microphones to the front panel audio jacks.
그림 4: 상단 view of the Azza XT1 case, detailing the power button, USB ports, and audio jacks.
유지
Regular maintenance helps ensure optimal performance and longevity of your Azza XT1 case and its components.
- 먼지 청소: 압축 공기를 사용하여 주기적으로 먼지 필터와 내부 부품을 청소하십시오. 청소하기 전에 시스템의 전원을 끄고 플러그를 뽑으십시오.
- 팬 검사: Check fans for dust buildup and ensure they are spinning freely. Clean as necessary.
- 케이블 점검: 모든 내부 케이블이 단단히 연결되어 있고 공기 흐름을 방해하지 않는지 확인하십시오.
- 외부 청소: 부드러운 d로 외부 표면을 닦으십시오.amp 옷감. 연마성 세제를 피하십시오.
문제 해결
이 섹션에서는 PC 케이스 사용 시 발생할 수 있는 일반적인 문제에 대해 설명합니다.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 시스템 전원이 켜지지 않습니다. | Power button not connected correctly; PSU issue; motherboard issue. | Verify front panel power button cable is securely connected to the motherboard. Check PSU connections. |
| 팬이 돌지 않습니다. | Fan cables disconnected; fan failure; insufficient power. | Ensure all fan power cables are properly connected to the motherboard or fan controller. |
| 전면 패널 USB 포트가 작동하지 않습니다. | USB header cable disconnected or incorrectly connected. | Check that the USB 2.0 and USB 3.0 header cables from the front panel are correctly plugged into the motherboard. |
| 공기 순환 불량 또는 과열. | Dust buildup; blocked vents; improper fan configuration. | Clean dust filters and internal components. Ensure case fans are oriented correctly for optimal airflow. |
명세서
Detailed specifications for the Azza XT1 Full Tower Gaming Case (CSAZ-XT1 W):
| 특징 | 세부 사항 |
|---|---|
| 상표 | 아자 |
| 모델 번호 | CSAZ-XT1 W |
| 케이스 유형 | 풀 타워 |
| 색상 | 하얀색 |
| 재료 | SECC Steel |
| 마더보드 호환성 | 에이티엑스 |
| 제품 크기(LxWxH) | 51.56 x 20.57 x 56.64cm |
| 품목 무게 | 9.98kg |
| USB 2.0 포트 | 2 |
| USB 3.0 포트 | 1 |
| VGA Card Length Support | 최대 340mm |
| 워터쿨링 지원 | Up to 2x120mm radiators |
보증 및 지원
For warranty information and technical support, please refer to the official Azza web사이트를 방문하거나 고객 서비스 부서에 문의하세요. 보증 청구를 위해 구매 증빙 자료로 구매 영수증을 보관하세요.
제조업체: AZZA (USA) Technology Inc
