소개
The ZAGG Folio Case with Backlit Bluetooth Keyboard is designed to enhance your iPad Air experience by providing both robust protection and a comfortable, efficient typing solution. This manual provides essential instructions for the proper setup, operation, and maintenance of your device, ensuring optimal performance and longevity.
무엇이 포함됩니까?
- ZAGG Folio Case with Integrated Bluetooth Keyboard
- USB 충전 케이블
설정
1. Inserting Your iPad Air
Carefully align your iPad Air with the protective shell of the ZAGG Folio case. Gently press the iPad into the case until it is securely seated. Ensure all ports, buttons, and the camera cutout are correctly aligned and accessible.

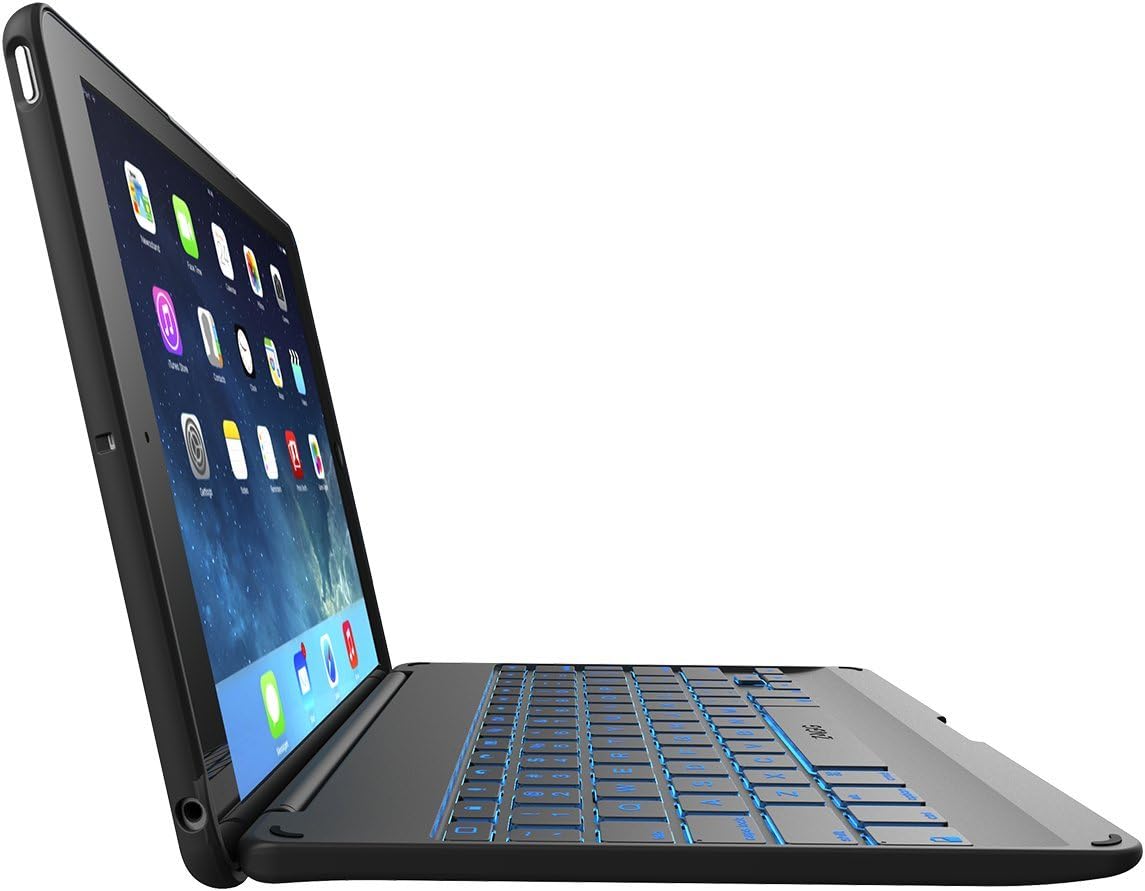

이미지: 사이드 프로file of the ZAGG Folio Case with iPad Air, demonstrating its thin design when open.
2. 키보드 충전
Before initial use, fully charge the keyboard. Connect the included USB cable to the keyboard's charging port and to a powered USB port or a wall adapter. The charging indicator light will illuminate. A full charge provides up to three months of regular use (based on two hours per day without backlight activation).
이미지: 측면 view of the ZAGG Folio Case with iPad Air, showing the charging port and other side controls.
3. 블루투스 페어링
- 전원 스위치를 ON 위치로 밀어 키보드를 켭니다.
- On your iPad Air, navigate to 설정 > 블루투스 블루투스가 활성화되어 있는지 확인하십시오.
- Press the Bluetooth pairing button on the keyboard (typically indicated by a Bluetooth icon). The indicator light will flash, signifying that the keyboard is in pairing mode.
- On your iPad Air, select 'ZAGG Folio' from the list of available devices.
- Follow any on-screen prompts to complete the pairing process. Once successfully paired, the indicator light on the keyboard will stop flashing.
Image: ZAGG Folio Case with Backlit Bluetooth Keyboard for iPad Air, open with iPad screen displaying apps and keyboard illuminated.
작동 지침
1. 조정 View잉 앵글
The ZAGG Folio features a unique hinge design that allows you to position your iPad Air at various viewing angles, up to 135 degrees. Gently adjust the screen to your preferred angle for comfortable typing, viewing, or media consumption.
Image: ZAGG Folio Case with iPad Air, shown at an angled view, highlighting the adjustable hinge and backlit keyboard.
2. Backlit Keys
The keyboard is equipped with backlit keys, enabling comfortable typing in low-light environments. Press the backlight key (often marked with a sun or lightbulb icon) to cycle through different brightness levels and color options. Be aware that using the backlight feature will increase battery consumption.
3. 특수 기능 키
The top row of the keyboard includes dedicated function keys for quick access to common iPad features. These include controls for Home, Lock, Siri, volume adjustment, media playback, and more. Refer to the key legends printed on the keyboard for specific functions.
4. Sleep/Wake Function
Cleverly placed magnets within the folio case automatically activate your iPad Air's sleep/wake function when the case is opened or closed. This feature helps conserve your iPad's battery life.
Image: ZAGG Folio Case closed, protecting the iPad Air, displaying its compact and portable form factor.
유지
1. 청소
To clean the ZAGG Folio case and keyboard, use a soft, slightly damp, lint-free cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the device. Ensure no liquid enters the keyboard or iPad ports.
2. 배터리 관리
To maximize the keyboard's battery life, turn off the keyboard when it is not in use. The automatic sleep/wake function of the iPad, activated by closing the case, also contributes to battery conservation. Recharge the keyboard promptly when the battery indicator signals low power.
문제 해결
1. Keyboard Not Pairing
- Ensure the keyboard is fully charged and powered on.
- Toggle your iPad's Bluetooth off and then back on.
- In your iPad's Bluetooth settings, 'Forget This Device' for the ZAGG Folio and attempt to re-pair.
- Confirm the keyboard is in pairing mode (indicator light flashing).
2. 키가 응답하지 않음
- Verify that the keyboard is properly paired and connected to your iPad.
- 키보드 배터리를 충전하세요.
- iPad Air를 다시 시작하세요.
3. 백라이트가 작동하지 않음
- 키보드의 전원이 켜져 있는지 확인하세요.
- Press the backlight key to cycle through brightness levels and confirm it is not set to off.
- Check the keyboard's battery level; low battery may disable backlighting to conserve power.
명세서
| 모델 번호 | ID5ZFK-BB0 |
| 호환 장치 | 아이패드 에어 |
| 연결성 | 블루투스 |
| 제품 크기(LxWxH) | 10.4 x 1.2 x 7.2 인치 |
| 품목 무게 | 1.15파운드 |
| 배터리 | 리튬 이온 1개(포함) |
| 특별 기능 | Backlit keys, Multi-angle hinge, Sleep/Wake function |
| 색상 | 검은색 |
보증 정보 및 지원
For detailed warranty information, product registration, and technical support, please visit the official ZAGG web해당 웹사이트를 방문하거나 고객 서비스 부서에 문의하십시오. 보증 청구를 위해 구매 증빙 자료를 보관하는 것이 좋습니다.
Official ZAGG Web대지: zagg.com
