1. 서론
Thank you for choosing the Excalibur X12.1BR 12-inch Car Subwoofer. This passive subwoofer, pre-installed in an optimized bass reflex enclosure, is designed to deliver deep and powerful bass to your vehicle's audio system. With a maximum power of 1000W and 300W RMS, it provides significant acoustic impact. This manual provides essential information for proper installation, operation, and maintenance to ensure optimal performance and longevity of your subwoofer.
2. 안전 정보
Please read all safety instructions carefully before installing and operating this product. Failure to do so may result in injury or damage to the equipment.
- 전문 설치 권장: 최적의 성능과 안전을 위해 자격을 갖춘 차량 오디오 기술자의 전문적인 설치를 강력히 권장합니다.
- 전원: Ensure the vehicle's battery is disconnected before any wiring to prevent electrical shorts.
- 통풍: Ensure adequate ventilation around the subwoofer enclosure to prevent overheating.
- 배선: Use appropriate gauge wiring for power, ground, and speaker connections. Incorrect wiring can cause damage to the subwoofer or amp리퍼.
- 볼륨 레벨: Prolonged exposure to high sound pressure levels can cause permanent hearing damage. Operate the system at moderate volume levels.
- 안전한 장착: Always secure the subwoofer enclosure properly in the vehicle to prevent it from shifting during sudden stops or accidents.
3. 패키지 내용
패키지에 모든 품목이 들어 있는지 확인하세요.
- Excalibur X12.1BR Subwoofer (pre-installed in bass reflex enclosure)
4. 설정 및 설치
The Excalibur X12.1BR is designed for straightforward integration into your car audio system. It requires an external amp작동용 리파이어.
4.1. 배치
The compact design of the enclosure makes it suitable for placement in the vehicle's trunk. Ensure the subwoofer is placed in a stable position and securely fastened to prevent movement. Avoid blocking the side port for optimal bass reflex performance.
그림 1: 각도 view of the Excalibur X12.1BR subwoofer in its bass reflex enclosure. Note the side port for enhanced bass.
4.2. 배선 연결
The subwoofer features side input terminals for quick and secure connection to your external amplifier. The subwoofer has a standard impedance of 4 Ohm.
- 배터리 분리: Before making any electrical connections, disconnect the negative terminal of your vehicle's battery.
- 스피커선 연결: 서브우퍼의 양극(+) 단자를 앰프의 스피커 출력 단자의 양극(+) 단자에 연결하세요. amp앰프. 서브우퍼의 음극(-) 단자를 앰프의 음극(-) 스피커 출력 단자에 연결하십시오. amplifier. Ensure a secure connection at both ends.
- Amplifier 연결: 참조 amplifier's instruction manual for proper power, ground, and remote turn-on connections.
- 배터리를 다시 연결하십시오: 모든 연결이 안전하게 확인되면 차량 배터리를 다시 연결하십시오.

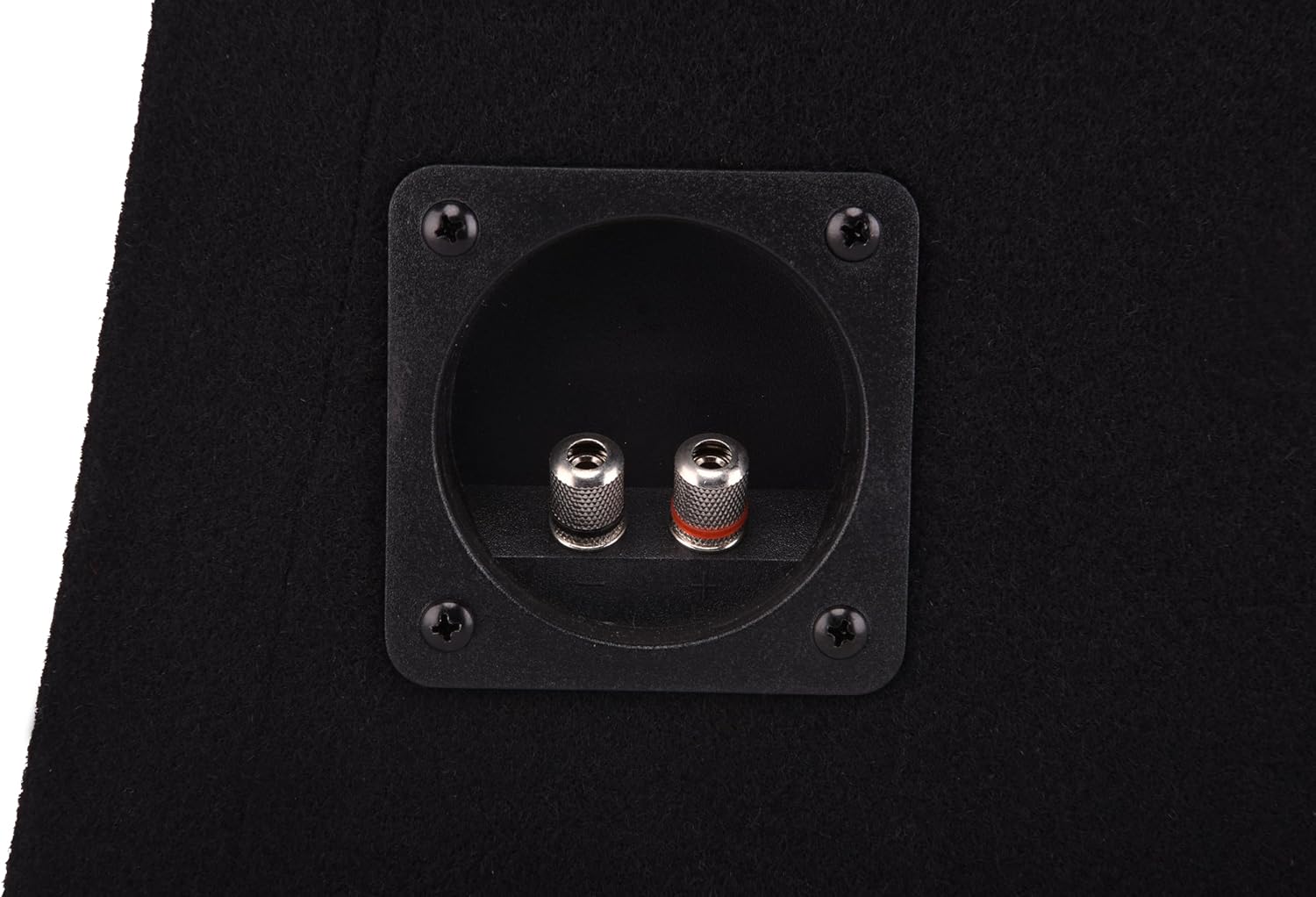

그림 2: 클로즈업 view of the side input terminals on the Excalibur X12.1BR subwoofer enclosure, ready for amp리퍼 연결.
5. 운영
Once installed, the Excalibur X12.1BR subwoofer will work in conjunction with your external amplifier to produce deep bass frequencies.
5.1. Initial Power-Up and Settings
- Turn on System: Power on your car audio system and amp리퍼.
- 조정하다 Amp리퍼 게인: 로 시작하세요 amplifier's gain control at its minimum setting. Gradually increase the gain until the subwoofer output blends smoothly with your main speakers without distortion.
- Set Low-Pass Filter (LPF): 저역 통과 필터를 사용하세요 amplifier to control the upper frequency limit of the subwoofer. A common starting point is between 80Hz and 120Hz. Adjust to your preference for seamless integration.
- 위상 제어 : 만약 당신의 amplifier has a phase control (0°/180°), experiment with both settings to find the one that provides the most impactful and coherent bass response.
The subwoofer has a frequency response range of 35Hz to 1000Hz and a sensitivity of 94dB, allowing it to efficiently convert amplifier power into volume.

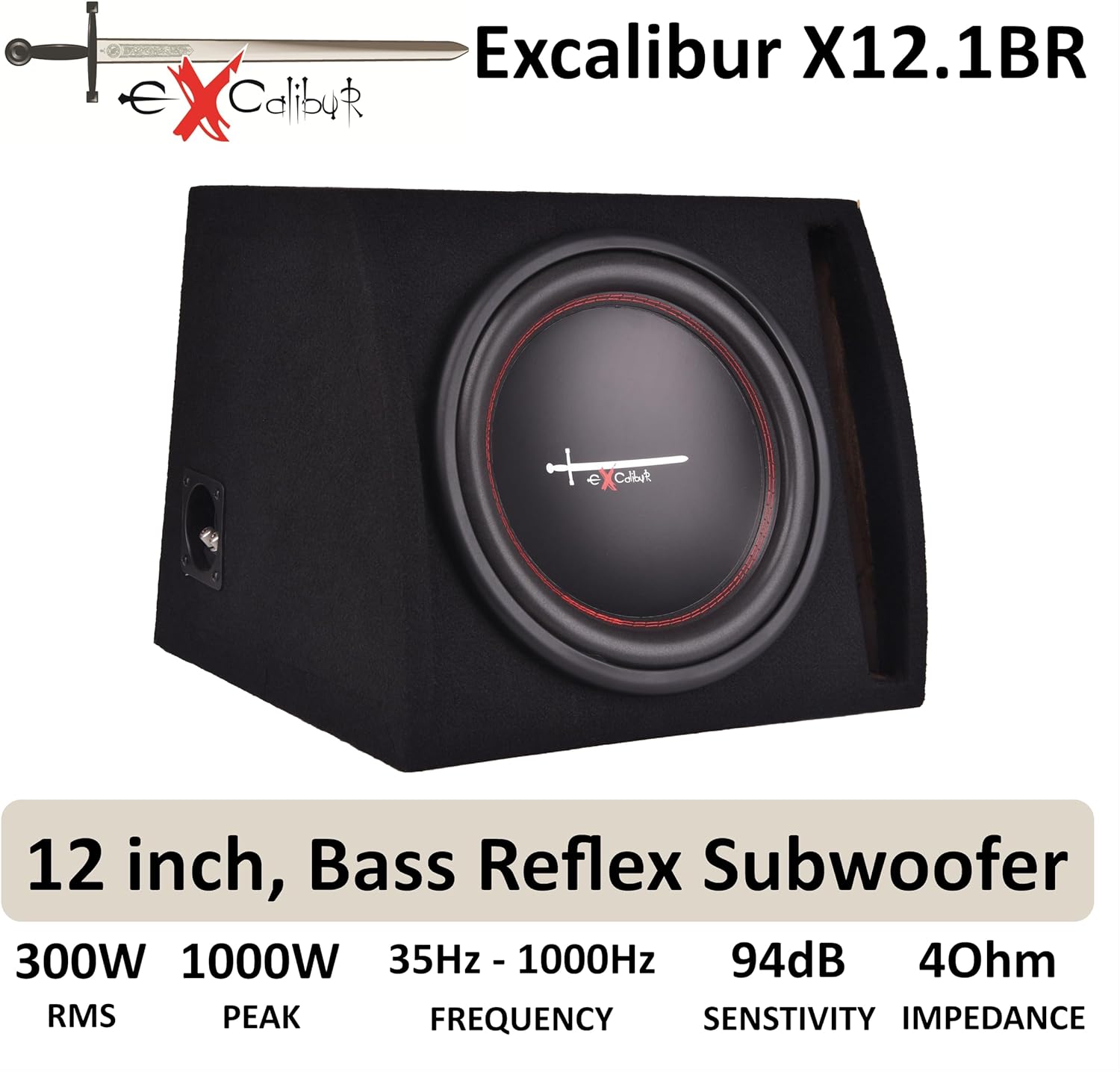

Figure 3: The Excalibur X12.1BR subwoofer highlighting its key specifications: 300W RMS, 1000W Peak, 35Hz-1000Hz Frequency, 94dB Sensitivity, and 4 Ohm Impedance.
6. 유지관리
The Excalibur X12.1BR subwoofer is designed for durability. Regular maintenance is minimal but important for longevity.
- 청소: The enclosure is covered with durable black felt. Use a soft, dry cloth or a vacuum cleaner with a brush attachment to gently clean the surface and remove dust or debris. Avoid using liquid cleaners directly on the enclosure or speaker cone.
- 점검: Periodically check all wiring connections to ensure they remain tight and free from corrosion. Inspect the speaker cone for any signs of damage.
- 환경적 요인: 서브우퍼를 극한의 온도, 장시간 직사광선 또는 과도한 습기에 노출시키지 마세요.
7. 문제 해결
If you experience issues with your Excalibur X12.1BR subwoofer, refer to the following common problems and solutions:
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 서브우퍼에서 소리가 나지 않습니다 |
|
|
| 왜곡되거나 약한 베이스 |
|
|
| Subwoofer cuts out |
|
|
이러한 해결 방법을 시도한 후에도 문제가 지속되면 전문 차량 오디오 기술자에게 문의하십시오.
8. 사양
Detailed technical specifications for the Excalibur X12.1BR Subwoofer:
| 특징 | 사양 |
|---|---|
| 상표 | 엑스칼리버 |
| 모델명 | BM X121BR |
| 서브우퍼 직경 | 12 인치 (30cm) |
| 스피커 유형 | Component (in Bass Reflex Enclosure) |
| 최대 스피커 출력 전력 | 1000와트(최대) |
| RMS 전원 | 300 와트 |
| 임피던스 | 4옴 |
| 감광도 | 94데시벨 |
| 주파수 응답 | 35Hz - 1000Hz |
| 인클로저 유형 | Bass Reflex with Side Port |
| 색상 | 검은색 |
| 제품 크기(L x W x H) | 40.4 x 35.4 x 26cm |
| 제품 무게 | 8 킬로그램 |
| 전원 | 코드식 전기 |
| 연결 기술 | 보조(유선) |
| 방수 | 거짓 |
| 제조업체 | AutoStyle |
| 원산지 | 중국 |
그림 4: 이상view of the Excalibur X12.1BR subwoofer, highlighting its deep bass capability, bass reflex design, and compact enclosure.
9. 보증 및 지원
For warranty information and technical support, please refer to the documentation provided with your purchase or contact the retailer where the product was acquired. You may also visit the official Excalibur web추가 지원은 사이트를 참조하세요.
