1. 서론

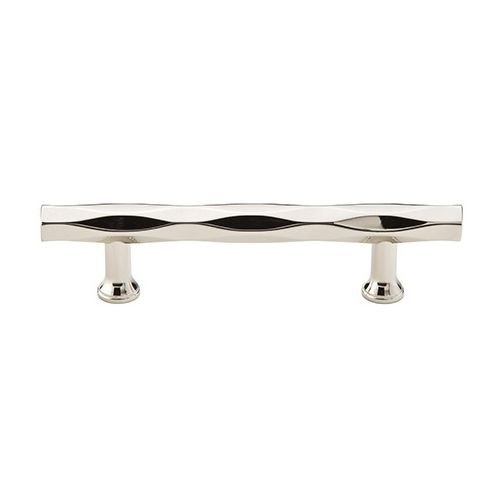

This manual provides comprehensive instructions for the installation, care, and maintenance of your Emtek Tribeca 86428 Cabinet Pull. Designed for durability and ease of use, this 3-1/2 inch center to center bar pull is crafted from solid brass with a polished nickel finish, enhancing the aesthetic and functionality of your cabinetry.
2. 안전 정보
Please read all instructions carefully before beginning installation. Failure to follow these guidelines may result in damage to the product or injury. Keep small parts, such as screws, out of reach of children. Always wear appropriate safety gear, such as eye protection, when using power tools.
3. 패키지 내용
설치를 시작하기 전에 모든 구성 요소가 있는지 확인하십시오.
- 1 x Emtek Tribeca 86428 Cabinet Pull (Polished Nickel)
- 2 x Mounting Screws (appropriate length for standard cabinet doors/drawers)
4. 필요한 도구
원활한 설치를 위해 다음 도구들을 권장합니다.
- Phillips 헤드 스크루 드라이버
- Drill with appropriate drill bit (typically 3/16" or 5mm for pilot holes, consult cabinet material for best size)
- 테이프 또는 자 측정
- 연필이나 마커
- Awl or Center Punch (optional, for marking drill points)
- Painter's Tape (optional, to prevent wood splitting)
5. 설치 지침
Follow these steps to properly install your cabinet pull:
- 표면 준비: Ensure the cabinet door or drawer front is clean and free of debris. If replacing existing hardware, remove the old pull and clean the area.
- 드릴 포인트 표시: Using a measuring tape or ruler, carefully measure and mark the desired location for your pull. The Emtek Tribeca 86428 pull has a 3-1/2 inch (89mm) center-to-center spacing. Mark two points precisely 3-1/2 inches apart. For accuracy, consider using a cabinet hardware jig.
- 드릴 파일럿 홀: Using a drill with an appropriate drill bit (e.g., 3/16" or 5mm), carefully drill pilot holes through the marked points. If drilling through wood, apply painter's tape over the drill area to minimize splintering. Drill from the front of the cabinet door/drawer.
- 당기는 부분을 부착하세요: Align the pull with the drilled holes. Insert the mounting screws from the inside of the cabinet door/drawer through the pilot holes and into the threaded posts of the pull.
- 나사를 조이세요: Using a Phillips head screwdriver, gently tighten the screws until the pull is secure. 너무 조이지 마세요, as this can strip the threads or damage the cabinet material.
6. 운영
The Emtek Tribeca 86428 Cabinet Pull is designed for straightforward use. Simply grasp the bar pull to open and close cabinet doors or drawers. Ensure the pull is securely fastened to prevent loosening during regular use.
7. 관리 및 유지 보수
To maintain the finish and longevity of your Emtek cabinet pull:
- 청소: 부드러운 천으로 정기적으로 닦아주세요.amp cloth. Avoid abrasive cleaners, harsh chemicals, or polishes that may damage the polished nickel finish.
- 점검: Periodically check the mounting screws for tightness. If the pull feels loose, gently retighten the screws with a Phillips head screwdriver.
- 충격 방지: Protect the pull from sharp impacts or scratches that could mar the finish.
8. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Pull feels loose | 장착 나사가 느슨합니다. | Gently tighten the mounting screws from the inside of the cabinet door/drawer. Do not overtighten. |
| Pull is crooked | Improper alignment during installation or uneven tightening. | Loosen screws slightly, adjust the pull to be level, then retighten evenly. If holes were drilled incorrectly, consider using a backplate or filling and redrilling. |
| Scratches or finish damage | Abrasive cleaning, impact, or improper handling. | Unfortunately, finish damage is often permanent. Prevent future damage by following care instructions. |
9. 사양
| 특징 | 세부 사항 |
|---|---|
| 모델 번호 | 86428 (Tribeca) |
| 상표 | 엠텍 |
| 재료 | 황동 |
| 마치다 | 폴리쉬 드 니켈 |
| Center to Center Spacing | 3-1/2인치(89mm) |
| 투사 거리 | 1.25인치(32mm) |
| 포함된 구성 요소 | 장착 나사 |
| 한국어: | 600139358432 |
10. 보증 정보
Emtek products are manufactured to high standards. For specific warranty details regarding your Tribeca 86428 Cabinet Pull, please refer to the official Emtek web사이트를 방문하거나 고객 서비스에 직접 문의하세요. 보증 청구를 위해 구매 증빙 자료를 보관하세요.
11. 고객 지원
If you have any questions, require assistance with installation, or need to report a missing part, please contact Emtek customer support. Visit the official Emtek web연락처 정보와 추가 자료는 해당 사이트를 참조하세요.
