PROEL AT230 2 x RCA Cable Adapter User Manual

1. 서론

Thank you for choosing the PROEL AT230 2 x RCA Cable Adapter. This adapter is designed to convert a single RCA male connection into two RCA female connections, allowing for flexible audio and video signal routing. Constructed from durable ABS plastic, it ensures reliable performance for your audio and video needs. Please read this manual carefully before use to ensure proper installation and operation.

2. 제품 오버view

The PROEL AT230 is a compact and robust adapter. It features one RCA male connector and two RCA female connectors, facilitating the splitting of an RCA signal. Its black ABS plastic housing provides durability and a professional appearance.

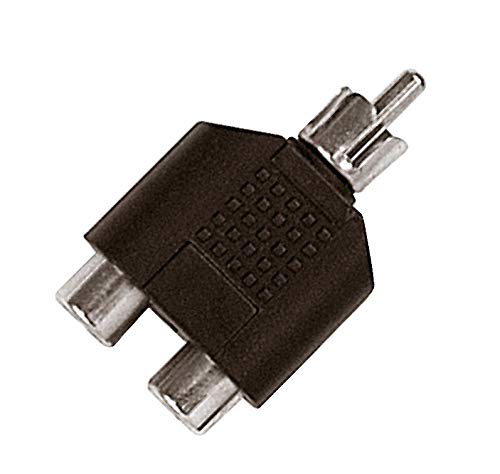

그림 1: PROEL AT230 RCA Cable Adapter. This image displays the adapter's configuration with a single male RCA plug on one end and two female RCA jacks on the other, all in a black finish.

주요 특징:

• 커넥터 유형: 1 x RCA Male to 2 x RCA Female
• 재료: 아크릴로니트릴 부타디엔 스티렌(ABS) 플라스틱
• 색상: 검은색
• 기능: Splits a single RCA signal into two outputs.

3. 설정

Follow these steps to correctly set up your PROEL AT230 adapter:

1. 연결 식별: Locate the RCA output port on your source device (e.g., DVD player, audio receiver) and the RCA input ports on your receiving devices (e.g., TV, amp리퍼).
2. 남성 끝 연결: Insert the single RCA male connector of the PROEL AT230 adapter firmly into the RCA output port of your source device. Ensure a snug fit.
3. Connect Female Ends: Take two separate RCA cables. Plug the RCA male end of the first cable into one of the RCA female jacks on the PROEL AT230 adapter. Repeat this for the second RCA cable and the remaining female jack.
4. Connect to Receiving Devices: Connect the other ends of the two RCA cables to the respective RCA input ports on your receiving devices.

신호 손실이나 간섭을 방지하기 위해 모든 연결이 안전한지 확인하세요.

4. 사용 설명서

The PROEL AT230 adapter is a passive device and requires no external power. Once properly connected as described in the Setup section, it will automatically split the incoming RCA signal to the two connected output cables. Simply power on your source and receiving devices as usual. The adapter facilitates the signal transmission without requiring any further user interaction.

5. 유지관리

To ensure the longevity and optimal performance of your PROEL AT230 adapter, follow these simple maintenance guidelines:

• 청소: Use a soft, dry cloth to wipe the adapter. Avoid using liquid cleaners or solvents, as these can damage the plastic or connectors.
• 저장: 사용하지 않을 때에는 어댑터를 직사광선이나 극한 온도를 피해 서늘하고 건조한 곳에 보관하십시오.
• 손질: Avoid bending or twisting the adapter excessively, especially at the connector points, to prevent internal damage.
• 커넥터 관리: Keep the RCA connectors free from dust and debris. If necessary, use compressed air to clean the ports.

6. 문제 해결

If you experience issues with your PROEL AT230 adapter, consider the following troubleshooting steps:

• 신호 없음:
  • Ensure all RCA connections are fully inserted and secure at both the source device, the adapter, and the receiving devices.
  • Verify that the correct input source is selected on your receiving devices (e.g., TV, amp리퍼).
  • Test the individual RCA cables directly, bypassing the adapter, to confirm they are functional.
  • Check if the source device is outputting a signal and the receiving devices are powered on and functioning correctly.
• Poor Signal Quality (e.g., static, distorted audio/video):
  • 모든 연결 부위가 깨끗하고 먼지나 부식이 없는지 확인하십시오.
  • Try using different RCA cables to rule out cable defects.
  • Ensure the adapter is not placed near strong electromagnetic interference sources.

If problems persist after following these steps, contact PROEL customer support or your retailer for further assistance.

7. 사양

8. 보증 및 지원

For information regarding warranty coverage, terms, and conditions for your PROEL AT230 adapter, please refer to the warranty documentation provided with your purchase or visit the official PROEL website. For technical support or further assistance, please contact PROEL customer service directly through their official channels.
