소개
The NITECORE RSW1 Remote Pressure Switch is designed to replace the standard tail cap on compatible NITECORE tactical flashlights. This accessory allows for remote activation and mode control, enhancing usability, especially when the flashlight is weapon-mounted. The coiled cable provides flexibility in placement, ensuring convenient access to the pressure pad.
설정 및 설치
- Remove the Original Tail Cap: Unscrew the existing tail cap from your compatible NITECORE flashlight.
- Attach the RSW1: Screw the tail cap component of the RSW1 Remote Pressure Switch onto the flashlight body until it is securely tightened.

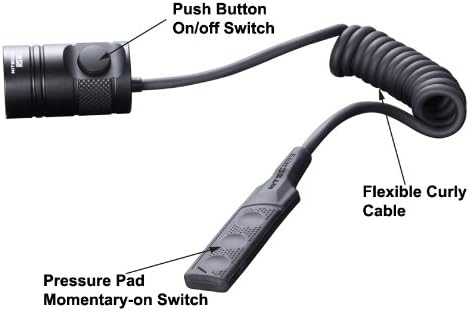

- Position the Pressure Pad: Place the pressure pad (Momentary-on Switch) in your preferred location, typically where your stabilizing hand can easily access it. The coiled cable extends up to 15 inches for versatile mounting options.
작동 지침
- 순간 활성화: Press and hold any of the three buttons on the pressure pad (Momentary-on Switch) to activate the flashlight momentarily. Release the button to turn the flashlight off.
- 계속 켜짐/꺼짐: The tail cap component of the RSW1 features a push button (Push Button On/off Switch). Press this button to turn the flashlight on for constant illumination. Press it again to turn the flashlight off.
- Mode Changing: The RSW1 is designed to work with flashlights that have a mode-changing function. The specific method for changing modes (e.g., brightness levels, strobe) will depend on the flashlight model. Typically, this is done via a dedicated mode button on the flashlight itself, or by partially pressing the tail switch. Refer to your flashlight's manual for detailed mode-changing instructions.
호환성
The NITECORE RSW1 Pressure Switch is compatible with a range of NITECORE tactical flashlights. Please verify your flashlight model against the lists below:
호환 모델:
- CR6, CG6, CI6, CU6
- P12, P12GT, P30, P16, P16TAC, P26
- MH12, MH12GT, MH25, MH25GT, MH27, MH27UV, MH40, MH40GT, MH41
- MT10C, MT42, MT40GT, MT25, MT26
- SRT6, SRT7, SRT7GT
호환되지 않는 모델:
- GTS series: MH12GTS, MH25GTS (These models require the RSW2 Pressure Switch)
- Strobe ready series: P10, P05, P10GT, P20, P20UV (These models require the RSW2 Pressure Switch)
명세서
- 항목 패키지 치수 L x W x H: 3.2 x 2.9 x 1.1 인치
- 패키지 무게: 0.02 파운드
- 항목 크기 L x W x H: 3.2 x 2.9 x 1.1 인치
- 품목 무게: 4.54g
- 색상: 검은색
- 지원되는 최대 장치 수: 1
- 특징: 인체공학적
상자 안에 무엇이 들어있나요?
- NITECORE RSW1 Remote Pressure Switch
유지
To maintain the functionality and longevity of your RSW1 Remote Pressure Switch, keep it clean and free from debris. Regularly inspect the connections for any signs of wear or damage. Store the switch in a dry environment when not in use.
보증 및 지원
For warranty information or technical support, please refer to the official NITECORE website or contact your authorized NITECORE dealer. Keep your purchase receipt as proof of purchase for warranty claims.
