1. 소개 및 이상view
This manual provides essential information for the safe and proper installation, operation, and maintenance of the SIEMENS P4260L3225CU 225-Amp 42-Space 60-Circuit 3-Phase Main Lug Load Center. This load center is designed to distribute electrical power safely within a residential or commercial setting.
The PL Series load center offers flexibility and features designed to simplify installation. Key features include the patented Insta-Wire neutral/ground system, convertibility, copper bussing, and mounting tabs on the trim. These elements are engineered to reduce installation time and enhance adaptability for various electrical configurations.
2. 안전 정보
WARNING: Risk of electric shock, fire, or explosion. Installation and servicing of this electrical equipment must be performed by qualified, licensed personnel only. Always disconnect power at the main service disconnect before working on or inside the load center.
- Always wear appropriate personal protective equipment (PPE), including insulated gloves and safety glasses.
- Ensure all local and national electrical codes (e.g., NEC) are strictly followed during installation.
- Do not install or operate this equipment in wet or damp 해당 환경에 적합하도록 특별히 등급이 지정된 경우가 아니면 설치하지 마십시오.
- Verify all connections are tight and secure to prevent overheating and potential fire hazards.
- 안전 장치를 절대로 우회하거나 개조하지 마십시오.
3. 제품 특징
- 3상 시스템: Designed for 3-phase electrical systems.
- 대용량: 225 Amp main lug load center.
- Ample 공간: 42 spaces accommodating up to 60 circuits.
- Insta-Wire Technology: Patented system for quick and easy wire insertion on ground and neutral bars, with screws pre-backed out.
- Copper Bus: Utilizes a durable copper bus for efficient power distribution.
- Dual Ground Bars: Provided with two factory-installed ground bars.
- 마운팅 탭: Trim features mounting tabs to hold the load center in place during installation, freeing hands.
4. 구성 요소 이상view
The SIEMENS P4260L3225CU load center consists of a robust enclosure housing the main lugs, bus bars, neutral bar, and ground bars, designed for the installation of circuit breakers.

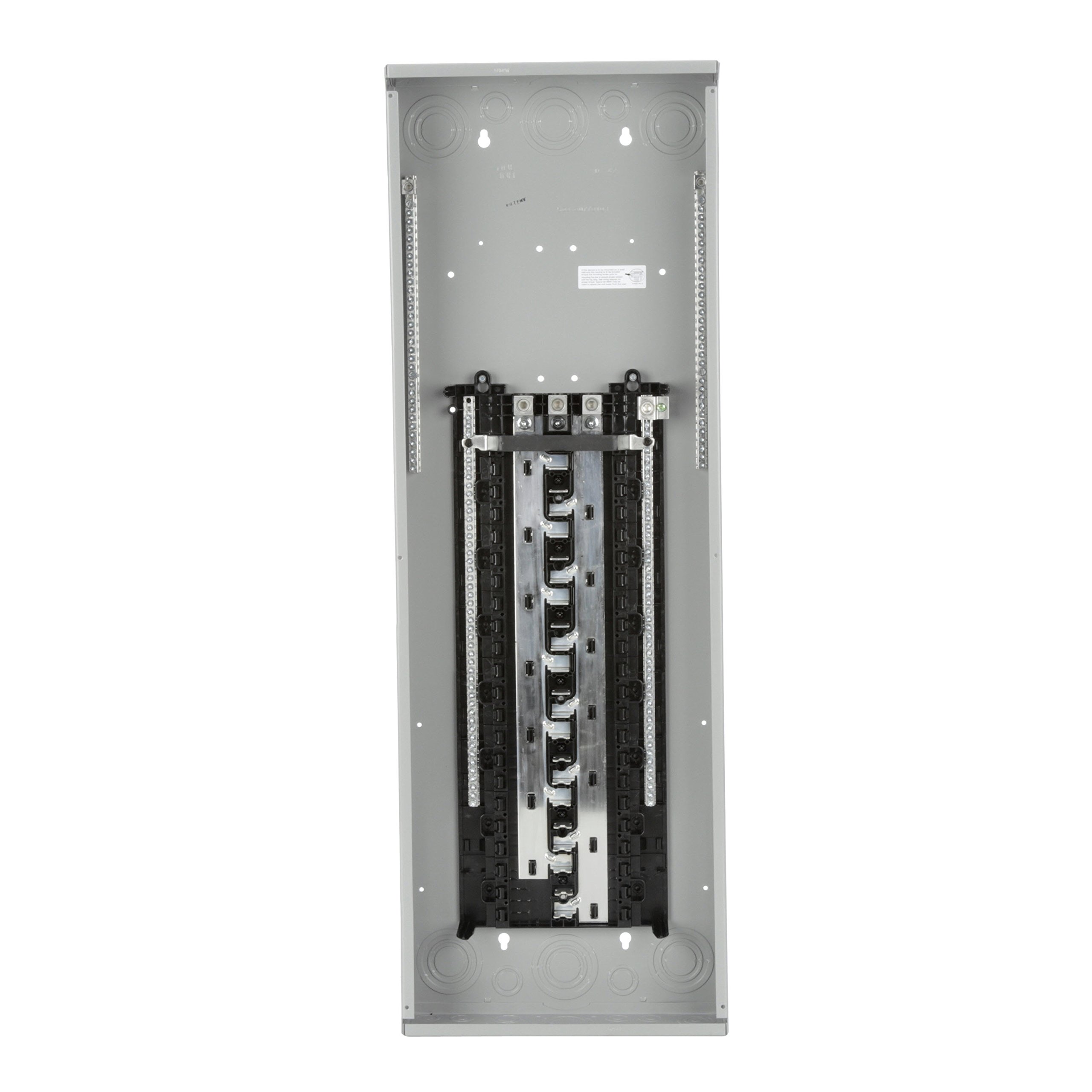

그림 1: 내부 view of the SIEMENS P4260L3225CU load center. This image displays the internal layout, including the main lugs at the top, the vertical copper bus bars, and the neutral and ground bars along the sides. The design facilitates organized wiring and circuit breaker installation.
그림 2: 세부적인 내부 view of the load center. This image provides a closer look at the Insta-Wire neutral and ground bars, showing the pre-backed out screws ready for wire insertion, a key feature for simplified installation.
5. 설치 및 설정
Professional installation by a licensed electrician is mandatory for this product.
- 계획: Determine the optimal mounting location, ensuring adequate clearance and accessibility as per local electrical codes.
- 설치: Securely mount the load center enclosure to a sturdy surface using appropriate fasteners. Utilize the trim's mounting tabs to temporarily hold the unit in place.
- 도관 입구: Knock out the necessary conduit openings for incoming and outgoing wiring.
- 주 전원 연결: Connect the main incoming power conductors to the main lugs. Ensure proper torque specifications are met for all connections.
- Neutral and Ground Connections: Connect the main neutral conductor to the neutral bar and the main grounding electrode conductor to the ground bar. Utilize the Insta-Wire system for efficient connections.
- 회로 차단기 설치: Install appropriate SIEMENS circuit breakers into the designated spaces on the bus bars.
- 분기 회로 배선: Connect branch circuit conductors to their respective circuit breakers and the neutral/ground conductors to the neutral/ground bars.
- 라벨링: Clearly label all circuits on the panel directory for easy identification.
- 커버 설치: Install the trim and cover securely once all wiring is complete and inspected.
6. 배선 지침
Proper wiring is critical for safety and functionality. Refer to the wiring diagram provided with the product and adhere to all applicable electrical codes.
- Main Lugs: Connect the three-phase incoming power lines (L1, L2, L3) to the main lugs.
- 중립 막대: Connect the system neutral conductor to the neutral bar. The Insta-Wire system allows for quick insertion of wires into the terminals.
- Ground Bar: Connect the grounding electrode conductor and all equipment grounding conductors to the ground bar.
- Branch Circuits: For each branch circuit, connect the hot wire to a circuit breaker, the neutral wire to the neutral bar, and the ground wire to the ground bar.
- 토크 사양: Ensure all terminal screws are tightened to the manufacturer's specified torque values to prevent loose connections and potential hazards.
7. 운영
Once installed and wired correctly, the load center operates by distributing electrical power to various circuits throughout the property. Circuit breakers protect these circuits from overcurrents and short circuits.
- Circuit Breaker Function: Each circuit breaker can be manually switched ON or OFF. In case of an overload or short circuit, the breaker will automatically trip to the OFF position, interrupting power to that circuit.
- 트립된 차단기 재설정: To reset a tripped breaker, first turn it completely to the OFF position, then push it firmly to the ON position. If the breaker trips immediately again, there is a persistent fault that requires investigation by a qualified electrician.
- Main Breaker (if applicable): If a main breaker is installed (this model is main lug, so a separate main disconnect is typically used upstream), it controls all power to the load center.
8. 유지관리
Regular inspection and maintenance by a qualified electrician are recommended to ensure the continued safe and reliable operation of the load center.
- 연례 검사: Have a qualified electrician inspect the load center annually for signs of wear, corrosion, loose connections, or damage.
- 청소: Ensure the interior of the load center remains clean and free of dust, debris, or foreign objects. Always disconnect power before cleaning.
- 연결 강화: Periodically check and re-torque terminal connections, especially after initial installation and during subsequent inspections.
- 통풍: Ensure that the area around the load center is clear and allows for proper ventilation to prevent overheating.
9. 문제 해결
This section addresses common issues that may arise with the load center. For any complex or persistent electrical problems, contact a qualified electrician.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 회로 차단기가 반복적으로 작동합니다. | 과부하 회로, 단락 회로 또는 접지 오류. | Reduce load on the circuit. Inspect wiring and connected appliances for faults. If problem persists, consult an electrician. |
| No power to entire load center | Main disconnect (upstream) is off, or main lugs are loose/damaged. | Check the main service disconnect. If it's on, contact an electrician to inspect main lug connections. |
| 타는 냄새 또는 변색 | Loose connections, overloaded circuit, or faulty component. | Immediately disconnect power at the main service disconnect and contact an electrician. This is a serious fire hazard. |
| Humming noise from panel | Normal operation (slight hum), or loose components/connections. | A slight hum is normal. If loud or accompanied by other issues, have an electrician inspect for loose components or connections. |
10. 사양
| 사양 | 값 |
|---|---|
| 상표 | 지멘스 |
| 모델 번호 | P4260L3225CU |
| 최대 전류 | 225 Amps |
| 공간 수 | 42 |
| 회로 수 | 60 |
| 단계 유형 | 3상 |
| 연결 유형 | 메인 러그 |
| Bus Material | 구리 |
| 품목 무게 | 24.11 파운드 |
| GTIN / UPC | 662643158991 |
11. 보증 및 지원
For warranty information, technical support, or to locate authorized service centers, please refer to the official SIEMENS website or contact SIEMENS customer service directly. Specific warranty terms and conditions may vary and are typically provided with the product packaging or available online.
영상에 대한 참고사항: 이 설명서에 삽입할 수 있는 판매자의 공식 제품 비디오는 없습니다.
