1. 서론
Thank you for choosing the Vivitar 75x/150x Refractor Telescope. This manual provides essential information for the proper assembly, operation, and maintenance of your telescope. Please read it thoroughly before use to ensure optimal performance and longevity of your device.
2. 안전 정보
- WARNING: Never look directly at the sun through the telescope or its finderscope. 그렇게 하면 실명을 포함한 즉각적이고 돌이킬 수 없는 눈 손상이 발생할 수 있습니다.
- 어린이들이 망원경을 사용할 때는 항상 보호자가 옆에서 지켜봐 주세요.
- Ensure the tripod is stable on a flat, firm surface to prevent tipping.
- Keep all optical components clean and free from dust.
3. 패키지 내용
패키지에 모든 품목이 들어 있는지 확인하세요.
- 망원경 광학 튜브
- Full-Sized Adjustable Tripod
- 접안렌즈 (예: 20mm, 12.5mm)
- 대각선 거울
- 파인더 스코프
- Accessory Tray (if included)
Image: All components of the Vivitar Refractor Telescope, including the main optical tube, the foldable tripod, and two different eyepieces, are shown laid out.
4. 설정
4.1. 삼각대 조립
- Unfold the tripod legs and extend them to the desired height. Secure each leg with the locking clamps.
- Ensure the tripod is stable and level on a flat surface.
4.2. 망원경 광학 튜브 부착
- Locate the mounting plate on the top of the tripod head.
- Align the telescope optical tube with the mounting plate and secure it using the provided screw. Ensure it is firmly attached.

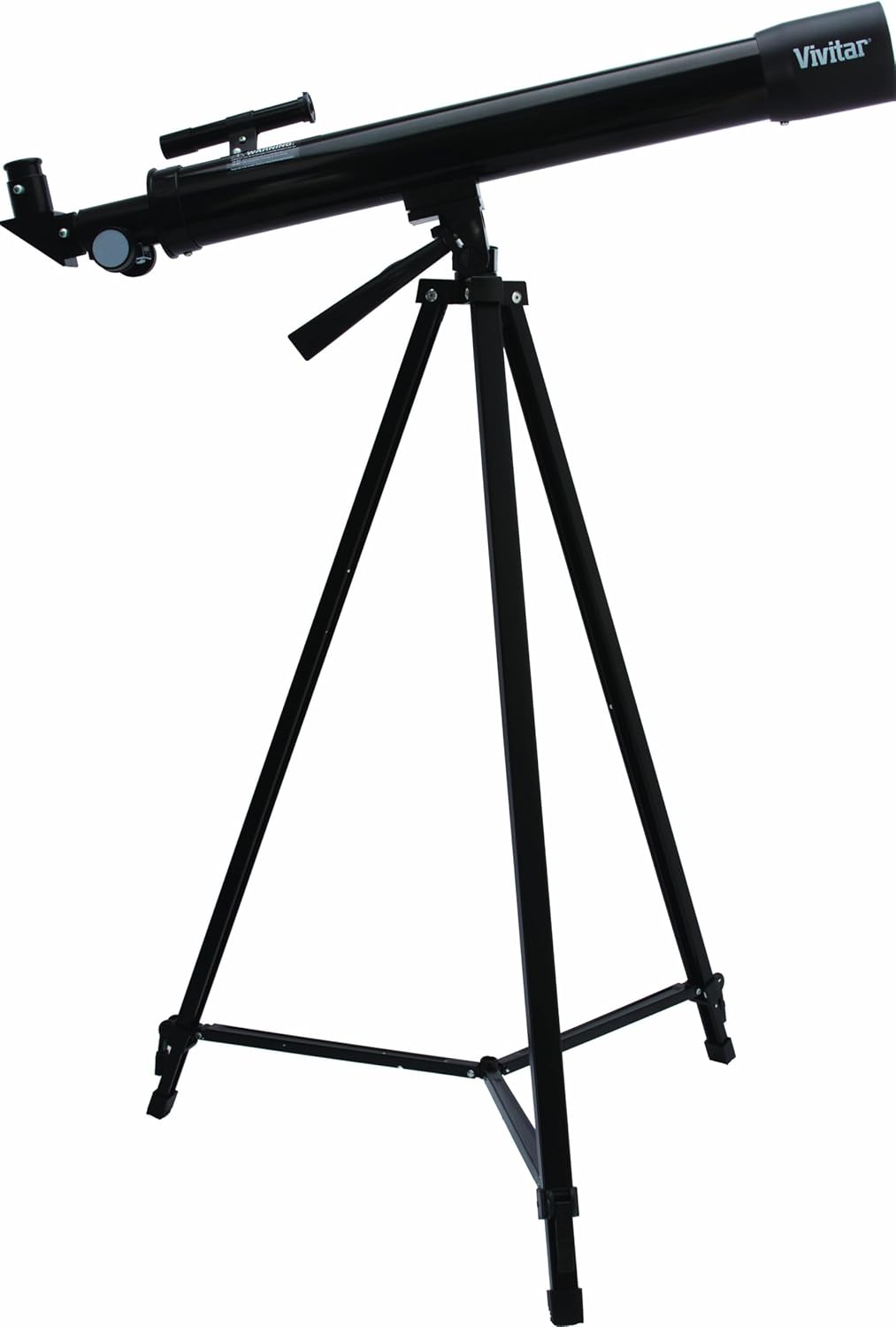

Image: The Vivitar Refractor Telescope is shown fully assembled on its adjustable tripod, with the optical tube securely mounted and the eyepiece in place.
4.3. Installing the Diagonal Mirror and Eyepiece
- Remove the dust cap from the focuser tube at the back of the telescope.
- Insert the diagonal mirror into the focuser tube and tighten the small thumbscrew to secure it.
- Insert your chosen eyepiece (e.g., 20mm for lower magnification, 12.5mm for higher magnification) into the diagonal mirror and secure it with the thumbscrew.
4.4. Attaching the Finderscope
- Attach the finderscope to its bracket on the main telescope tube.
- Align the finderscope with the main telescope by looking through both at a distant object during daylight. Adjust the finderscope until the object is centered in both views.
Video: This video demonstrates the assembly and basic usage of a telescope, including attaching the optical tube to the tripod, inserting the diagonal mirror, and securing the eyepiece. It also shows how to adjust the focus and position the telescope.
5. 망원경 작동
5.1. Finding an Object
- Begin with the lowest magnification eyepiece (e.g., 20mm) for a wider field of view을 사용하면 개체를 더 쉽게 찾을 수 있습니다.
- Use the finderscope to aim at your desired object. Once centered in the finderscope, it should be visible in the main telescope eyepiece.
- Adjust the telescope's position using the panhandle mount for precise aiming.
5.2. 초점 맞추기
- Turn the focus knob slowly until the image appears sharp and clear.
- If the image is blurry, continue adjusting the focus knob in small increments until clarity is achieved.
5.3. 확대율 변경
- Once an object is in focus with a low-power eyepiece, you can switch to a higher-power eyepiece (e.g., 12.5mm) for greater magnification.
- Re-focus as necessary after changing eyepieces.
이미지: 클로즈업 view of the Vivitar Refractor Telescope's optical tube, focuser, and eyepiece, illustrating the main viewing components.
6. 유지관리
- 렌즈 세척: Use a soft, lint-free cloth specifically designed for optical lenses. Gently wipe the lens surface. For stubborn smudges, use a small amount of optical lens cleaning fluid.
- 저장: Store the telescope in a dry, dust-free environment. Keep all dust caps on the optical tube and eyepieces when not in use.
- 극한의 온도를 피하세요: Do not expose the telescope to extreme hot or cold temperatures, as this can damage the optical components.
7. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 이미지가 흐릿함 | Out of focus; atmospheric conditions | Adjust the focus knob slowly. Wait for better viewing conditions if atmospheric distortion is suspected. |
| Cannot find object | Finderscope not aligned; using too high magnification | Align the finderscope during daylight. Start with the lowest magnification eyepiece. |
| 이미지가 흐릿함 | Light pollution; small aperture; high magnification | Move to a darker viewing location. Use a lower magnification eyepiece. |
8. 사양
- 모델 이름: VIV-TEL-150X
- 제품 크기: 8.5 x 29 x 3.5 인치
- 품목 무게: 6.1파운드
- 아이피스 렌즈 설명: 플로슬
- 망원경 마운트 설명: 알타지무스 산
- 초점 유형: 수동 초점
- 파인더스코프: 휘어진
- 렌즈 코팅 설명: 완전 코팅
- 졸업생: 0.25 밀리미터
9. 보증 및 지원
Vivitar products are designed for reliability and performance. For specific warranty details and customer support, please refer to the warranty card included with your purchase or visit the official Vivitar web사이트. 보증 청구를 위해 구매 증빙 자료를 보관하세요.
If you encounter any issues not covered in this manual, please contact Vivitar customer support for assistance.
