소개
This manual provides essential information for the proper installation, operation, and maintenance of your LASCO 439-250 PVC Threaded Reducer Bushing. Please read these instructions carefully before use to ensure safe and effective application within your plumbing system.
제품 끝view
The LASCO 439-250 is a Schedule 40 PVC threaded reducer bushing designed to connect pipes of different sizes. It features a 2-inch Male Pipe Thread (MPT) on one end and a 1.25-inch Female Pipe Thread (FPT) on the other, allowing for a secure and leak-free reduction in pipe diameter within plumbing systems. Constructed from durable Polyvinyl Chloride (PVC), it is suitable for various non-pressure and low-pressure applications.

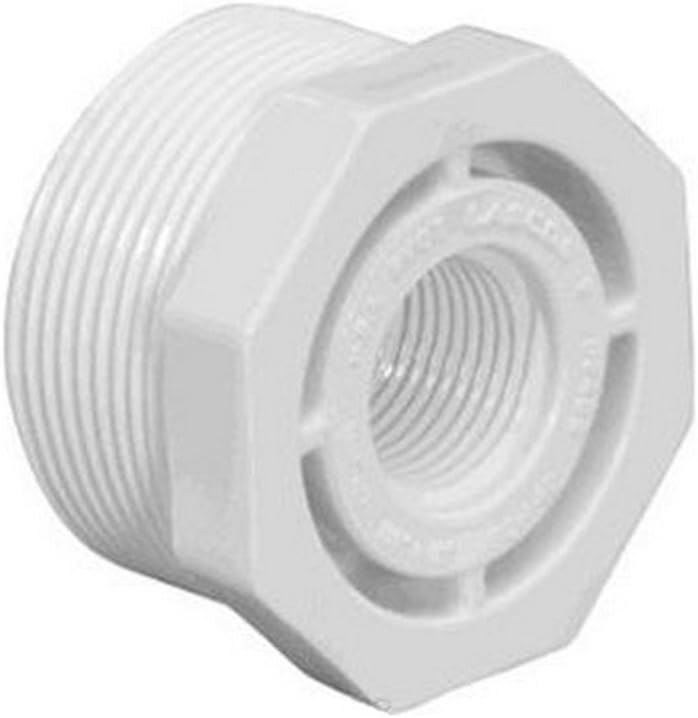

Image: The LASCO 439-250 PVC Threaded Reducer Bushing, showing its threaded ends and hexagonal body for wrench application.
명세서
| 사양 | 세부 사항 |
|---|---|
| 재료 | 폴리염화비닐(PVC) |
| 부품 번호 | 439-250 |
| 외부 나사산 크기 | 2 inches (MPT) |
| 내부 나사산 크기 | 1.25 inches (FPT) |
| 제품 크기(L x W x H) | 2.6 x 1.5 x 1.5 인치 |
| 품목 무게 | 16온스(1파운드) |
| 나사산 종류 | 국립 파이프 테이퍼 |
| 스레드 스타일 | 파이프 나사산 |
| 측정 시스템 | 인치 |
설정 및 설치
Follow these steps for proper installation of the reducer bushing:
- 준비: Ensure all pipe ends are clean, free of debris, and properly threaded. Inspect the reducer bushing for any manufacturing defects or damage before installation.
- Thread Sealant Application: Apply an appropriate thread sealant (e.g., PTFE tape or pipe dope suitable for PVC) to the male pipe threads of the larger pipe and the reducer bushing. Ensure even coverage for a watertight seal.
- 초기 스레딩: Hand-tighten the 2-inch MPT end of the reducer bushing onto the larger pipe's FPT connection. Then, hand-tighten the 1.25-inch MPT end of the smaller pipe into the FPT connection of the reducer bushing. Ensure threads are aligned to prevent cross-threading.
- 최종 조임: Using a strap wrench or appropriate pipe wrench, carefully tighten the connections. Do not overtighten, as this can crack PVC fittings. Tighten until snug and leak-free. Typically, 1 to 2 full turns past hand-tight is sufficient for PVC.
- 누출 확인: After installation, pressurize the system and inspect all connections for leaks. Address any leaks immediately by re-tightening or re-applying sealant.
작동 지침
Once properly installed, the LASCO 439-250 PVC Threaded Reducer Bushing functions passively as a permanent part of your plumbing system, facilitating the flow of fluids between pipes of different diameters. No active operation or adjustments are required after installation.
유지
Regular maintenance for this PVC fitting primarily involves periodic visual inspection. Check for any signs of wear, cracks, or leaks around the threaded connections. If any issues are observed, the fitting or sealant may need to be replaced. Clean the exterior with mild soap and water if necessary to remove dirt or grime.
문제 해결
- 연결 부위 누출:
- 원인: Insufficient thread sealant, improper tightening, or damaged threads.
- 해결책: Depressurize the system, disassemble the connection, clean threads, reapply sealant generously, and re-tighten carefully. Inspect threads for damage; replace the fitting if threads are compromised.
- 실꿰기의 어려움:
- 원인: Misalignment, cross-threading, or debris in threads.
- 해결책: Ensure proper alignment before threading. Clean threads thoroughly. Do not force connections; if resistance is met, unscrew and re-attempt.
안전 정보
- Always wear appropriate personal protective equipment, including eye protection, when working with plumbing systems and tools.
- Ensure the system is depressurized and drained before attempting any installation, maintenance, or repair.
- Do not use this PVC fitting for applications exceeding its pressure and temperature ratings. PVC is generally not suitable for hot water or high-pressure systems. Refer to PVC pipe and fitting specifications for limits.
- Use tools appropriate for PVC fittings to avoid damage. Avoid using metal wrenches directly on PVC without protection, as this can cause cracking or deformation.
- Consult local plumbing codes and regulations for proper installation practices in your area.
보증 및 지원
For warranty information or technical support regarding your LASCO 439-250 PVC Threaded Reducer Bushing, please refer to the manufacturer's official web해당 웹사이트를 방문하거나 고객 서비스 부서에 직접 문의하십시오. 보증 청구를 위해서는 구매 영수증을 구매 증빙 자료로 보관하십시오.
