지멘스 B370 70-Amp Three Pole 240-Volt Circuit Breaker Instruction Manual

1. 서론

This manual provides essential information for the safe and effective installation, operation, and maintenance of the Siemens B370 70-Amp Three Pole 240-Volt 10KAIC Bolt-in Circuit Breaker. Please read these instructions thoroughly before proceeding with any installation or operation.

The Siemens B370 is a panel board mounted, non-interchangeable trip molded case circuit breaker designed for reliable circuit protection in electrical systems. It features a 70-Amp current rating, three poles, and is rated for 240-Volt applications with a 10KAIC interrupting rating.

2. 안전 정보

경고: 감전이나 화재의 위험이 있습니다.

• 이 차단기의 설치 및 유지보수는 자격을 갖춘 전기 기술자만 수행해야 합니다.
• Always disconnect power at the main service panel before installing or servicing the circuit breaker. Failure to do so can result in severe injury or death.
• Ensure all wiring connections are secure and tightened to the specified torque values to prevent overheating and potential fire hazards.
• 이 회로 차단기를 지정된 용량을 초과하는 애플리케이션에 사용하지 마십시오.tage, current, or interrupting ratings.
• 지멘스는 "중고" 차단기 사용을 강력히 권장하지 않습니다. 지멘스 패널에 중고 차단기를 설치하면 패널 보증이 무효화됩니다. 지멘스는 중고 차단기를 판매하지 않으며, 제3자 판매업체의 중고 차단기 판매를 승인하지 않았습니다.

3. 제품 오버view

The Siemens B370 circuit breaker is a Type BL thermal-magnetic circuit breaker designed for bolt-on mounting in compatible panel boards. Key features include:

• BL 유형: Indicates compatibility with specific Siemens panel boards.
• Three Pole: Provides protection for three-phase circuits.
• 70-Amp 현재 평가: Designed for circuits up to 70 amp에레스.
• 240-Volt Rating: Suitable for 240-volt electrical systems.
• 10KAIC 차단 등급: 최대 10,000Ω까지의 고장 전류를 안전하게 차단할 수 있습니다. amp에레스.
• UL 등재: Certified for safety and performance by Underwriters Laboratories.

그림 1: 전면 view of the Siemens B370 circuit breaker, showing the 70-Amp rating on each pole and connection terminals.

4. 설정 및 설치

Installation of the Siemens B370 circuit breaker requires adherence to local electrical codes and should only be performed by a qualified electrician.

4.1 사전 설치 단계

1. Ensure the main power supply to the panel board is OFF and locked out. Verify with a voltag전자 테스터.
2. Confirm the panel board is compatible with Siemens Type BL bolt-on circuit breakers.
3. Verify the circuit breaker's ratings (70-Amp, 240-Volt, 3-pole) match the circuit requirements.

4.2 Mounting the Breaker

1. Align the bolt-on terminals of the circuit breaker with the appropriate bus bar stabs in the panel board.
2. Securely fasten the breaker to the bus bar using the provided bolts. Ensure a firm connection.

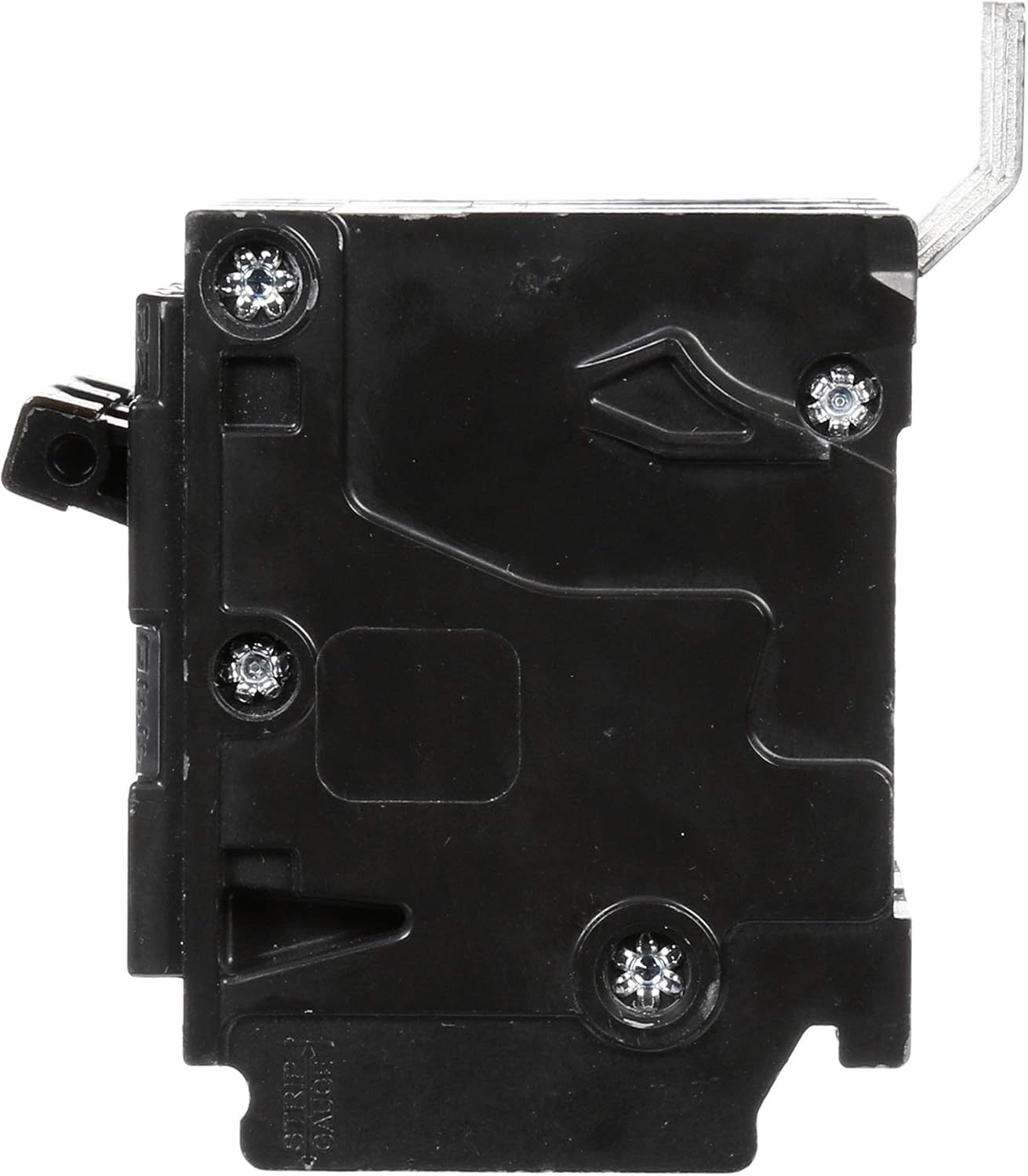

그림 2: 측면 view of the Siemens B370 circuit breaker, illustrating the bolt-on mounting design.

4.3 배선 연결

Connect the load wires to the appropriate terminals on the circuit breaker. Refer to the markings on the breaker for correct wire sizing and torque specifications:

• 와이어 유형: CU-AL 75°C WIRE (Copper or Aluminum, rated for 75°C)
• Conductor Size (AWG): 16-4 (for smaller wires) to 3-2/0 (for larger wires)
• Torque (lb-in): 45~50lb-in
• Torque (N-m): 5.1-5.6Nm

Ensure all connections are tight and secure. Overtightening or undertightening can lead to poor contact and potential hazards.

5. 사용 설명서

5.1 켜기/끄기

• 켜려면: 손잡이를 "ON" 위치로 단단히 밀어주세요.
• 끄려면: 손잡이를 "OFF" 위치로 단단히 밀어주세요.

5.2 차단기 트립

If an overload or short circuit occurs, the circuit breaker will automatically trip to protect the circuit. The handle will move to a center, tripped position (often indicated by a red flag or a position between ON and OFF).

5.3 트립된 차단기 재설정

1. 먼저, 트립의 원인을 파악하고 해결하세요(예: 과부하된 기기의 플러그를 뽑거나, 단락 회로를 수리하세요).
2. Move the breaker handle completely to the "OFF" position. You may feel a slight resistance as it resets internally.
3. 그런 다음 손잡이를 단단히 "ON" 위치로 밀어 넣으세요.
4. 차단기가 즉시 다시 작동하면 재설정을 시도하지 마십시오. 자격을 갖춘 전기 기술자에게 문의하세요.

6. 유지관리

The Siemens B370 circuit breaker is designed for minimal maintenance. However, periodic inspection is recommended:

• 연례 검사: Visually inspect the breaker and its connections for any signs of damage, discoloration, loose wires, or corrosion.
• 청소: 필요한 경우, 보풀이 없는 마른 천으로 차단기 외부를 부드럽게 닦으세요. 액체나 연마성 세척제는 사용하지 마세요.
• 전문가 확인: If you notice any unusual odors, sounds, or frequent tripping, have the electrical system inspected by a qualified electrician.

7. 문제 해결

이 섹션에서는 회로 차단기에서 발생할 수 있는 일반적인 문제에 대해 설명합니다.

7.1 브레이커 트립이 자주 발생함

• 원인: 회로 과부하 (너무 많은 기기가 전력을 소비함).
• 해결책: Unplug some devices from the circuit. Redistribute loads if possible.
• 원인: Short circuit (faulty wiring or appliance).
• 해결책: Disconnect all devices from the circuit. If it still trips, there may be a wiring fault. Contact an electrician.
• 원인: Ground fault (current leaking to ground).
• 해결책: If the breaker is an AFCI/GFCI type (though B370 is thermal-magnetic, some panels might have these), test the outlets. Contact an electrician for persistent issues.

7.2 No Power to Circuit, Breaker is ON

• 원인: 차단기 또는 콘센트의 연결이 느슨합니다.
• 해결책: With power off, check wire connections at the breaker and outlets. Tighten if loose.
• 원인: 차단기에 결함이 있습니다.
• 해결책: If all other troubleshooting fails, the breaker itself may be faulty and require replacement by a qualified electrician.

8. 사양

그림 3: 뒤로 view of the Siemens B370 circuit breaker, displaying model number, UPC, and other identification labels.

9. 보증 및 지원

9.1 보증 정보

Siemens strongly recommends against the use of "used" breakers. The installation of used breakers in a Siemens panel will void the warranty on the panel. Siemens does not sell used breakers and has not approved any 3rd party sellers to do so. For specific warranty details on new products, please refer to the official Siemens warranty documentation provided at the time of purchase or visit the official Siemens web대지.

9.2 고객 지원

For technical assistance, product inquiries, or warranty claims, please contact Siemens customer support through their official website or the contact information provided with your product documentation. Always provide the model number (B370) and part number (BL370) when seeking support.
