1. 서론
This manual provides instructions for the proper installation, use, and maintenance of the Hubbell-Raco 3441 45 Degree Liquidtight Connector. This connector is designed for use in electrical installations requiring a liquidtight seal for flexible metallic and Type B flexible nonmetallic liquidtight conduits.
The RACO 3441 connector is suitable for use in various hazardous locations, including Class 1, Division 2; Class 2, Division 1 and 2; and Class 3, Division 1 and 2, as approved by the National Electrical Code.

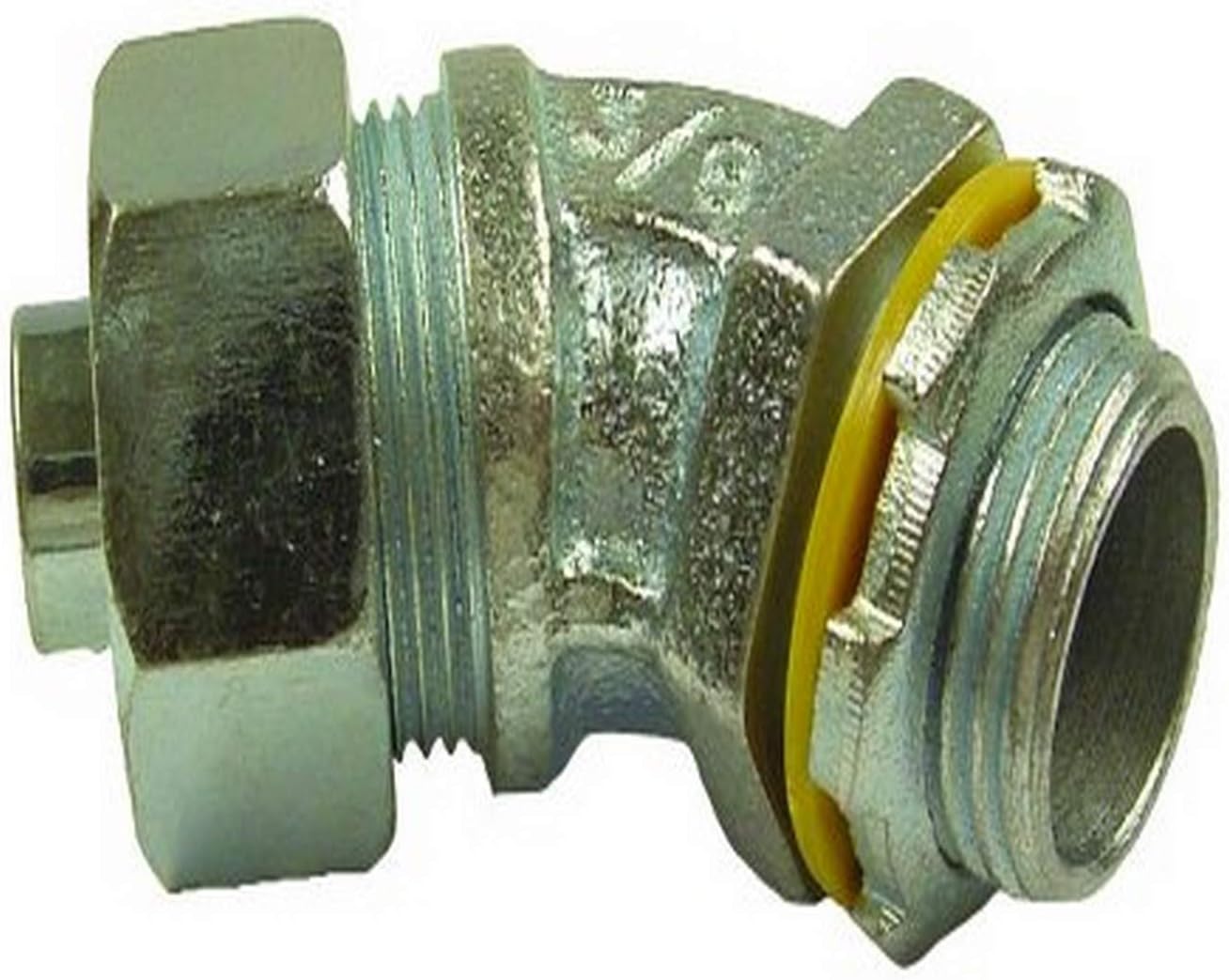

Image 1: The Hubbell-Raco 3441 45 Degree Liquidtight Connector, showing its metallic construction and 45-degree angle.
주요 특징:
- 애플리케이션: Designed for flexible metallic liquidtight conduit and Type B flexible nonmetallic liquidtight conduit.
- 부식 방지: All metallic components are zinc-electroplated.
- 씰 무결성: Features an innovative split gland-ring to ensure a perfect seal and prevent pullouts.
- 보안 연결: Includes a sealing washer and heavy-duty locknut for positive bonding to a box or enclosure.
- 재사용성: All components are designed to be reusable.
- Noninsulated: This model is noninsulated.
2. 안전 정보
경고: Electrical installations should only be performed by licensed electricians in compliance with all national and local electrical codes. Failure to follow these instructions and codes can result in electrical shock, fire, serious injury, or death.
- 전기 부품을 설치하거나 수리하기 전에 항상 회로 차단기 또는 퓨즈 박스에서 전원을 차단하십시오.
- Ensure all connections are secure and properly torqued to prevent loose connections and potential hazards.
- Verify that the connector size matches the conduit and knockout size for a proper fit and seal.
- Inspect the connector and conduit for any damage before installation. Do not use damaged components.
3. 설치 지침
Follow these steps for proper installation of the Hubbell-Raco 3441 Liquidtight Connector:
- 도관 준비: Cut the flexible liquidtight conduit to the desired length. Ensure the cut is clean and free of burrs.
- Disassemble Connector: Unscrew the gland nut from the connector body. The split gland-ring and sealing washer should be removed from the connector body if not already separate.
- 전선관 삽입: Slide the gland nut, then the split gland-ring, and finally the sealing washer over the end of the conduit in that order.
- Secure Conduit to Connector Body: Insert the conduit end into the connector body. Ensure the conduit is fully seated against the internal stop. Slide the sealing washer and split gland-ring into position against the connector body.
- Tighten Gland Nut: Hand-tighten the gland nut onto the connector body, then use a wrench to tighten it securely. This compresses the split gland-ring and sealing washer, creating a liquidtight seal around the conduit. Do not overtighten.
- Insert Connector into Enclosure: Insert the threaded end of the connector into the appropriate knockout hole of the electrical box or enclosure.
- 잠금 너트로 고정하십시오. Place the heavy-duty locknut over the threaded end of the connector inside the enclosure. Hand-tighten the locknut, then use a wrench to tighten it firmly against the enclosure wall. Ensure the locknut teeth bite into the enclosure surface for proper bonding and ground continuity.
- 연결 확인: Double-check all connections for tightness and ensure the liquidtight seal is properly formed.
4. 운영
Once properly installed, the Hubbell-Raco 3441 Liquidtight Connector functions passively by maintaining a secure, liquidtight connection between the conduit and the electrical enclosure. Its primary role is to protect wiring from moisture, dust, and other environmental contaminants, while also ensuring electrical continuity and bonding.
5. 유지관리
The Hubbell-Raco 3441 Liquidtight Connector requires minimal maintenance. Regular inspection is recommended to ensure continued performance and safety:
- 정기적 시각 검사: Annually, or more frequently in harsh environments, visually inspect the connector for any signs of physical damage, corrosion, or wear.
- 조임 상태 확인: Ensure the gland nut and locknut remain securely tightened. Loose connections can compromise the liquidtight seal and electrical bonding.
- 청결: Keep the connector free from excessive dirt, debris, or chemical buildup that could degrade its material over time.
- 환경적 요인: If the connector is exposed to extreme temperatures, vibrations, or corrosive substances, increase the frequency of inspections.
6. 문제 해결
Should issues arise with your Hubbell-Raco 3441 Liquidtight Connector, consider the following common problems and solutions:
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 물 또는 습기의 침투 | Gland nut not tightened sufficiently; damaged sealing washer or gland-ring; incorrect conduit size. | Ensure gland nut is securely tightened. Inspect and replace sealing washer or gland-ring if damaged. Verify conduit matches connector size. |
| Conduit pullout | Gland nut not tightened sufficiently; split gland-ring not properly seated. | Re-tighten gland nut securely. Ensure split gland-ring is correctly positioned and engaged with the conduit. |
| Poor electrical bonding/grounding | Locknut not tightened securely; locknut teeth not biting into enclosure; corrosion on contact surfaces. | Ensure locknut is firmly tightened with its teeth making good contact. Clean any corrosion from contact surfaces. |
| Connector corrosion | Exposure to harsh chemicals or extreme environments beyond product rating. | Regularly inspect and clean. If severe, replacement may be necessary. Consider alternative materials if environment is highly corrosive. |
7. 사양
| 기인하다 | 세부 사항 |
|---|---|
| 제조업체 | Hubbell (RACO) |
| 부품 번호 | 3441 |
| 품목 모델 번호 | 3441 |
| 거래 규모 | 3/8 인치 |
| 각도 | 45도 |
| 재료 | Malleable Iron (Zinc-electroplated) |
| 격리 | Noninsulated |
| 품목 무게 | 5.1파운드(25팩 기준) |
| 패키지 크기 | 7.5 x 4.7 x 3.9인치 (25개입 기준) |
| 규정 준수 | UL Listed, CSA Certified (where applicable), NEC approved for hazardous locations. |
