소개
The GROHE 47364000 AquaDimmer Cartridge is an original replacement part designed for specific GROHE shower and faucet systems. This cartridge is crucial for controlling water flow and diverting water between different outlets (e.g., shower head and hand shower). This manual provides essential information for the safe and correct installation, operation, and maintenance of your AquaDimmer cartridge.

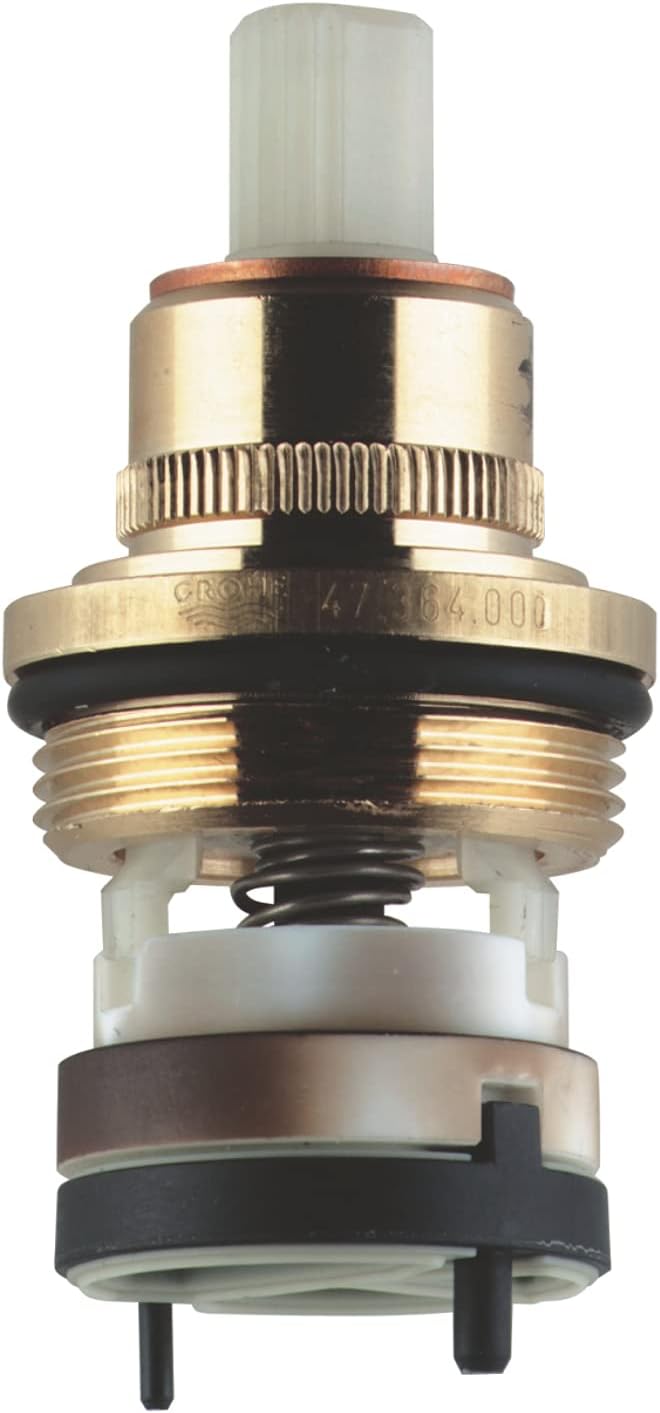

이미지 1: The GROHE 47364000 AquaDimmer Cartridge. This image shows the complete cartridge assembly, highlighting its brass and plastic components.
안전 정보
Please read all safety instructions before attempting installation or maintenance. Failure to follow these instructions may result in property damage, personal injury, or improper product function.
- 물 공급을 차단하세요: Always ensure the main water supply to the fixture is completely shut off before beginning any work.
- 보호 장비를 착용하세요: 보안경과 장갑과 같은 적절한 개인 보호 장비를 착용하십시오.
- 전문가 설치: 어떤 단계에 대해 확신이 없다면 자격을 갖춘 배관공에게 문의하세요.
- 조심해서 다루세요: Components may have sharp edges or small parts.
- 물의 온도: Be aware of potential hot water when testing the system after installation.
패키지 내용
설치를 진행하기 전에 모든 구성 요소가 있고 손상되지 않았는지 확인하세요.
- 1 x GROHE 47364000 AquaDimmer Cartridge
- Note: Additional seals or O-rings may be pre-installed on the cartridge.
설치(Setup)
This section outlines the general steps for replacing an AquaDimmer cartridge. Specific disassembly and reassembly may vary slightly depending on your GROHE fixture model. Refer to your fixture's specific manual if available.
필요한 도구:
- Adjustable wrench or appropriate size spanner (e.g., 32mm)
- Screwdriver (flathead or Phillips, depending on trim)
- 펜치(선택 사항)
- 깨끗한 천
- Silicone grease (plumber's grease, if recommended for seals)
설치 단계:
- 수도 공급을 차단하세요: Locate the main water shut-off valve for your home or the specific fixture and turn it off completely. Open the faucet to drain any remaining water.
- Remove Faucet Handle/Trim: Carefully remove the decorative handle and any trim plates covering the cartridge. This usually involves unscrewing a set screw or prying off a cap to access screws.
- Access the Old Cartridge: Once the trim is removed, you will see the cartridge housing. There may be a retaining nut or clip holding the old cartridge in place. Use an adjustable wrench or spanner to carefully loosen and remove the retaining nut.
- 오래된 카트리지 제거: Gently pull or twist the old AquaDimmer cartridge out of its housing. Note its orientation for correct installation of the new one. Inspect the housing for any debris or mineral buildup and clean if necessary.
- 새 카트리지를 준비하세요: Apply a thin layer of silicone grease to the O-rings and seals on the new GROHE 47364000 AquaDimmer Cartridge (if not pre-lubricated or if recommended by GROHE).
- 새 카트리지를 설치하세요: Insert the new cartridge into the housing, ensuring it is correctly aligned with any notches or pins. Push it firmly into place.
- 안전 카트리지: Reinstall the retaining nut or clip, tightening it securely but do not overtighten.
- 트림을 다시 조립하세요: Reattach the decorative trim and faucet handle.
- 물 공급 복구: Slowly turn the main water supply back on. Check for any leaks around the newly installed cartridge and trim.
- 테스트 기능: Test the faucet or shower to ensure proper water flow and temperature control.
이미지 2: Technical line drawing of the AquaDimmer Cartridge. This diagram illustrates the internal and external structure, useful for understanding its components during installation.
이미지 3: 맨 위 view of the AquaDimmer Cartridge. This perspective helps in identifying the correct orientation and connection points during installation.
운영
Once installed, the GROHE 47364000 AquaDimmer Cartridge functions as the core control mechanism for your shower or faucet system. It typically allows you to:
- 물 흐름 제어: 손잡이를 돌려 물의 양을 늘리거나 줄이세요.
- Divert Water: Push or pull the handle, or rotate it to a specific position, to switch water flow between different outlets (e.g., from a bath spout to a shower head, or between multiple shower functions).
- 온도 조절: In combination with a thermostatic element (if present in your fixture), the AquaDimmer may also contribute to temperature selection or fine-tuning.
Refer to your specific GROHE fixture's user manual for detailed operating instructions, as the exact functionality can vary by model.
유지
Proper maintenance ensures the longevity and optimal performance of your GROHE AquaDimmer cartridge.
- 정기 청소: Clean the exterior of your faucet or shower trim regularly with a soft cloth and mild soap. Avoid abrasive cleaners, scouring pads, or chemicals that can damage the finish or internal components.
- 누출 확인: Periodically inspect the area around the faucet or shower for any signs of water leaks. Address any leaks promptly to prevent further damage.
- 물의 질: In areas with hard water, mineral deposits can affect cartridge performance over time. If you notice reduced flow or stiff operation, the cartridge may need to be cleaned or replaced.
- 매끄럽게 하기: If the handle becomes stiff, a small amount of plumber's silicone grease can be applied to the moving parts of the cartridge (after shutting off water and disassembling the trim).
문제 해결
If you experience issues with your GROHE fixture after installing the AquaDimmer cartridge, consider the following common troubleshooting steps:
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 물 누출 |
|
|
| 뻣뻣한 핸들 조작 |
|
|
| Improper Water Diversion |
|
|
If these steps do not resolve the issue, contact GROHE customer support or a qualified plumber.
명세서
Key technical specifications for the GROHE 47364000 AquaDimmer Cartridge:
- 모델 번호: 47364000
- 상표: 그로 헤
- 재료: 놋쇠
- 외부 마감 : Chrome (referring to the fixture it's designed for, the cartridge itself is brass/plastic)
- 항목 치수(L x W x H): 2.99 x 2.95 x 2.01 인치
- 품목 무게: 0.1 킬로그램
- 입구 연결 유형: Gewinde (Thread)
- 콘센트 연결 유형: 압축
- 포트 수 : 2
- 밸브 유형: 글로브 밸브
- 커넥터 유형: 스레드
- 스레드 유형: 기준
- 인증: NSF, WRAS
보증 및 지원
For information regarding product warranty, please refer to the official GROHE website or contact GROHE customer service directly. As an original spare part, it is designed to meet GROHE's high-quality standards.
For further assistance, technical support, or to find authorized service providers, please visit the official GROHE web사이트를 방문하거나 고객 지원 센터에 문의하세요.
자세한 정보와 연락처는 다음에서 확인할 수 있습니다. 아마존의 GROHE 스토어 or the official GROHE corporate web대지.
