소개
This manual provides essential instructions for the proper installation, operation, and maintenance of your LASCO 1429-007 3/4-inch PVC Insert Coupling. Please read this manual thoroughly before use to ensure safe and effective application.
The LASCO 1429-007 is a Schedule 40 PVC insert coupling designed for connecting 3/4-inch pipes. It is suitable for various plumbing and irrigation applications within specified pressure and temperature limits.
안전 정보
- 설치하는 동안에는 항상 안전 안경, 장갑 등 적절한 개인 보호 장비(PPE)를 착용하세요.
- 설치나 유지관리를 시도하기 전에 시스템의 압력이 해제되었는지 확인하세요.
- Do not exceed the maximum operating pressure of 200 psi.
- Do not expose the coupling to temperatures outside the range of 32°F to 140°F (0°C to 60°C).
- Verify compatibility with the fluids being conveyed.
제품 끝view
The LASCO 1429-007 is a simple, durable PVC insert coupling. It features a barb design on both ends for secure connection with flexible piping, typically secured with clamps.

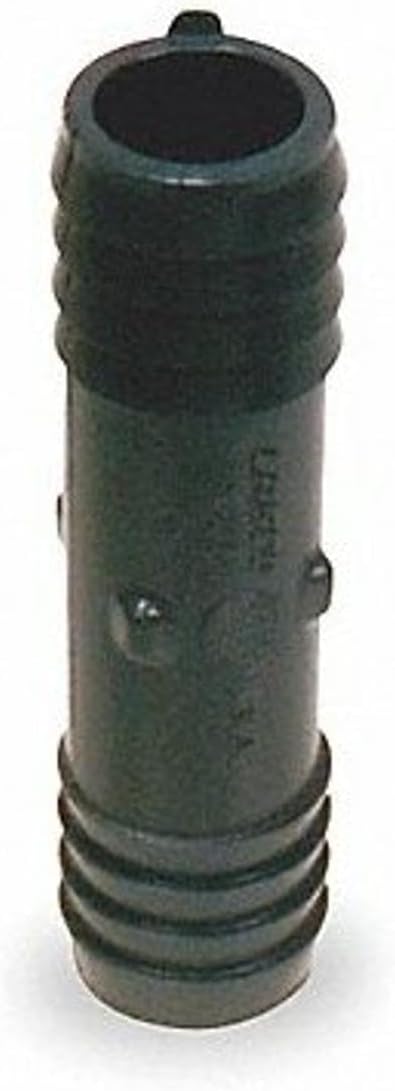

그림 1: LASCO 1429-007 3/4-inch PVC Insert Coupling. This image displays the black PVC coupling with ribbed barb ends designed for secure pipe insertion and clamp주고받음.
설정 및 설치
This section outlines the steps for installing the LASCO 1429-007 PVC Insert Coupling.
필요한 도구 및 재료:
- Pipe cutter or saw
- 줄자
- 적절한 CLamps (e.g., stainless steel hose clamps) for 3/4-inch pipe
- Screwdriver or nut driver for clamps
- Lubricant (optional, e.g., silicone grease or soapy water)
설치 단계:
- 파이프 준비: Ensure the ends of the pipes to be joined are clean, free of debris, and cut squarely.
- 윤활제를 바르십시오(선택 사항): For easier insertion, apply a small amount of lubricant (e.g., silicone grease or soapy water) to the barb ends of the coupling and the inside of the pipe ends.
- Insert Coupling: Firmly push one end of the 3/4-inch pipe onto one barb end of the coupling until it is fully seated against the stop.
- Cl로 보호amp: CL 슬라이드amp over the pipe and position it directly over the barb section of the coupling. Tighten the clamp securely using a screwdriver or nut driver. Do not overtighten, as this can damage the pipe or coupling.
- Repeat for Second Pipe: Repeat steps 3 and 4 for the second pipe, connecting it to the other end of the coupling.
- 연결 검사: Visually inspect both connections to ensure the pipes are fully seated and the clamps가 제대로 조여졌는지 확인하세요.
운영 지침
Once installed, the LASCO 1429-007 coupling operates passively as a pipe connector. Adhere to the following guidelines for optimal performance:
- 압력 한계: Do not operate the system at pressures exceeding 200 psi.
- 온도 제한: Maintain fluid temperatures between 32°F and 140°F (0°C and 60°C).
- 화학적 호환성: Ensure that the fluids passing through the coupling are compatible with PVC materials to prevent degradation.
- 시스템 시작: Gradually increase system pressure after installation to check for leaks.
유지
The LASCO 1429-007 PVC Insert Coupling requires minimal maintenance. Regular inspection is recommended.
- 정기 검사: Periodically check the coupling and surrounding pipe for any signs of leaks, cracks, or damage.
- Clamp 견고함: cl을 확인하세요amps remain securely tightened. Retighten if necessary, but avoid overtightening.
- 청소: If exposed to dirt or debris, clean the exterior of the coupling with mild soap and water. Avoid harsh chemicals that may degrade PVC.
문제 해결
This section addresses common issues that may arise with the LASCO 1429-007 coupling.
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Leakage at connection point |
|
|
| Difficulty inserting pipe |
|
|
명세서
| 특징 | 세부 사항 |
|---|---|
| 모델 번호 | 1429-007 |
| 상표 | 라스코 |
| 유형 | 커플링 삽입 |
| 재료 | PVC, Schedule 40 |
| 파이프 크기 | 3/4 인치 |
| 바브 크기 | 3/4 인치 |
| 최대 작동 압력 | 200프사이 |
| 작동 온도 범위 | 화씨 32도에서 화씨 140도(섭씨 0도에서 60도) |
| 전체 길이 | Approximately 3.25 inches (3 1/4 in) |
| 치수(길이 x 너비 x 높이) | 3.3 x 0.8 x 0.8 인치 |
| 품목 무게 | 1 파운드 |
| 한국어: | 025528723316 |
보증 및 지원
For specific warranty information or technical support regarding your LASCO 1429-007 PVC Insert Coupling, please refer to the official LASCO FITTINGS INC documentation or contact their customer service directly.
As this product is a component, warranty terms typically cover manufacturing defects. Keep your purchase receipt for warranty claims.
추가 지원을 받으려면 다음을 방문하세요. LASCO brand page on Amazon 또는 제조업체의 공식 web대지.
