소개
This manual provides essential information for the safe and efficient use of your Sylvania 78652 Ultra LED 6-Watt MR16 Narrow Floodlight Bulb. Please read these instructions carefully before installation and retain them for future reference.
안전 정보
- 전구를 설치하거나 교체하기 전에 항상 회로 차단기에서 전원을 차단하십시오.
- 전구를 만지기 전에 반드시 식히십시오.
- Do not use in fully enclosed fixtures unless specified by the fixture manufacturer.
- This bulb is designed for 12-volt systems. Verify your fixture's voltag전자 호환성.
- Avoid looking directly at the operating LED light source.
- 전구는 지역 규정에 따라 폐기하십시오.
설정 및 설치
The Sylvania 78652 LED bulb is a direct replacement for traditional Halogen MR16 lamps. Follow these steps for proper installation:
- 전원 끄기 : Ensure the power to the fixture is completely turned off at the main circuit breaker.
- 오래된 전구 제거: Carefully remove the existing MR16 bulb from the fixture. Allow it to cool if it has been recently in use.
- 새 전구 삽입: Align the two pins of the Sylvania 78652 LED bulb with the sockets in the fixture. Gently push the bulb into place until it is securely seated. Do not force the bulb.
- 복원력 : 회로 차단기를 다시 켜세요.
- 시험: Activate the light switch to confirm the bulb is functioning correctly.

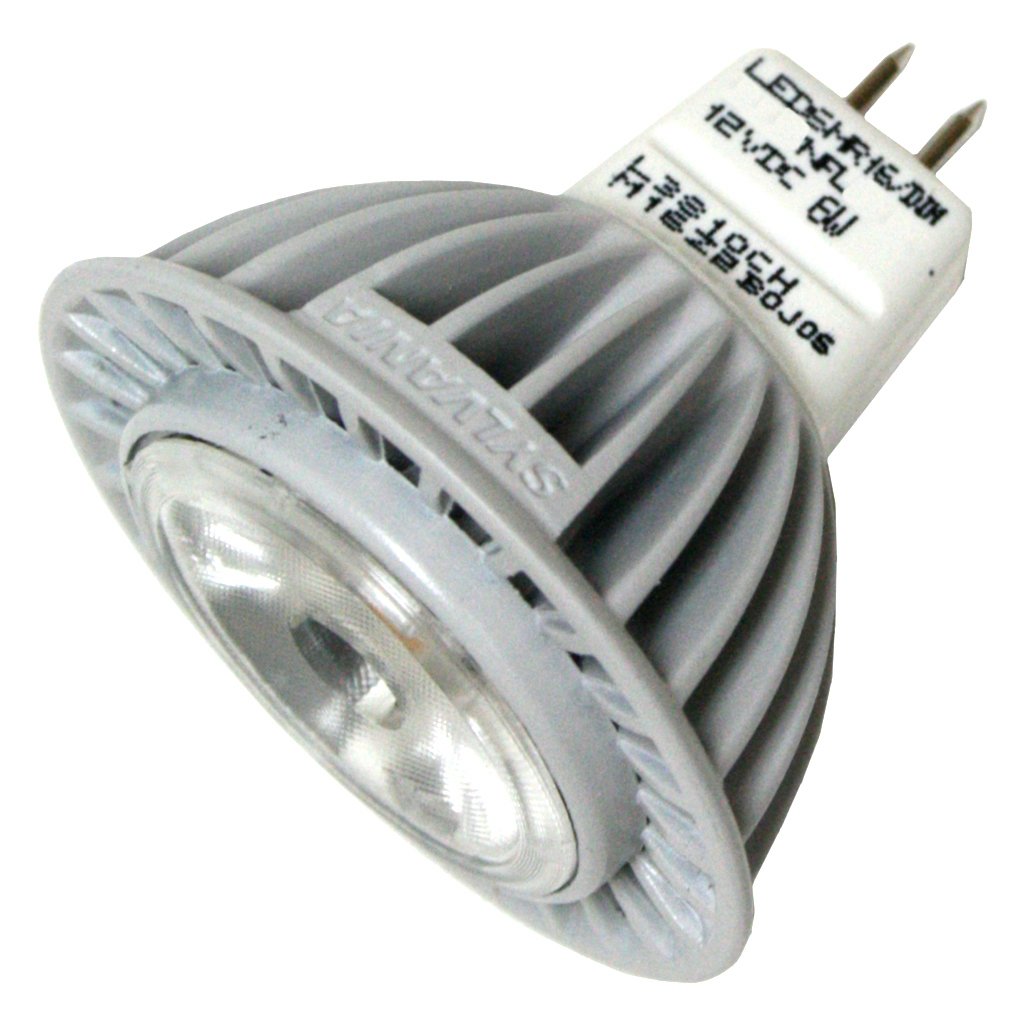

Image: The Sylvania 78652 Ultra LED MR16 bulb, featuring a compact design with two pins for installation into compatible fixtures. The bulb has a silver-colored base and a clear lens, typical of an MR16 floodlight.
작동 지침
This Sylvania Ultra LED bulb is designed for straightforward operation:
- 즉시 켜짐: The bulb provides instant-on to full brightness without any warm-up time.
- 밝기 조절 가능 기능: This bulb is dimmable. For optimal performance and to avoid flickering or buzzing, ensure you use a compatible LED dimmer switch. Consult the dimmer manufacturer's instructions for compatibility.
- 사용 환경 : Suitable for both indoor and outdoor applications. When used outdoors, ensure the fixture itself is rated for outdoor use and provides adequate protection from direct water exposure.
유지
The Sylvania 78652 LED bulb is designed for long-term, maintenance-free operation. With a rated life of 35,000 hours, frequent replacement is not required.
- 청소: If cleaning is necessary, ensure the power is off and the bulb is cool. Gently wipe the bulb with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- 대사: When the bulb reaches the end of its operational life, replace it with another Sylvania 78652 Ultra LED MR16 bulb or an equivalent LED MR16 bulb with compatible specifications.
문제 해결
If you encounter issues with your Sylvania 78652 LED bulb, consider the following:
- 전구가 켜지지 않음:
- 조명기구에 전원이 공급되는지 확인하십시오.
- 전구가 소켓에 올바르게 꽂혔는지 확인하세요.
- Verify that the fixture itself is working correctly by testing with another known-good bulb.
- Confirm the fixture is rated for 12-volt MR16 bulbs.
- 깜빡임이나 윙윙거림:
- If using a dimmer, ensure it is an LED-compatible dimmer switch. Older incandescent dimmers may cause flickering or buzzing with LED bulbs.
- 전구가 단단히 설치되었는지 확인하세요.
- 밝기 감소:
- If using a dimmer, check the dimmer setting.
- 조명기구의 볼륨을 확인하십시오tage supply is stable at 12 volts.
명세서
| 특징 | 사양 |
|---|---|
| 상표 | LEDVANCE (실바니아) |
| 모델 번호 | 78652 |
| 라이트 타입 | 주도의 |
| 전구 모양 크기 | MR16 |
| 왓tage | 6 와트 |
| 권tage | 12 볼트 |
| 특징 | 밝기 조절 가능 |
| 색온도 | 700 켈빈 |
| 연색지수(CRI) | 87 |
| 생활 시간 | 35,000시간 |
| 실내/실외 사용 | 실내, 실외 |
| 재료 | 구리 |
| 품목 무게 | 2.4 온스 |
| 패키지 크기 | 2.2 x 1.8 x 1.8 인치 |
보증 정보
Specific warranty details for the Sylvania 78652 Ultra LED bulb are not included in this manual. For information regarding product warranty, please refer to the packaging or contact LEDVANCE (Sylvania) directly through their official web사이트 또는 고객 서비스 채널.
지원하다
If you require further assistance or have questions not covered in this manual, please contact LEDVANCE (Sylvania) customer support. Contact information can typically be found on the product packaging or on the official LEDVANCE web대지.
