CLP Saddle Bar Stool Instruction Manual

1. 서론

구매해주셔서 감사합니다asing the CLP Saddle Bar Stool. This manual provides essential information for the safe assembly, setup, operation, and maintenance of your new bar stool. Please read these instructions carefully before use and retain them for future reference.

2. 안전 정보

• 조립하기 전에 모든 구성품이 있는지, 손상되지 않았는지 확인하십시오. 부품이 누락되었거나 파손된 경우 사용하지 마십시오.
• Assemble the bar stool on a soft, clean surface to prevent scratches.
• 조립하는 동안 나사를 너무 세게 조이지 마세요. 부품이 손상될 수 있습니다.
• The maximum weight capacity for this bar stool is 120kg(264파운드). 이 한도를 초과하지 마십시오.
• 어린이가 조립 구역에 접근하지 못하도록 하세요. 작은 부품은 질식 위험을 초래할 수 있습니다.
• Always ensure the stool is stable before sitting.

3. 패키지 내용

조립을 시작하기 전에 패키지에 다음 구성품이 모두 포함되어 있는지 확인하십시오.

• Seat (Plastic)
• 가스 리프트 실린더
• Footrest Ring (Chrome Metal)
• Base Plate (Chrome Metal with Rubber Ring)
• 조립 하드웨어(나사, 와셔, 육각 렌치)

4. 조립 설명서

Follow these steps to assemble your CLP Saddle Bar Stool:

1. Attach the Gas Lift to the Base: Carefully insert the wider end of the gas lift cylinder into the central hole of the chrome base plate. Ensure it is seated firmly.
2. 발판 설치: Slide the chrome footrest ring over the gas lift cylinder. The footrest should rest on the support ring on the gas lift.
3. Connect the Seat: Align the mounting plate under the plastic seat with the top of the gas lift cylinder. Secure the seat to the gas lift using the provided screws and washers. Use the Allen key to tighten them securely, but do not overtighten.
4. 최종 확인: Once assembled, gently test the stability of the stool before use. Ensure all connections are secure.

Image: An assembled CLP Saddle Bar Stool, showing the seat, gas lift, footrest, and base.

5. 설정

Place the assembled bar stool on a flat, stable surface. The rubber ring on the base is designed to prevent scratches on your floor. Ensure there is adequate space around the stool for comfortable use and swiveling.

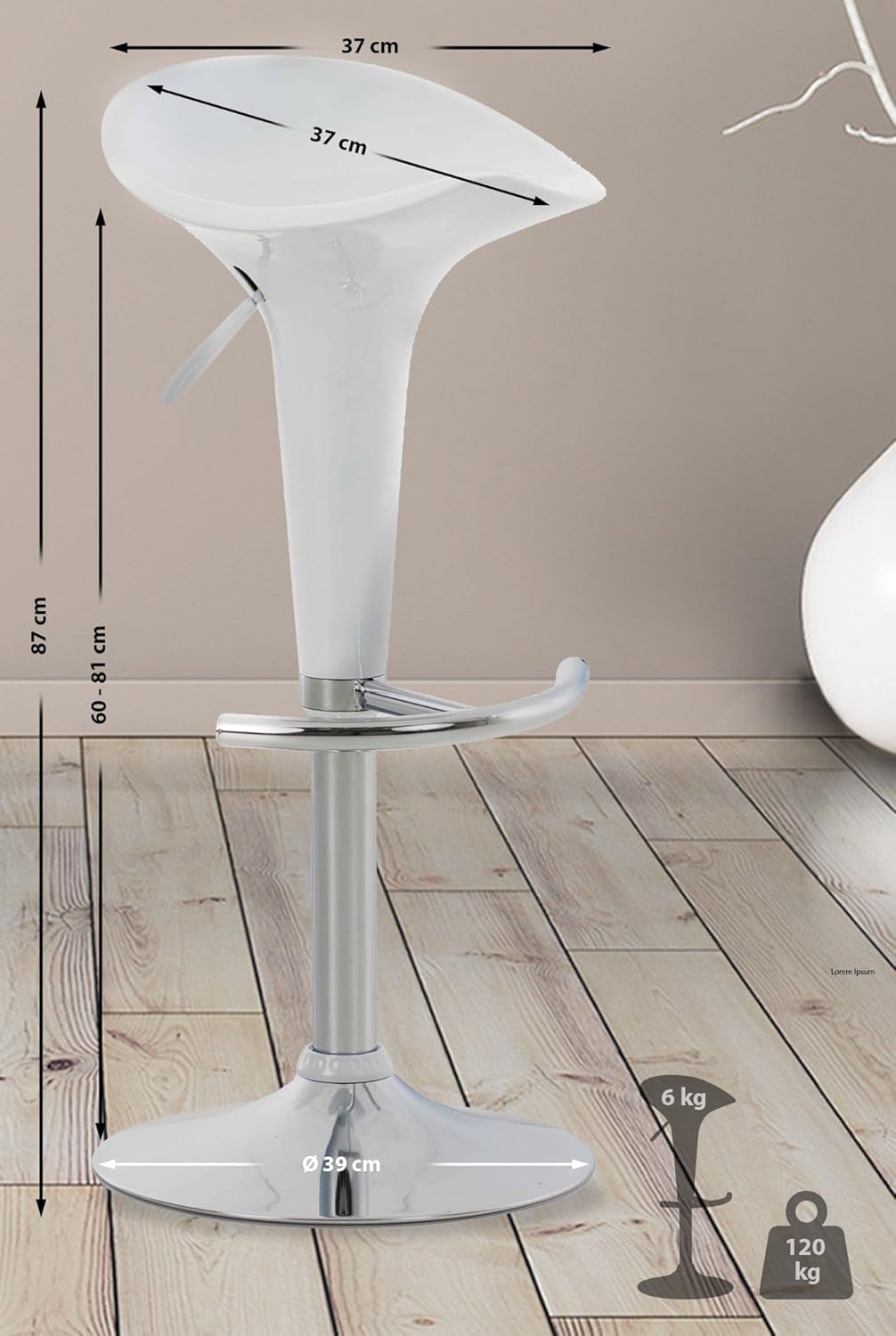

Image: A CLP Saddle Bar Stool with key dimensions indicated: total height (87 cm), adjustable seat height (60-81 cm), seat width (37 cm), seat depth (37 cm), and base diameter (39 cm). The stool weighs 6 kg and has a maximum load of 120 kg.

6. 사용 설명서

6.1. 높이 조절

The CLP Saddle Bar Stool features a gas lift mechanism for easy height adjustment:

• 좌석을 올리려면: Stand up from the stool and pull the lever located under the seat upwards. The seat will automatically rise. Release the lever when the desired height is reached.
• 좌석을 낮추려면: Sit on the stool and pull the lever upwards. The seat will lower under your weight. Release the lever when the desired height is reached.

6.2. 회전 기능

The seat of the bar stool can rotate 360 degrees. Simply turn the seat in the desired direction while seated or standing.

이미지: 측면 view of the CLP Saddle Bar Stool, highlighting the lever for height adjustment located beneath the seat.

7. 유지관리

7.1. 청소

• Plastic Seat: Wipe the plastic seat surface with a soft, damp cloth and a mild detergent. Avoid abrasive cleaners or solvents, as these can damage the plastic.
• 크롬 부품: Clean chrome metal parts with a soft, dry cloth. For stubborn marks, use a chrome-specific cleaner and polish gently.
• Do not immerse any part of the stool in water.

7.2. 일반 관리

• 모든 나사와 연결부가 단단히 조여져 있는지 정기적으로 점검하십시오. 필요한 경우 다시 조이십시오.
• Avoid exposing the stool to direct sunlight or extreme temperatures for prolonged periods, as this may affect the material's durability and color.
• Do not stand on the stool or use it as a ladder.

8. 문제 해결

• 변이 흔들거립니다. Check that all assembly screws are securely tightened. Ensure the stool is placed on a flat, even surface.
• 높이 조절이 작동하지 않습니다. Ensure the gas lift lever is fully engaged when attempting to adjust. If the gas lift is faulty, it may need replacement. Contact customer support.
• 삐걱거리는 소리: A small amount of lubricant (e.g., silicone spray) can be applied to moving parts like the gas lift or swivel mechanism if a squeak develops.

9. 사양

10. 보증 및 지원

For warranty information or technical support, please refer to the retailer's policy or contact CLP customer service directly. Keep your purchase receipt as proof of purchase.
