1. 서론
Thank you for choosing the Sanitas SGS 06 Glass Bathroom Scale. This manual provides important information regarding the safe and proper use, setup, and maintenance of your new scale. Please read these instructions thoroughly before first use and keep them for future reference.
Image 1: Sanitas SGS 06 Glass Bathroom Scale. This image shows the full transparent glass surface with the digital display at the top center and four silver-colored sensors at each corner.
2. 안전 정보
- This scale is intended for weighing humans. Do not use it for commercial or medical purposes.
- The scale has a maximum capacity of 150 kg (330 lb / 23 st). Do not exceed this weight.
- The glass surface can be slippery when wet. Ensure the surface is dry before stepping on the scale.
- Always place the scale on a firm, flat surface. Uneven surfaces can affect accuracy.
- Do not jump on the scale or drop heavy objects on it, as this may damage the glass.
- 저울을 강한 전자기장 근처에 두지 마세요.
- 배터리는 어린이의 손이 닿지 않는 곳에 보관하십시오. 삼켰을 경우 즉시 의사의 진료를 받으십시오.
- 배터리와 기기를 지역 규정에 따라 폐기하세요.
3. 패키지 내용
패키지에 모든 품목이 들어 있는지 확인하세요.
- 1 x Sanitas SGS 06 Electronic Glass Bathroom Scale
- 1 x 3V CR 2032 Lithium Battery
- 1 x 사용 설명서
4. 설정
4.1 배터리 설치
- 저울 밑면에서 배터리 칸을 찾으세요.
- 배터리 덮개를 엽니다.
- Insert the included 3V CR 2032 lithium battery, ensuring the correct polarity (+/-).
- 배터리 덮개를 단단히 닫으세요.
4.2 초기 배치 및 교정
- 저울을 단단하고 평평하며 안정적인 표면(예: 타일, 나무 바닥)에 놓으십시오. 카펫이나 고르지 않은 바닥은 정확도에 영향을 줄 수 있으므로 피하십시오.
- For initial calibration, gently step onto the scale and then step off. The display will show '0.0' or a similar indication, then turn off. This prepares the scale for accurate measurement.
Image 2: Detail of a corner sensor on the Sanitas SGS 06 scale. This image highlights the silver-colored square sensor pad and the clear glass surface.
5. 사용 설명서
5.1 Taking a Measurement (Quick Start Technology)
- 저울이 평평하고 안정된 표면에 놓여 있는지 확인하세요.
- Gently step onto the center of the scale with bare feet. The scale will automatically turn on due to its Quick Start technology.
- 몸무게가 표시되고 안정될 때까지 가만히 서 계세요.
- The weight will be shown on the LCD display.
- After a few seconds, the scale will automatically turn off to conserve battery power.

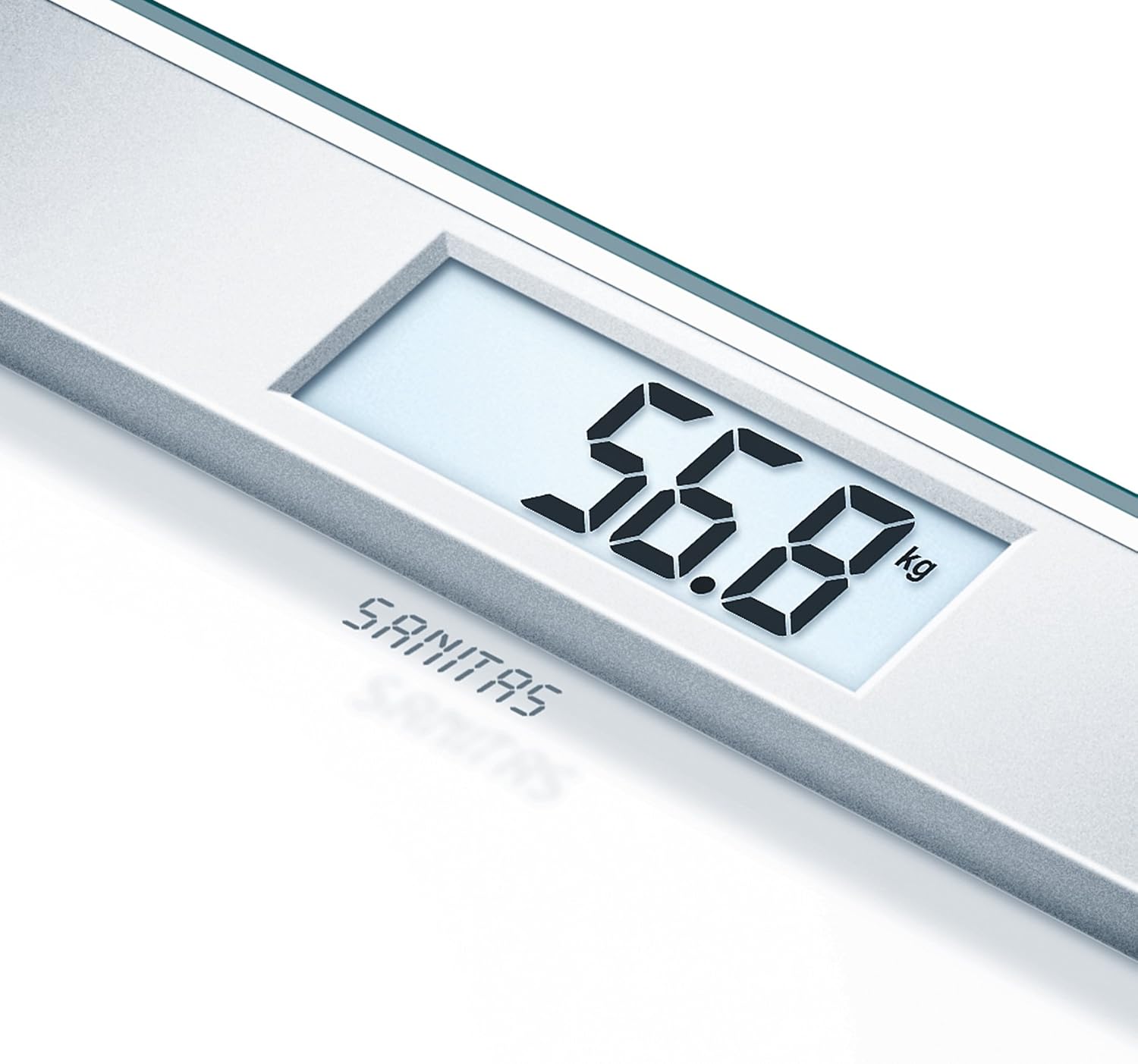

Image 3: The digital display of the Sanitas SGS 06 scale, clearly showing a weight of '56.8 kg'. The Sanitas logo is visible below the display.
6. Units of Measurement
The Sanitas SGS 06 scale allows you to switch between different units of measurement: kilograms (kg), pounds (lb), and stones (st).
- To change the unit, locate the unit selection button on the underside of the scale, usually near the battery compartment.
- Press this button repeatedly to cycle through the available units (kg, lb, st) until your desired unit is displayed.
- The selected unit will be saved for future measurements.
7. 유지관리 및 청소
7.1 청소
- 정기적으로 저울을 청소하십시오.amp 필요하다면 천과 순한 세제를 사용하세요.
- 연마성 세척제를 사용하거나 스케일을 물에 담그지 마십시오.
- 보관이나 다음 사용 전에 저울이 완전히 건조되었는지 확인하세요.
7.2 보관
- 저울은 건조하고, 극한 온도와 직사광선을 피해 보관하십시오.
- Do not place heavy objects on the scale during storage.
8. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 디스플레이에 "Lo"가 표시됩니다. | 배터리가 부족합니다. | Replace the 3V CR 2032 lithium battery. |
| 디스플레이에 "Err"이 표시됩니다. | Overload or unstable surface. | Ensure weight is within 150 kg capacity. Place scale on a firm, flat surface. |
| 부정확한 판독 | Scale not calibrated, on uneven surface, or moved. | Step off, wait for display to clear, then step on again. Ensure scale is on a flat, stable surface. Do not move the scale between measurements. |
| 디스플레이 없음 | Battery dead or incorrectly installed. | 배터리 극성을 확인하거나 배터리를 교체하세요. |
9. 사양
- 모델: Sanitas SGS 06 (Article No. 755.19)
- 유형: 전자 유리 욕실 저울
- 용량: 150kg(330파운드/23스톤)
- 눈금: 100g (0.2lb / 0.01st)
- 표시하다: LCD, 2.5 cm digit size
- 단위: kg/lb/st
- 힘: 1 x 3V CR 2032 Lithium Battery (included)
- 치수(길이 x 너비 x 높이): 33 x 33 x 5cm (약 13 x 13 x 2인치)
- 무게: 1.67kg(약 3.68파운드)
- 재료: 안전 유리
- 특징: Quick Start Technology, Automatic Switch-off, Overload Indicator
- 제조업체: Beurer GmbH
- 원산지: 중국
10. 보증 및 지원
Sanitas products are manufactured by Beurer GmbH. For warranty claims or technical support, please refer to the warranty card included with your purchase or contact your local retailer or the official Sanitas/Beurer customer service in your region. Please have your proof of purchase and the model number (SGS 06 or 755.19) ready when contacting support.
