소개
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Aiphone 2-Call DA Series Door Station, model DA-2DS. Please read this manual thoroughly before attempting to install or operate the unit to ensure correct usage and to prevent damage.

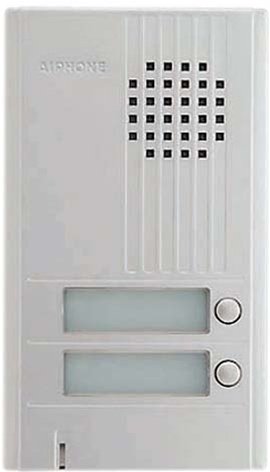

이미지: 앞면 view of the Aiphone DA-2DS 2-Call Door Station. This silver unit features two call buttons for multi-tenant or multi-location communication.
안전 정보
부상 및 장비 손상을 방지하기 위해 다음 안전 수칙을 준수하십시오.
- 배선 작업이나 유지 보수 작업을 하기 전에 항상 전원을 차단하십시오.
- Ensure all wiring is compliant with local electrical codes and regulations.
- 제품을 과도한 습기나 극한 온도에 노출시키지 마십시오.
- 지정된 전원 공급 장치 및 액세서리만 사용하십시오.
- 설치는 자격을 갖춘 사람이 수행해야 합니다.
패키지 내용
패키지에 모든 품목이 들어 있는지 확인하세요.
- Aiphone DA-2DS Door Station Unit
- 장착 나사 및 앵커
- 사용 설명서(본 문서)
설정
설치
Select a suitable mounting location, typically near the entrance, at a height that allows easy access for all users. Ensure the surface is flat and secure. Use the provided mounting screws and anchors to firmly attach the door station to the wall.
배선
Connect the door station to the indoor master station using appropriate wiring. The DA-2DS requires a 2-wire connection for each call button to the corresponding indoor station. Refer to the wiring diagram provided with your indoor master station for specific connection points. Ensure all connections are secure and insulated.
초기 파워업
After all wiring is complete and verified, apply power to the system. Test each call button to ensure proper communication with the indoor stations.
작동 지침
전화 걸기
To initiate a call from the door station, press the desired call button. This will activate the corresponding indoor master station, which will then ring to alert the occupant.
전화 받기
When a call is initiated from the door station, the indoor master station will ring. The occupant can answer the call by pressing the talk button on the indoor station. Two-way communication will then be established.
유지
청소
Clean the exterior of the door station periodically with a soft, damp 천을 사용하십시오. 연마성 세척제, 용제 또는 강한 화학 물질은 마감재와 내부 부품을 손상시킬 수 있으므로 사용하지 마십시오.
정기 점검
Periodically check the mounting screws for tightness and ensure all wiring connections remain secure. Test the call buttons and communication functionality regularly to ensure proper operation.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| No sound from door station | Loose wiring connection; faulty speaker/microphone | Check wiring connections at both door and master stations. If problem persists, contact support. |
| Call button does not activate indoor station | Incorrect wiring; faulty button | Verify wiring connections for the specific call button. Test button functionality. |
| 간섭 또는 음질 불량 | Improper wiring; electrical interference | Ensure wiring is correctly installed and shielded if necessary. Check for nearby sources of electrical interference. |
명세서
- 모델: DA-2DS
- 제조업체: 아이폰
- 부품 번호: DA-2DS
- 품목 무게: 3파운드
- 색상: 은
- 품목 패키지 수량: 1
- 배터리 포함: 아니요
- 첫 이용 가능 날짜: 8년 2008월 XNUMX일
보증 정보
Aiphone products are designed for reliability and performance. This product is covered by a limited warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Aiphone web사이트. 보증 청구를 위해 구매 증빙 자료를 보관하세요.
지원하다
For technical assistance, troubleshooting, or service inquiries, please contact Aiphone customer support. You can find contact information, including phone numbers and online resources, on the official Aiphone website. When contacting support, please have your model number (DA-2DS) and a description of the issue ready.
