MENABO Dozer XL Roof Bars Instruction Manual

1. 서론

This manual provides detailed instructions for the safe and effective installation and use of your MENABO Dozer XL Roof Bars. These aluminum roof bars are designed for vehicles equipped with open roof railings, offering a robust and secure solution for transporting additional cargo. Please read all instructions carefully before installation and use to ensure proper function and safety.

Figure 1: MENABO Dozer XL Roof Bars (Set of 2)

2. 구성 요소

The MENABO Dozer XL Roof Bar set includes the following components:

• 2 x Aluminum Roof Bars: The main load-bearing bars.
• 4 x Mounting Feet: Assemblies for attaching the bars to your vehicle's roof railings.
• 4 x Anti-Theft Locks with Keys: Integrated locking mechanism for security.
• Rubber Strips: For insertion into the bar grooves to reduce wind noise and protect cargo.
• Hex Key (Allen Wrench): Tool for tightening mounting bolts.
• 사용 설명서: 이 문서.

3. 설정 및 설치

Before beginning installation, ensure your vehicle is parked on a level surface and the engine is off. Always refer to your vehicle's owner's manual for any specific instructions regarding roof load capacity or roof railing usage.

1. 구성 요소 풀기: 포장에서 모든 구성품을 조심스럽게 꺼내고 2항에 나열된 모든 부품이 있는지 확인하십시오.
2. 장착 다리를 조립하세요: Attach the mounting feet to the aluminum bars. Ensure the feet are oriented correctly to clamp onto your vehicle's open roof railings. The clamps should be fully open to facilitate placement.
3. Position Bars on Vehicle: Place the assembled roof bars onto your vehicle's open roof railings. Adjust the position of the mounting feet along the bars to match the width of your vehicle's railings. Ensure the bars are parallel to each other and evenly spaced for optimal load distribution.
4. 보안 Clamps: Using the provided hex key, tighten the bolts on each mounting foot to secure the clamps firmly onto the roof railings. Tighten gradually and evenly on both sides to ensure a balanced and secure fit. Do not overtighten.
5. 고무 스트립을 삽입하세요: Cut the provided rubber strips to the appropriate length and insert them into the upper and lower grooves of the aluminum bars. These strips are crucial for reducing wind noise and protecting the bars and your cargo. Ensure they are fully seated in the grooves.
6. Engage Anti-Theft System: Lock the anti-theft caps on each mounting foot using the provided keys. This secures the bars to your vehicle and prevents unauthorized removal.

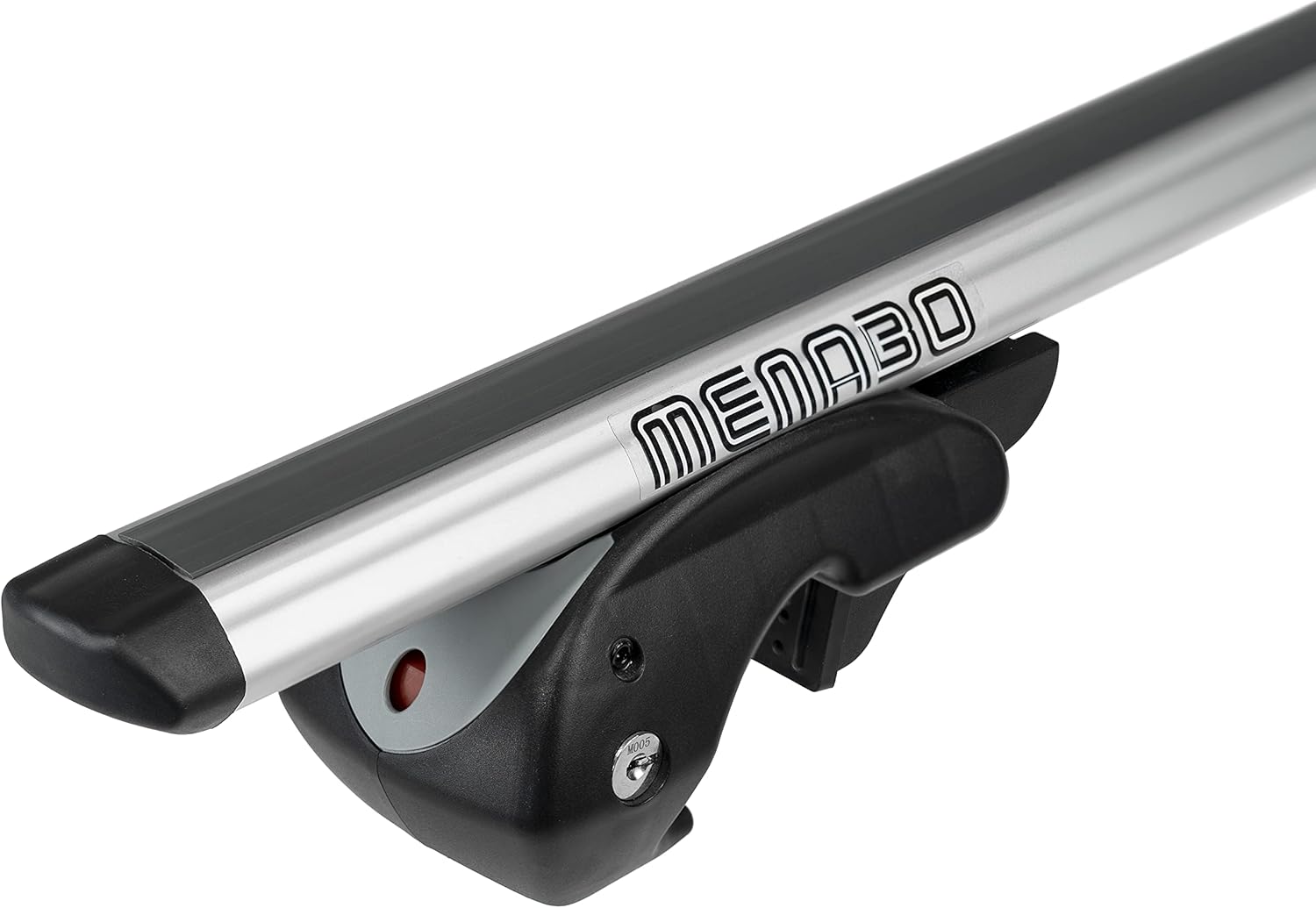

Figure 2: Close-up of the mounting foot and anti-theft lock.

Figure 3: MENABO Dozer XL Roof Bars installed on a vehicle.

4. 사용 설명서

Once installed, your MENABO Dozer XL Roof Bars are ready for use. Observe the following guidelines for safe operation:

• 하중 용량: The maximum load capacity for these roof bars is 90kg(198파운드). This includes the weight of the bars themselves and any accessories (e.g., roof box, bike rack). Never exceed this limit.
• 무게 분포 : Distribute the load evenly across both bars and secure it properly to prevent shifting during transit.
• 화물 고정: Always use appropriate straps, nets, or other securing devices to firmly attach your cargo to the roof bars. Ensure there is no movement of the cargo before driving.
• 운전 시 고려 사항: Be aware that adding cargo to your roof will affect your vehicle's handling, braking, and fuel consumption. Drive at reduced speeds, especially in windy conditions or when cornering. Avoid sudden maneuvers.
• 높이 여유: Remember that the overall height of your vehicle will increase with the roof bars and any mounted cargo. Be mindful of low clearances, such as garages, carports, and drive-thrus.

5. 유지관리

Regular maintenance ensures the longevity and safe operation of your roof bars:

• 정기 검사: Periodically check all mounting bolts, clamps, and the anti-theft locks for tightness and security, especially before long journeys or after driving on rough terrain.
• 청소: Clean the aluminum bars and plastic components with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish.
• Rubber Strips: Ensure the rubber strips remain securely in their grooves. Replace them if they become damaged or dislodged.
• 저장: If the roof bars are not in use for an extended period, it is recommended to remove them from the vehicle and store them in a dry, protected area to prevent wear and tear from weather exposure.

6. 문제 해결

일반적으로 발생할 수 있는 문제에 대한 해결책은 다음과 같습니다.

• Whistling Noise at Speed:

  해결책: This is typically caused by air turbulence. Ensure that the rubber strips are correctly and fully inserted into both the upper and lower grooves of the aluminum bars. Missing or improperly installed rubber strips are the most common cause of wind noise.
• Bars Feel Loose After Installation:

  해결책: Re-check the tightness of all mounting bolts using the provided hex key. Ensure that the clamps are securely gripping the vehicle's roof railings. If the issue persists, verify that the bars are compatible with your specific vehicle model and its roof railing type.

• Difficulty Attaching Mounting Feet to Railings:

  해결책: 장착 cl을 확인하십시오amps are fully opened before attempting to position them on the railings. Sometimes, it helps to attach the feet to the bars first, then place the entire assembly onto the railings, adjusting the width as needed.

• Keys Not Working for Anti-Theft Locks:

  해결책: Ensure you are using the correct keys provided with your specific set of roof bars. Check for any debris or obstruction in the lock mechanism. If the lock is stiff, a small amount of graphite lubricant can be applied.

7. 사양

8. 보증 및 지원

보증 정보, 제품 등록 또는 기술 지원에 대해서는 제조업체의 공식 웹사이트를 참조하십시오. website or contact your authorized MENABO dealer. Keep your proof of purchase for any warranty claims.
