소개
This instruction manual provides detailed guidance for the safe installation, operation, and maintenance of your Kichler 300125BSS Cadence 54-Inch Ceiling Fan. Please read all instructions carefully before beginning installation to ensure proper function and safety.

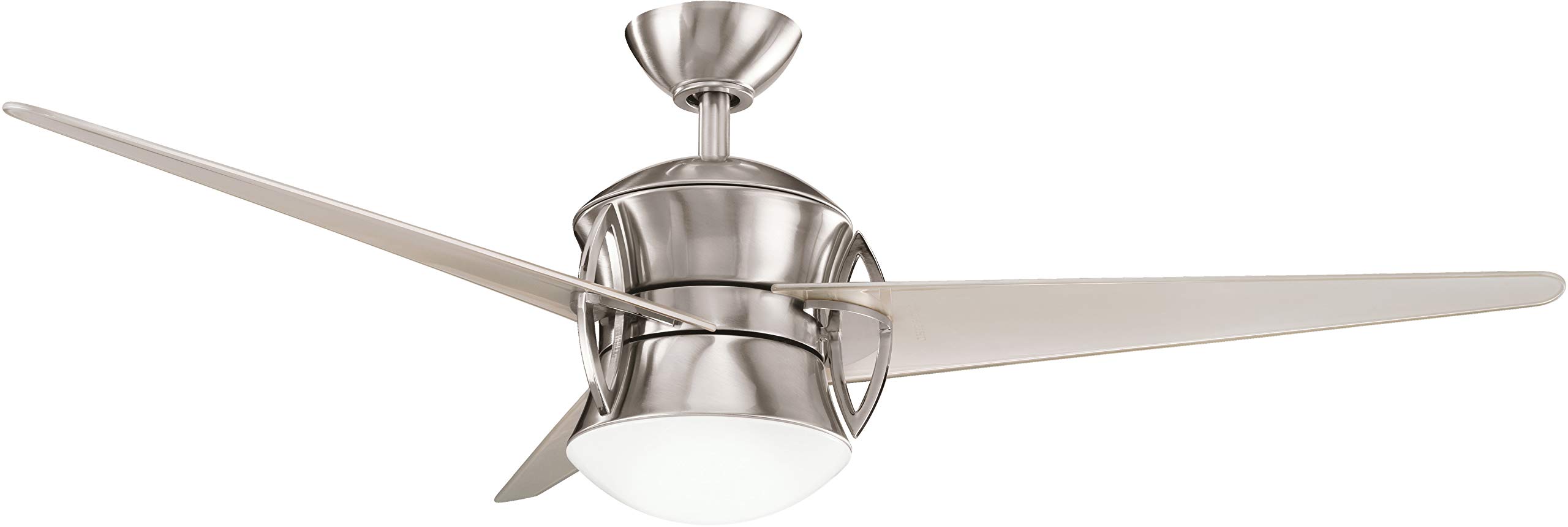

Image 1: Kichler 300125BSS Cadence 54-Inch Ceiling Fan. This image shows the complete ceiling fan assembly, featuring three clear champagne blades, a brushed stainless steel motor housing, and an integrated light kit with cased opal glass.
중요한 안전 정보
- 경고: To reduce the risk of fire, electric shock, or personal injury, mount fan directly from building structure and/or to an outlet box marked acceptable for fan support of 35 lbs (15.9 kg) or less and use the mounting screws provided with the outlet box.
- 경고: 날개가 손상된 선풍기는 작동하지 마십시오. 날개 하나라도 손상된 경우 모든 날개를 교체하십시오.
- 경고: Ensure all electrical connections are made in accordance with local codes, ordinances, and the National Electric Code (NEC). If you are unfamiliar with electrical wiring, consult a qualified electrician.
- 설치나 정비를 하기 전에 항상 주 회로 차단기의 전원을 분리하세요.
- The fan blades must be a minimum of 7 feet (2.1 meters) above the floor for safety.
- The tips of the blades must be at least 18 inches (45.7 cm) from the wall to provide sufficient clearance.
- This fixture is UL listed for dry location use.
패키지 내용
설치를 시작하기 전에 아래 나열된 모든 구성 요소가 있고 손상되지 않았는지 확인하세요.
- 천장선풍기 모터 조립
- 3 x Clear Champagne Blades
- 1 x 4인치 다운로드
- 1 x 12인치 다운로드
- Integrated Light Kit with Cased Opal Glass
- 1 x 75W Halogen JD-E-11 Bulb
- Metal Fan Cap (for non-light use)
- CoolTouch Control System (Remote and Receiver)
- 장착 하드웨어
설정 및 설치
1. Site Preparation and Safety
Before installation, ensure the power is turned off at the circuit breaker. Select a mounting location where the fan blades will have at least 18 inches (45.7 cm) clearance from any walls or obstructions, and the blades will be a minimum of 7 feet (2.1 meters) above the floor.
Image 2: Mounting Options. This image illustrates different ceiling fan mounting types, including a downrod mount, which is applicable to this Kichler 300125BSS model.
2. 팬 장착
- Secure the mounting bracket to an approved outlet box (rated for fan support of 35 lbs or less) using the screws provided with the outlet box.
- Assemble the chosen downrod (4-inch or 12-inch) to the fan motor assembly, ensuring all pins and screws are securely fastened.
- 팬 조립체를 조심스럽게 들어 올려 장착 브래킷에 걸어주세요.
3. 전기 연결
All wiring should be performed by a qualified electrician or in strict accordance with local electrical codes. Connect the fan's electrical wires to the household wiring as per the wiring diagram provided in the full installation guide (not included here). Ensure the CoolTouch Control System receiver is wired correctly between the fan and the power supply.
4. 블레이드 및 라이트 키트 부착
- Attach the three clear champagne blades to the motor housing using the provided screws. Ensure they are tightened securely.
- Install the integrated light kit. If not using the light kit, attach the metal fan cap instead.
- Insert the 75W Halogen JD-E-11 bulb into the light kit socket and secure the cased opal glass shade.
작동 지침
Your Kichler 300125BSS ceiling fan is operated by the included CoolTouch Control System remote.
Image 3: Control Options. This image displays a remote control and a wall-mounted control for ceiling fans, similar to the CoolTouch Control System included with your Kichler 300125BSS fan.
- 팬 속도 제어: Use the remote to select one of three fan speeds (High, Medium, Low).
- 역방향 기능: The remote allows you to change the direction of blade rotation, useful for seasonal air circulation (downward airflow for cooling, upward for heat distribution).
- 조명 제어: The remote has a separate On/Off button for the light.
- 디밍 : The light control also features full-range dimming. Press and hold the light button to adjust brightness.
- 지능형 반환: The system remembers your last light setting.
- The remote operates wirelessly up to 30 feet (9.1 meters) from the ceiling fan.
유지
정기적인 유지 관리는 최적의 성능을 보장하고 천장 선풍기의 수명을 연장합니다.
- 청소: 부드러운 천으로 선풍기를 주기적으로 청소하세요.amp 천을 사용하십시오. 연마성 세제나 용제는 사용하지 마십시오. 청소하기 전에 전원이 꺼져 있는지 확인하십시오.
- 블레이드 관리: Check blade screws periodically and tighten if necessary. Dust blades regularly to prevent accumulation that can cause wobble.
- 전구 교체: Before replacing the bulb, ensure the power is off. Allow the bulb to cool completely. Replace with a 75W Halogen JD-E-11 bulb or an equivalent LED bulb.
- 모터 윤활: 팬 모터는 영구 윤활 처리되어 있어 오일 주입이 필요 없습니다.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 팬이 시작되지 않음 | No power to fan; loose wire connections; remote battery dead. | Check circuit breaker/fuse. Verify all wire connections are secure. Replace remote battery. |
| 팬이 흔들린다 | 느슨한 날 나사, 불균형한 날, 느슨한 장착 하드웨어. | Tighten all blade screws. Ensure blades are balanced (use a balancing kit if needed). Check mounting bracket and downrod connections. |
| 빛이 작동하지 않습니다 | Bulb faulty; loose wire connection; remote battery dead. | Replace bulb. Check light kit wiring. Replace remote battery. |
| 시끄러운 작동 | 나사가 헐거워짐; 모터 하우징 마찰; 팬 수평 불량. | Check and tighten all screws. Ensure no parts are rubbing. Verify fan is level. |
명세서
- 모델: 300125BSS
- 블레이드 스윕: 54인치(137.16cm)
- 블레이드 피치: 14도
- 블레이드 수 : 3
- 모터: 172mm x 17mm
- 기류 수용량: 6,387 분당 입방피트(CFM)
- 왓tage (Fan only, high speed): 65 와트
- 권tage: 120 볼트
- 전구 유형: 75W Halogen JD-E-11 (one included)
- 제어 방법: CoolTouch Remote Control System
- 장착 유형: 다운로드
- 실내/실외 사용: Outdoor (UL listed for dry locations) - Note: For electrical safety, adhere to dry location guidelines.
- 품목 무게: 28.4파운드(12.88kg)
보증 및 지원
보증 정보
This Kichler ceiling fan comes with a 제한된 평생 보증. For specific details regarding coverage, terms, and conditions, please refer to the warranty documentation included with your product packaging or contact Kichler customer service.
고객 지원
For technical assistance, replacement parts, or further inquiries, please contact Kichler customer support. You can also visit the official Kichler web추가 자료 및 제품 정보는 해당 사이트를 참조하십시오.
Kichler Official Store: Visit Kichler Store on Amazon
