지르콘 스터드센서 e50 전자식 스터드 탐지기 사용 설명서

1. 서론

The Zircon StudSensor e50 Electronic Stud Finder is designed to quickly and easily locate the edges of wood and metal studs and joists behind walls, floors, and ceilings. It incorporates advanced technology to provide accurate detection and enhance safety during various home improvement and construction tasks.

Figure 1: Zircon StudSensor e50 Electronic Stud Finder

This manual provides detailed instructions for the proper setup, operation, and maintenance of your StudSensor e50. Please read it thoroughly before use to ensure safe and effective operation.

2. 설정

2.1 배터리 설치

1. 기기 뒷면에 있는 배터리실 덮개를 엽니다.
2. 새로운 9V 알칼리 배터리를 삽입할 때, 극성(+/-)을 정확히 확인하십시오.
3. 배터리 덮개를 단단히 닫으세요.

2.2 교정

The StudSensor e50 features patented TruCal technology, which automatically calibrates the tool. To ensure accurate scanning:

1. Place the tool flat against the wall where you intend to scan.
2. Press and hold the Power button. The tool will emit an audio tone and the LCD display will indicate when calibration is complete and the tool is ready to scan.
3. Do not release the Power button during the entire scanning process.

3. 작동 모드

The StudSensor e50 offers two primary scanning modes for different applications:

3.1 STUD SCAN Mode

This mode locates the edges and center of wood or metal studs in normal walls up to 3/4 inch (19 mm) deep.

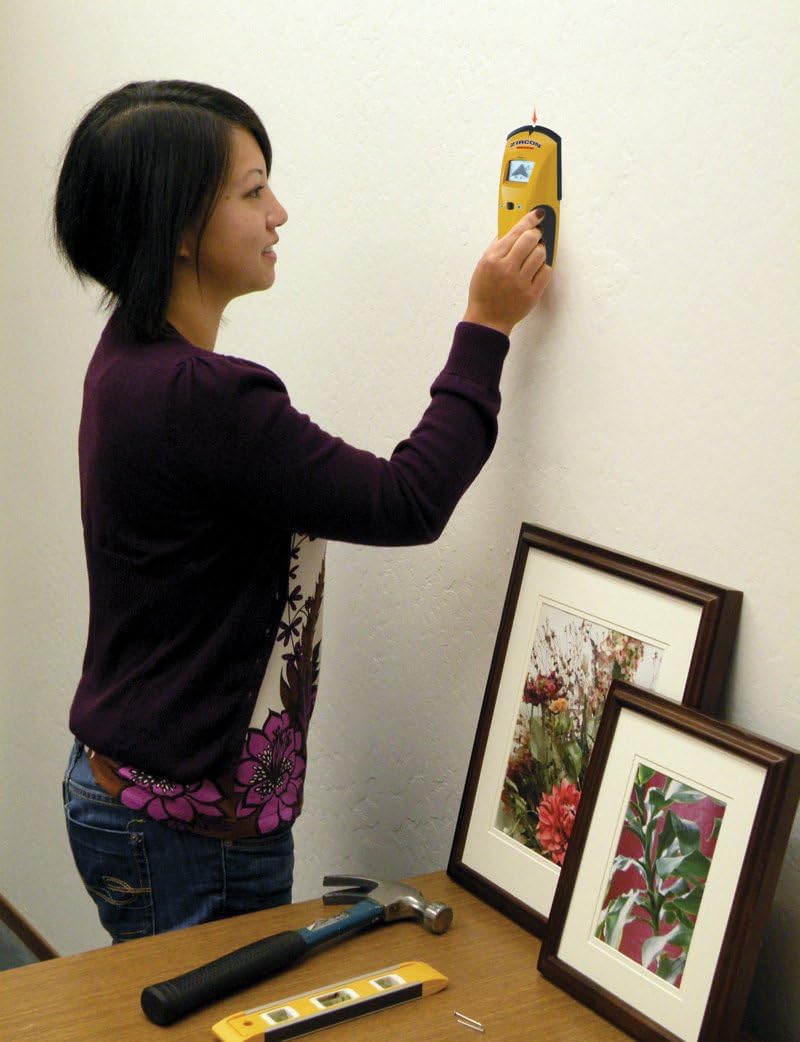

Figure 2: Using the StudSensor e50 for wall scanning

3.2 DEEPSCAN Mode

This mode doubles the scanning depth for walls up to 1-1/2 inches (38 mm) deep. It also enables scanning for joists in some ceilings and floors.

Figure 3: Using the StudSensor e50 for ceiling scanning

3.3 WireWarning Detection

The WireWarning detection feature indicates the presence of live, unshielded electrical wiring up to 2 inches (51 mm) deep in both Stud Scan and DeepScan modes. This is a crucial safety feature to prevent accidental contact with electrical hazards.

4. 주요 특징

• Easy-to-read LCD Display: Clearly indicates stud edges and other detected objects.
• Updated SpotLite Pointer: Shines an arrow-shaped light on the wall to precisely mark the target location.
• 인체공학적 디자인: The e50's new body design can be held comfortably in either hand at any angle, reducing common scanning errors. The rubber overmolded grip provides a secure hold.
• "Over-the-Stud" Indication: Zircon's patented technology alerts the user if scanning begins over a stud, prompting them to start the scan in a new location for accurate results.
• Patented TruCal Technology: Automatically calibrates the tool and indicates when it is ready to scan.

Figure 4: Ergonomic design of the StudSensor e50

5. 사용팁

• Ensure the tool is calibrated on a section of the wall that is free of studs or other objects.
• Move the tool slowly and steadily across the surface. Rapid movements can lead to inaccurate readings.
• Keep your free hand away from the scanning surface to avoid interference.
• For best results, scan the area multiple times from different directions to confirm findings.

6. 문제 해결

• 부정확한 판독: Ensure proper calibration. If the
