소개
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your Hansgrohe 96350000 Volume Control Cartridge. Please read these instructions carefully before proceeding with installation or use to ensure proper function and longevity of the product. Keep this manual for future reference.
제품 끝view
The Hansgrohe 96350000 is a 1/2'' volume control cartridge designed for use in Hansgrohe plumbing fixtures. This component is crucial for regulating the water flow rate in your faucet or shower system, allowing you to adjust the intensity of the water output. It is a replacement part intended to restore or maintain optimal performance of your Hansgrohe fixture.

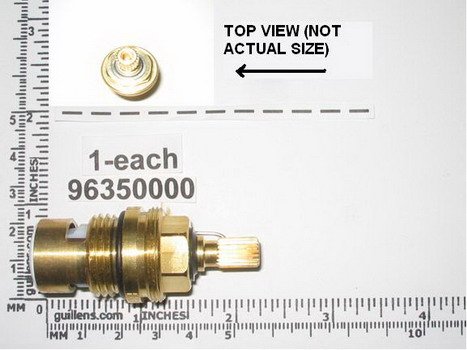

이미지 1: Hansgrohe 96350000 Volume Control Cartridge. This image displays the compact design of the cartridge, highlighting its cylindrical shape and connection points, typical for a plumbing control component.
설정 및 설치
중요한: Installation of plumbing components can be complex. If you are unsure about any step, it is highly recommended to consult a qualified plumber. Always refer to the specific installation instructions provided with your Hansgrohe fixture for detailed guidance, as procedures may vary.
General Installation Steps (for replacement):
- 물 공급을 차단하세요: 집이나 특정 수도꼭지의 메인 차단 밸브를 찾아 완전히 잠그세요. 그런 다음 수도꼭지를 열어 배관에 남아 있는 물을 모두 빼내세요.
- 카트리지에 접근하세요: Depending on your fixture, you may need to remove the handle, trim plate, and any retaining nuts or screws to expose the existing cartridge.
- 오래된 카트리지 제거: Carefully extract the old volume control cartridge. This may require a cartridge puller tool or simply twisting and pulling it out. Note its orientation for correct installation of the new one.
- 깨끗한 주택: Clean any debris, mineral deposits, or O-ring residue from the cartridge housing within the fixture.
- 새 카트리지를 설치하세요: Insert the new Hansgrohe 96350000 Volume Control Cartridge into the housing, ensuring it is correctly oriented and seated firmly. Apply a small amount of plumber's grease to new O-rings if necessary.
- 안전 카트리지: Reinstall any retaining nuts, clips, or screws that hold the cartridge in place. Do not overtighten.
- 고정 장치를 재조립하세요: Reattach the trim plate, handle, and any other components in reverse order of removal.
- 물 공급 복구: Slowly turn the main water supply back on. Check for any leaks around the newly installed cartridge and connections.
- 테스트 기능: Operate the fixture to ensure proper water flow control.
볼륨 컨트롤 작동
The Hansgrohe 96350000 Volume Control Cartridge is an internal component that facilitates the adjustment of water flow. Its operation is directly controlled by the external handle of your Hansgrohe fixture. Typically, rotating the handle in one direction will increase water flow, while rotating it in the opposite direction will decrease or shut off the flow. Refer to your specific fixture's user guide for precise handle operation details.
유지
The Hansgrohe 96350000 Volume Control Cartridge is designed for durability and long-term performance. Regular maintenance is generally not required for the cartridge itself, beyond ensuring proper installation. However, to prolong its life and the efficiency of your plumbing fixture:
- 누출 확인: Periodically inspect the area around your fixture for any signs of water leaks. Address any leaks promptly to prevent damage and further issues.
- 물의 질: In areas with hard water, mineral deposits can accumulate over time. While the cartridge is robust, extreme mineral buildup can affect performance. Consider water softening solutions if this is a persistent issue.
- Cleaning External Components: Clean the external parts of your fixture according to Hansgrohe's recommendations to prevent buildup that might affect handle movement or cartridge access.
문제 해결
If you experience issues with your Hansgrohe fixture related to water flow, the volume control cartridge may be a factor. Here are some common problems and potential solutions:
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Constant Drip or Leak from Faucet/Shower Head | Worn-out cartridge seals or internal components. | Replace the volume control cartridge. Ensure proper seating and tighten connections. |
| 감소된 물 흐름 | Mineral buildup inside the cartridge or aerator/shower head. | First, clean the aerator or shower head. If flow remains low, the cartridge may need replacement due to internal blockage. |
| Difficulty Adjusting Water Volume | Stiff or damaged cartridge mechanism. | The cartridge likely needs to be replaced. |
| Water Not Shutting Off Completely | Damaged internal ceramic discs or seals within the cartridge. | Replace the volume control cartridge. |
If troubleshooting steps do not resolve the issue, contact Hansgrohe customer support or a qualified plumber.
명세서
- 모델 번호: 96350000
- 유형: Volume Control Cartridge
- 크기: 1/2인치
- 제조업체: 한스그로헤
- 품목 무게: 1.28파운드
- 제품 크기: 3 x 3 x 3 인치
- 색상 / 마감 : 완료되지 않음
- 포함된 구성 요소: 제품만
- 용법: 내부에
보증 정보
Hansgrohe products are manufactured to high-quality standards. Specific warranty terms and conditions for the 96350000 Volume Control Cartridge are typically provided with the original Hansgrohe fixture it is designed for, or can be obtained directly from Hansgrohe. Please retain your proof of purchase. For detailed warranty information, visit the official Hansgrohe web사이트 또는 고객 서비스 부서에 문의하십시오.
고객 지원
For further assistance, technical support, or to inquire about replacement parts, please contact Hansgrohe customer service. You can also find more information and resources on the official Hansgrohe web대지.
