소개
This manual provides detailed instructions for the installation, operation, and maintenance of the LASCO 03-4669 Replacement Lavatory Drain Lift Rod and Strap Assembly. Please read these instructions carefully before beginning installation to ensure proper function and longevity of the product. This assembly is designed to replace existing lift rod and strap mechanisms in lavatory drains, compatible with Price Pfister and other similar units.
제품 끝view
The LASCO 03-4669 is a chrome-plated replacement lift rod and strap assembly for lavatory pop-up stoppers. It is commonly used in bathroom sinks to control the drain stopper. The assembly includes the lift rod, which extends above the faucet, and the strap, which connects to the pop-up stopper mechanism below the sink.

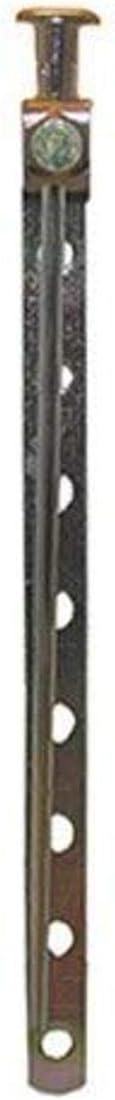

Image: The LASCO 03-4669 Replacement Lavatory Drain Lift Rod and Strap Assembly, showing the chrome-plated lift rod with multiple adjustment holes and the connecting strap.
설정 및 설치
필요한 도구:
- 조정 가능한 렌치 또는 플라이어
- Screwdriver (Phillips or flathead, depending on existing hardware)
- 걸레나 수건
- Bucket (optional, for catching water)
- Plumber's putty or silicone sealant (if replacing the entire drain assembly, not just the rod/strap)
설치 단계:
- 준비: Turn off the water supply to the sink and drain any remaining water. Place a bucket under the drain to catch any drips.
- 이전 어셈블리 제거:
- Locate the pivot rod nut on the drain tailpiece under the sink. Loosen and remove this nut.
- Carefully pull out the old pivot rod and stopper.
- Disconnect the old lift rod from the strap and remove the old strap.
- 깨끗한 구역: Clean any debris or old sealant from around the drain opening and the pivot rod opening.
- Install New Strap:
- Attach the new LASCO strap to the pivot rod of your existing pop-up stopper mechanism. Ensure it is securely fastened.
- Connect Lift Rod:
- Insert the new lift rod through the faucet body opening.
- Connect the bottom end of the lift rod to one of the holes in the new strap. Choose a hole that allows the stopper to fully open and close.
- Secure the connection, typically with a small screw or clip, if provided with your stopper mechanism.
- 테스트 및 조정:
- Operate the lift rod to ensure the drain stopper moves freely and seals properly when closed.
- If the stopper does not seal or open correctly, adjust the connection point on the strap until optimal operation is achieved.
- 최종 확인: Turn the water supply back on and check for any leaks around the drain assembly. Tighten connections if necessary.
Note: If you are replacing the entire drain pop-up assembly, additional steps involving plumber's putty and tightening the drain body will be required. This manual focuses specifically on the lift rod and strap component.
작동 지침
To operate the lavatory drain stopper using the LASCO 03-4669 Lift Rod and Strap Assembly:
- 배수구를 막으려면: Push the lift rod down. This action will lower the pop-up stopper into the drain opening, sealing it to retain water in the sink.
- 배수구를 열려면: Pull the lift rod up. This action will raise the pop-up stopper, allowing water to drain from the sink.
Ensure the rod moves smoothly and the stopper fully engages in both positions.
유지
Regular maintenance helps ensure the smooth operation and extends the life of your drain assembly:
- 청소: Periodically clean the visible parts of the lift rod with a soft cloth and mild soap. Avoid abrasive cleaners that can damage the chrome finish.
- 파편 확인: If the stopper mechanism becomes sluggish, remove the stopper and clean any hair or debris that may have accumulated around the pivot rod or inside the drain.
- 매끄럽게 하기: If the pivot rod feels stiff, a small amount of plumber's grease can be applied to the pivot ball to improve movement.
- 연결 검사: Occasionally check the connection between the lift rod and the strap, and the pivot rod nut, to ensure they remain tight and secure.
문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| Stopper does not lift or close fully. |
|
|
| Water leaks from pivot rod nut. |
|
|
| Lift rod feels stiff or sticky. |
|
|
명세서
| 특징 | 세부 사항 |
|---|---|
| 모델 번호 | 03-4669 |
| 상표 | 라스코 |
| 재료 | Chrome-plated metal rod, plastic strap |
| 제품 치수 | 1.45 x 11.75 x 2 인치 |
| 품목 무게 | 0.353 온스 |
| 호환성 | Fits Price Pfister and other similar lavatory drain units. |
보증 및 지원
For warranty information or technical support regarding your LASCO 03-4669 Replacement Lavatory Drain Lift Rod and Strap Assembly, please contact LASCO customer service directly. Refer to the product packaging or the official LASCO website for current contact details and warranty terms.
제조업체: 라스코
부품 번호: 03-4669
