CURT 61052 Over-Bed Folding Ball Gooseneck Hitch Instruction Manual

소개

The CURT 61052 Over-Bed Folding Ball Gooseneck Hitch provides a robust and convenient solution for towing gooseneck trailers. Its innovative folding ball design allows the 2-5/16-inch trailer ball to be stowed flush within the hitch body, freeing up your truck bed for other uses when not towing. This design also ensures the ball remains attached to your truck, preventing loss or theft. Engineered for durability and ease of use, this hitch is rated for heavy-duty applications, offering a gross trailer weight capacity of up to 30,000 lbs. and a tongue weight capacity of 7,500 lbs.

주요 특징 및 이점

• Folding Ball Design: The gooseneck ball can be flipped up for towing or folded down into the hitch body to provide an unobstructed truck bed. This design keeps the ball permanently attached, reducing the risk of misplacement or theft.
• Versatile Towing: Features a standard 2-5/16-inch diameter ball, compatible with a wide range of gooseneck couplers. The T-handle mechanism allows for quick and easy pivoting of the ball.
• Tested Strength: Rated for a gross trailer weight capacity of 30,000 lbs. and a vertical load capacity of 7,500 lbs., ensuring secure towing for heavy-duty trailers. (Note: Always adhere to the lowest-rated towing component's capacity).
• 부식 방지: Protected by a durable carbide black powder coat finish, offering excellent resistance against rust, corrosion, and environmental elements like rainwater, dirt, and road salt.
• 간단한 설치: Designed for straightforward installation without requiring welding or truck bed removal. It utilizes vehicle-specific brackets (sold separately) for a custom and secure fit.

명세서

설정 및 설치

Installation of the CURT 61052 Over-Bed Folding Ball Gooseneck Hitch requires vehicle-specific brackets, which are sold separately. No welding or truck bed removal is typically required for installation. Always refer to the detailed instructions provided with your vehicle-specific installation kit and this hitch for precise steps.

일반 설치 단계:

1. Prepare Truck Bed: Ensure the truck bed is clean and clear of any obstructions where the hitch will be mounted.
2. Install Vehicle-Specific Brackets: Mount the vehicle-specific brackets to your truck's frame according to the bracket manufacturer's instructions. These brackets provide the foundation for the gooseneck hitch.
3. Position Gooseneck Hitch: Place the CURT 61052 hitch assembly onto the installed brackets in the truck bed. Align the mounting holes.
4. Secure Hitch: Use the provided hardware (bolts, washers, nuts) to securely fasten the gooseneck hitch to the vehicle-specific brackets. Ensure all fasteners are tightened to the manufacturer's specified torque settings.
5. Attach Safety Chain Hookups: Install the U-bolt safety chain hookups as directed in the installation manual. These are crucial for safe towing.
6. 기능 확인: Test the folding ball mechanism and ensure it operates smoothly and locks securely in both the upright (towing) and folded-down (stowed) positions.

Image: Approximate dimensions of the CURT 61052 Over-Bed Folding Ball Gooseneck Hitch, showing a 14" x 12" top plate, 2-5/16" ball, and 3-3/8" height. Gross trailer weight capacity is 30,000 lbs.

Image: The CURT 61052 gooseneck hitch with the 2-5/16" ball in the upright towing position. Labels point to the folding ball design, permanently attached ball, integrated safety chain loops, and the T-handle for easy operation.

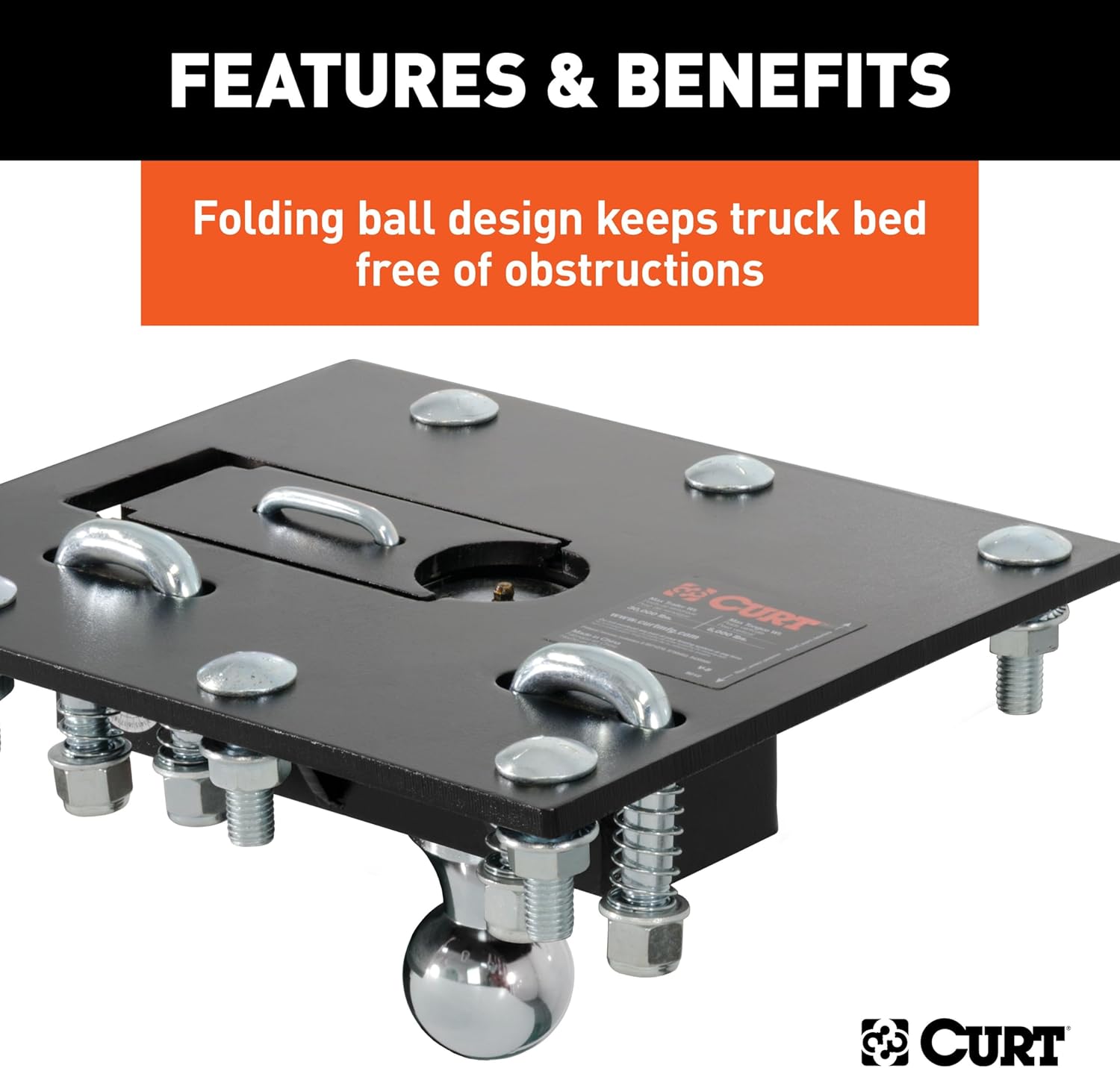

Image: The CURT 61052 gooseneck hitch with the ball folded down into the hitch body, demonstrating how the folding ball design keeps the truck bed free of obstructions for other cargo.

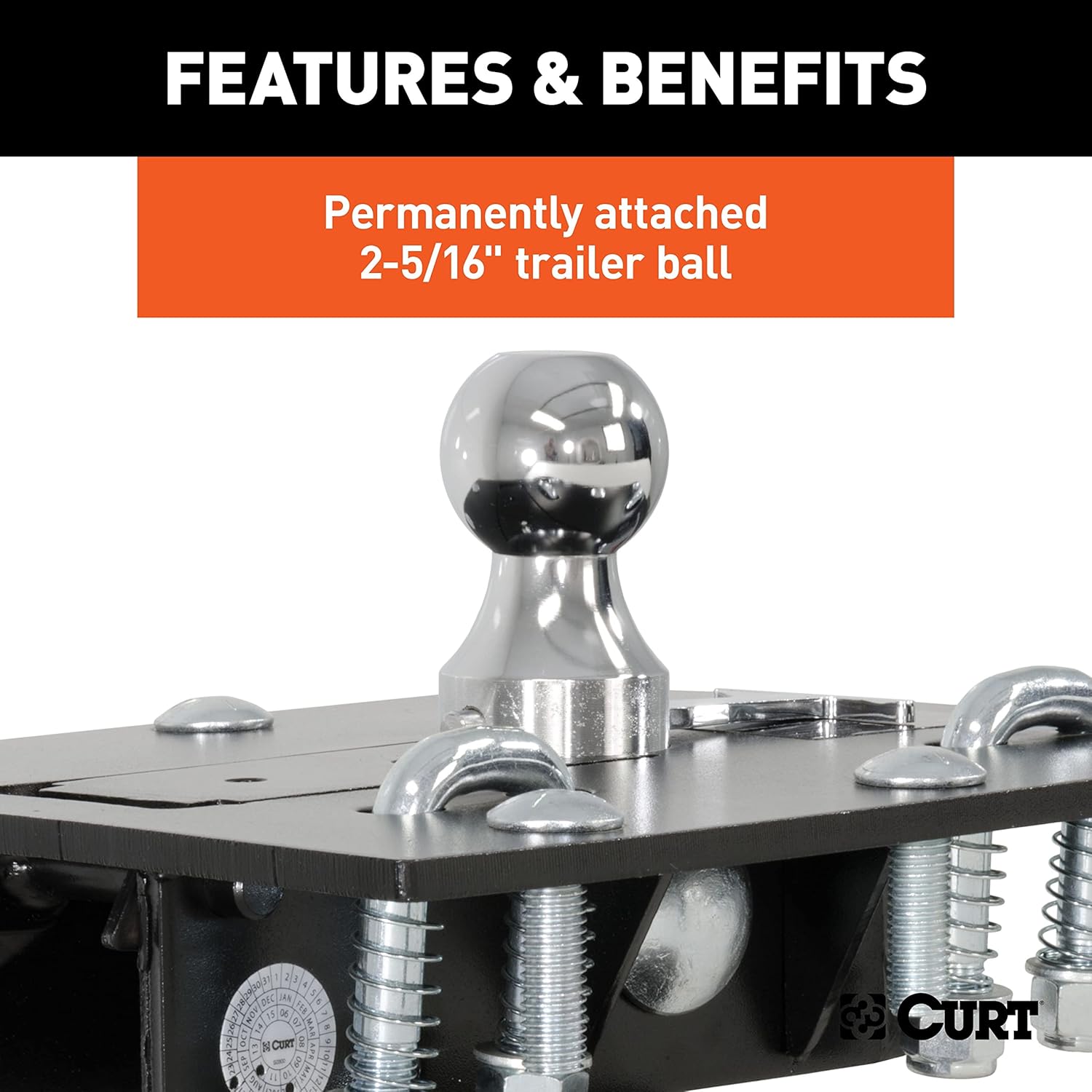

이미지: 클로즈업 view of the permanently attached 2-5/16 inch trailer ball in its upright position on the CURT 61052 gooseneck hitch, ready for towing.

Image: A hand demonstrating the operation of the T-handle mechanism on the CURT 61052 gooseneck hitch, used to pivot the ball up or down for easy use.

Image: A heavy-duty pickup truck equipped with a CURT gooseneck hitch, similar to the 61052 model, towing a large livestock trailer on a dirt road, demonstrating its application.

Image: The retail packaging for the CURT 61052 Folding Ball Gooseneck Hitch, featuring the CURT logo and product number.

작동 지침

To Engage the Gooseneck Ball (Towing Position):

1. Locate the T-handle on the side of the hitch plate.
2. Pull the T-handle to release the locking mechanism.
3. Pivot the 2-5/16-inch gooseneck ball upwards until it is fully extended and locked into the upright position. Ensure the safety pin engages securely.
4. Release the T-handle. The ball should be firmly in place and ready for trailer coupling.

To Stow the Gooseneck Ball (Storage Position):

1. Ensure no trailer is coupled to the hitch.
2. Pull the T-handle to release the locking mechanism.
3. Gently push the gooseneck ball downwards into the hitch body until it is flush with the truck bed surface.
4. Release the T-handle. The ball should be securely stowed, and the truck bed should be clear.

Always ensure the ball is fully locked in either the towing or stowed position before driving. Regularly inspect the T-handle and pivot spring for proper function.

유지

Regular maintenance is crucial to ensure the longevity and safe operation of your CURT 61052 Gooseneck Hitch.

• 시각적 검사: Before each use, visually inspect the hitch for any signs of wear, damage, cracks, or corrosion. Pay close attention to the hitch plate, ball, T-handle, safety pin, pivot spring, and mounting hardware.
• 매끄럽게 하기: Apply a light coat of grease to the gooseneck ball and the pivot points of the folding mechanism periodically, especially after exposure to harsh weather or heavy use. This ensures smooth operation and prevents rust.
• 청소: Keep the hitch clean from dirt, debris, and road salt. Wash with mild soap and water, then dry thoroughly. The powder coat finish helps protect against corrosion, but regular cleaning extends its life.
• 하드웨어 검사: Periodically check all mounting bolts and nuts for tightness. Re-torque to manufacturer specifications if necessary. Loose hardware can compromise the hitch's integrity and safety.
• Safety Chain Hookups: Ensure safety chain hookups are free of rust and damage, and that they can be easily accessed and used.

문제 해결

If you encounter issues with your CURT 61052 Gooseneck Hitch, consider the following common troubleshooting steps:

• Ball Not Pivoting Smoothly:
  • Check for debris or dirt obstructing the pivot mechanism. Clean thoroughly.
  • Apply lubricant to the pivot points and the T-handle mechanism.
  • Inspect the pivot spring for damage or binding.
• T-Handle Sticking or Hard to Operate:
  • Ensure the safety pin is not bent or obstructed.
  • Lubricate the T-handle shaft and internal components.
  • Check for any physical damage to the handle or its housing.
• Excessive Play or Movement in Hitch:
  • Re-check all mounting hardware for proper torque. Refer to your installation manual for specifications.
  • Inspect the vehicle-specific brackets and truck frame for any signs of damage or fatigue.
• Corrosion or Rust:
  • Clean affected areas and apply a rust-inhibiting primer before touching up with a suitable paint.
  • Ensure regular cleaning and maintenance, especially in corrosive environments.

If issues persist after troubleshooting, contact CURT customer support or a certified automotive technician.

보증 및 지원

CURT Manufacturing stands behind the quality of its products. For specific warranty information regarding your CURT 61052 Over-Bed Folding Ball Gooseneck Hitch, please refer to the warranty card included with your product or visit the official CURT website. For technical assistance, installation questions, or parts inquiries, please contact CURT customer support directly.

제조업체: 커트 제조

Web대지: www.curtmfg.com (전amp(링크는 실제 링크와 다를 수 있습니다)
