Tanita 2001W-B Ultimate Body Fat Bathroom Scale User Manual

소개

The Tanita 2001W-B Ultimate Body Fat Bathroom Scale is designed to provide both accurate weight measurements and body fat analysis. Utilizing Bioelectrical Impedance Analysis (BIA) technology, this scale offers a comprehensive view of your body composition. It features modes for adult and child measurement, making it suitable for various users. Please read this manual thoroughly before use to ensure proper operation and to maximize the benefits of your scale.

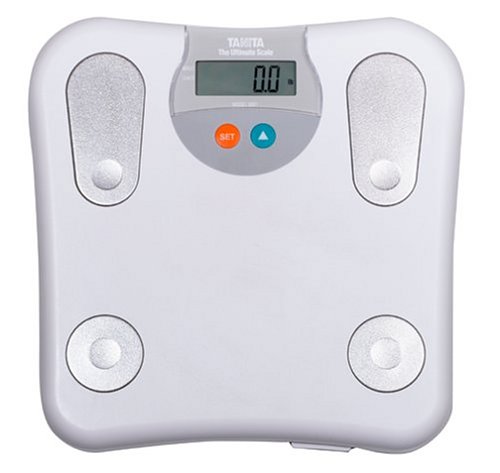

This image displays the Tanita 2001W-B Ultimate Body Fat Bathroom Scale. It is white with a central gray control panel featuring an LCD screen and two circular buttons (orange and blue). Four metallic electrodes are visible on the scale's surface, two rectangular at the front and two circular at the back, designed for body fat analysis.

안전 정보

• 심장박동기 또는 기타 체내 의료기기를 착용 중인 경우에는 사용하지 마십시오. The bioelectrical impedance analysis (BIA) feature sends a low-level electrical signal through the body, which may interfere with such devices.
• 임신 중에는 사용하지 마십시오. The BIA readings may not be accurate and the effects of the electrical current on a fetus are unknown.
• Always place the scale on a hard, flat, and stable surface. Using it on carpet or uneven flooring may result in inaccurate readings.
• Ensure your feet are clean and dry before stepping on the scale for body fat analysis.
• Do not use the scale in a slippery environment, such as a wet bathroom floor, to prevent falls.
• 저울을 물과 극한 온도로부터 멀리하십시오.
• 이 저울은 가정용으로만 사용하도록 제작되었습니다.

패키지 내용

패키지에 모든 품목이 들어 있는지 확인하세요.

• Tanita 2001W-B Ultimate Body Fat Bathroom Scale
• AA 건전지 (4개 포함)
• 사용 설명서(본 문서)

설정

1. 배터리 설치

1. 저울 밑면에서 배터리 칸을 찾으세요.
2. 배터리 덮개를 엽니다.
3. Insert the four AA batteries, ensuring correct polarity (+/-) as indicated inside the compartment.
4. 배터리 덮개를 단단히 닫으세요.

2. 스케일 배치

저울을 단단하고 평평하며 안정적인 표면에 놓으십시오. 카펫, 깔개 또는 고르지 않은 바닥 위에는 놓지 마십시오. 측정 정확도에 영향을 줄 수 있습니다.

작동 지침

1. Weight Measurement Only

For a quick weight reading without body fat analysis:

1. Gently tap the scale with your foot to turn it on. The display will show '0.0'.
2. 맨발로 체중계 위에 올라서서, 자세를 바르게 하고 중심을 잡으세요.
3. 몸무게가 표시됩니다. 몇 초 후 저울이 자동으로 꺼집니다.

2. Body Fat Analysis

To measure body fat percentage, you will need to input personal data. The scale features easy-to-program individual information buttons.

1. 저울을 가볍게 두드려 전원을 켜세요.
2. Press the 'SET' button (orange button) to begin entering your personal data.
3. Use the arrow buttons (blue button) to adjust values for parameters such as height, age, and gender. Press 'SET' to confirm each entry and move to the next.
4. Once all data is entered, the display will show '0.0'.
5. Step onto the scale with bare feet, ensuring your feet are positioned on the metallic electrodes. Stand still and centered.
6. 체중계는 먼저 몸무게를 표시하고, 그 다음 체지방률을 표시합니다.tage (displayed in 1-percent increments).
7. The scale will automatically turn off after a few seconds. Note that personal data must be re-entered for each body fat reading as this model does not store user profiles.

3. Adult and Child Mode

The Tanita 2001W-B includes distinct modes for adult and child measurements to ensure appropriate body fat analysis. The specific method for switching between these modes is typically integrated into the personal data setup process. During the initial setup or when re-entering your data for body fat analysis, you will be prompted to select either 'Adult' or 'Child' based on the user's age. Ensure the correct mode is selected for accurate readings.

유지

청소

• 부드러운 천으로 저울 표면을 닦으세요.amp 천으로 닦아주세요. 연마성 세제를 사용하거나 스케일을 물에 담그지 마세요.
• Ensure the metallic electrodes are clean and free of debris for accurate body fat readings.

저장

• 저울은 직사광선과 극한 온도 변화를 피해 서늘하고 건조한 곳에 보관하십시오.
• 사용하지 않을 때는 저울 위에 무거운 물건을 올려놓지 마세요.

문제 해결

• 부정확한 중량 판독: Ensure the scale is on a hard, flat surface. Avoid moving the scale frequently. Recalibrate by stepping on and off the scale once before taking a measurement.
• 화면 표시 안 됨/배터리 부족 표시: Replace all four AA batteries. Ensure batteries are inserted with correct polarity.
• Body Fat Reading Errors: Ensure feet are bare, clean, and dry, and positioned correctly on the electrodes. Verify that personal data (height, age, gender) has been entered correctly.
• 체중계가 켜지지 않음: Check battery installation. If batteries are new and correctly installed, contact customer support.

명세서

보증 정보

The Tanita 2001W-B Ultimate Body Fat Bathroom Scale comes with a 1년 한정 보증 from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or failure to follow the instructions in this manual. Please retain your proof of purchase for warranty claims.

지원하다

For further assistance, technical support, or warranty inquiries, please contact Tanita customer service. Refer to the official Tanita web최신 연락처 정보는 해당 사이트나 제품 포장에서 확인하세요.
