SEESII 8-inch Cordless Electric Chainsaw C8 Pro+ Instruction Manual

1. 서론

구매해주셔서 감사합니다asing the SEESII 8-inch Cordless Electric Chainsaw C8 Pro+. This powerful and versatile tool is designed for efficient cutting of branches, firewood, and other wood materials. It features a brushless motor, long-lasting batteries, automatic chain lubrication, and multiple safety mechanisms to ensure a smooth and secure user experience. Please read this manual thoroughly before operation to understand the product's features, ensure safe use, and perform proper maintenance.

2. 안전 지침

전동 공구를 사용할 때는 항상 안전을 최우선으로 하십시오. 이 지침을 따르지 않으면 심각한 부상이나 재산 피해가 발생할 수 있습니다.

• 개인 보호 장비(PPE): Always wear safety goggles, work gloves, hearing protection, and appropriate clothing (long sleeves, long pants, sturdy footwear) when operating the chainsaw.
• Accidental Start Prevention: The chainsaw is equipped with a safety lock. To start the tool, you must simultaneously press the safety lock button and the trigger switch. Never bypass or modify this safety feature.
• 물 튀김 방지 칸막이: The 120° large anti-splash baffle is designed to protect you from flying wood chips and debris. Ensure it is in place and undamaged before operation.
• 핸들 가드: The wide handle guard provides additional protection for your hands. Maintain a firm grip on both handles during operation.
• 작업 영역: Keep your work area clear of bystanders, children, and pets. Ensure good footing and balance. Avoid operating in wet conditions or near flammable liquids/gases.
• 배터리 안전: Use only the specified batteries and charger. Do not expose batteries to extreme temperatures or moisture.
• 유지: Disconnect the battery before performing any maintenance, cleaning, or when changing accessories.
• 리베이트: Be aware of kickback, which can occur when the moving chain at the tip of the guide bar contacts an object. Always hold the chainsaw firmly with both hands.

3. 패키지 내용

포장을 풀 때 모든 품목이 들어 있고 손상되지 않았는지 확인하세요.

• 8-inch Chainsaw Unit x1
• 4000mAh 배터리 2개
• Replacement Chain x1
• 충전 어댑터 x1
• Guide Bar Cover x1
• Oil Bottle x1 (oil not included)
• Japanese Instruction Manual x1
• 보관 케이스 x1
• Protective Goggles x1 (standard inclusion)
• Work Gloves x1 (standard inclusion)

Image: All components included in the SEESII 8-inch Cordless Electric Chainsaw C8 Pro+ package, including the chainsaw, two batteries, charger, spare chain, guide bar cover, oil bottle, manual, and storage case.

4. 설정

4.1. 배터리 충전 및 설치

1. 충전 중: Connect the charging adapter to a power outlet and then to the battery. The battery indicator will show charging status. A full charge typically takes 2-3 hours.
2. 설치: Align the charged battery with the battery slot on the chainsaw handle and slide it in until it clicks securely into place.
3. 제거: 배터리 분리 버튼을 누르고 배터리를 밀어서 빼내세요.

Image: Two 4000mAh batteries with charge indicators, compatible with Makita 18V batteries, shown on a wooden surface.

4.2. Chain and Guide Bar Installation (if not pre-assembled)

1. 배터리가 제거되었는지 확인하십시오.
2. Remove the side cover by loosening the tension knob.
3. Place the chain around the sprocket and guide bar, ensuring the cutting edges face the correct direction.
4. Position the guide bar onto the chainsaw body, aligning the chain with the guide bar groove.
5. Replace the side cover and lightly tighten the tension knob.

4.3. 체인 장력 조정

This chainsaw features tool-free chain tension adjustment.

1. With the side cover lightly tightened, rotate the dedicated adjustment knob by hand to adjust the chain tension.
2. The chain should be snug against the guide bar but still able to be pulled freely by hand. There should be no excessive slack.
3. Once tension is correct, fully tighten the tension knob to secure the guide bar and chain.

Image: Close-up of the chainsaw showing the tool-free chain tension adjustment knob being rotated by hand.

4.4. Automatic Lubrication System Setup

The chainsaw is equipped with an automatic oiling system for optimal chain and guide bar protection.

1. 체인톱 본체에서 오일 저장통 뚜껑을 찾으세요.
2. Unscrew the cap and fill the reservoir with appropriate chainsaw bar oil (oil not included in package). Do not overfill.
3. 오일 저장통 뚜껑을 단단히 닫으십시오.

Image: A close-up of the chainsaw showing the oil reservoir and oil being added, highlighting the automatic lubrication feature.

5. 사용 설명서

5.1. Starting and Stopping the Chainsaw

1. Ensure the battery is installed and the chain tension is correct.
2. 전기톱을 양손으로 단단히 잡으십시오.
3. To start, press the safety lock button (located near the trigger) and then squeeze the trigger switch simultaneously.
4. To stop, release the trigger switch. The chain will stop immediately.

Image: A collage showing the safety lock, 0-120° protective baffle, and wide handle guard, emphasizing the chainsaw's safety design.

5.2. 절단 기술

• 일반 절단: Position the chainsaw with the chain clear of the material. Start the chainsaw, then slowly bring the moving chain into contact with the wood. Let the saw do the work; do not force it.
• 최대 절단 직경: This chainsaw can smoothly cut logs up to 200mm (approximately 8 inches) in diameter.
• High-Branch Cutting: For high branches, a dedicated extension pole (sold separately) can be attached. This allows for safe cutting without the need for a ladder. Ensure the extension pole is securely attached and follow its specific instructions.

Image: A man using the SEESII chainsaw attached to an extension pole to trim high branches, demonstrating its versatility for high-reach tasks.

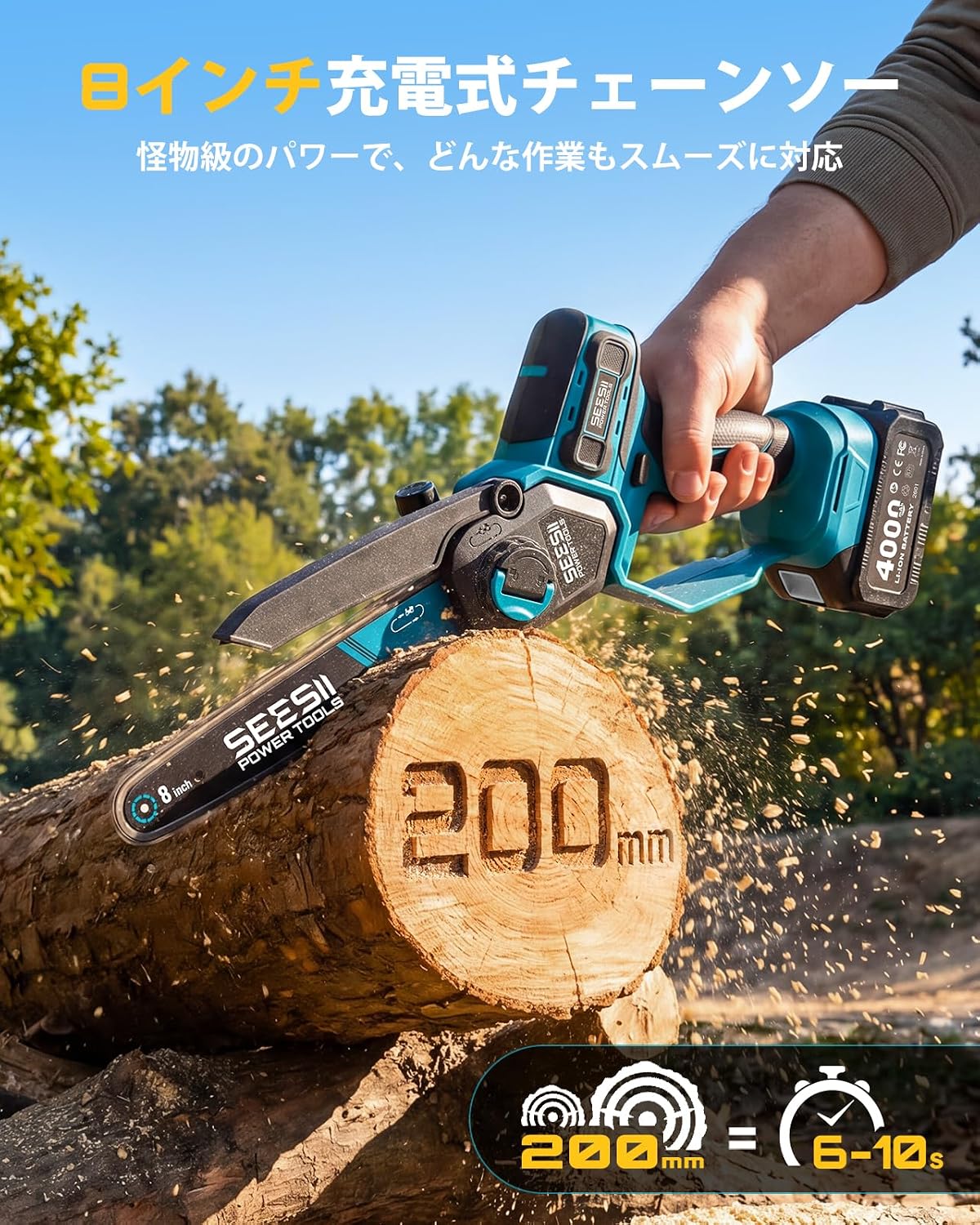

Image: A person operating the SEESII 8-inch Cordless Electric Chainsaw to cut a log, with wood chips flying, illustrating its cutting capability.

6. 유지관리

정기적인 유지보수는 최적의 성능을 보장하고 체인톱의 수명을 연장시켜 줍니다.

• 체인 윤활: The automatic oiling system will continuously lubricate the chain during operation. Regularly check the oil level in the reservoir and refill with appropriate chainsaw bar oil as needed.
• 체인 텐션: Periodically check the chain tension. A properly tensioned chain should be snug but still movable by hand. Adjust using the tool-free knob if necessary.
• 청소: After each use, remove the battery and clean the chainsaw. Use a brush or compressed air to remove wood chips, sawdust, and debris from the chain, guide bar, motor housing, and ventilation slots.
• 체인 샤프닝: A dull chain will reduce cutting efficiency and increase strain on the motor. Sharpen the chain as needed or replace it with a new one (replacement chain included). The replacement chain specifications are: Pitch 1/4", Gauge .043", Drive Links 46.
• 저장: Store the chainsaw in its storage case in a dry, secure place, out of reach of children. Remove the battery before long-term storage.

7. 문제 해결

문제가 발생하면 다음의 일반적인 문제와 해결 방법을 참조하세요.

8. 사양

9. 보증 및 지원

Seesii products come with a 1-year warranty period. If you experience any product defects, please contact us for a refund or free exchange.

9.1. 고객 지원팀에 문의하는 방법

If you have any questions or problems with the product, please contact us through your Amazon order history:

1. Go to 'Order History'.
2. Select the relevant order.
3. Click on the product.
4. Click on the 'Store Name'.
5. Select 'Ask a Question'.

저희는 모든 문의에 24시간 이내에 답변드리는 것을 목표로 하고 있습니다.
