PETKIT P4116-SET Automatic Pet Water Fountain User Manual

1. 서론

Thank you for choosing the PETKIT P4116-SET Automatic Pet Water Fountain. This device is designed to provide fresh, clean water for your dogs and cats, enhancing their well-being with smart technology and a user-friendly design. This manual provides essential information for the safe and efficient use of your new pet water fountain.

The PETKIT P4116-SET features a cordless design for flexible placement, a 3-liter water capacity, advanced multi-stage filtration, ultra-quiet operation, and smart app connectivity for monitoring and control.

2. 안전 정보

• 사용하기 전에 모든 지침을 주의 깊게 읽으세요.
• 이 제품은 실내에서만 사용하도록 설계되었습니다.
• 본체를 물이나 기타 액체에 담그지 마십시오.
• 사용하지 않을 때나 정비 중에는 어린이와 애완동물의 손이 닿지 않는 곳에 보관하십시오.
• Use only original PETKIT parts and accessories.
• 기기가 안정적이고 평평한 표면에 놓여 있는지 확인하십시오.
• Do not use with hot water or any liquids other than clean drinking water.
• If the power cord or charger is damaged, do not use the device. Contact customer support.

3. 패키지 내용

모든 품목이 들어 있는지 확인하려면 패키지를 확인하세요.

• PETKIT P4116 Automatic Pet Water Fountain Main Unit
• PETKIT P4171-1P Water Fountain Filter x 4
• 충전 케이블 및 어댑터
• 사용자 설명서

Note: Specifications and design of accessories may vary slightly depending on the production batch.

4. 제품 오버view

The PETKIT P4116-SET is designed with several key features to provide optimal hydration for your pets.

앞쪽 view of the PETKIT P4116-SET Automatic Pet Water Fountain, showcasin매끈하고 하얀 디자인이 특징입니다.

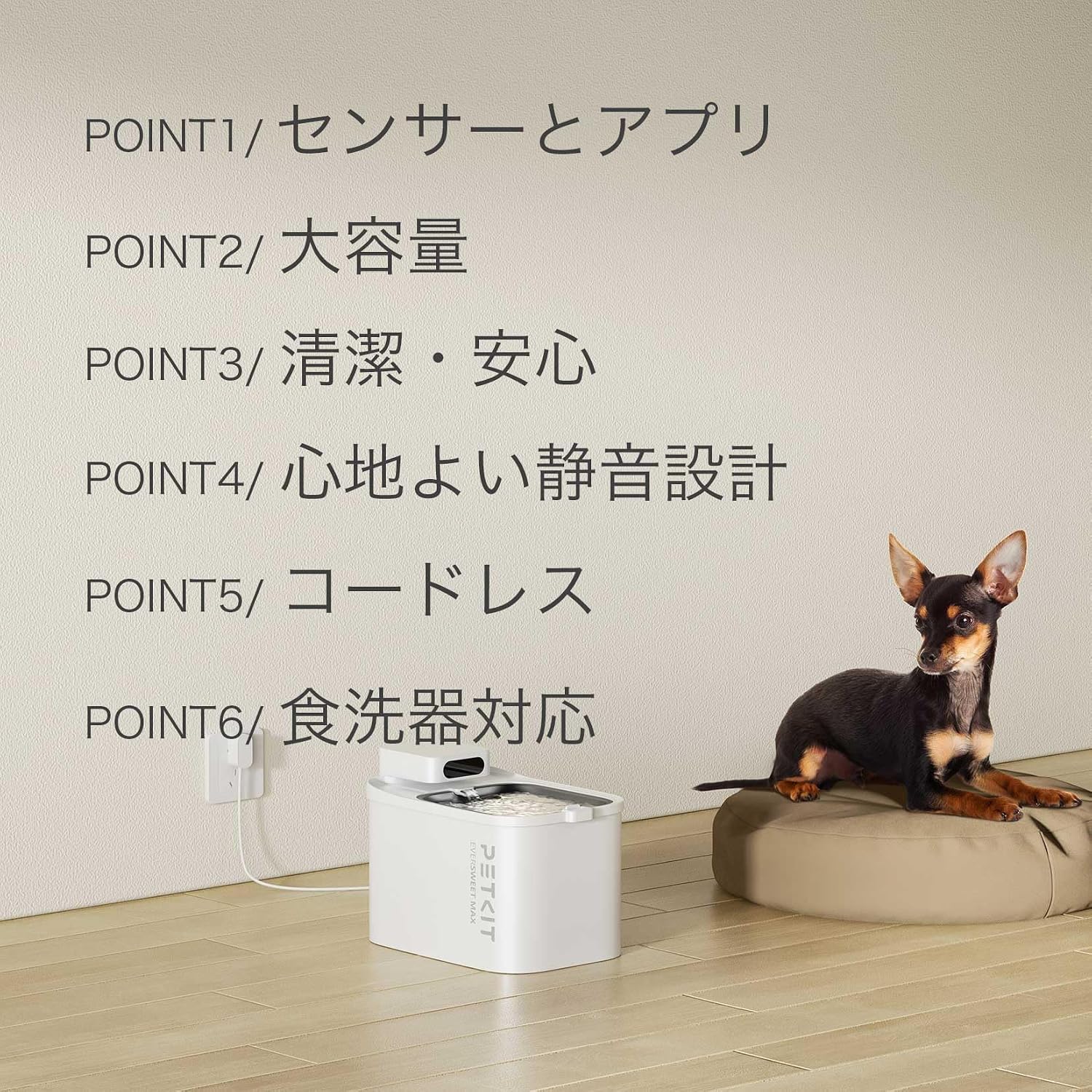

오버view highlighting the main features: Sensor and App control, Large Capacity, Clean and Safe filtration, Comfortable Quiet Design, Cordless operation, and Dishwasher Compatibility.

주요 특징:

• 무선 디자인 : Equipped with a 5000mAh lithium battery, allowing approximately 83 days of operation on a full charge (based on intermittent mode, 24 water supplies/day). This eliminates concerns about pets chewing cords and allows placement anywhere without an outlet.
• 3L 대용량 : The generous 3-liter tank ensures a continuous supply of fresh water, suitable for multi-pet households.
• 고급 여과 시스템: Features a multi-layer filter to remove impurities, chlorine, and microorganisms, providing clean and healthy water.
• 매우 조용한 작동: Engineered with a unique water flow structure to reduce noise to 26dB, ensuring a peaceful environment for both pets and owners.
• 스마트 앱 제어: Connects via Bluetooth to a dedicated app, allowing you to monitor water consumption, set dispensing modes, check filter status, and perform remote operations.
• 식기 세척기 사용 가능: All washable parts, including the stainless steel tray, are dishwasher compatible for easy and thorough cleaning.
• BPA가 없는 재료: Constructed from safe, BPA-free materials for your pet's health.

투명한 view of the water tank, highlighting its 3000ml (3L) capacity, ideal for ensuring pets have enough water.

A visual representation comparing the fountain's 26dB noise level to a whisper, demonstrating its ultra-quiet operation.

The cordless design allows for flexible placement of the water fountain anywhere in your home.

5. 설정

Follow these steps to set up your PETKIT Automatic Pet Water Fountain:

1. 기기 충전: Before first use, fully charge the water fountain using the provided charging cable and adapter. The indicator light will show charging status.
2. 필터 조립: Open the top cover of the fountain. Insert the filter unit into its designated slot. Ensure it is securely in place.

다중성을 나타내는 다이어그램tage filtration system and how to assemble the filter components.
3. 물로 채우십시오: 물탱크에 깨끗한 수돗물을 MAX 선까지 채우세요. 너무 많이 채우지 마세요.
4. 상단 커버를 놓으세요: Securely place the top cover back onto the main unit.
5. Download the PETKIT App: 검색 "PETKIT" in your smartphone's app store (iOS or Android) and download the official app.
6. 블루투스를 통해 연결: Open the PETKIT app, create an account if you don't have one, and follow the in-app instructions to connect your P4116-SET fountain via Bluetooth.

6. 사용 설명서

Once set up, operating your PETKIT water fountain is simple:

• 자동 분배: The infrared proximity sensor detects your pet approaching within a 90-degree range and dispenses water automatically.
• 앱 제어: Use the PETKIT app to:
  • Monitor your pet's daily, weekly, and monthly water intake.
  • Adjust water dispensing modes (e.g., intermittent, continuous).
  • 배터리 잔량을 확인하세요.
  • 수위 부족 또는 필터 교체 알림을 받으세요.
  • Perform remote operations, such as manual water dispensing.


Screenshots of the PETKIT app, showing water consumption data and settings for managing the fountain.

• 표시등: The fountain features indicator lights that provide visual cues for filter status, operating mode, and low water levels. Refer to the app for detailed explanations of light patterns.


Illustration of the detachable charger and the indicator lights on the fountain, which signal various statuses.

7. 유지관리

Regular cleaning and maintenance are crucial for the longevity and hygiene of your pet water fountain.

• 일일 점검: Ensure the water level is adequate and refill as needed.
• 주간 청소: Disassemble the fountain and clean all washable parts. The stainless steel tray and other components are dishwasher safe. For manual cleaning, use mild soap and water, then rinse thoroughly.


Image highlighting the dishwasher-safe components and the special non-stick coating on the stainless steel tray for easy cleaning.

• 필터 교체: Replace the filter unit every 2-4 weeks, or as indicated by the app or indicator light, to ensure optimal water quality. Rinse the new filter under running water before installation.

상세한 view of the composite filter, showing its layers and emphasizing the importance of regular replacement.
• 펌프 세척: Periodically clean the water pump to prevent mineral buildup and ensure proper function. Refer to the app or PETKIT website for detailed pump cleaning instructions.

8. 문제 해결

If you encounter issues with your PETKIT water fountain, refer to the following common problems and solutions:

• 물 공급 없음:
  • 물탱크에 물이 충분한지 확인하세요.
  • 장치가 충전되어 있는지 확인하십시오.
  • Verify the pump is clean and free of debris.
  • Check if the sensor is obstructed.
• 비정상적인 소음:
  • Ensure the water level is above the minimum mark.
  • Clean the pump and check for any foreign objects.
  • 모든 구성요소가 올바르게 조립되었는지 확인하세요.
• 앱 연결 문제:
  • 스마트폰에서 Bluetooth가 활성화되어 있는지 확인하세요.
  • Make sure the fountain is within Bluetooth range.
  • Restart the PETKIT app and/or your smartphone.
  • Try resetting the fountain (refer to app for specific instructions).
• Indicator Light Flashing:
  • Refer to the PETKIT app for specific error codes or light patterns. Common flashes indicate low water or filter replacement needed.

If the problem persists, please contact PETKIT customer support.

9. 사양

10. 보증 및 지원

The PETKIT P4116-SET Automatic Pet Water Fountain comes with a manufacturer's warranty. Please retain your proof of purchase for warranty claims.

For technical support, warranty inquiries, or to purchase replacement parts (such as filters), please visit the official PETKIT web사이트를 방문하거나 고객 서비스에 직접 문의하세요.

PETKIT Official Web대지: www.petkit.com

Please note that warranty terms and conditions may vary by region.
