소개
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your COMHOMA 5'x3' Gray Metal Outdoor Storage Shed. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Proper assembly and care will ensure the longevity and optimal performance of your storage shed.
안전 정보
- 항상 조립 지침을 주의 깊게 따르세요.
- This shed is heavy and requires proper handling and assembly. It may not be safe for everyone to assemble or use without assistance.
- Keep the shed locked when not in use to prevent unauthorized access.
- 창고의 무게 제한을 초과하지 마십시오.
- 조립 시에는 장갑 등 적절한 안전 장비를 착용하세요.
- 집결 장소에 장애물이나 어린이가 없는지 확인하십시오.
- Choose a level and stable surface for installation to prevent tipping.
패키지 내용
Before beginning assembly, verify that all parts are present and undamaged. Refer to the parts list provided in your packaging. Typical components include:
- 아연 도금 강판(벽, 지붕)
- Frame components (base, roof frame)
- 도어 패널 및 하드웨어(경첩, 잠금장치)
- Screws, nuts, and washers
- Ventilation covers
- 설치 장갑
- 사용 설명서
설정 및 조립
The assembly process requires 2-3 individuals. Each component is labeled with a part number. Follow the step-by-step manual provided in the packaging.
- 사이트 준비: Choose a level, stable surface for the shed. Ensure adequate space around the shed for assembly and future access.
- 짐 풀고 정리하기: Carefully unpack all components. Identify and organize parts according to their labels. Wear the provided installation gloves.
- 보호 필름 제거: Each piece is coated with a protective film to prevent friction during transport. Carefully peel off this film from all panels before assembly.
- 베이스 프레임 조립: Follow the manual to construct the base frame. Ensure all connections are secure.
- Attach Corner Panels: Work with at least two people to attach the four corner panels to the base frame.
- 측면 패널 고정: Fasten all side panels to the frame using the provided screws. Ensure panels are aligned correctly.
- 지붕틀 설치: Securely attach the roof frame components. This step also requires two people for stability.
- 지붕 패널 부착: Install the roof panels, ensuring they overlap correctly to create a waterproof seal.
- 문을 설치하십시오: Attach the door panels using the hinges. Ensure the doors open and close smoothly.
- Secure Lockable Latch: Install the lockable latch mechanism on the doors for security.
- 덮개 나사: Finally, screw on the plastic protective caps to cover exposed screws and prevent scratches or injury.
Image: Visual guide for the assembly steps of the storage shed.
Image: Demonstrates the protective film that needs to be removed from each panel.
작동 지침
- 문 열기/닫기: The shed features double hinged, lockable doors. To open, slide the latch mechanism and pull the doors outward. To close, push the doors inward until they meet, then slide the latch to secure.
- 통풍: The shed is equipped with two top vents to ensure better airflow, keeping the interior cool and odor-free. Ensure these vents are not obstructed for optimal performance.
- 저장: Utilize the spacious interior for storing various outdoor items such as snow blowers, shovels, outdoor chairs, and bicycles. Consider adding storage racks to customize your storage space.
Image: Detail of the lockable door mechanism for enhanced security.
Image: Illustration of the top ventilation design for improved air circulation.
유지
- 청소: Regularly clean the exterior of the shed with mild soap and water to remove dirt and debris. Avoid abrasive cleaners that could damage the powder-coated finish.
- 점검: Periodically inspect all screws and connections to ensure they remain tight. Tighten any loose fasteners to maintain structural integrity.
- 배수: Ensure the area around the shed is clear of debris to allow for proper water drainage from the sloping roof.
- 녹 방지: Although made of galvanized steel, inspect for any signs of rust, especially in areas where the coating might be scratched. Touch up with appropriate rust-inhibiting paint if necessary.
문제 해결
| 문제 | 해결책 |
|---|---|
| 문이 제대로 닫히지 않습니다. | Check for obstructions in the door tracks or hinges. Ensure the shed is on a level surface. Adjust hinges if necessary. |
| 창고 내부에 물이 새고 있습니다. | Inspect roof panels for proper overlap and tight seals. Ensure all screws are securely fastened. Check for any damage to the roof or wall panels. |
| 창고가 불안정해 보입니다. | Verify that the shed is assembled on a completely level and firm foundation. Tighten all frame and panel screws. Consider anchoring the shed to the ground if local conditions require it. |
| 조립 시 어려움이 있습니다. | Review the step-by-step manual carefully. Ensure all parts are correctly identified and oriented. Do not force parts; if they don't fit, re-check the instructions. Seek assistance from 2-3 individuals as recommended. |
명세서
| 특징 | 세부 사항 |
|---|---|
| 상표 | 코모마 |
| 모델 번호 | DF-B105-GY-5-3FT |
| 색상 | 회색 |
| 재료 | 아연 도금 강판 |
| 제품 크기(D x W x H) | 34.2인치 깊이 x 61인치 너비 x 71인치 높이 |
| 품목 무게 | 60 파운드 |
| 문 너비 | 25 인치 |
| 문 높이 | 64 인치 |
| 방수 레벨 | 방수 |
| 필요한 조립 | 예 |
| GTIN | 810211834321 |

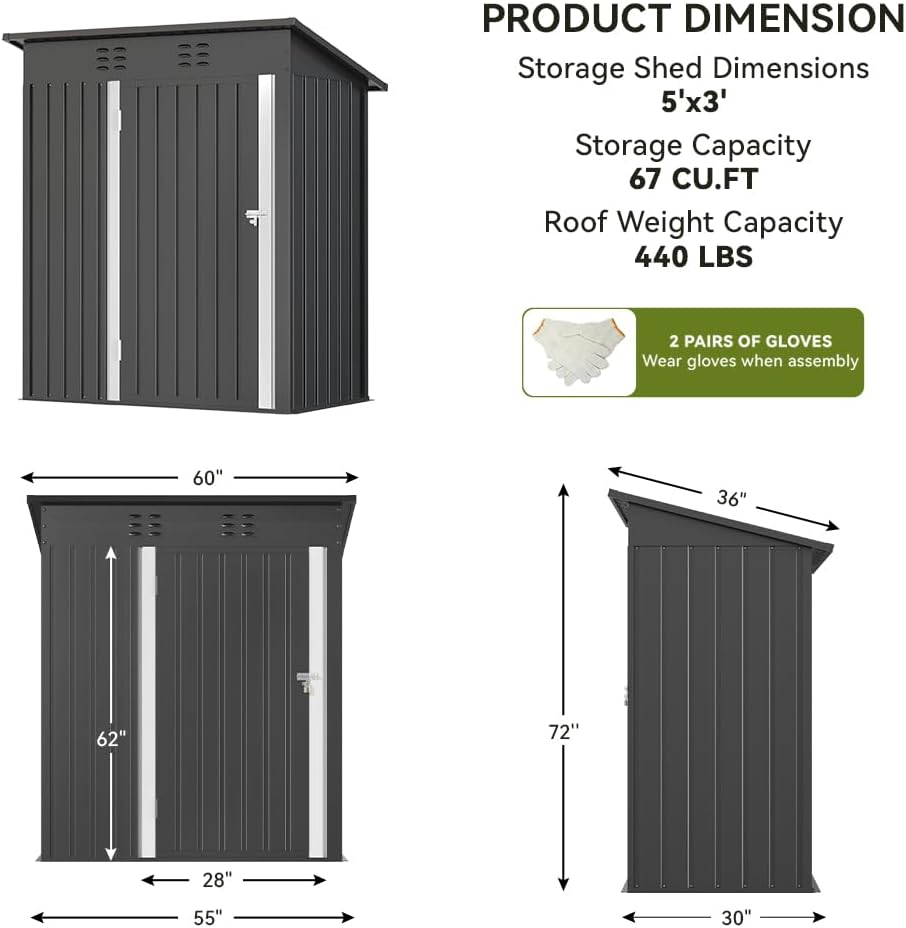

Image: Detailed dimensions of the COMHOMA 5'x3' storage shed.
Image: Visual representation of the shed's weather-resistant properties.
보증 및 지원
This product is eligible for a 30-day easy return policy. For further assistance, product support, or warranty claims, please visit the 아마존에서 COMHOMA 스토어를 만나보세요 or contact Amazon Customer Support directly.
