HAPPYGRILL HG4083

HAPPYGRILL 3-Piece Patio Furniture Set

모델: HG4083

중요한 안전 정보

Please read and understand all instructions before assembling and using this product. Keep this manual for future reference. Failure to follow these instructions may result in injury or damage to the product.

  • 조립하기 전에 모든 부품이 있고 손상이 없는지 확인하세요. 부품이 없거나 파손된 경우 사용하지 마세요.
  • 긁힘을 방지하려면 부드럽고 깨끗한 표면에 가구를 조립하세요.
  • 중요한: Do not fully tighten screws until all holes are aligned and all components are loosely assembled. This prevents misalignment and ensures proper leg lengths.
  • 어린이와 애완동물을 집회 장소에 가까이 두지 마십시오.
  • Avoid exposing the furniture to rain for prolonged service life. Store or cover during inclement weather.
  • 무게 제한을 초과하지 마십시오. 테이블: 45kg(100lbs), 각 의자: 180kg(400lbs).

패키지 내용

패키지에 다음 구성 요소가 모두 포함되어 있는지 확인하세요.

  • 1 × Patio Table
  • 2 × Patio Chairs
  • 2 × Back Cushions
  • 2 × Seat Cushions
  • 1 × 사용 설명서

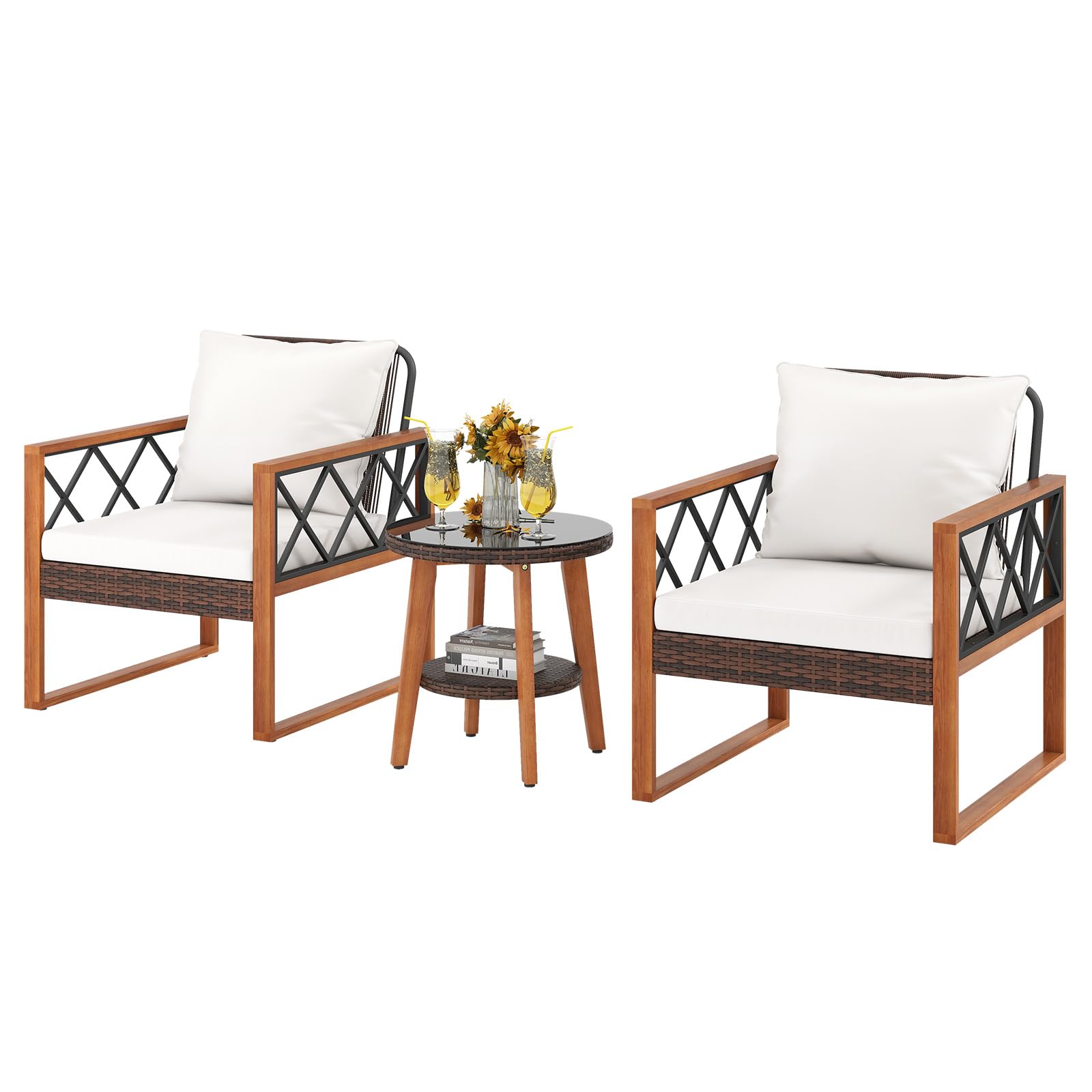

HAPPYGRILL 3-Piece Patio Furniture Set showing two chairs and a round table with cushions
이미지: 이상view of the HAPPYGRILL 3-Piece Patio Furniture Set, including two chairs and a round table.

설정 및 조립

Follow these steps to assemble your HAPPYGRILL Patio Furniture Set:

  1. 구성 요소 풀기: 모든 부품을 포장에서 조심스럽게 꺼내세요. 손상되지 않도록 부드럽고 평평한 표면에 놓으세요.
  2. 하드웨어 식별: Separate and identify all screws, bolts, and tools provided. Refer to the included hardware list (if applicable) to ensure all pieces are present.
  3. 의자 조립: Attach the chair backrests to the seat frames, then connect the armrests and legs. Remember to only hand-tighten screws at this stage.
  4. 테이블 조립: Connect the table legs to the tabletop frame and the lower storage shelf. Again, hand-tighten screws initially.
  5. 최종 조임: Once all furniture pieces are fully assembled and standing upright, gradually tighten all screws with the provided tool. Ensure the furniture is stable and level.
  6. 쿠션 부착: 의자 위에 좌석과 등받이 쿠션을 놓으세요.

메모: The furniture features adjustable foot pads. Adjust these as needed to ensure stability on uneven surfaces.

Close-up images showing comfortable armrests, double X-shaped reinforcements on the chair base, and adjustable foot pads
Image: Details of the chair construction, highlighting comfortable armrests, double X-shaped reinforcements for stability, and adjustable foot pads.

작동 지침

Your HAPPYGRILL patio furniture set is designed for comfortable outdoor relaxation. Here are some guidelines for use:

  • 좌석: Use the chairs for comfortable seating. The soft, sponge-filled cushions provide enhanced comfort.
  • 테이블 사용: The 2-tier table with a tempered glass top is suitable for holding beverages, snacks, books, or other small outdoor essentials. The lower shelf provides additional storage.
  • 놓기: Position the furniture set on a flat, stable surface in your desired outdoor area, such as a balcony, garden, or poolside.
Close-up of the round table with a tempered glass top, showing secure suction cups holding the glass and an extra storage shelf below
Image: The 2-tier round table, featuring a tempered glass top secured by suction cups and an additional storage shelf.
Image showing a hand pressing into a soft sponge cushion and a close-up of a smooth zipper on a cushion cover
Image: Details of the cushions, highlighting the soft sponge filling and smooth zippers for easy cover removal.

유지

Proper care and maintenance will extend the life and appearance of your patio furniture set:

  • 아카시아 나무 관리: The acacia wood components require regular maintenance. Please apply wood polish oil (not included) periodically to preserve its natural beauty and protect it from the elements.
  • PE Rattan Care: The hand-woven PE rattan is sun-proof. Clean with a soft cloth and mild soap and water. Rinse thoroughly and dry completely.
  • 쿠션 케어: The cushion covers feature smooth zippers for easy removal. Detach the covers and wash them according to the fabric care instructions (typically hand wash or gentle machine wash with cold water). Allow to air dry completely before reattaching.
  • 강화 유리 상판: Clean the tempered glass tabletop with a glass cleaner and a soft cloth. Avoid abrasive cleaners or tools that could scratch the surface.
  • 날씨 보호: To prolong service life, avoid prolonged exposure to rain, direct sunlight, and extreme weather conditions. Consider using a furniture cover or storing the set indoors when not in use or during harsh weather.
  • 프레임 검사: 모든 볼트와 나사가 단단히 조여져 있는지 정기적으로 점검하세요. 필요하면 다시 조이세요.
Patio furniture set in an outdoor setting with a close-up of selected acacia wood logs
Image: The patio set in a garden, with an inset showing selected acacia wood, emphasizing its natural and sturdy qualities. Regular wood polish oil application is recommended for maintenance.
Patio furniture set on a porch with a close-up of mix brown PE rattan texture
Image: The patio set on a porch, with an inset showing the mix brown PE rattan, highlighting its hand-woven and sun-proof characteristics. Avoid rain exposure for prolonged service life.

문제 해결

조립 또는 사용 중 문제가 발생하면 다음의 일반적인 해결 방법을 참조하십시오.

  • 나사 구멍이 어긋나 있음: If screw holes do not align during assembly, ensure that no screws have been fully tightened prematurely. Loosen all screws, adjust the components to align the holes, then gradually tighten all screws.
  • Uneven Furniture Legs: If the furniture wobbles after assembly, check that all screws are evenly tightened. Utilize the adjustable foot pads on the chair and table legs to level the furniture on uneven surfaces.
  • Cushion Cleaning Difficulty: The cushions are designed with zippered covers for easy removal. If you are having trouble cleaning, ensure the covers are fully detached before washing.

여기에 언급되지 않은 문제는 고객 지원팀에 문의하세요.

명세서

특징세부 사항
모델 번호HG4083
재료PE Rattan, Acacia Wood, Metal, Polyester, Sponge
색상Mix Brown & Off White
Table Dimensions (Dia. × H)19" × 19.5" (48 cm × 49 cm)
Chair Dimensions (L × W × H)28" × 26.5" × 31.5" (70.5 cm × 67 cm × 80 cm)
Seat Cushion Dimensions (W × D × Thickness)23" × 22" × 3" (58 cm × 56 cm × 7.5 cm)
좌석 높이 (쿠션 제외)13.5인치(34.5cm)
총 순중량55파운드(25kg)
테이블의 중량 용량100파운드(45kg)
각 의자의 중량 용량400파운드(180kg)
조립이 필요합니다
Diagram showing the dimensions and weight capacities of the patio table and chair
Image: Detailed dimensions and weight capacities for the table and chairs.

보증 및 지원

For warranty information or customer support regarding your HAPPYGRILL HG4083 Patio Furniture Set, please refer to the purchase documentation or contact the seller directly. Keep your proof of purchase for any warranty claims.

Manufacturer Contact Information: HAPPYGRILL

© 2023 HAPPYGRILL. All rights reserved.
