소개
Thank you for choosing the Ortis Refrigerator Surge Protector. This device is designed to safeguard your refrigerator and other large appliances from voltage fluctuations and power surges, ensuring their longevity and protecting your food. This manual provides essential information for proper installation, operation, and maintenance of your surge protector.

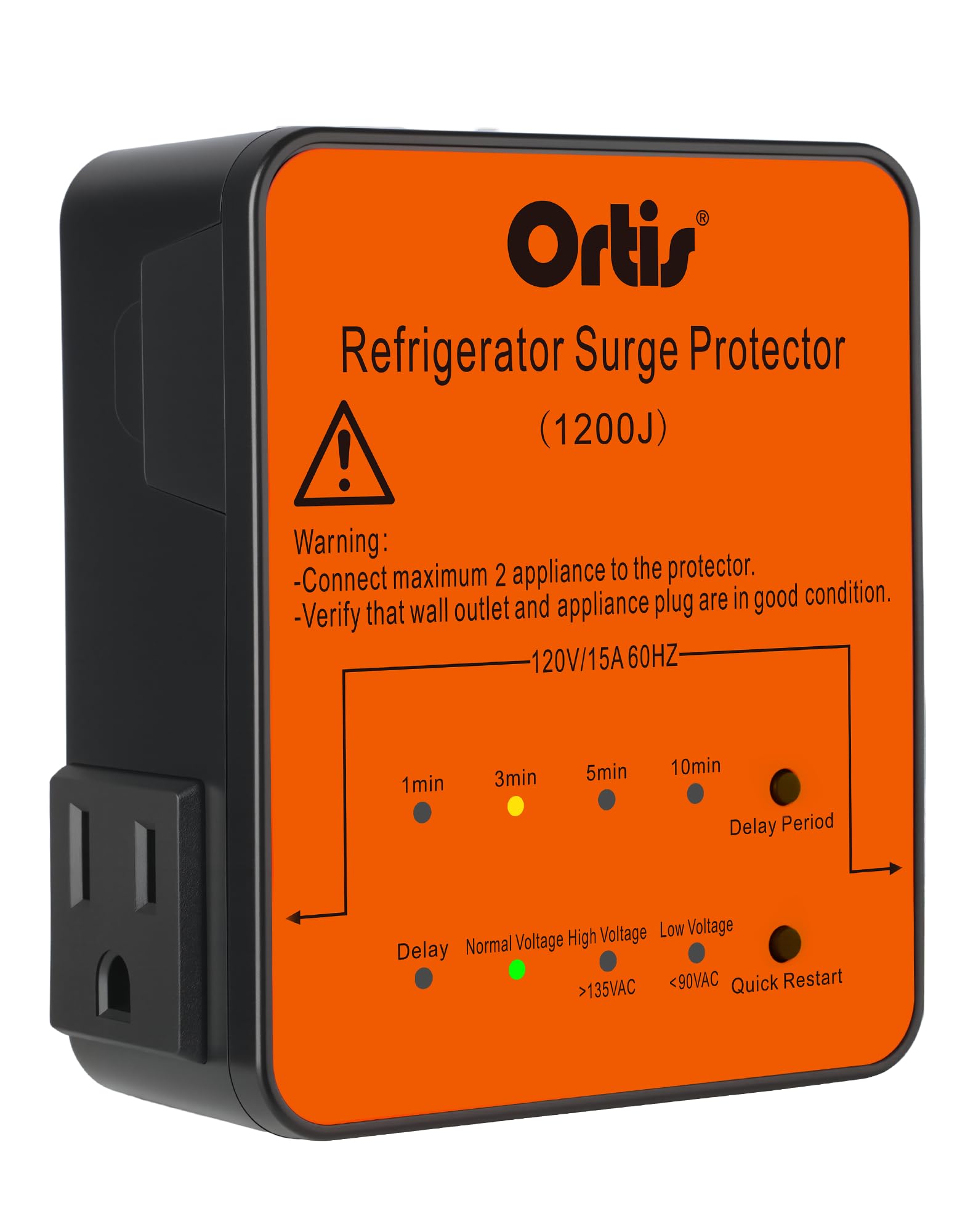

Image: Ortis Refrigerator Surge Protector, providing comprehensive protection for your appliances.
설정
The Ortis Refrigerator Surge Protector is designed for easy, plug-and-play installation. No complex wiring or tools are required.
- 풀다: 서지 보호기를 포장에서 조심스럽게 꺼내세요.
- 아울렛 찾기: Identify a standard 120V/15A wall outlet near your refrigerator or appliance.
- 플러그인: Insert the surge protector directly into the wall outlet. Ensure it is firmly seated.
- Connect Appliance(s): Plug your refrigerator (or other appliance) into one of the two outlets on the surge protector. You can connect a second appliance if needed.
The compact, side-plug design allows your appliance to sit closer to the wall, optimizing space.
Image: The compact design with a side plug allows for a snug fit against the wall, saving space.
작동 지침
LED Indicator System
The surge protector features a five-color LED display that provides real-time status of your power conditions and device operation:
- 녹색 LED : Indicates normal voltage (90V-135V). Your appliance is receiving stable power.
- Red LED (Low Voltag이자형): 볼륨이 커질 때 밝아집니다tage drops below 90V. Power to the appliance is cut off.
- Red LED (High Voltag이자형): 볼륨이 커질 때 밝아집니다tage exceeds 135V. Power to the appliance is cut off.
- Blue LED (Delay Period): Indicates that the device is in delay mode, waiting before restoring power to protect the compressor.
- Yellow LEDs (1min, 3min, 5min, 10min): Show the currently selected delay setting. The default delay is 3 minutes.
이미지: 자세한 view of the LED indicator system, explaining each light's function.
Delay Start and Quick Restart
To protect your appliance's compressor, especially during power restoration, the surge protector incorporates a delay start function.
- Automatic Delay: 전원이 꺼진 후tage 또는 voltage fluctuation, the device will enter a delay period before restoring power. This prevents immediate restarts that can damage the compressor.
- 지연 옵션: You can select delay times of 1, 3, 5, or 10 minutes using the dedicated buttons. The factory default is 3 minutes.
- Quick Restart: In situations where an immediate restart is necessary (e.g., after a brief, controlled power interruption), press the 'Quick Restart' button to bypass the delay period.
Image: The surge protector continuously monitors voltage and offers adjustable delay settings for safe appliance restart.
주요 특징
Ultimate Surge Protection
The Ortis Refrigerator Surge Protector provides up to 1,200 joules of surge protection, effectively shielding your refrigerator from sudden voltage spikes caused by lightning, power grid fluctuations, or other electrical disturbances. This protection helps prevent compressor damage, reduces food spoilage, and avoids costly repairs.
Image: The device offers 1200J surge protection, ensuring your appliances are safe even during storms.
듀얼 아울렛 디자인
Equipped with two independent outlets, this protector allows for simultaneous voltage protection of two appliances. It is suitable for refrigerators, chest freezers, ice makers, and air conditioners, providing versatile protection for your home.
Image: The surge protector features two independent outlets for protecting multiple appliances simultaneously.
24/7 권tage 모니터링
The device continuously monitors incoming voltage. It automatically cuts off power when the voltage exceeds 135V or drops below 90V, with a rapid response to protect connected appliances. Power is restored only after a safe delay period once voltage returns to normal operating range (90V-135V).
Video: An official video demonstrating the features and benefits of the Ortis Refrigerator Surge Protector.
유지
The Ortis Refrigerator Surge Protector is designed for maintenance-free operation. To ensure optimal performance and safety:
- 깨끗하게 유지하십시오: Periodically wipe the exterior with a dry, soft cloth to remove dust. Do not use liquid cleaners.
- 방해물을 피하세요: Ensure the device is not covered or obstructed, allowing for proper ventilation.
- 정기적으로 검사하세요: Occasionally check the device and its connections for any signs of damage or wear. If any damage is observed, discontinue use and replace the unit.
문제 해결
Refer to the LED indicators for quick diagnosis of common issues:
| 표시등 | 문제 | 해결책 |
|---|---|---|
| Red LED (Low Voltage) | 입력 볼륨tage는 90V 미만입니다. | The device has cut power to protect the appliance. Power will be restored automatically when voltage returns to normal range (90V-135V) after the set delay. |
| Red LED (High Voltage) | 입력 볼륨tage는 135V 이상입니다. | The device has cut power to protect the appliance. Power will be restored automatically when voltage returns to normal range (90V-135V) after the set delay. |
| Blue LED (Delay Period) | Device is in delay mode. | This is normal operation after a power interruption or voltage event. Wait for the delay period to complete, or press the 'Quick Restart' button if safe to do so. |
| No LEDs lit / Appliance not powering on | No power to the surge protector or internal fault. | Check the wall outlet with another device. Ensure the surge protector is firmly plugged in. If the issue persists, the unit may be faulty and require replacement. |
제품 사양
| 특징 | 세부 사항 |
|---|---|
| 모델 번호 | 케이제이-115 |
| 상표 | 오르티스 |
| 서지 보호 | 1200 줄 |
| 권tag및 범위 | 90V - 135V 교류 |
| 공칭 권tage | 120V |
| 빈도 | 60Hz |
| 총 전원 콘센트 | 2 |
| 지연 옵션 | 1, 3, 5, 10 minutes (Default: 3 minutes) |
| 제품 치수 | 가로 8cm x 세로 9.5cm x 높이 0.25cm (세로 3.15cm x 세로 3.74cm x 높이 1.49인치) |
| 무게 | 240g |
| 인클로저 재료 | 플라스틱 |
| 색상 | 주황색 |
Image: Detailed dimensions of the Ortis Refrigerator Surge Protector.
보증 및 지원
보증 정보 및 고객 지원은 제품 포장을 참조하거나 제조업체에 직접 문의하십시오. 보증 청구를 위해 구매 영수증을 보관하십시오.
Manufacturer: FJKJ INC.
