JOYING Android 13 Car Radio User Manual

소개

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your JOYING Android 13 Car Radio (Model JY-TT193N8). This unit is specifically designed for Toyota Camry models from 2015 to 2017, offering advanced features such as wireless CarPlay, Android Auto, GPS navigation, and 4G connectivity. Please read this manual thoroughly before using the product to ensure proper function and safety.

제품 특징

• 무선 CarPlay 및 Android Auto: Seamless integration with your smartphone for navigation, music, calls, and messaging without physical connections.
• 플러그 앤 플레이 설치: Custom-designed for 2015-2017 Toyota Camry, including all necessary cables for a straightforward installation process.
• 광섬유 및 동축 디지털 출력: Provides high-quality audio output for connection to external amplifiers with compatible digital inputs.
• 내장형 4G 모듈: Insert a SIM card for internet access. Supports FDD-LTE (B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B38/B66/B71) and TDD-LTE (B41) bands. Note: This module does not support phone calls or SMS.
• GPS 네비게이션: Equipped with precise GPS engines and an included GPS antenna for accurate real-time navigation. Supports offline maps in areas where data download is available.
• 10.1인치 IPS 터치스크린: Large, responsive display for clear visuals and easy interaction.
• 8GB RAM + 128GB 저장공간: Ample memory and storage for smooth operation and app installation.

설정 및 설치

The JOYING Android 13 Car Radio is designed for a plug-and-play installation in compatible Toyota Camry models. Ensure the vehicle's ignition is off and the battery is disconnected before beginning installation.

패키지 내용:

• 10.1인치 라디오 유닛
• 싱글 DIN 케이지
• 왼쪽 및 오른쪽 괄호
• 와이파이 안테나
• GPS 안테나
• 4G 안테나 (2개)
• 외부 마이크
• USB 케이블(x2)
• AR 케이블
• 스크린 리본 케이블
• 전원 케이블
• 사용자 설명서

설치 단계:

1. Carefully remove the factory radio unit and trim from your Toyota Camry dashboard. Refer to your vehicle's service manual for specific instructions on trim removal.
2. Connect the provided power cable harness to the vehicle's wiring and the new head unit. Ensure all connections are secure.
3. Connect the GPS antenna, WiFi antenna, and 4G antennas to their respective ports on the back of the head unit. Position the antennas in a location that provides optimal signal reception, away from metal obstructions.
4. Connect any additional accessories such as the external microphone, USB cables, and AR cable as needed.
5. Mount the new JOYING head unit into the dashboard opening using the provided brackets and single DIN cage. Ensure a secure fit.
6. Reconnect the vehicle's battery and turn on the ignition to test the unit.
7. 대시보드 트림 패널을 다시 설치하세요.

Image: The JOYING Android 13 Car Radio seamlessly integrated into a Toyota Camry dashboard, demonstrating its factory-look design and fitment.

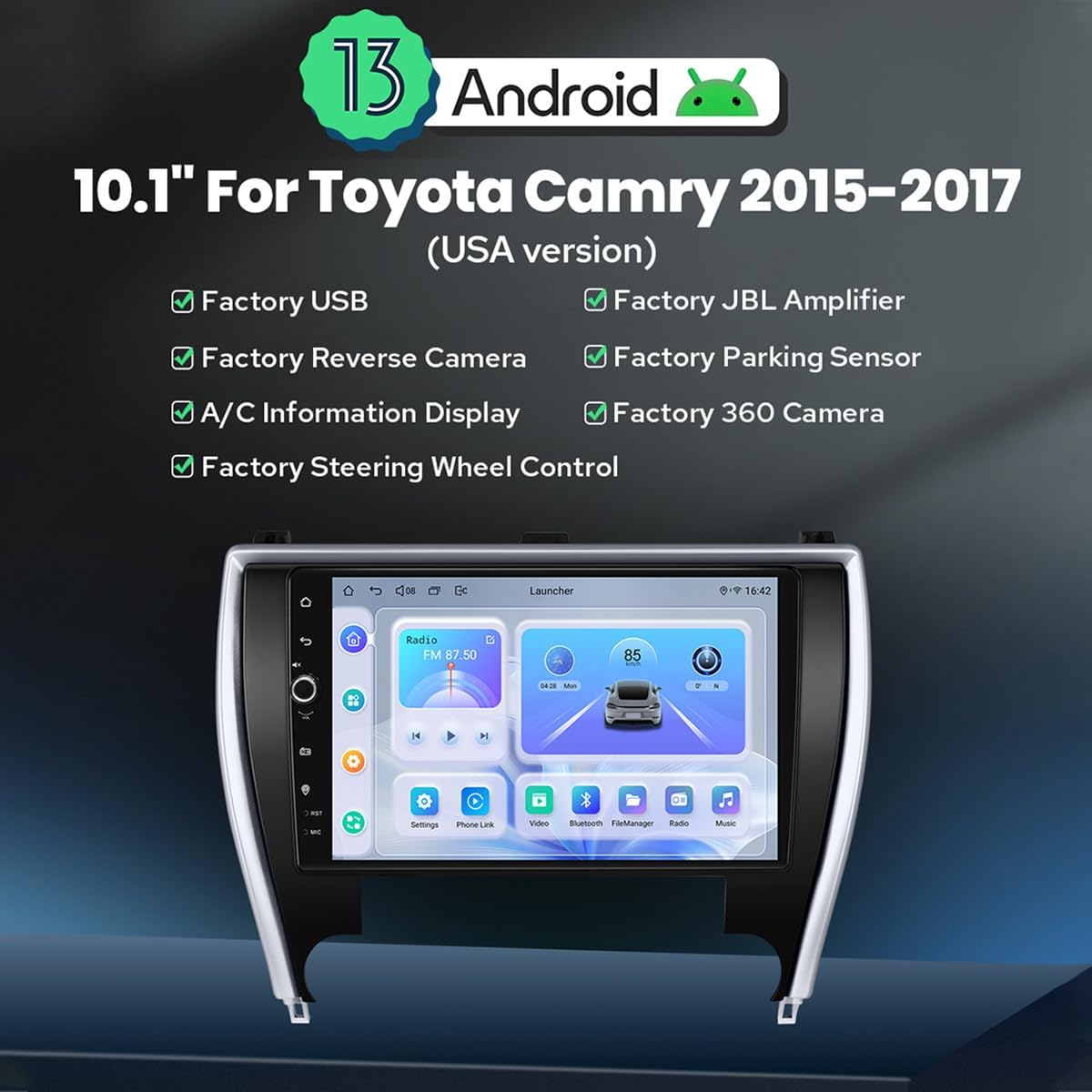

Image: The main unit of the JOYING Android 13 Car Radio, featuring its 10.1-inch display and indicating Android 13 compatibility.

작동 지침

초기 설정 :

Upon first power-on, the system will guide you through initial setup steps, including language selection, time zone, and network configuration. Follow the on-screen prompts.

무선 CarPlay / Android Auto:

1. 스마트폰에서 Bluetooth와 Wi-Fi가 활성화되어 있는지 확인하세요.
2. On the car radio, navigate to the CarPlay or Android Auto application.
3. Follow the on-screen instructions to pair your phone via Bluetooth. Once paired, the system will automatically establish a Wi-Fi connection for wireless CarPlay or Android Auto.

GPS 네비게이션:

The unit comes with pre-installed navigation software. You can also download additional navigation apps from the Google Play Store. For offline maps, ensure you download the necessary map data while connected to Wi-Fi. The included GPS antenna enhances signal reception for accurate positioning.

4G 연결:

To use 4G internet, insert a compatible SIM card into the designated slot on the unit. The system will automatically detect the network. Note that this feature is for data connectivity only and does not support voice calls or SMS.

Audio Settings and Output:

The unit features a TDA7851 DSP chip and a 48-band graphic equalizer for sound customization. Adjust settings via the audio application. For enhanced sound quality with external amplifiers, utilize the Optical Fiber or Coaxial Digital Output ports if your amplifier supports them.

Image: Illustration of the car radio's advanced audio features, including support for aftermarket amplifiers via multiple output options like optical fiber and coaxial digital.

HDMI 출력:

The unit provides an HDMI output for connecting external displays, such as headrest monitors. This allows passengers to view content from the main unit in 1080p resolution without delay. An HDMI cable is not included and must be purchased separately.

Image: The HDMI output functionality, enabling connection to external screens for synchronized video playback for passengers.

화면 분할 멀티태스킹:

The Android 13 operating system supports split-screen functionality, allowing you to run two applications simultaneously. For example, you can have navigation on one side and music on the other.

1. 최근 사용한 앱 아이콘(일반적으로 사각형 또는 세로선 세 개)을 탭하세요.
2. Find the app you want to run in split-screen, then tap its icon to bring up the split-screen button. Tap this button.
3. The first app will display on the left side. Choose the second app from the recent apps list to display on the right.

Image: Visual guide on how to activate and use the split-screen multitasking feature on the car radio.

유지

• 화면 청소: 부드럽고 털이 없는 천을 살짝 사용하세요.amp물이나 화면 세척제로 닦으십시오. 강한 화학 물질이나 연마재는 사용하지 마십시오.
• 소프트웨어 업데이트: Periodically check for software updates through the system settings or the JOYING official web최적의 성능과 새로운 기능에 대한 액세스를 보장하기 위해 사이트를 사용합니다.
• 일반 관리 : 먼지와 극한 온도로부터 제품을 보호하십시오. 제품에 액체를 쏟지 않도록 주의하십시오.

문제 해결

전원 없음:

모든 전원 연결부와 퓨즈를 점검하십시오. 차량 배터리가 제대로 연결되어 있고 충전되어 있는지 확인하십시오.

소리 없음:

Verify speaker connections. Check volume levels and audio output settings. If using an external amplifier, ensure it is powered on and correctly connected.

GPS 신호 문제:

Ensure the GPS antenna is securely connected and positioned with a clear view 하늘을 향해 놓으세요. 금속 물체 아래에 두지 마세요.

무선 CarPlay/Android Auto 연결 안 됨:

Confirm Bluetooth and Wi-Fi are enabled on your phone and the car radio. Try forgetting the device on both ends and re-pairing. Ensure your phone's operating system is up to date.

Poor Fitment in Dashboard (e.g., 2016 Camry LE):

While designed for 2015-2017 Toyota Camry, some specific sub-models or trim levels may experience minor gaps. Double-check the installation and ensure all mounting points are correctly aligned. If significant gaps persist, consult with a professional installer or contact JOYING support.

System Freezes or Slow Performance:

Try restarting the unit. Close unnecessary background applications. If the issue persists, consider performing a factory reset (note: this will erase all user data and settings).

명세서

보증 및 지원

JOYING products typically come with a standard manufacturer's warranty. Please refer to the warranty card included with your product or visit the official JOYING web구체적인 보증 약관은 해당 사이트에서 확인하세요.

For technical support, troubleshooting assistance, or warranty claims, please contact JOYING customer service through their official website or the contact information provided in your product packaging. When contacting support, please have your model number (JY-TT193N8) and purchase details ready.
