WOWOBONTOY V060 GPS RC Bait Boat Instruction Manual

소개

구매해주셔서 감사합니다asing the WOWOBONTOY V060 GPS RC Bait Boat. This manual provides detailed instructions for the safe operation, setup, and maintenance of your new bait boat. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product.

The V060 is a high-performance remote-controlled bait boat designed for efficient fishing. Key features include:

• Smart GPS Navigation: Supports 4 fishing zones and 160 GPS waypoints with auto return on low battery, weak signal, or out-of-range.
• Stable Gyro Control System: Built-in gyroscope corrects yaw for precise bait delivery even in strong winds or wavy conditions.
• Dual Battery & 2KG Load: Dual power line design supports two batteries for extended runtime and a large single hopper for 2KG bait.
• Night Fishing Lighting: Equipped with bright dual front lights and rear indicators with two light modes for visibility in dark waters.
• Full Function Operation: Offers forward/reverse, turn, cruise mode, and hook release for efficient and accurate baiting control.

패키지 내용

아래 나열된 모든 품목이 패키지에 들어 있는지 확인하세요.

• Bait Boat (with battery) x 1
• 리모컨 x 1
• Remote Controller Lanyard x 1
• 12000mAh 배터리 x 1
• 프로펠러 x 2
• 조이스틱 2개
• USB 충전 케이블 x 1
• 사용설명서 x 1

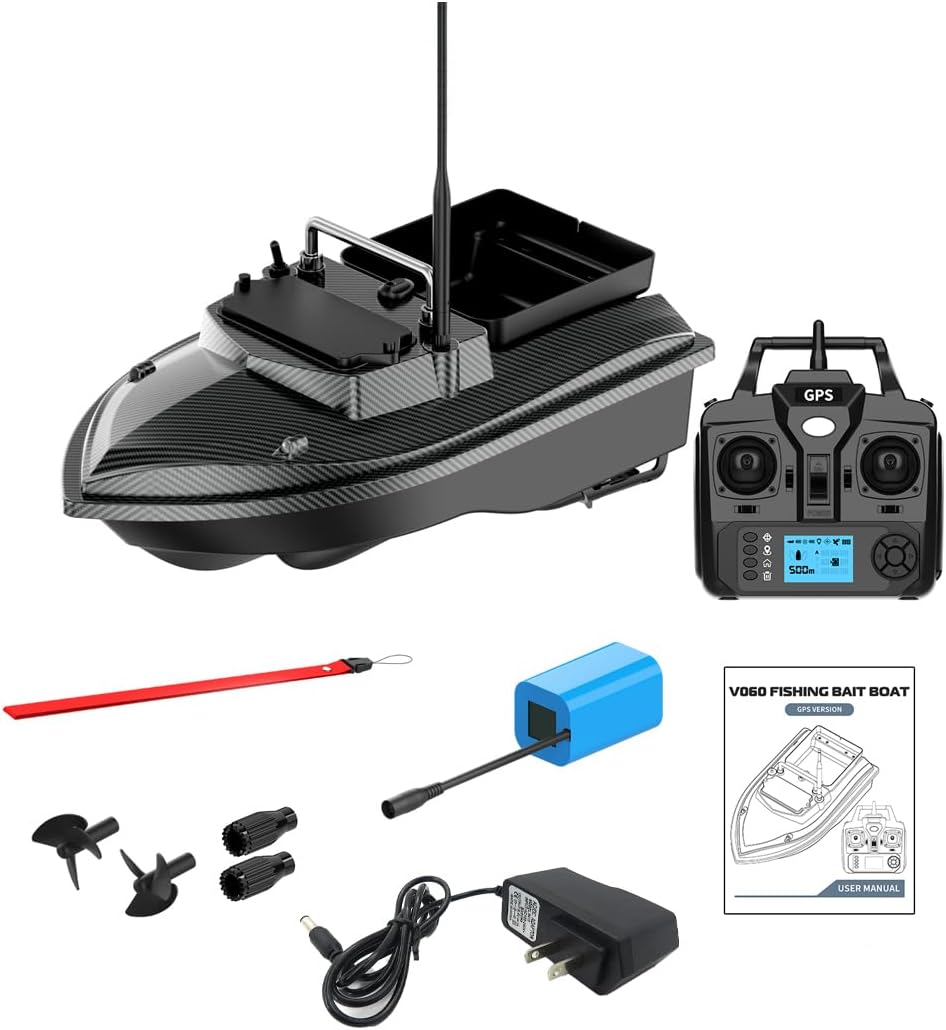

Image: All components included in the WOWOBONTOY V060 package, including the bait boat, remote controller, battery, propellers, joysticks, charging cable, and instruction manual.

설치 가이드

1. 짐 풀기: Carefully remove the RC Bait Boat and all accessories from its packaging. Inspect for any damage.
2. 배터리 충전: Connect the 12000mAh battery to the provided USB charging cable and a suitable power adapter. Charge the battery for approximately 8 hours before first use. The charging indicator will show the charging status.
3. 배터리 설치: Once fully charged, securely attach the 12000mAh battery into the designated battery compartment of the bait boat. Ensure proper polarity and a firm connection.
4. 리모컨 설정: Install batteries (not included, typically AA/AAA) into the remote controller. Attach the remote controller lanyard for secure handling. Screw in the joysticks.
5. 전원 켜기: Turn on the remote controller first, then power on the bait boat. Allow a few moments for the devices to pair.
6. 미끼 장전 중: Open the single hopper and load up to 2kg of bait. Ensure the hopper closes securely.

작동 지침

Familiarize yourself with the remote controller functions before operating the boat in water.

기본 탐색

• Use the joysticks on the remote controller for forward, reverse, left, and right turns.
• The boat has a maximum speed of 1 m/s.
• 원격 제어 거리는 최대 500m입니다.

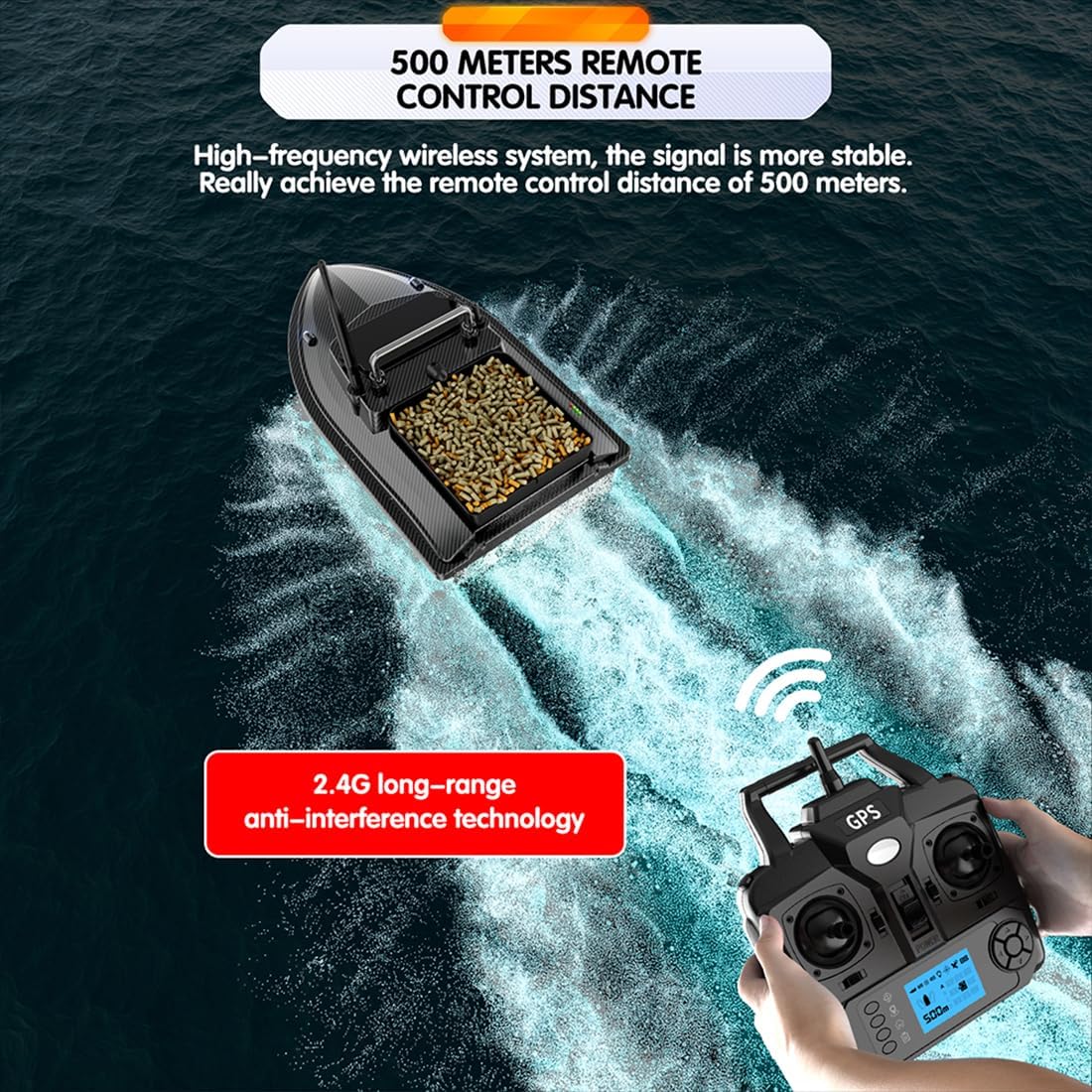

Image: The V060 bait boat operating at a distance, illustrating the 500-meter remote control range with 2.4G anti-interference technology.

Bait Delivery

• Navigate the bait boat to your desired fishing location.
• Once positioned, activate the bait release function on the remote controller to open the single hopper and drop the bait.
• The boat features a hook buckle design at the tail of the silo for easy hook and fishing line delivery.

Image: The V060 bait boat with its large capacity silo, capable of holding up to 2kg (4.4lbs) of bait for efficient fixed-point baiting.

Image: The V060 bait boat illustrating the fixed-point delivery system, showing a hook buckle design at the tail of the silo for easy deployment of fishing lines and hooks.

GPS Navigation and Waypoints

• The V060 is equipped with smart GPS navigation, allowing you to set up to 160 positioning points across 4 fishing grounds.
• To set a waypoint: Navigate the boat to the desired location, then follow the remote controller's instructions to save the point.
• To use a waypoint: Select a saved waypoint on the remote controller, and the boat will automatically navigate to that position.

Image: A visual representation of the 160 positioning points feature, demonstrating how the GPS bait boat can store multiple locations across different fishing grounds.

Image: Four distinct scenic images representing different types of fishing grounds where the V060 bait boat's 4 fishing grounds feature can be utilized.

Auto Return Function

• The boat will automatically return to its starting point if the battery is low, the signal is weak, or it goes out of the 500-meter range.
• Monitor the remote controller display for battery and signal strength indicators.

Image: The V060 bait boat on water, with graphical overlays indicating a low battery alarm and an over-distance return feature that activates when the boat exceeds 500 meters or loses signal.

Night Fishing Lights

• Activate the bright dual front lights and rear indicators for improved visibility during night fishing.
• The lights have two modes for different conditions. Refer to the remote controller manual for specific light mode controls.

크루즈 모드

• The fixed-speed cruise mode allows the boat to maintain a steady speed, freeing your hands for other tasks.
• Engage and disengage cruise mode using the dedicated button on the remote controller.

유지

• 청소: After each use, thoroughly clean the bait boat, especially the hopper and propeller areas, to remove any bait residue, dirt, or debris. Use fresh water and a soft cloth. Do not submerge the remote controller.
• 배터리 관리 : Always fully charge the battery before storage. If storing for an extended period, charge the battery every 3 months to maintain its health. Store batteries in a cool, dry place.
• 프로펠러 검사: Regularly check the propellers for any entanglement (fishing lines, weeds) or damage. Replace damaged propellers promptly.
• 저장: Store the bait boat and remote controller in a dry, cool place away from direct sunlight and extreme temperatures.

문제 해결

Boat does not respond to remote control:

Ensure both the boat and remote controller are powered on. Check battery levels for both devices. Re-pair the remote controller with the boat if necessary (refer to remote controller manual for pairing instructions).

Boat is not moving or moving slowly:

Check the battery level of the boat. Inspect propellers for any obstructions (weeds, fishing line) or damage. Ensure the motors are free from debris.

미끼 투입구가 열리거나 닫히지 않음:

Check for any physical obstructions in the hopper mechanism. Ensure the bait is not overloaded or jammed. Verify the remote control command is being sent correctly.

GPS navigation issues:

Ensure the boat has a clear view of the sky for GPS signal acquisition. Avoid operating under dense tree cover or near tall structures that may block satellite signals. Allow sufficient time for GPS lock.

Auto-return activates unexpectedly:

Check the boat's battery level and remote control signal strength. Ensure the boat is within the 500-meter operating range. Strong electromagnetic interference can sometimes affect signal.

제품 사양

보증 및 지원

The WOWOBONTOY V060 GPS RC Bait Boat comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact WOWOBONTOY customer service through the retailer's platform or the contact information provided on the product packaging.

보증을 위해 구매 증빙서류로 구매 영수증을 보관하세요.
