BOSSIN 70-inch Fireplace TV Stand User Manual

1. 서론

구매해주셔서 감사합니다asing the BOSSIN 70-inch Fireplace TV Stand. This manual provides essential information for the safe assembly, operation, and maintenance of your new entertainment center. Please read these instructions thoroughly before use and retain them for future reference.

Image 1.1: The BOSSIN 70-inch Fireplace TV Stand in a living room setting, featuring the integrated electric fireplace and LED lighting.

2. 중요한 안전 정보

• Read all instructions before assembling or operating this product.
• This TV stand is designed to support TVs up to 80 inches. Ensure the weight of your television does not exceed the stand's capacity.
• Always plug the electric fireplace directly into a grounded 120V AC outlet. Do not use extension cords or power strips.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains, at least 3 feet (0.9 m) from the front of the heater.
• 공기 흡입구나 배기구 구멍을 막지 마십시오.
• 벽난로를 사용할 때는 어린이와 반려동물을 잘 살펴봐야 합니다.
• For best results and safety, assembly should be performed by two adults.

3. 제품 오버view

The BOSSIN Fireplace TV Stand is a versatile entertainment unit combining a 70-inch TV console with a 36-inch electric fireplace. It is designed to accommodate televisions up to 80 inches. Key features include:

• 일체형 전기 벽난로: A 36-inch electric fireplace with two heating modes (750W & 1500W), 12 realistic 3D flame effects, and a programmable 1-8 hour timer.
• LED 조명: Features 20 LED color combinations to enhance ambiance.
• Amp파일 저장: Equipped with storage cabinets featuring mirrored doors and adjustable shelves for media devices, gaming consoles, and other items.
• 튼튼한 구조: Eight stainless steel pillar columns provide enhanced durability and stability.
• 케이블 관리 : Integrated cable holes help maintain a tidy appearance by concealing wires.

이미지 3.1: 상세 view highlighting the adjustable shelf, high-gloss cabinet doors, and the eight stainless steel supports for structural integrity.

Image 3.2: Illustration demonstrating the compatibility of the TV stand with televisions up to 80 inches in size.

4. 패키지 내용

Your BOSSIN Fireplace TV Stand is shipped in two packages. Please ensure all components are present before beginning assembly. Refer to the included assembly guide for a detailed list of parts and hardware.

• TV Stand Panels (various sizes)
• 36-inch Electric Fireplace Unit
• Stainless Steel Support Columns
• Cabinet Doors (mirrored)
• 조절식 선반
• 조립 하드웨어(나사, 다웰, 캠 잠금 장치 등)
• 벽난로용 리모컨
• 사용 설명서(본 문서)

Image 4.1: Product dimensions for the 70-inch TV stand and the 36-inch electric fireplace, illustrating how the product is shipped in two separate packages.

5. 조립 설명서

The TV stand is designed for user-friendly assembly. We recommend two people for the assembly process to ensure safety and ease. Follow the detailed, step-by-step instructions provided in the separate assembly guide included with your product. All parts are labeled, and pre-drilled holes are provided.

1. 모든 구성품을 풀어서 부품 목록과 비교해보세요.
2. 모든 하드웨어를 식별하고 분리하십시오.
3. 다이어그램에 따라 TV 스탠드의 메인 프레임을 조립하세요.
4. Install the stainless steel support columns.
5. Attach the cabinet doors and adjustable shelves.
6. Carefully insert the 36-inch electric fireplace unit into its designated opening.
7. Connect any necessary LED lighting components.

Ensure all connections are secure before placing a television or other items on the stand.

6. 사용 설명서

6.1 전기 벽난로 작동

전기 벽난로는 본체의 제어판이나 함께 제공되는 리모컨을 사용하여 작동할 수 있습니다.

이미지 6.1: 이상view of the electric fireplace's display, heater settings, flame speed, dimmer, timer, color options, and power controls.

• 전원(켜짐/꺼짐): 전원 버튼을 눌러 벽난로를 켜거나 끄세요.
• 히터: Select between 750W (low heat) and 1500W (high heat) modes. The heater can be turned off while flame effects remain active.
• 화염 속도: Adjust the speed of the flame effect (5 levels).
• 주차: Control the brightness of the flame effect (5 levels).
• 시간제 노동자: Set a programmable timer for 1 to 8 hours. The fireplace will automatically shut off after the set time.
• 불꽃 색상: Choose from 12 realistic 3D flame effects to customize the ambiance.

Image 6.2: Visual representation of the 12 distinct flame color options available for the electric fireplace, including mixable colors.

6.2 LED Light Strip Operation

The integrated LED light strips offer 20 color combinations to complement your room's decor or mood. These lights are typically controlled via a separate switch or remote, as detailed in the assembly guide.

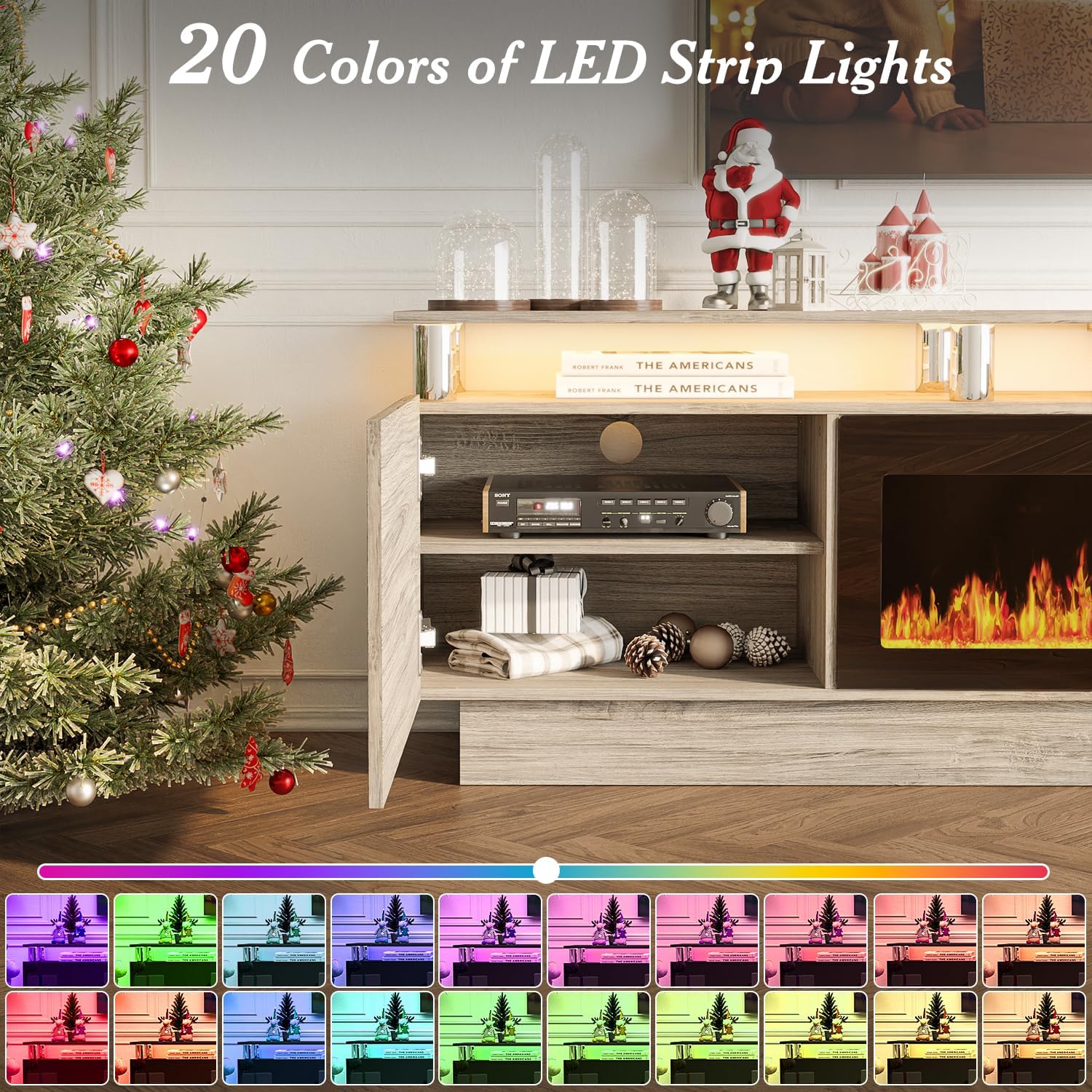

Image 6.3: An array of 20 different LED strip light colors illuminating the TV stand, showcasing the customizable ambiance options.

7. 유지관리

• 청소: Dust the TV stand and fireplace exterior regularly with a soft, dry cloth. For stubborn marks, use a slightly damp 천과 순한 세제를 사용하여 닦은 후 즉시 물기를 제거하십시오. 연마성 세제나 용제를 사용하지 마십시오.
• 벽난로 유닛: Ensure the air intake and exhaust vents of the electric fireplace are kept clear of dust and debris to maintain proper airflow and prevent overheating.
• 전기 부품: 전원 코드에 손상 흔적이 있는지 주기적으로 점검하십시오. 손상된 경우 사용을 중단하고 고객 지원 센터에 문의하십시오.

8. 문제 해결

• 벽난로가 켜지지 않음: 전원 코드가 접지된 콘센트에 제대로 꽂혀 있는지 확인하십시오. 회로 차단기가 작동했는지 확인하십시오.
• 열 출력 없음: Verify that the heater function is activated and set to 750W or 1500W. Ensure air vents are not blocked.
• 원격 제어가 작동하지 않음: Check and replace the batteries in the remote control. Ensure there are no obstructions between the remote and the fireplace unit's sensor.
• LED lights not functioning: Check all connections for the LED strip lights. Ensure the power source for the lights is active.
• 이상한 소음이나 냄새: Immediately turn off the unit and unplug it. Contact customer support for assistance.

9. 사양

10. 보증 및 고객 지원

BOSSIN products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official BOSSIN website. If you encounter any issues or require assistance, our customer support team is available 24/7 to help you. Please have your model number (B0FS6Y7QK8) ready when contacting support.

You can visit the BOSSIN Store for more information: BOSSIN Store
