BOSSIN 18 Inch Electric Fireplace Insert User Manual

소개

구매해주셔서 감사합니다asing the BOSSIN 18 Inch Electric Fireplace Insert. This manual provides important information regarding the safe operation, installation, maintenance, and troubleshooting of your electric fireplace. Please read this manual thoroughly before installation and use, and retain it for future reference.

This electric fireplace insert is designed to provide supplemental heat and a realistic flame effect, enhancing the ambiance of your living space. It features adjustable flame settings, a remote control, touch screen operation, and a timer function.

중요한 안전 정보

WARNING: Read all instructions before using this heater. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.

• 전원 콘센트가 올바르게 접지되어 있는지 확인하세요.
• 코드나 플러그가 손상된 경우, 히터가 고장난 경우, 히터를 떨어뜨린 경우 또는 어떤 식으로든 손상된 경우에는 히터를 작동하지 마십시오.
• 실외에서 사용하지 마십시오. 이 히터는 실내에서만 사용하도록 설계되었습니다.
• 가구, 베개, 침구류, 종이, 옷, 커튼과 같은 가연성 물질은 히터 앞쪽에서 최소 0.9m(3피트) 이상 떨어뜨려 놓고 측면과 뒤쪽에서도 멀리 떨어뜨려 놓으십시오.
• 화재를 예방하려면 공기 흡입구나 배출구를 어떤 식으로든 막지 마십시오.
• 사용하지 않을 때는 항상 히터의 플러그를 뽑아두세요.
• This electric fireplace has gained a certification from CSA and the plug has gotten laboratory accreditation from UL. It includes a patent-pending safety thermal cut-off device to prevent damage from obstruction or overheating.

Image: A graphic indicating CSA and UL certifications, emphasizing safety. This image illustrates the product's adherence to safety standards, including thermal cut-off protection.

패키지 내용

• BOSSIN 18 Inch Electric Fireplace Insert
• 원격 제어
• 사용 설명서
• Mounting Hardware (if applicable for recessed installation)

명세서

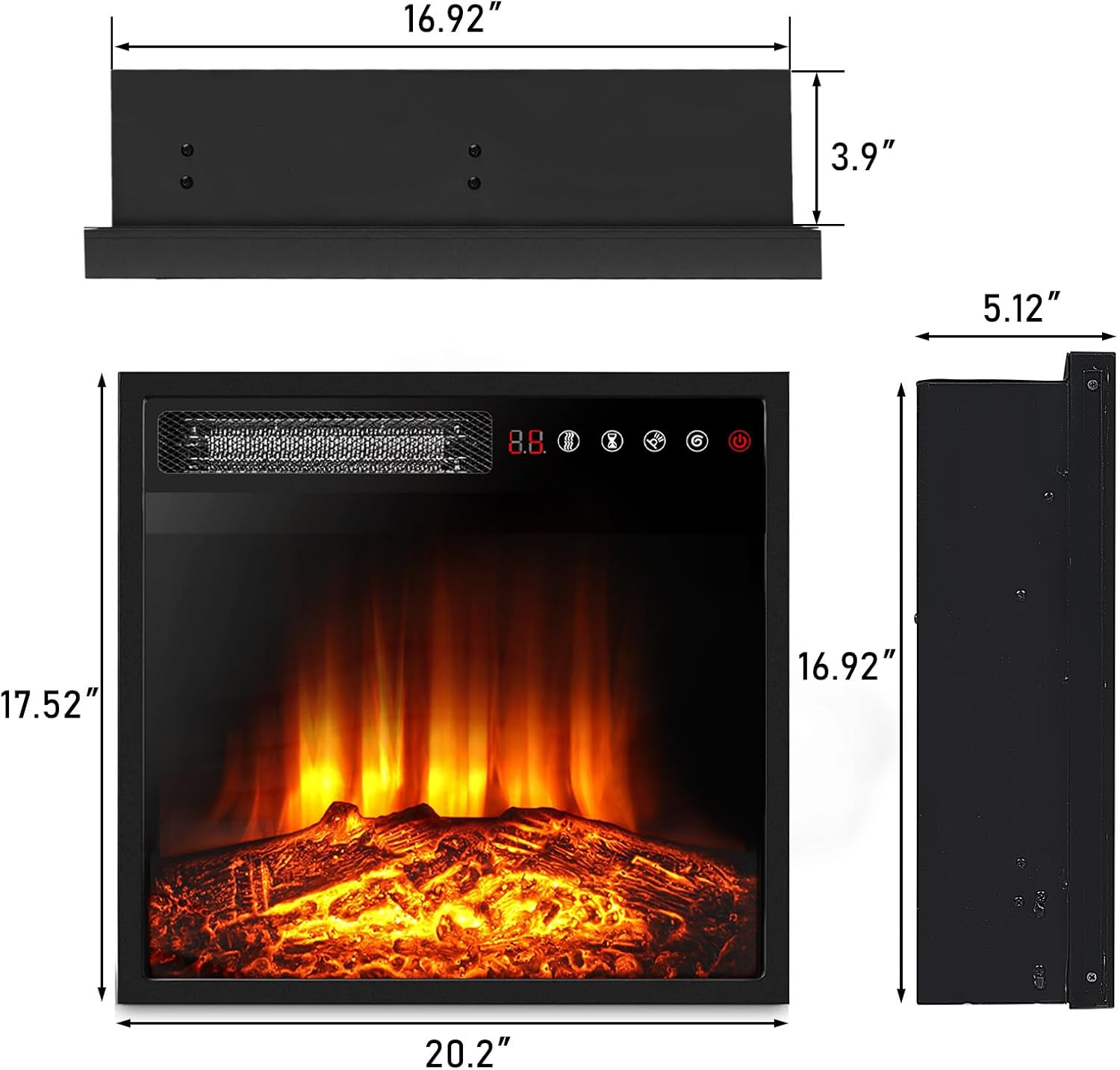

Image: Technical drawing showing the dimensions of the 18-inch electric fireplace insert, including depth, width, and height measurements for installation planning.

설정 및 설치

This electric fireplace insert is designed for recessed installation into an existing fireplace opening or a custom-built mantel/cabinet. Ensure the opening dimensions are compatible with the product dimensions (5.12"D x 18"W x 17.52"H).

설치 전:

1. 모든 구성품을 풀어서 패키지 내용물 목록과 비교해보세요.
2. Inspect the unit for any shipping damage. Do not operate if damaged.
3. Ensure the installation location has a dedicated 120V, 15 Amp 접지 된 콘센트.
4. 본 제품을 물, 습기, 직사광선으로부터 멀리 보관하세요.

설치 단계:

1. Carefully place the electric fireplace insert into the prepared opening.
2. Ensure the unit is level and securely seated.
3. Secure the unit using the provided mounting hardware, if applicable, by fastening it to the surrounding structure.
4. 전원 코드를 접지된 120V 콘센트에 연결하세요.

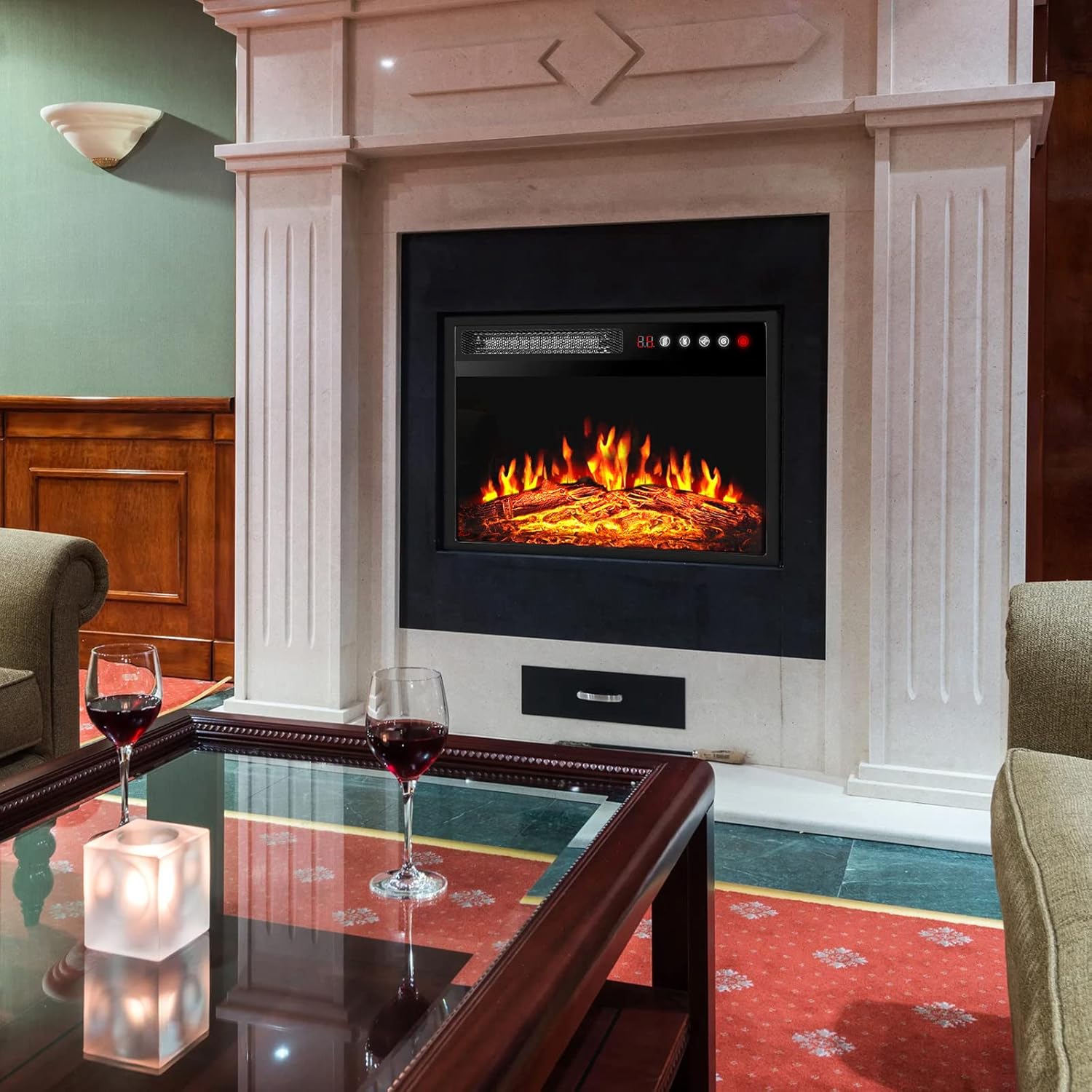

Image: The 18-inch electric fireplace insert seamlessly installed into a fireplace mantel in a living room setting, demonstrating a typical installation scenario.

작동 지침

The BOSSIN Electric Fireplace Insert can be operated using the touch screen controls on the unit or the included remote control.

제어판 및 원격 제어:

이미지: 클로즈업 view of the fireplace's touch screen control panel and the accompanying remote control, highlighting the various buttons and display for operation.

• 전원 버튼: 기기를 켜거나 끕니다.
• 화염 속도 조절 버튼: Adjusts the flame speed (V1-V5, V5 being the fastest).
• 불꽃 밝기 조절 버튼: Adjusts the flame brightness (L1-L5, L5 being the brightest).
• 히터 버튼: Toggles between OFF, Low Heat (750W), and High Heat (1500W).
• 타이머 버튼: 자동 꺼짐 타이머를 1시간에서 8시간 사이로 설정할 수 있습니다.

Image: A visual guide explaining the functions of the control panel, including 5 flame speed settings, 5 flame brightness settings, 1-8 hour timer, and 750W/1500W heat options.

화염 효과:

The realistic LED flame effect can be operated independently of the heater. Use the flame speed and brightness buttons to customize the ambiance.

Image: The electric fireplace insert displaying its realistic LED flame effect and glowing log bed, creating a warm and inviting atmosphere.

가열 기능:

Select between 750W (Low Heat) and 1500W (High Heat) settings based on your heating needs. The heater is designed to provide supplemental heat for areas up to 400 square feet. The fan operates quietly to distribute warmth without drying out the air.

타이머 기능:

Set the timer for automatic shut-off from 1 to 8 hours. This feature is useful for energy saving and convenience.

유지

정기적인 유지 관리는 전기 벽난로의 최적 성능과 수명 연장을 보장합니다.

• 청소: 청소하기 전에 항상 제품의 전원을 뽑으십시오. 부드러운 천을 사용하십시오.amp 외부 표면은 천으로 닦으십시오. 연마성 세제나 스프레이는 사용하지 마십시오.
• 통풍구: 공기 흡입구와 배기구에 먼지와 이물질이 쌓이지 않도록 하여 적절한 공기 흐름을 유지하고 과열을 방지하십시오.
• 전구: The LED flame effect uses long-lasting LED technology and typically does not require bulb replacement.
• 저장: If storing the unit for an extended period, unplug it and store in a dry, dust-free location.

문제 해결

보증 및 지원

BOSSIN products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or contact BOSSIN customer service.

If you encounter any issues or have questions regarding your BOSSIN 18 Inch Electric Fireplace Insert, please contact our customer support team for assistance. Contact information can typically be found on the manufacturer's web사이트 또는 제품 포장에 표시되어 있습니다.
