BESTFIRE BFGY72 23,000 BTU Portable Dual-Burner Propane Stove Instruction Manual

1. 중요한 안전 정보

Please read and understand all safety warnings and instructions before assembling, operating, or servicing this appliance. Failure to follow these instructions could result in fire, explosion, serious injury, or death.

• 실외용: This appliance is designed for outdoor use in well-ventilated areas. Do not use in garages, sheds, or any enclosed areas.
• GAS LEAK CHECK: Always perform a leak test after connecting the gas cylinder. Use a soapy water solution; bubbles indicate a leak. Never use an open flame to check for leaks.
• 통풍: 일산화탄소 축적을 방지하기 위해 적절한 환기를 확보하십시오.
• 가연성 물질에 대한 허가: Maintain a minimum distance of 36 inches (91 cm) from the sides and rear of the appliance to any combustible materials.
• 어린이와 애완동물: 기기가 작동 중이거나 식는 동안에는 어린이와 애완동물이 기기에 접근하지 못하도록 하세요.
• 연료 종류: This stove is designed for use with LPG (Liquid Propane Gas) only. Do not attempt to use other fuels.
• 안정적인 표면: 스토브는 항상 평평하고 안정적이며 불연성 재질의 표면에서 작동하십시오.

2. 제품 오버view

The BESTFIRE BFGY72 Portable Dual-Burner Propane Stove is a robust and efficient cooking solution for outdoor enthusiasts. Constructed from durable stainless steel, it features two high-power burners with auto-ignition for convenient and reliable operation.

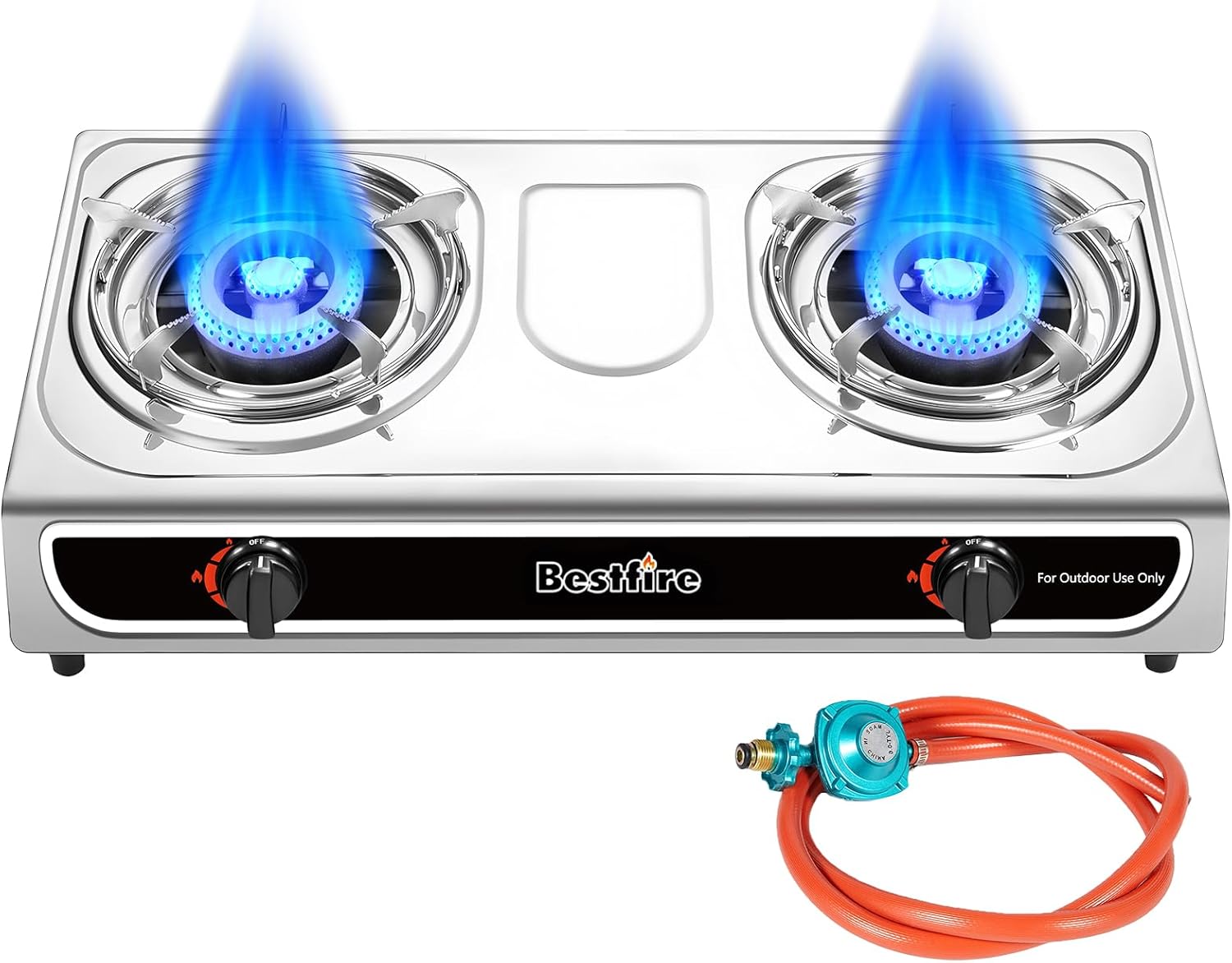

Figure 2.1: The BESTFIRE BFGY72 Dual-Burner Propane Stove, showcasing its stainless steel construction and included gas hose with regulator.

주요 특징:

• High-Power Dual Burners: 23,000 total BTU output for rapid heating.
• Auto-Ignition: Twist-to-start mechanism for easy lighting without matches.
• 내구성 있는 구조: Stainless steel body resists rust and scratches.
• 휴대성 있는 디자인: Compact dimensions (28" L x 14.5" W x 5" H) with non-slip rubber legs.
• 전체 키트: Includes regulator and hose for immediate use (propane tank not included).

Figure 2.2: Detailed diagram of the stove's components and features.

3. 설정 및 설치

Follow these steps to safely set up your BESTFIRE propane stove.

3.1 포장 풀기 및 초기 검사

1. Carefully remove the stove and all components from the packaging.
2. Inspect for any damage during shipping. Do not use if damaged.
3. Ensure all accessories are present: stove unit, gas hose, and regulator.

3.2 구성 요소 설치

1. Install Rubber Pads: If not pre-installed, attach the four rubber pads to the bottom of the stove for stability.
2. Install Burner Rings/Supports: Place the metal burner rings securely over each burner head.

그림 3.1: 클로즈업 view of the burner assembly and footrest details.

3.3 가스 공급 연결

1. 호스를 스토브에 연결하세요: Securely attach the gas hose to the gas inlet on the side of the stove. Use a wrench to tighten the connection, ensuring it is snug but do not overtighten.
2. 조절기를 프로판 탱크에 연결하세요: Attach the regulator to a standard QCC1/Type1 propane tank cylinder (5-40LB capacity). Ensure the regulator control knob and cylinder valve are in the OFF positions before connecting. Hand-tighten the connection.

Figure 3.2: Proper connection of the CSA certified regulator and hose to a propane tank.

중요한: The propane tank is not included with the stove.

4. 사용 설명서

4.1 버너 켜기

1. Ensure the stove is on a stable, level surface and all gas connections are secure.
2. 프로판 탱크의 밸브를 천천히 엽니다.
3. Push in and turn the desired burner knob counter-clockwise to the HIGH position. You should hear a clicking sound from the auto-ignition.
4. If the burner does not ignite within 5 seconds, turn the knob to OFF, wait 5 minutes for gas to dissipate, and repeat the process.
5. 최초 사용 시 주의 사항: During the first use, it may take several attempts (up to 7 or more ignitions) for the burner to light, as air needs to be purged from the gas hose.

4.2 화염 조절

Once lit, rotate the burner knob to adjust the flame intensity from HIGH to LOW as needed for cooking.

4.3 Turning Off the Stove

1. 모든 버너 손잡이를 OFF 위치로 돌립니다.
2. 프로판 탱크의 밸브를 닫으세요.

5. 유지관리 및 청소

정기적인 유지관리는 스토브의 수명과 안전한 작동을 보장합니다.

5.1 Cleaning the Stove Surface

• 청소하기 전에 스토브가 완전히 식도록 하십시오.
• 스테인레스 스틸 표면을 광고로 닦으십시오.amp cloth and mild detergent. Avoid abrasive cleaners that can scratch the finish.
• Remove burner rings and clean separately if necessary.

5.2 버너 유지관리

• Periodically check burner ports for blockages (e.g., food debris). Use a small wire or needle to clear any obstructions.
• Ensure the burner heads are properly seated after cleaning.

6. 문제 해결

가스레인지 사용 중 문제가 발생하면 다음의 일반적인 문제 및 해결 방법을 참조하십시오.

7. 사양

8. 보증 및 지원

For warranty information, technical support, or replacement parts, please contact BESTFIRE customer service. Refer to your product packaging or the official BESTFIRE web연락처 정보 사이트.
