Amana NTW4519JW2 Washer Water Drain Pump Replacement Part Manual

1. 서론

This manual provides essential information for the installation, operation, and maintenance of the Fricpart-011932 replacement water drain pump for the Amana NTW4519JW2 washing machine. Please read these instructions carefully before proceeding with any installation or repair to ensure safe and correct usage.

2. 안전 정보

전원 분리: Always unplug the washing machine from the power outlet before attempting any repairs or maintenance. Failure to do so can result in electric shock or serious injury.
상수도: Turn off the water supply to the washing machine before beginning any work involving water lines or pumps.
보호 장비를 착용하세요: 부상을 방지하기 위해 장갑과 보안경과 같은 적절한 개인 보호 장비를 착용하십시오.
전문가의 도움: 수리를 진행하는 동안 어떤 단계가 불확실하거나 불편함을 느낄 경우 자격을 갖춘 가전제품 기술자에게 문의하세요.
정품 부품: Use only genuine or approved replacement parts to ensure proper function and safety.

3. 제품 오버view

The Fricpart-011932 is a replacement water drain pump specifically designed for the Amana NTW4519JW2 washing machine model. This component is crucial for removing water from the washer tub during the drain and spin cycles. Ensuring its proper function is vital for the washing machine's overall performance.

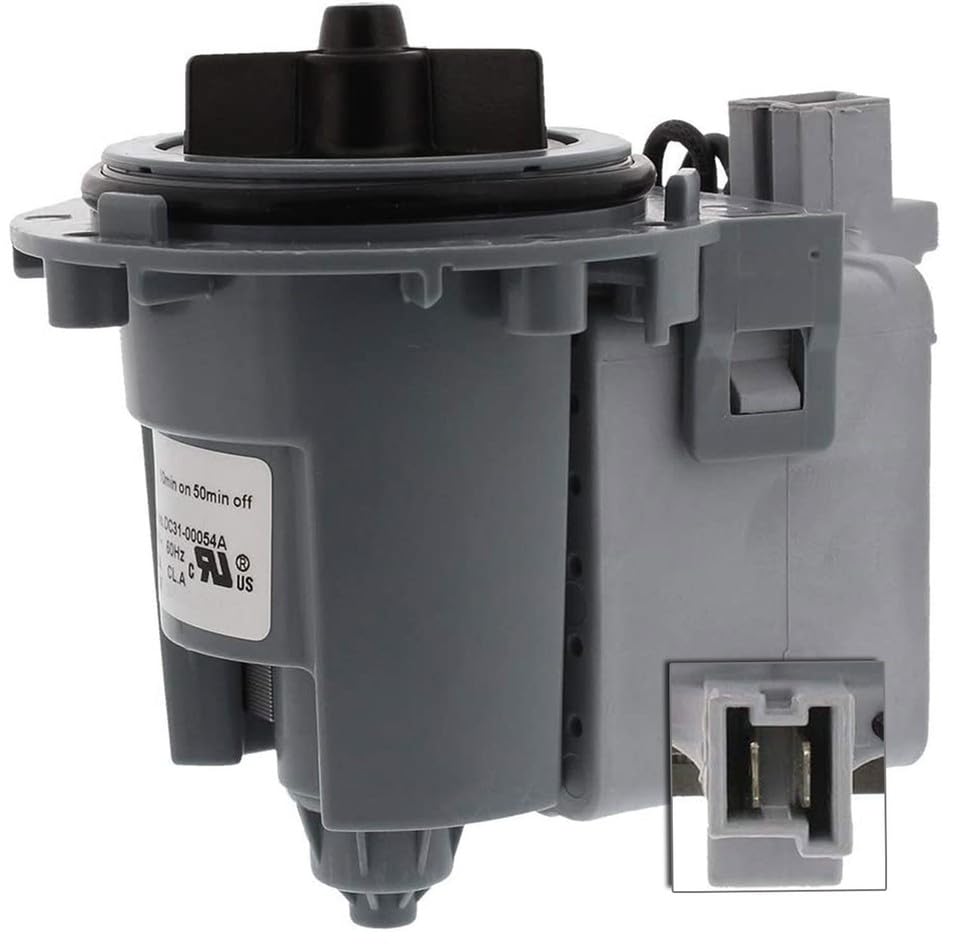

Replacement Water Drain Pump for Amana NTW4519JW2 Washer

This image displays the replacement water drain pump, showing its general shape and connection points. It is designed for the Amana NTW4519JW2 washer model.

4. 설정 및 설치

메모: Installation of this part requires basic mechanical skills and familiarity with appliance repair. If you are not confident in your ability to perform this repair, please seek professional assistance.

준비: Ensure the washing machine is unplugged and the water supply is turned off. Move the washer away from the wall to access the rear or bottom panel.
펌프에 접근하세요: Depending on your specific washer design, you may need to remove the front, rear, or bottom access panel to locate the drain pump. Refer to your washer's service manual for exact panel removal instructions.
잔여물 배출: Place towels and a shallow pan beneath the pump area to catch any residual water that may drain out when hoses are disconnected.
호스 분리: Carefully disconnect the inlet and outlet hoses from the old drain pump. Note their positions for correct reattachment.
배선 분리: 기존 펌프에서 전기 배선 하네스를 분리하십시오.
오래된 펌프 제거: Unmount the old drain pump from its housing or bracket. This may involve unscrewing fasteners or releasing 클립.
새 펌프 설치: Position the new Fricpart-011932 drain pump in the same location and secure it with the original fasteners or clips.
구성 요소를 다시 연결하세요. Reconnect the electrical wiring harness and then the inlet and outlet hoses to the new pump. Ensure all connections are secure to prevent leaks.
누출 테스트: Before reassembling the washer, turn on the water supply and briefly plug in the washer to run a short drain cycle. Carefully check for any leaks around the new pump and hose connections.
재조립: Once you confirm there are no leaks, unplug the washer again and reattach any removed access panels. Push the washer back into its position.

5. 운영

After successful installation of the replacement drain pump, the washing machine should resume normal operation. The drain pump functions automatically during the wash cycle to remove water from the tub. No specific user operation is required for the drain pump itself beyond ensuring the washer's cycles complete as expected.

첫 번째 사용: Run a small, empty wash cycle to confirm proper drainage and check for any unusual noises or leaks.
정상 작동: Continue to use your washing machine as per its original manufacturer's instructions.

6. 유지관리

Regular maintenance can extend the life of your washing machine and its components, including the drain pump.

장애물 확인: Periodically check the drain pump filter (if accessible on your model) for lint, coins, or other small objects that could impede pump function. Refer to your washer's user manual for filter cleaning instructions.
호스 검사: Occasionally inspect the drain hoses for kinks, cracks, or blockages. Ensure they are securely connected.
특이한 소음을 들어보세요: Pay attention to any new or unusual noises during the drain cycle, which could indicate a problem with the pump or an obstruction.

7. 문제 해결

If your washing machine experiences issues related to draining after replacing the pump, consider the following:

문제	가능한 원인	해결책
세탁기 물이 안 빠짐	배수 호스가 꼬이거나 막혔습니다. 펌프 필터 막힘 전기 연결이 느슨함 New pump faulty (rare)	배수 호스를 점검하고 똑바로 펴십시오. 막힌 부분이 있으면 제거하십시오. 펌프 필터를 청소하세요. Verify electrical connections to the pump are secure. If all else fails, test the new pump with a multimeter or consult a technician.
펌프 구역에서 물이 새고 있습니다	호스 연결부가 헐거워졌습니다. Hose damaged Pump housing cracked	호스를 조이세요amps. Inspect hoses for damage and replace if necessary. Inspect pump housing for cracks; replace pump if damaged.
배수 사이클 중 이상한 소음이 발생합니다.	Object in pump impeller 마모된 펌프 베어링	Disconnect power, access pump, and check for foreign objects in the impeller. If noise persists and no obstruction is found, the pump may need further inspection or replacement.

8. 사양

부품 번호: FRIC-PL-APP-TP-22052025-080252
품목 모델 번호: 프리크파트-011932
호환성: Amana NTW4519JW2 Washer
제조업체: 프릭파츠
색상: 블랙/화이트
품목 패키지 수량: 1

9. 보증 정보

Specific warranty details for this replacement part are not provided in the product information. Please refer to the seller's or manufacturer's website, or contact their customer service directly for information regarding warranty coverage and terms.

10. 지원

For further assistance, technical support, or to inquire about specific installation procedures for your Amana NTW4519JW2 washer, please contact the seller or the manufacturer of this replacement part. Always provide your product model number (Fricpart-011932) and the washing machine's model number (NTW4519JW2) when seeking support.

프리크파트-011932
