Hagibis MC60 Pro Mac mini Hub & Stand with 40Gbps SSD Enclosure User Manual

1. 제품 오버view

The Hagibis MC60 Pro is a versatile hub and stand designed for the Mac mini M4, integrating multiple functionalities into a compact form factor. It features a 40Gbps M.2 NVMe SSD enclosure, a USB-C docking station, and various ports to expand connectivity and storage for your device.

• 통합 디자인: Perfectly matches the size and aesthetic of the Mac mini M4, providing a seamless extension.
• 고속 스토리지: Features a 40Gbps M.2 NVMe SSD enclosure supporting up to 8TB storage, compatible with M.2 2230/2242/2260/2280 NVMe SSDs.
• 향상된 연결성: Includes multiple USB 2.0 ports and a 3.5mm AUX jack for connecting peripherals like keyboards, mice, USB drives, headphones, and microphones.
• 효율적인 열 발산: Constructed from aluminum alloy with a raised middle design to promote better ventilation and heat management for the Mac mini.
• Convenient Power Access: A reserved hole allows easy access to the Mac mini's power button.

Image 1.1: The Hagibis MC60 Pro Hub and Stand with a Mac mini, showcasing its integrated design and various features.

2. 패키지 내용

아래 나열된 모든 품목이 패키지에 포함되어 있는지 확인하세요.

• USB-C Docking Station (Hagibis MC60 Pro)
• USB-C to USB-C 케이블
• 드라이버
• 나사
• Thermal Grease (x2)
• 사용 설명서 (본 문서)

Image 2.1: Visual representation of the items included in the Hagibis MC60 Pro package.

3. 설정 지침

3.1 Installing an M.2 NVMe SSD

1. Carefully turn the Hagibis MC60 Pro upside down to access the SSD enclosure bay.
2. Using the provided screwdriver, remove the screws securing the SSD bay cover.
3. Insert your M.2 NVMe SSD (2230/2242/2260/2280) into the slot, ensuring it is properly seated.
4. Apply the thermal grease pads to the SSD for optimal heat dissipation.
5. Secure the SSD with the provided screw and replace the bay cover.
6. 중요한: When using an SSD for the first time, format it to exFAT format on your computer.

Image 3.1: Diagram illustrating the installation process for an M.2 NVMe SSD into the enclosure.

3.2 맥 미니에 연결하기

1. Place your Mac mini M4 securely on top of the Hagibis MC60 Pro stand. The stand is designed to fit the Mac mini perfectly.
2. Connect the provided USB-C to USB-C cable from the "HOST" port on the rear of the Hagibis MC60 Pro to a Thunderbolt/USB4 port on your Mac mini.
3. Ensure all connections are firm. The hub is plug-and-play and does not require additional drivers or external power.

Image 3.2: The Hagibis MC60 Pro connected to a Mac mini, demonstrating the high-speed data transfer capability.

4. 사용 설명서

4.1 포트 사용

The Hagibis MC60 Pro provides a variety of ports for expanded functionality:

• Front USB 2.0 Ports (x2): Connect keyboards, mice, USB drives, and other low-bandwidth peripherals. These ports offer data transfer speeds of up to 480Mbps.
• Rear USB 2.0 Port (x1): Similar to the front ports, suitable for additional peripherals.
• 3.5mm AUX 잭: Connect headphones, microphones, or headsets for audio input/output.
• 40Gbps M.2 NVMe SSD Enclosure: Provides high-speed storage expansion with theoretical read/write speeds up to 3000MB/s.

이미지 4.1: 상세 view of the front and rear interfaces of the Hagibis MC60 Pro, including USB 2.0 ports, AUX jack, and indicator light.

Image 4.2: Illustration of connecting multiple audio devices to the 3.5mm audio port.

Image 4.3: Demonstrates the use of the USB 2.0 ports for connecting peripherals.

4.2 Powering On/Off Mac mini

The Hagibis MC60 Pro features a reserved hole on the stand, allowing direct access to the Mac mini's power button for convenient startup and shutdown without needing to remove the Mac mini from the stand.

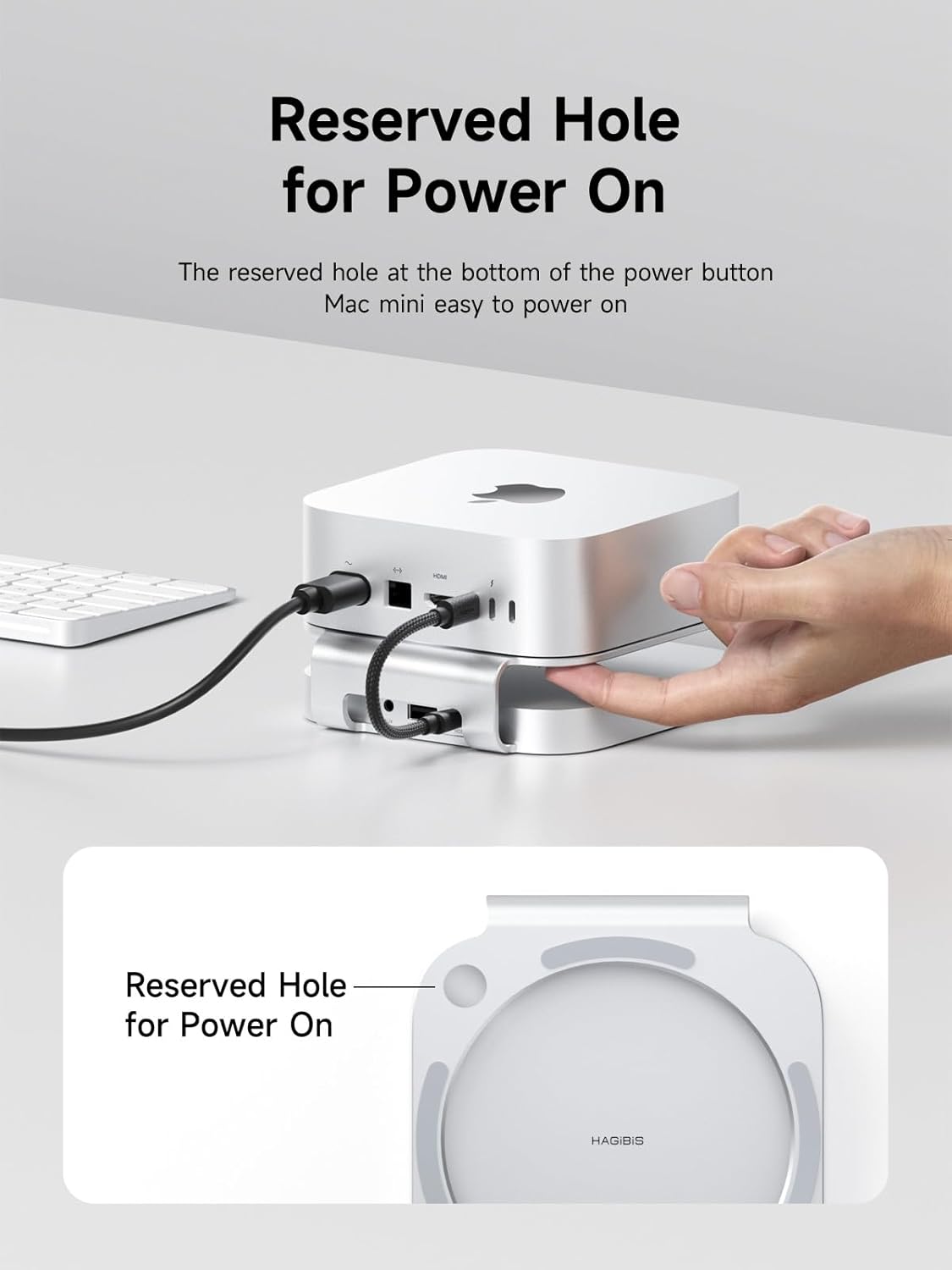

이미지 4.4: 클로즈업 view of the reserved hole on the stand for accessing the Mac mini's power button.

5. 유지관리

5.1 방열

The aluminum alloy construction and raised design of the Hagibis MC60 Pro are engineered for efficient heat dissipation. To maintain optimal performance and prevent overheating, ensure the area around the hub and Mac mini is well-ventilated and free from obstructions.

Image 5.1: Illustration of the aluminum alloy material and raised design contributing to high-efficiency heat dissipation.

5.2 청소

To clean the device, gently wipe the exterior with a soft, dry, lint-free cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the finish or internal components.

6. 문제 해결

• SSD가 인식되지 않습니다:
  • Ensure the SSD is correctly installed and secured in the enclosure.
  • Verify the SSD is formatted (exFAT recommended for first use).
  • Check the USB-C connection between the hub and your Mac mini.
  • Confirm your Mac mini's operating system (macOS 14.0 or above for Apple CPU M1/2/3/4 Series) or Windows version (Intel CPU 12th Gen or above Thunderbolt 4/5 port, AMD CPU USB4 port) supports 40Gbps mode.
• 데이터 전송 속도가 느림:
  • 제공된 40Gbps USB-C-USB-C 케이블을 사용하고 있는지 확인하십시오.
  • Confirm your Mac mini's port supports 40Gbps (Thunderbolt 4/5 or USB4).
  • Check the specifications of your M.2 NVMe SSD; not all SSDs achieve maximum theoretical speeds.
  • Avoid running multiple bandwidth-intensive applications simultaneously.
• 주변기기가 작동하지 않습니다:
  • Ensure the peripheral is properly connected to the correct USB 2.0 or AUX port.
  • Test the peripheral directly with your Mac mini to rule out device issues.

7. 사양

Image 7.1: Detailed product dimensions and material information for the Hagibis MC60 Pro.

8. 보증 및 지원

Hagibis products are designed for reliability and performance. For warranty information, technical support, or customer service inquiries, please refer to the official Hagibis web사이트를 방문하거나 고객 지원팀에 직접 문의하세요. 보증 청구를 위해 구매 영수증을 보관하세요.

추가 지원을 받으려면 다음을 방문하세요. 아마존에서 하비비스 스토어를 만나보세요.
