1. 서론
Thank you for choosing the Generic Portable Air Conditioner M201. This compact and versatile device is designed to provide personal cooling, humidification, and a soothing night light, enhancing comfort in various personal spaces such as bedrooms, offices, dorm rooms, and during travel. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.
Image 1.1: The Portable Air Conditioner M201 in operation, demonstrating its cooling function.
2. 안전 지침
To prevent injury to yourself and others, or damage to the device, please observe the following safety precautions:
- 제품이 넘어지지 않도록 항상 안정적이고 평평한 표면에 놓으십시오.
- 장치를 물이나 다른 액체에 담그지 마십시오.
- Ensure the power cord and plug are not damaged. Do not operate if damaged.
- Keep out of reach of children and pets. The unit features child-safe vents, but supervision is recommended.
- Use only clean tap water in the water tank. Do not add chemicals or other substances.
- Unplug the unit from the power source before cleaning or when not in use for extended periods.
- 공기 흡입구 또는 배출구를 막지 마십시오.
- 장치를 열원 근처나 직사광선에 노출시키지 마십시오.
3. 제품 오버view
3.1개의 구성요소
- 휴대용 에어컨 장치
- USB 전원
- 사용 설명서 (본 문서)
3.2 주요 특징
- 급속 냉각: Delivers noticeable cooling relief within 90 seconds.
- 3단계 속도 조절 팬: Adjustable fan speeds for customized airflow.
- Humidification Function: Adds moisture to the air, combating dryness.
- 매우 조용한 작동: Designed for minimal noise, suitable for sleep and concentration.
- 야간 조명: Integrated soft, colorful night light for ambient illumination.
- USB 전원 공급: Conveniently powered via any standard USB port (laptop, power bank, car charger).
- 조절 가능한 틸트 헤드: Direct airflow precisely where needed.
- UV-C 살균: Helps ensure cleaner mist output.

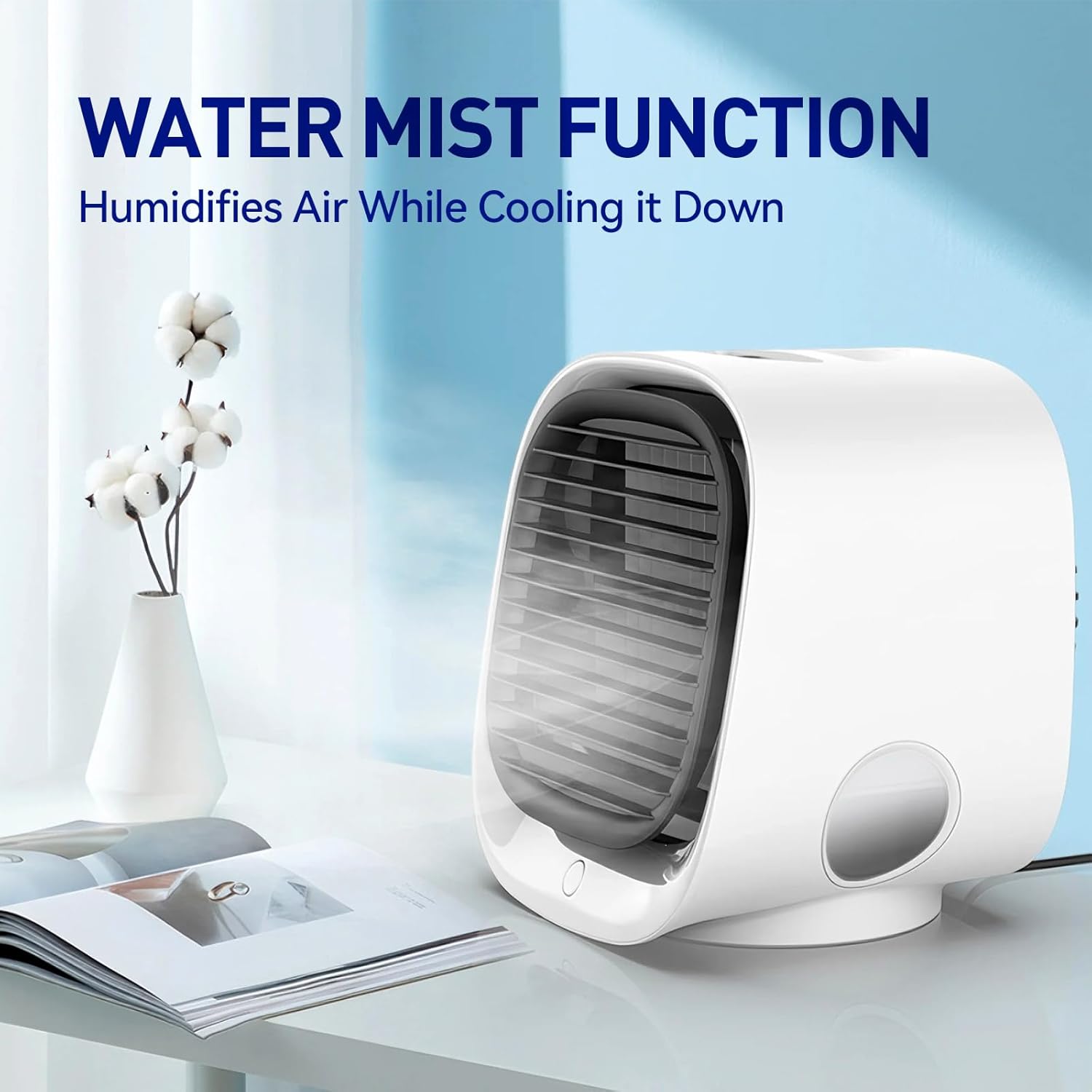

Image 3.1: The unit's water mist function, which humidifies the air while cooling.
Image 3.2: The unit's quiet operation, suitable for use during sleep.
4. 설정
Follow these steps to set up your Portable Air Conditioner M201:
- 풀다: Carefully remove the unit and all components from the packaging. Retain packaging for future storage or transport.
- 놓기: Place the unit on a firm, level surface in your desired location. Ensure there is adequate space around the unit for proper airflow.
- 물 탱크 채우기: Open the water tank cover. Fill the 300ml water tank with clean tap water. For enhanced cooling, you may add ice cubes to the water. Do not overfill. The unit has an auto shutoff feature when the tank is empty.
Image 4.1: Direct water addition into the top-fill water tank.
- 전원 연결: Insert the USB power cord into the unit's USB port, then connect the other end to a compatible USB power source (e.g., laptop, power bank, wall adapter).
Image 4.2: The unit features a standard USB port for power.
5. 사용 설명서
Once set up, operating your Portable Air Conditioner M201 is straightforward:
- 전원 켜기/끄기: Press the power button (usually located on the front or top) to turn the unit on or off.
- 팬 속도 조정: The unit features 3 fan speeds. Press the fan speed button repeatedly to cycle through Gentle (1), Enhanced (2), and Strong (3) modes.

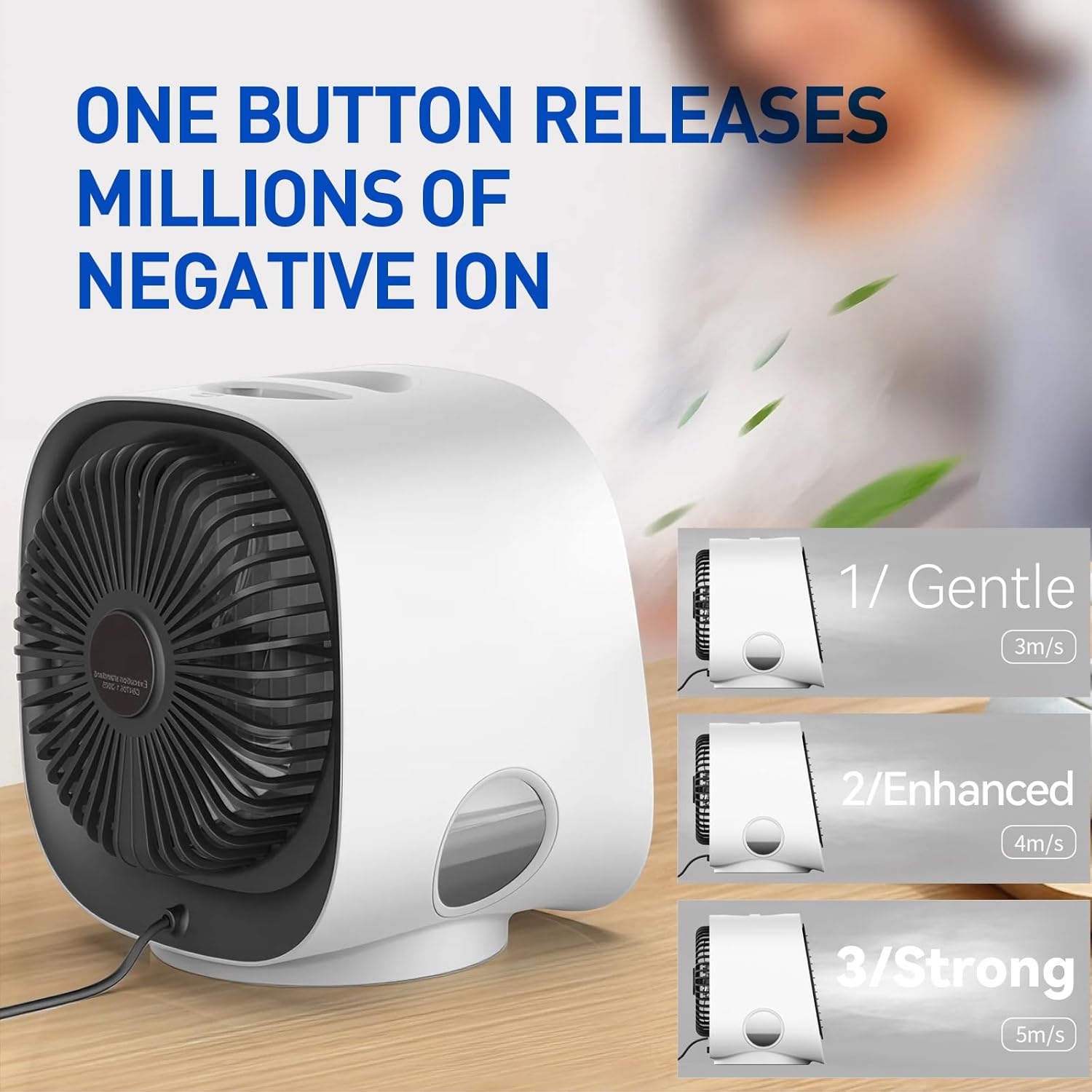

Image 5.1: Fan speed control with three distinct settings.
- Activate Mist Function: The mist function typically activates automatically when the unit is on and water is present. If there's a dedicated mist button, press it to toggle the mist on/off.
- 야간 조명 제어: Press the night light button (if available) to turn the soft, colorful light on or off. Some models may cycle through colors or offer a single color option.
Image 5.2: The unit's soft, colorful night light feature.
- 공기 흐름 방향 조정: Manually pivot the adjustable tilt head to direct the cool mist and airflow to your preferred area.
6. 유지관리
정기적인 유지보수는 장비의 최적 성능과 수명 연장을 보장합니다.
- 물탱크 비우기 및 청소: It is recommended to empty and rinse the water tank daily, especially if using the mist function. This prevents mineral buildup and ensures fresh mist. Use a soft cloth or brush to clean the inside of the tank.
- 외부 청소: 부드러운 천으로 기기 외부를 닦아주세요.amp 천. 연마성 세척제나 용매를 사용하지 마십시오.
- 필터 교체 불필요: This unit is designed without filters requiring replacement, simplifying maintenance.
- 저장: If storing the unit for an extended period, ensure the water tank is completely empty and dry. Store in a cool, dry place.
7. 문제 해결
If you encounter issues with your Portable Air Conditioner M201, refer to the following common problems and solutions:
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 장치가 켜지지 않습니다 | 전원이 연결되지 않았거나 케이블에 결함이 있습니다. | Ensure USB cable is securely connected to both the unit and a working power source. Try a different USB port or power adapter. |
| No mist is being produced | Water tank is empty or mist function is off. | Refill the water tank. Ensure the mist function is activated (if applicable). |
| Cooling effect is weak | Low fan speed, warm water, or unit placement. | Increase fan speed. Add ice cubes to the water tank. Ensure unit is placed in a suitable area and not blocked. |
| 비정상적인 소음 | Unit not on a stable surface or internal obstruction. | Place the unit on a flat, stable surface. If noise persists, discontinue use and contact support. |
8. 사양
| 특징 | 사양 |
|---|---|
| 모델 번호 | M201 / Portable-Conditioner-01 |
| 치수(길이 x 너비 x 높이) | 5.71 x 6.54 x 5.98인치(145 x 166 x 152mm) |
| 품목 무게 | 1.23파운드(558그램) |
| 물탱크 용량 | 300밀리리터 |
| 권tage | 5 볼트 |
| 왓tage | 2 와트 |
| 소음 수준 | 30데시벨 |
| 특별 기능 | Fast Cooling, Humidification, Night Light, UV-C Sterilization |
| 인증 | CE / FCC / RoHS Compliant |
Image 8.1: Product dimensions for the Portable Air Conditioner M201.
9. 보증 및 지원
9.1 보증 정보
This Generic Portable Air Conditioner M201 comes with a 365-day "Cool Breeze Guarantee." If you experience any issues with the product within this period, please contact our customer support for assistance.
9.2 고객 지원
For technical support, warranty claims, or any questions regarding your product, please refer to the contact information provided at the point of purchase or visit the manufacturer's web해당 사이트입니다. 고객 지원팀에 문의하실 때는 모델 번호(M201)와 구매일자를 준비해 주시기 바랍니다.
