GGM Gastro KMHK13000 Ride-On Sweeper Instruction Manual

1. 서론

Thank you for choosing the GGM Gastro KMHK13000 Ride-On Sweeper. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new machine. Please read this manual thoroughly before operating the sweeper to ensure proper use and to prevent damage or injury. Keep this manual in a safe place for future reference.

2. 안전 지침

Operating the KMHK13000 requires adherence to strict safety protocols. Failure to follow these instructions may result in serious injury or damage to the equipment.

• 매뉴얼을 읽어보세요: Always read and understand the entire instruction manual before operating the sweeper.
• 승인된 직원: 본 기계는 교육을 받고 승인된 직원만 작동해야 합니다.
• 개인 보호 장비(PPE): Wear appropriate PPE, including safety glasses, hearing protection, and sturdy footwear.
• 지역 준비: Ensure the operating area is clear of obstacles, debris, and unauthorized personnel.
• 기계 검사: Before each use, inspect the machine for any damage, loose parts, or worn brushes. Do not operate if damage is found.
• 배터리 안전: Follow all battery charging and handling instructions. Avoid contact with battery acid.
• 슬로프 작업: Exercise extreme caution when operating on inclines or declines. Do not exceed recommended slope angles.
• 비상 정지 : 비상 정지 버튼의 위치와 작동 방법을 숙지하세요.
• 유지보수 안전: 유지관리나 청소를 하기 전에 전원을 분리하세요.

3. 제품 오버view

The GGM Gastro KMHK13000 is a robust ride-on sweeper designed for efficient cleaning of large areas. It features a comfortable operator cabin and multiple brushes for comprehensive debris collection.

3.1 주요 구성 요소

• Operator Cabin: Enclosed area for the driver, featuring steering wheel and controls.
• 메인 브러시: Central brush for sweeping larger debris.
• 사이드 브러시: Two front-mounted side brushes for sweeping debris from edges and corners into the path of the main brush.
• Debris Hopper: Collection container for swept materials.
• 제어판: Dashboard with ignition, lights, brush controls, and indicators.
• 바퀴: Heavy-duty wheels for stability and maneuverability.

3.2 제품 치수

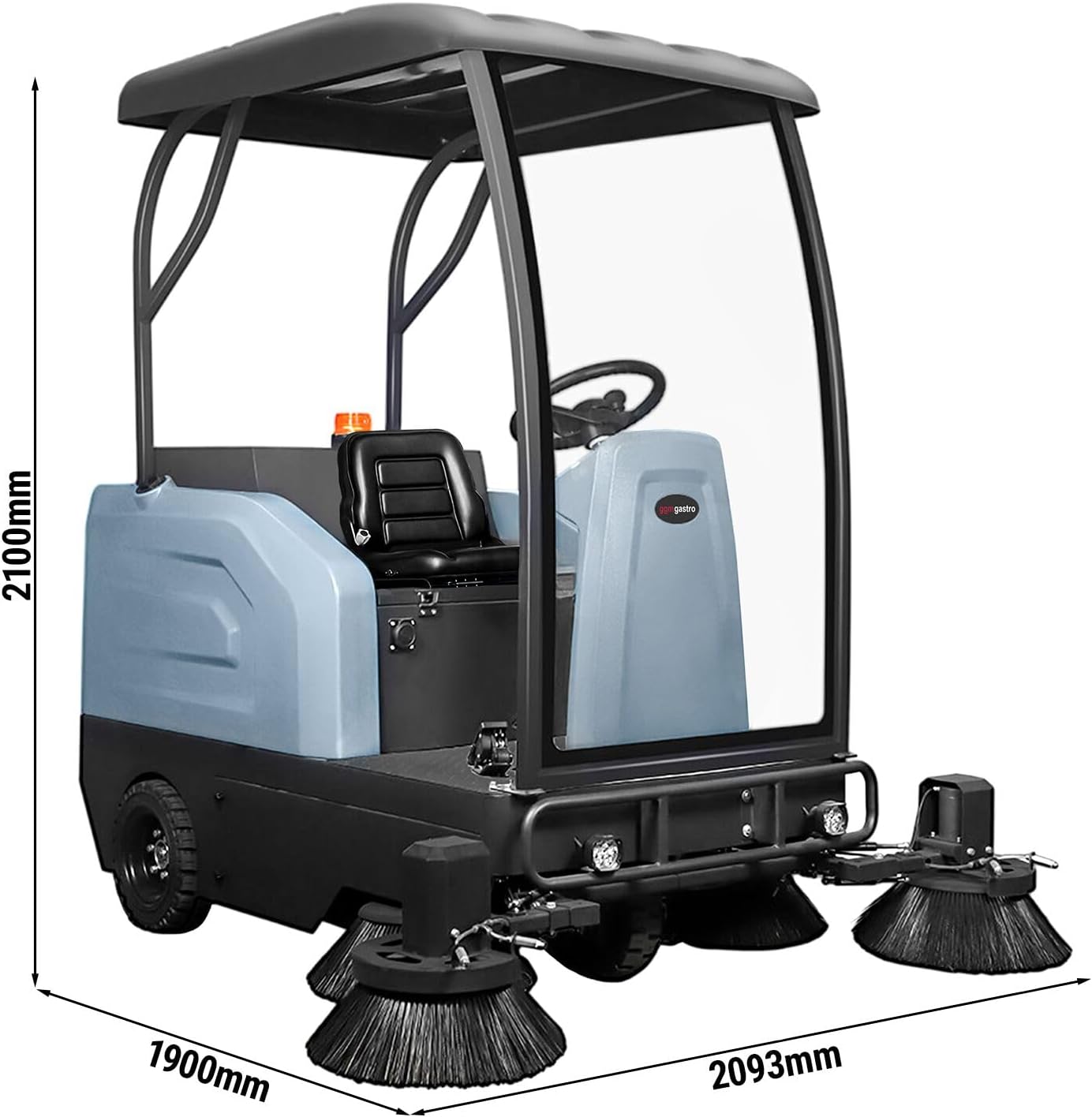

The overall dimensions of the KMHK13000 sweeper are approximately 2100 mm (height), 1900 mm (width), and 2093 mm (length). These dimensions are crucial for planning storage and operational routes.

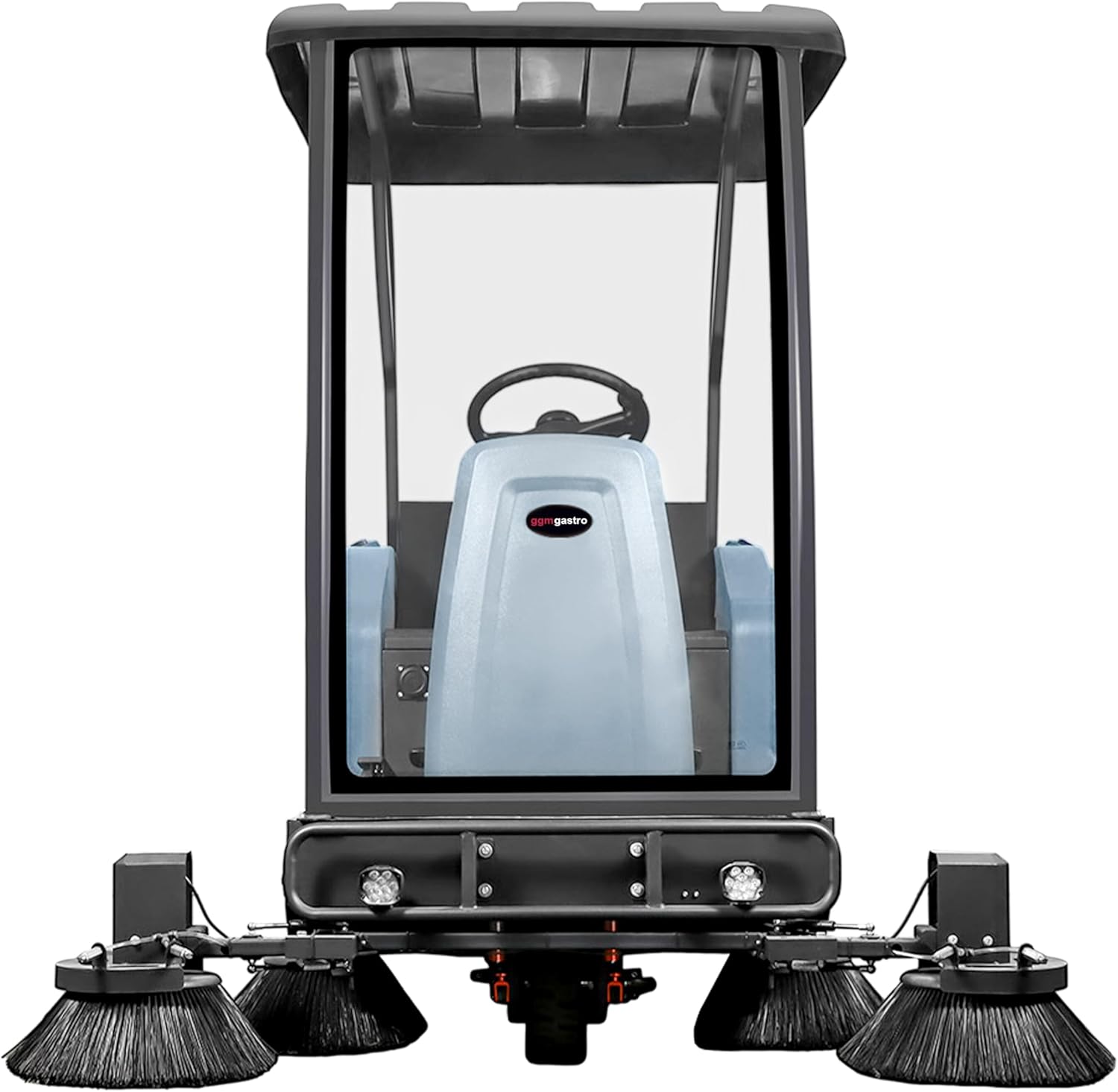

이 이미지는 명확한 view of the front of the sweeper, highlighting the operator's position and the dual side brushes designed to efficiently gather debris.

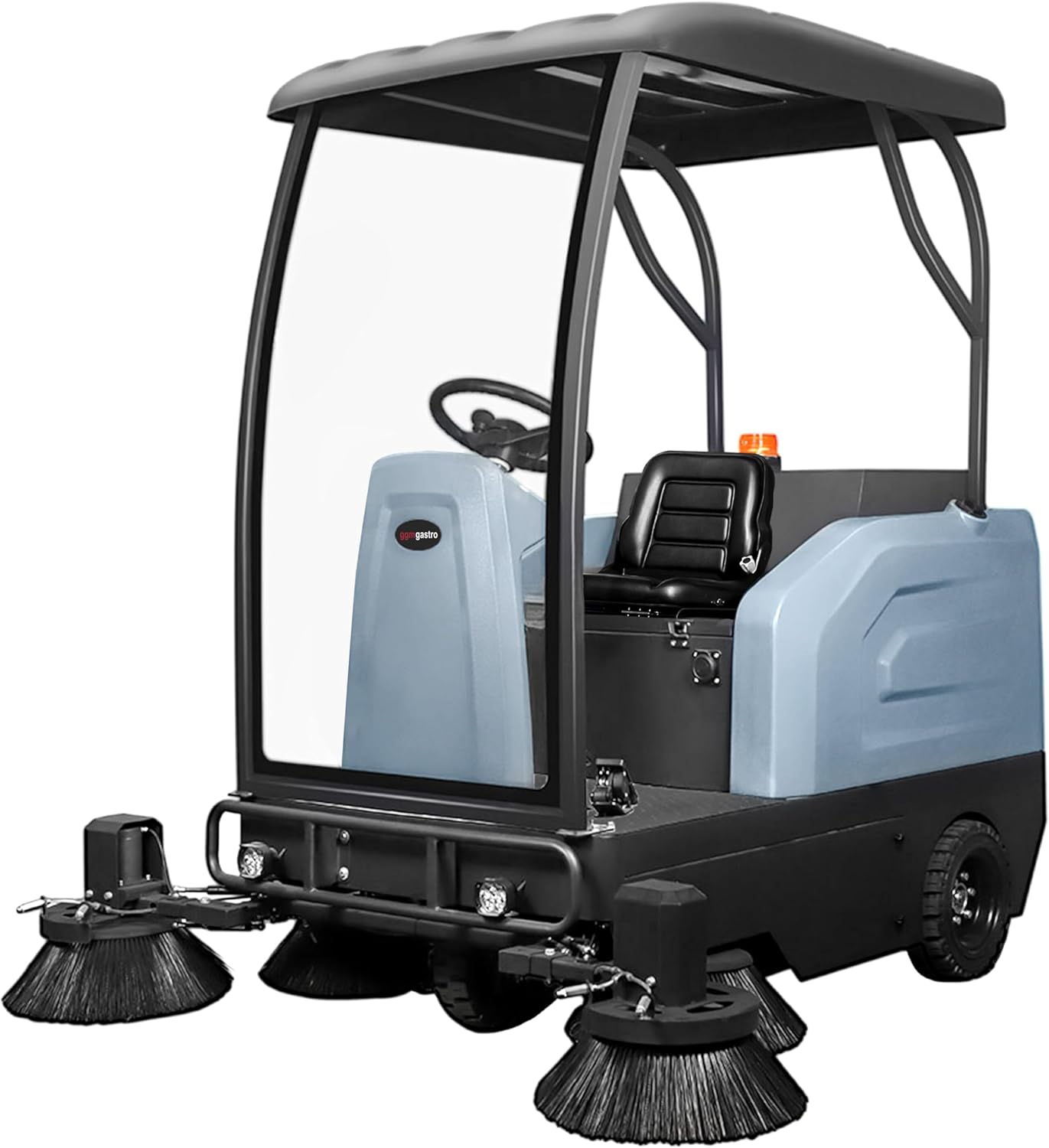

측면 view demonstrates the compact yet powerful design of the sweeper, with the operator cabin positioned centrally for optimal visibility and control.

4. 설정

Before initial operation, perform the following setup procedures:

1. 짐 풀기: Carefully remove the sweeper from its packaging. Inspect for any shipping damage.
2. 배터리 충전: Ensure the battery is fully charged before first use. Connect the charger according to the charger's instructions. Do not overcharge.
3. 브러시 설치: If brushes are not pre-installed, follow the instructions for attaching the main and side brushes securely. Ensure they are correctly aligned.
4. 유체 수준: Check all fluid levels (e.g., hydraulic fluid if applicable, battery electrolyte if not sealed). Refer to specific labels on the machine.
5. 타이어 압력: Verify that tire pressures are at the recommended levels.
6. Operator Seat Adjustment: Adjust the operator seat for comfort and optimal control access.

5. 사용 설명서

Follow these steps for safe and effective operation of the KMHK13000 sweeper.

5.1 작업 전 체크리스트

• Confirm battery charge level.
• Check brushes for wear and proper attachment.
• Empty debris hopper if necessary.
• Inspect the area to be swept for large obstacles.

5.2 Starting the Sweeper

1. Enter the operator cabin and adjust the seat.
2. 열쇠를 시동장치에 꽂고 "ON" 위치로 돌립니다.
3. Wait for system checks to complete (if applicable).
4. Engage the main power switch.

5.3 청소 작업

1. Lower the main brush and side brushes using the respective controls.
2. Select the appropriate sweeping speed.
3. Begin sweeping, maintaining a steady speed and overlapping passes for thorough cleaning.
4. Monitor the debris hopper and empty it when full to maintain sweeping efficiency.

5.4 Stopping the Sweeper

1. Raise the main brush and side brushes.
2. Drive the sweeper to a designated parking area.
3. 시동 키를 "OFF" 위치로 돌리고 빼내십시오.
4. 주차 브레이크를 채우세요.
5. Empty the debris hopper.

6. 유지관리

Regular maintenance is crucial for the longevity and optimal performance of your KMHK13000 sweeper. Always disconnect power before performing maintenance.

6.1 일일 유지 보수

• Clean the debris hopper and filter system.
• Inspect brushes for wear and entanglement. Remove any wrapped debris.
• 기계 외부를 닦으세요.
• Check battery charge and recharge as needed.

6.2 주간 유지 관리

• 타이어의 압력을 확인하세요.
• Inspect all electrical connections for corrosion or looseness.
• Lubricate moving parts as indicated in the machine's lubrication points diagram (refer to separate service manual if provided).

6.3 브러시 교체

Brushes should be replaced when bristles are significantly worn or damaged. Refer to the specific instructions for brush removal and installation, typically involving releasing retaining clips or bolts.

7. 문제 해결

This section addresses common issues you might encounter with your KMHK13000 sweeper. For problems not listed here, contact GGM Gastro customer support.

8. 사양

Key technical specifications for the GGM Gastro KMHK13000 Ride-On Sweeper.

• 모델: KMHK13000
• 상표: GGM 위장
• Working Performance: Up to 13,000 m²/h (approximate)
• 치수(길이 x 너비 x 높이): 약 2093mm x 1900mm x 2100mm
• 전원: Battery-powered (specifics may vary, refer to machine label)
• 재료: 참조: 34644
• ASIN: B0F7KYL686

9. 보증 및 지원

For warranty information, please refer to the separate warranty document provided with your purchase or contact GGM Gastro customer service. For technical support, spare parts, or service inquiries, please contact your authorized GGM Gastro dealer or visit the official GGM Gastro web대지.

GGM Gastro Official Web대지: www.ggmgastro.com
