1. 서론
This manual provides essential information for the safe and effective assembly, operation, and maintenance of your new Garden Cantilever Umbrella. Please read this manual thoroughly before use and retain it for future reference.
1.1 안전 정보
- 조립하기 전에 모든 부품이 있고 손상되지 않았는지 확인하세요.
- Always secure the umbrella base with appropriate weights (not included) to prevent tipping, especially in windy conditions.
- Do not use the umbrella in strong winds or severe weather. Close and secure it to prevent damage or injury.
- 우산을 사용하는 동안 어린이와 애완동물이 우산에 가까이 가지 않도록 하십시오.
- Regularly inspect the umbrella for any signs of wear or damage. Do not use if damaged.
2. 부품 목록
조립을 시작하기 전에 아래 나열된 모든 구성품이 패키지에 포함되어 있는지 확인하십시오.
- Cantilever Umbrella Canopy with Ribs
- 주극 조립체
- 크로스베이스
- 크랭크 핸들(사전 부착 또는 별도)
- Assembly Hardware (bolts, nuts, washers - quantity may vary)

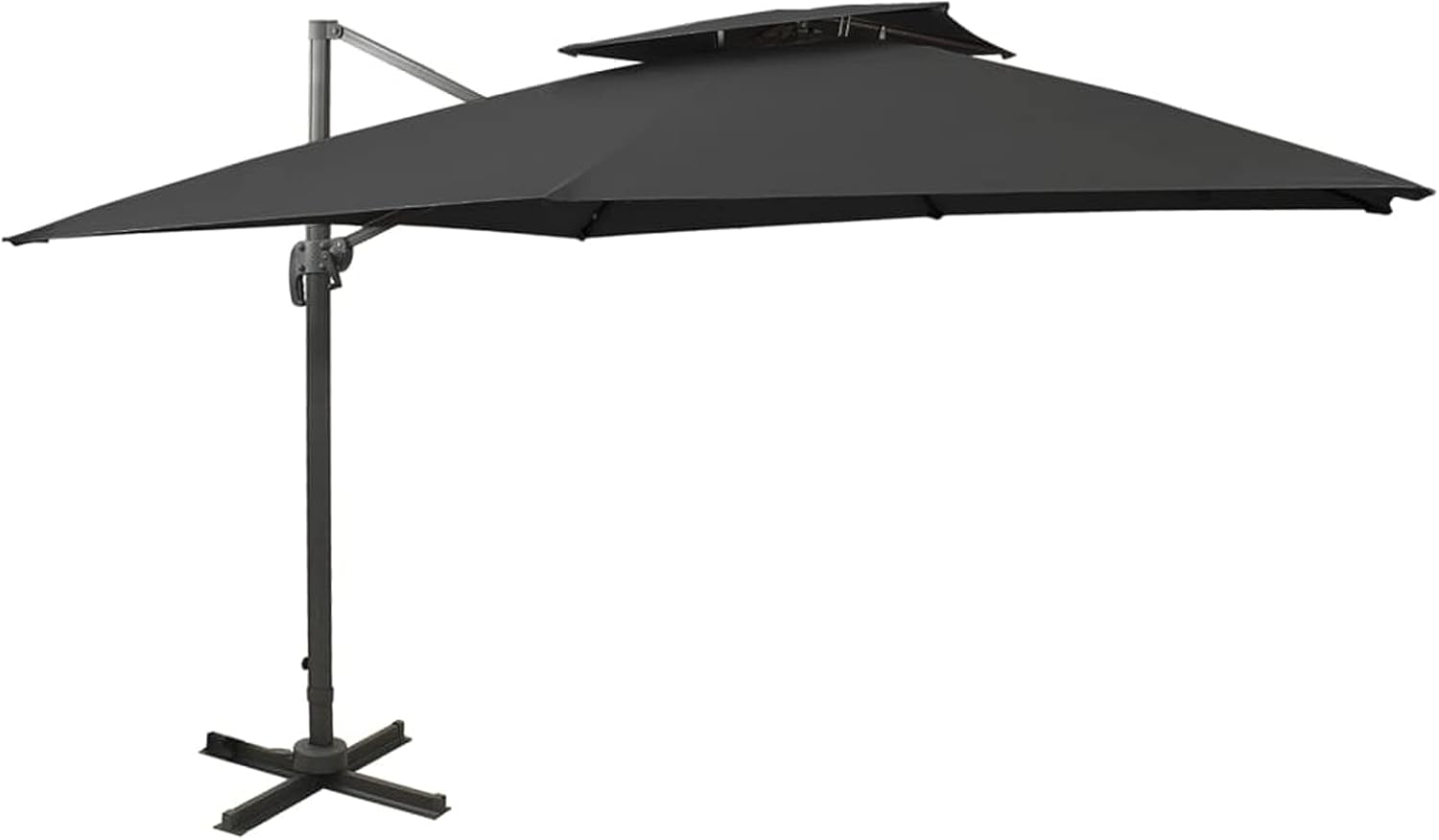

그림 2.1: 이상view of the Garden Cantilever Umbrella. This image shows the full umbrella with its canopy, pole, and cross base.
3. 설치 및 조립
Follow these steps carefully to assemble your cantilever umbrella:
- Step 1: Assemble the Cross Base. Place the cross base on a flat, stable surface. Ensure it is level.
Figure 3.1: The sturdy cross base provides stability. This image shows the cross base and the foot pedal for 360-degree rotation.
- Step 2: Attach the Main Pole. Securely attach the main pole assembly to the center of the cross base using the provided hardware. Ensure all bolts are tightened.
- 3단계: 캐노피를 고정합니다. Carefully attach the umbrella canopy to the arm extending from the main pole. Follow the specific instructions in your package for connecting the canopy to the frame.
Figure 3.2: The underside of the canopy reveals the robust rib structure. This image highlights the 8 aluminum ribs supporting the canopy.
- Step 4: Add Base Weights (Recommended). For optimal stability, especially in outdoor environments, place heavy base weights (e.g., sandbags, concrete blocks, or specialized umbrella base weights) onto the cross base. These are typically sold separately.
4. 사용 설명서
4.1 우산 열기 및 닫기
Your cantilever umbrella features a convenient crank mechanism for easy operation.
- 열려면: Turn the crank handle clockwise until the canopy is fully extended and taut. Do not over-crank.
- 닫기: Turn the crank handle counter-clockwise until the canopy is fully retracted and folded. Secure the canopy with any attached straps.
Figure 4.1: The crank mechanism allows for easy opening and closing. This image shows the handle used to operate the umbrella.
Figure 4.2: The umbrella neatly folds when closed. This image displays the umbrella in its compact, closed state.
4.2 Tilting the Canopy
The umbrella canopy can be tilted to provide optimal shade throughout the day.
- Locate the tilting handle or button on the main pole or arm.
- Press or release the mechanism and adjust the canopy to your desired angle.
- Ensure the mechanism locks securely in place after adjustment.
Figure 4.3: The umbrella features a tilting design for adjustable shade. This image illustrates the range of motion for tilting the canopy.
4.3 360도 회전
The entire umbrella can rotate 360 degrees on its base to follow the sun's movement.
- Locate the foot pedal or locking mechanism at the base of the main pole.
- Depress or release the pedal to unlock the rotation.
- 우산을 원하는 위치로 조심스럽게 돌리세요.
- Release the pedal to lock the umbrella in place.
Figure 4.4: The base allows for 360-degree rotation. This image shows the foot pedal used to unlock and rotate the umbrella.
5. 유지관리
Proper maintenance will extend the life of your umbrella.
- 청소: The polyester canopy is easy to clean. Use a mild soap solution and a soft brush or cloth. Rinse thoroughly with clean water and allow to air dry completely before closing or storing.
- 방수: If the umbrella is subjected to heavy rainfall, it is recommended to treat the fabric with a waterproofing spray periodically to maintain its water-repellent properties.
- 저장: When not in use for extended periods or during off-season, close the umbrella, secure it with its strap, and cover it with a protective cover (not included). Store in a dry, sheltered location to prevent damage from elements.
- 점검: Regularly check all bolts, nuts, and moving parts for tightness and proper function. Lubricate moving parts if necessary.
6. 문제 해결
| 문제 | 가능한 원인 | 해결책 |
|---|---|---|
| 우산이 부드럽게 펴지거나 접히지 않습니다. | 기계가 뻣뻣하거나 막혀있습니다. | Check for obstructions. Apply a silicone-based lubricant to moving parts. |
| 우산이 쉽게 넘어집니다. | Insufficient base weight or strong winds. | Add more base weights. Close umbrella in windy conditions. |
| Canopy fabric appears faded or stained. | Exposure to sun/elements or dirt accumulation. | Clean as per maintenance instructions. Consider using a protective cover when not in use. |
7. 사양
- Cover Colour: 검은색
- 재료: Fabric with PA coating, powder-coated aluminum
- 전체 치수: 300 x 300 x 258cm(길이 x 너비 x 높이)
- Cross Base Size: 100 x 100cm (길이 x 너비)
- 특징: Air vent, crank system, tilting design, 360-degree rotating design, 8 aluminum ribs, double-top canopy.
- 필요한 조립: 예
Figure 7.1: Key dimensions of the cantilever umbrella. This image provides a visual representation of the umbrella's length, width, and height.
8. 보증 및 지원
For warranty information or product support, please refer to the documentation included with your purchase or contact the retailer where the product was acquired. As this is a Generic branded product, specific warranty details may vary by seller.
