Poedagar Mens Automatic Mechanical Watch POE805L-001 Instruction Manual

1. 서론

This manual provides detailed instructions for the proper use, setup, and maintenance of your Poedagar Automatic Mechanical Watch, model POE805L-001. Please read this manual carefully to ensure optimal performance and longevity of your timepiece.

2. 제품 오버view 및 기능

Your Poedagar watch is a sophisticated automatic mechanical timepiece designed for business and casual wear. It features a self-winding movement, Roman numerals dial, and a durable stainless steel construction.

주요 특징:

• 자동 기계식 무브먼트: Self-winding, no battery required.
• Multifunctional Chronograph Design: 요일, 날짜 및 월을 표시합니다.
• Skeleton Tourbillon: Visible internal movement on the dial.
• 발광 디스플레이: Hands and markers glow in the dark for visibility.
• 방수 기능: 3Bar (30 meters) for daily use.
• 내구성 있는 구조: 스테인리스 스틸 케이스와 밴드.

시계 구성 요소:

1. 왕관: Used for setting time and winding.
2. 푸시 버튼: Used for adjusting day, date, and month subdials.
3. 다이얼: Displays time, day, date, and month.
4. 소유: 시침, 분침, 초침.
5. 사례: Protects the internal movement.
6. 밴드: Stainless steel bracelet.
7. 걸쇠: Push Button Hidden Clasp for secure wearing.
8. Hollow Bottom Glass: Transparent case back to view 움직임.

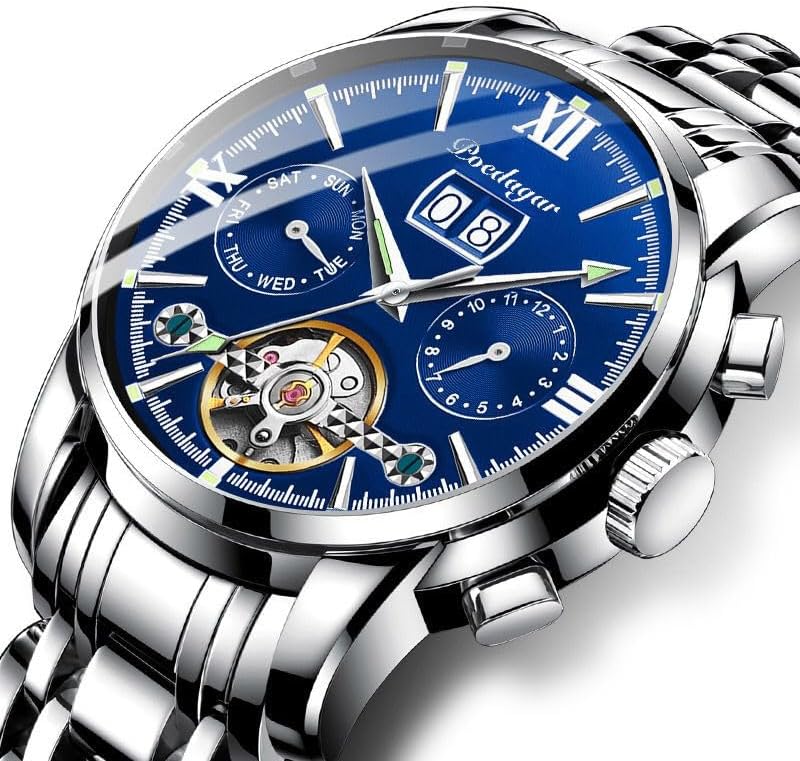

그림 2.1: 전면 view of the Poedagar Automatic Mechanical Watch with a blue dial and silver-tone stainless steel band.

그림 2.2: 전면 view of the Poedagar Automatic Mechanical Watch with a black dial and black-tone stainless steel band.

Figure 2.3: The Poedagar Automatic Mechanical Watch worn on a wrist, showcasin디자인이 그렇습니다.

3. 설정 및 초기 사용

3.1. 시계 감기

As an automatic mechanical watch, it is powered by the motion of your wrist. However, for initial use or if the watch has stopped, it can be manually wound:

• 크라운이 완전히 안쪽으로 밀려 들어간 위치(위치 0)에 있는지 확인하십시오.
• 용두를 시계 방향으로 약 20~30회 돌리십시오. 이렇게 하면 시계를 작동시키는 데 필요한 동력이 충분히 확보됩니다.
• The watch will continue to wind itself with regular wear. If worn daily for 8-10 hours, manual winding may not be necessary.

3.2. 시간 설정

1. 크라운을 1번 위치(가장 바깥쪽 위치)까지 당겨 빼냅니다.
2. Rotate the crown to move the hour and minute hands clockwise or counter-clockwise until the desired time is set.
3. 시간 설정이 완료되면 용두를 0번 위치로 다시 밀어 넣으십시오.

3.3. Setting Day, Date, and Month

Your watch features subdials for Day, Date, and Month. These are typically adjusted using small recessed push buttons on the side of the watch case. Use a small, non-sharp tool (like a toothpick or the end of a paperclip) to press these buttons.

• 날짜 설정: Locate the recessed button for the date subdial (usually near the 4 o'clock or 8 o'clock position). Press it repeatedly until the correct date is displayed.
• 날짜 설정: Locate the recessed button for the day subdial (usually near the 2 o'clock or 10 o'clock position). Press it repeatedly until the correct day of the week is displayed.
• 월 설정: Locate the recessed button for the month subdial (usually near the 6 o'clock or 12 o'clock position). Press it repeatedly until the correct month is displayed.

Caution: Do not attempt to set the date, day, or month between 9:00 PM and 3:00 AM, as this can damage the movement. Adjust these functions outside of this time window.

그림 3.1: 상세 view of the watch dial highlighting the month, week, day displays, and the skeleton tourbillon.

4. 시계 작동

Once set, your automatic watch will operate continuously as long as it is worn regularly. The self-winding mechanism harnesses the kinetic energy from your arm's motion to power the watch. If the watch is not worn for an extended period (typically 36-48 hours), it may stop and require manual winding and time/date adjustment.

발광 디스플레이:

The watch features a luminous display on its hands and hour markers. After exposure to light, these elements will glow in low-light conditions, allowing for easy time reading in the dark.

Figure 4.1: The watch dial displaying its luminous hands and markers in a dark environment.

5. 유지관리 및 관리

5.1. 청소

• 시계 케이스와 밴드는 먼지와 지문을 제거하기 위해 부드럽고 마른 천으로 정기적으로 닦아주세요.
• 스테인리스 스틸 밴드의 경우, 약간 damp 천을 사용한 후 마른 천으로 닦아주세요. 강한 화학 물질이나 연마재는 사용하지 마세요.

5.2. Water Resistance (3ATM / 30 Meters)

Your watch is rated for 3ATM (30 meters) water resistance. This means it is suitable for daily use, such as accidental splashes, rain, and hand washing. It is not suitable for showering, bathing, swimming, diving, or any water sports.

• Do not operate the crown or push buttons when the watch is wet or submerged in water.
• 방수 기능을 유지하려면 크라운이 항상 완전히 안으로 밀려 들어가 있는지 확인하십시오.

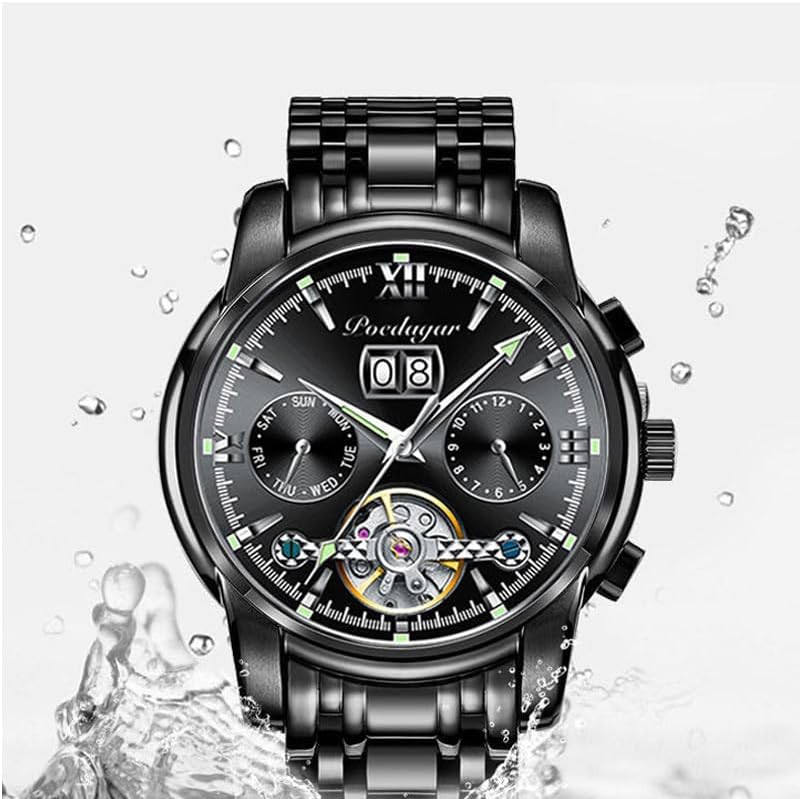

Figure 5.1: The watch case with water droplets, illustrating its resistance to splashes.

5.3. 일반 관리

• 시계를 극한의 온도(더위나 추위)나 급격한 온도 변화에 노출시키지 마세요.
• 시계는 강한 자기장으로부터 멀리 두십시오. 강한 자기장은 기계식 무브먼트의 정확도에 영향을 미칠 수 있습니다.
• Avoid dropping the watch or subjecting it to strong impacts.
• For optimal performance, it is recommended to have your mechanical watch serviced by a professional watchmaker every 3-5 years.

6. 문제 해결

Watch Stops or Runs Inaccurately:

• 전력 예비가 부족합니다: If the watch has not been worn for a while or not enough movement has occurred, it may stop. Manually wind the watch by rotating the crown clockwise 20-30 times.
• 자기 간섭: Exposure to strong magnetic fields (e.g., from speakers, refrigerators, or certain electronic devices) can affect the watch's accuracy. If you suspect this, a watchmaker can demagnetize it.
• 영향: A severe impact can affect the delicate internal components. If the watch continues to run inaccurately after winding, professional inspection may be required.

Date/Day/Month Not Changing Correctly:

• Ensure you are not attempting to adjust these functions between 9:00 PM and 3:00 AM.
• Verify that the crown is fully pushed in after setting the time.

7. 사양

Figure 7.1: Image displaying the watch alongside its key specifications.

참고: 사양은 대략적인 것이며 변경될 수 있습니다.

8. 보증 및 지원

보증 정보:

Your Poedagar Automatic Mechanical Watch comes with a 평생 보증본 보증은 정상적인 사용 조건에서 발생하는 제조상의 결함에 적용됩니다. 부적절한 취급, 사고, 무단 수리 또는 정상적인 마모로 인한 손상은 보증 대상에서 제외됩니다.

보증 청구 또는 서비스를 받으시려면 구매 증빙 자료를 보관해 주십시오.

고객 지원:

If you have any questions, require assistance with your watch, or need to initiate a warranty claim, please contact the seller, POEDAGAR OFFICIAL STORE, through the platform where you made your purchase. You can also visit the Poedagar Store on Amazon 자세한 내용은.
